GT 5024 (14AQ94KP897) - Columbia 50" Garden Tractor (2013) Mower Deck 50-Inch Parts Diagram

50" Garden Tractor

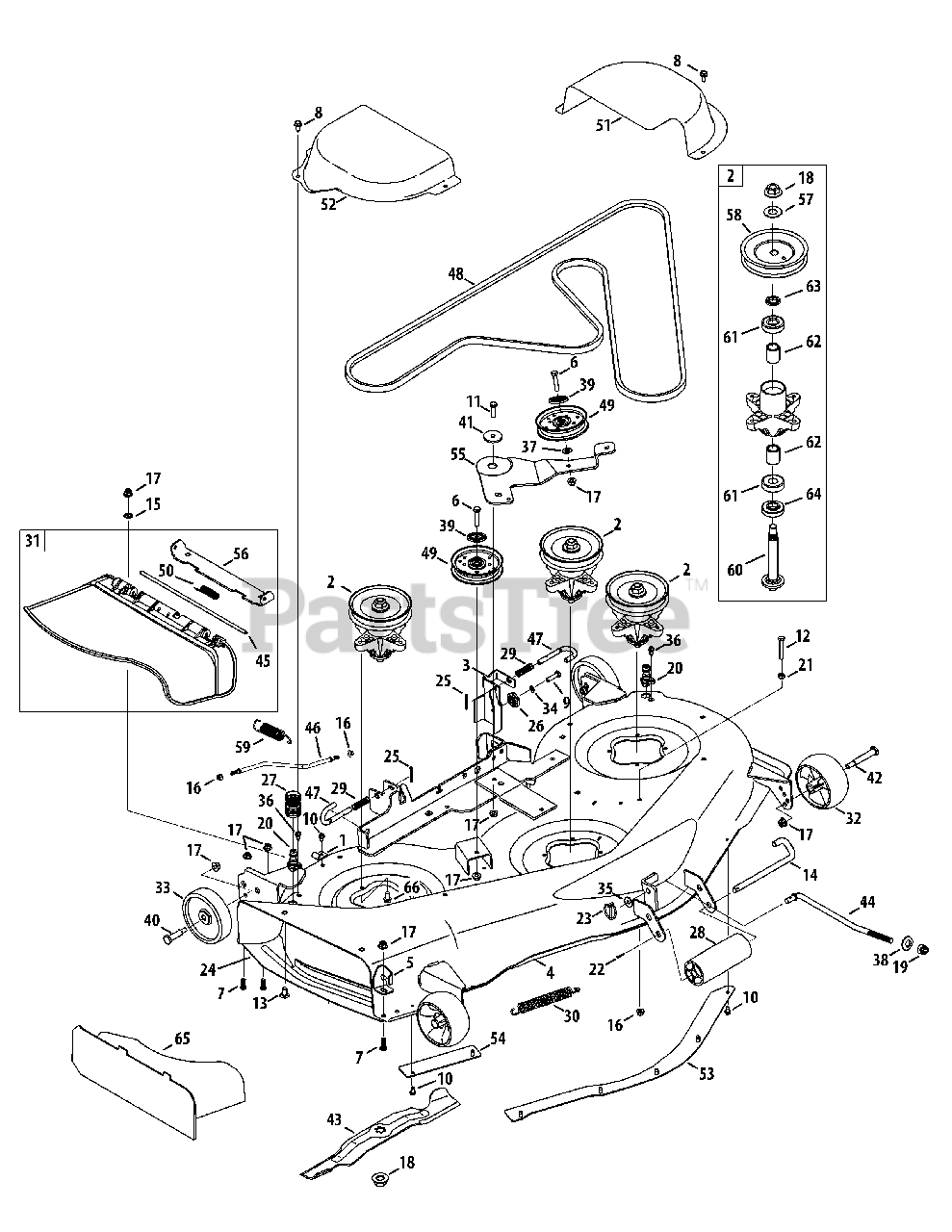

Mower Deck 50-Inch Parts Diagram

  • Title

1

MTD 96606

Retainer Hook Brkt.

$6.99

$

In Stock, Qty 14

0

2

MTD 918-04125B

Spindle Assembly
(Superseded to 918-04125C)

$133.99

$

In Stock, Qty 20+

0

3

MTD 683-0254B-0606

Deck Hanger Bracket Ass'y
(Superseded to 683-0254B-0637)

$46.99

$

Usually ships in 3-6 days

0

4

MTD 983-04644A-0606

Deck 50"

$844.99

$

Usually ships in 3-6 days

0

5

MTD 703-3279-0606

Chute Deflector Stop
(Superseded to 703-3279)

$37.99

$

In Stock, only 3 left!

0

6

MTD 710-0347

Hex Screw 3/8-16 x 1.75

$4.99

$

In Stock, Qty 20+

0

7

MTD 710-04095

Screw, 3/8-16 x 1.0

$4.99

$

In Stock, Qty 20+

0

8

MTD 710-04484

SCREW 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

9

MTD 710-0528

Hex Bolt 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$3.99

$

In Stock, Qty 20+

0

11

MTD 710-3005

Hex Bolt 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

12

MTD 710-3103

Hex Hd Cap Scr. 5/16-18 x 2.0 Gr. 5

$4.49

$

In Stock, Qty 19

0

13

MTD 710-3178

CARRIAGE BOLT 3/8-16 x .75

$3.99

$

In Stock, Qty 20+

0

14

MTD 911-3314

Roller Pin
(Superseded to 711-3314A)

$23.99

$

In Stock, Qty 20+

0

15

MTD 712-0229

Push Nut 3/8

$3.49

$

In Stock, Qty 20+

0

16

MTD 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

17

MTD 712-04065

Flange Lock-Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

18

MTD 712-0417A

HEX NUT

$6.99

$

In Stock, Qty 20+

0

19

MTD 712-04243

Flexlock Nut 1/2-13

$3.99

$

In Stock, Qty 20+

0

20

MTD 731-07487

Deck Water Nozzle

$4.49

$

In Stock, Qty 20+

0

21

MTD 912-3010

Hex Nut 5/16-18 hd. (Gr. t5)
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

22

MTD 914-0111

Cotter Pin 3/32 x 1.0
(Superseded to 714-0111)

$4.49

$

In Stock, Qty 20+

0

23

MTD 753-04070

Lynch Pin, .1875

$9.49

$

In Stock, Qty 20+

0

24

MTD 703-3511B-0637

Finger Guard

$65.99

$

In Stock, Qty 20+

0

25

MTD 914-0470

Cotter Pin 1/8" Dia x 1.25
(Superseded to 714-0470)

$3.99

$

In Stock, Qty 20+

0

26

MTD 917-04074

Deck Adjustment Gear

$12.99

$

In Stock, Qty 20+

0

27

MTD 921-04041

Water Nozzle Adaptor

$21.99

$

In Stock, Qty 20+

0

28

MTD 731-05679

Front Roller
(Superseded to 731-05679B)

$16.99

$

In Stock, Qty 20+

0

29

MTD 732-04652

Compression Spring .535 OD x 1.75" Lg.

$6.49

$

In Stock, Qty 20+

0

30

MTD 732-0459C

Extension Spring .94 x 6.74

$17.99

$

In Stock, Qty 20+

0

31

MTD 631-04092B

Chute Ass'y
(Superseded to 631-04092C)

$56.99

$

Usually ships in 3-6 days

0

32

MTD 734-04155

Deck Wheel 5.0

$19.99

$

In Stock, Qty 20+

0

33

MTD 734-0973

PLASTIC WHEEL 5X1.38

$12.99

$

In Stock, Qty 20+

0

34

MTD 936-0119

L-Wash 5/16 ID

$4.49

$

In Stock, Qty 20+

0

35

MTD 936-0179

Flat Washer .531 ID x 1.25 OD x .100
(Superseded to 736-0179)

$4.49

$

In Stock, Qty 20+

0

36

MTD 738-04278

Shoulder Screw 1/4-20 x 0.50

$6.49

$

In Stock, Qty 20+

0

37

MTD 936-0300

Flat Washer .406 ID x .875 OD x .059
(Superseded to 736-0300)

$3.99

$

In Stock, Qty 20+

0

38

MTD 736-0317

Cupped Washer .63 x 1.25 x .18

$7.49

$

In Stock, Qty 20+

0

39

MTD 783-07236

Pulley Cap

$4.99

$

In Stock, Qty 20+

0

40

MTD 938-0373

Shoulder Bolt .498 Dia x 1.53 x 3/8-16

$8.49

$

In Stock, Qty 20+

0

41

MTD 738-04162C

Spacer, Shoulder .884 x .190

$12.99

$

In Stock, Qty 20+

0

42

MTD 938-3056

Shoulder Screw

$8.99

$

In Stock, Qty 20+

0

43

MTD 942-04053C

Blade 17.90

$28.99

$

In Stock, Qty 20+

0

44

MTD 747-05141A

Front Deck Lift Rod
(Superseded to 747-05141B)

$20.99

$

In Stock, Qty 20+

0

45

MTD 711-04565

Hinge Pin .3125 x 7.96

$14.99

$

In Stock, Qty 5

0

46

MTD 747-05462

Deck Sway Rod

$31.99

$

In Stock, Qty 7

0

47

MTD 747-1116

Deck Release Pin

$11.99

$

In Stock, Qty 20+

0

48

MTD 954-04107

V-Belt

$141.99

$

In Stock, only 1 left!

0

49

MTD 756-04129B

Idler Pulley
(Superseded to 753-08171)

$33.99

$

In Stock, Qty 20+

0

50

MTD 732-04372

Torsion Spring

$9.49

$

In Stock, Qty 20+

0

51

MTD 783-05280-0606

LH Belt Cover

$76.99

$

Usually ships in 3-6 days

0

52

MTD 783-05281-0606

RH Belt Cover

$73.99

$

Usually ships in 3-6 days

0

53

MTD 783-04414A-0606

Deck Skirt Center

$32.99

$

In Stock, only 2 left!

0

54

MTD 783-04415-0606

Deck Shirt RH

$28.99

$

In Stock, Qty 5

0

55

MTD 783-05303-0637

Idler Bracket

$56.99

$

In Stock, only 1 left!

0

56

MTD 783-05030

Chute Bracket

$27.99

$

In Stock, Qty 7

0

57

MTD 736-0315

Flat Washer .760 ID x 1.50 OD x .120

$6.49

$

In Stock, Qty 7

0

58

MTD 756-04216

Deck Pulley

$30.99

$

In Stock, Qty 14

0

59

MTD 732-0934

Extension Spring 1.15 OD x 5.99

$10.99

$

In Stock, only 2 left!

0

60

MTD 738-1010A

Spindle Shaft

$46.99

$

In Stock, Qty 13

0

61

MTD 941-0919A

Ball Bearing 20 x 47 x 14:6204:DS
(Superseded to 941-0919B)

$20.99

$

In Stock, Qty 20+

0

62

MTD 750-1000

Spacer .800 x 1.10 x 1.322

$4.49

$

In Stock, Qty 19

0

63

MTD 748-0160A

Spacer .790 x 1.25 x 1.75

$6.49

$

In Stock, Qty 9

0

64

MTD 750-1349A

Spacer .79 x 1.82 x .55

$12.99

$

In Stock, Qty 5

0

65

MTD 731-04651

Mulching Plug

$78.99

$

In Stock, Qty 6

0

66

MTD 710-1260A

Hex. TT Screw 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0
