GT 5024 (14AQ94KP897) - Columbia 50" Garden Tractor (2014) Engine Accessories Parts Diagram

50" Garden Tractor

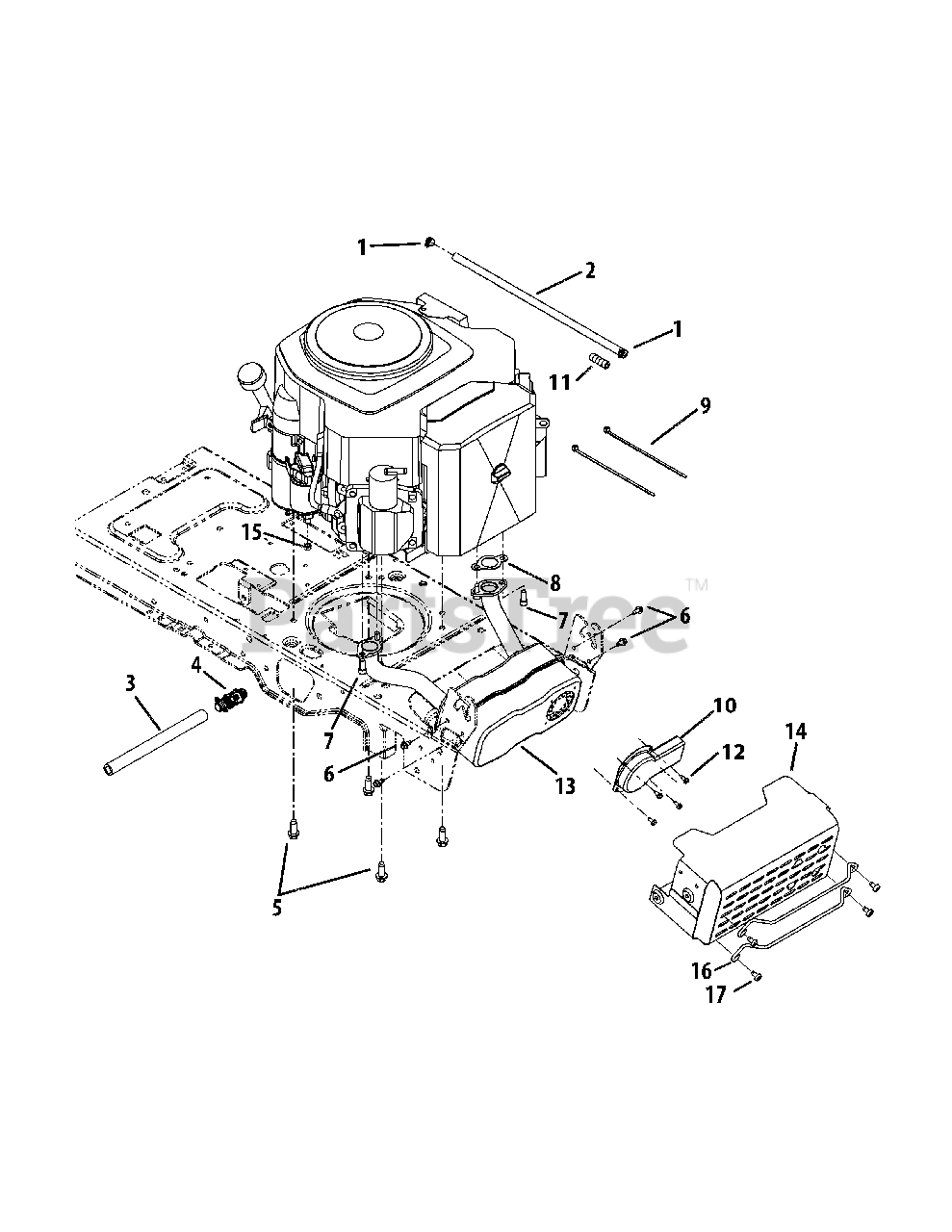

Engine Accessories Parts Diagram

  • Title

1

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

2

MTD 751-10349-16

Fuel Line 16" Lg.

$18.99

$

In Stock, Qty 13

0

3

MTD 751-3141-14

Oil Drain Hose

$11.99

$

In Stock, Qty 20+

0

4

MTD 951-10517A

Oil Drain

$22.99

$

In Stock, Qty 20+

0

5

MTD 710-04683B

TT Screw 3/8-16 x 1.00
(Superseded to 710-04683C)

$6.49

$

In Stock, Qty 15

0

6

MTD 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-1314A

Scr. 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

8

MTD KH-24-041-49-S

Exhaust Gasket

$

$

Not available

9

MTD 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

10

MTD 751-11053A

Long Muffler Deflector
(Superseded to 751-11053B)

$4.99

$

In Stock, Qty 18

0

11

MTD 751-12089-28

Vent Hose (optional)

$8.49

$

In Stock, only 2 left!

0

12

MTD 710-0227

Hex AB Scr #8-18 x .50

$3.99

$

In Stock, Qty 20+

0

13

MTD 751-10528B

Muffler
(Superseded to 951-10528B)

$149.99

$

Usually ships in 3-6 days

0

14

MTD 683-04549A-0637

Muffler Shield Assembly
(Superseded to 683-05460A-0637)

$74.99

$

Usually ships in 3-6 days

0

15

MTD 712-0271

Hex Sems Nut 1/4-20

$4.49

$

In Stock, Qty 19

0

13

MTD 747-06404

Muffler Guard Rod
(Superseded to 747-06404A-0637)

$6.99

$

Usually ships in 3-6 days

0

18

MTD 710-05070A

TT Pan Hd Scr. 1/4-20 x .50

$6.49

$

In Stock, Qty 12

0
