GT 52 F (96043020000) - Jonsered Garden Tractor (2014-10) CHASSIS / FRAME Parts Diagram

Garden Tractor

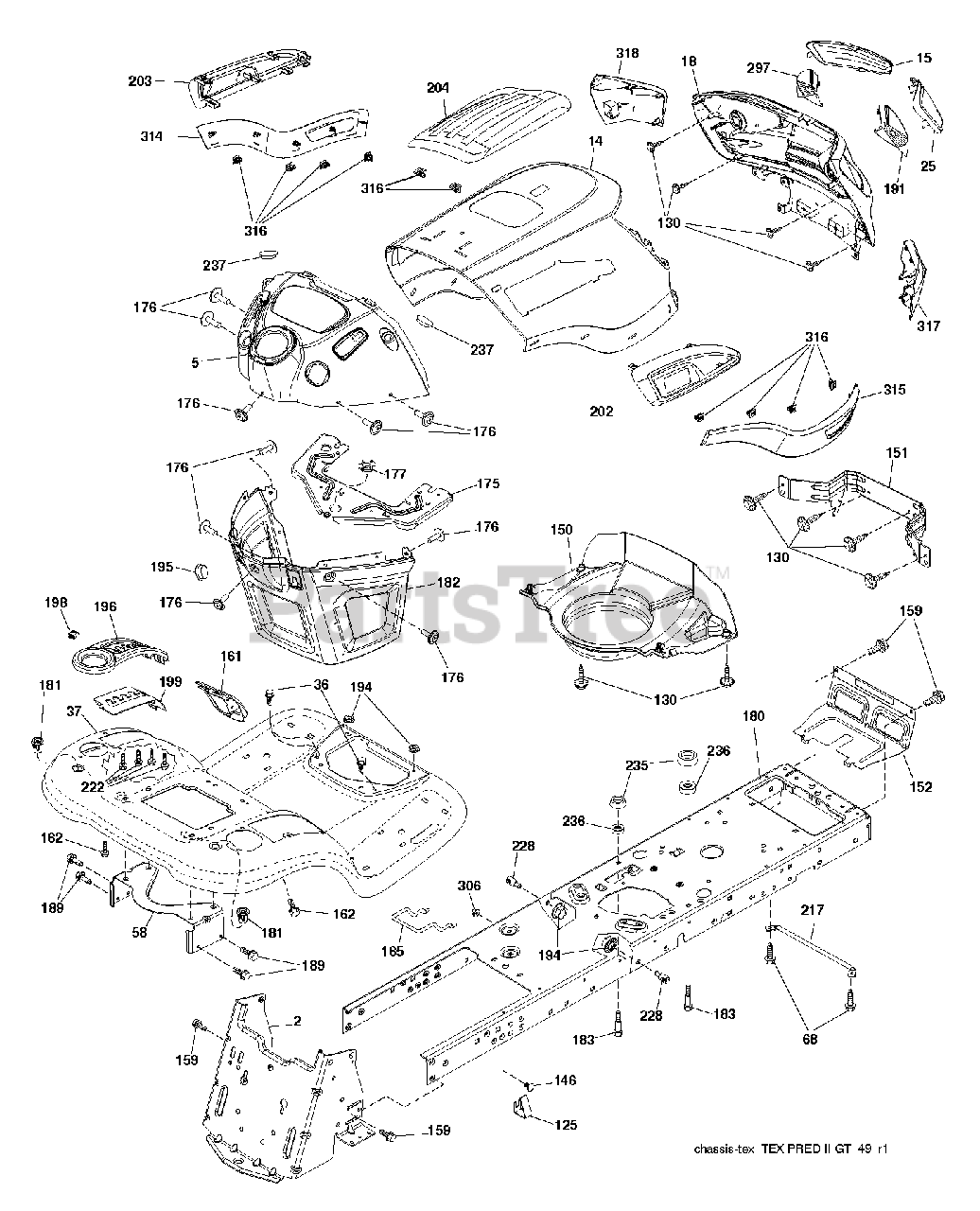

CHASSIS / FRAME Parts Diagram

  • Title

2

Jonsered 580434401

DRAWBAR.STGT

$125.99

$

In Stock, Qty 6

0

5

Jonsered 532424738

No Description Available

$59.99

$

Usually ships in 3-10 days

0

14

587962601

$

$

Not available

15

587898601

Note: LH

$

$

Not available

18

587785701

$

$

Not available

25

587898401

Note: RH

$

$

Not available

36

Jonsered 817060512

SCREW 5/16"
(Superseded to 532171877)

$5.99

$

In Stock, Qty 10

0

37

Jonsered 532443816

No Description Available

$

$

Not available

58

Jonsered 532194314

BRKT.SUPPORT.FNDR/TANK

$17.99

$

Usually ships in 3-10 days

0

68

Jonsered 817490508

SCREW LT
(Superseded to 539990858)

$

$

Not available

125

Jonsered 581684801

Fuel Line Clip

$3.49

$

Usually ships in 3-10 days

0

130

Jonsered 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.99

$

In Stock, Qty 13

0

146

Jonsered 581857901

BOLT.RDHD.SHT.SQNK.3

$3.99

$

Usually ships in 3-10 days

0

150

Jonsered 584862901

PREDATOR.YT.GT.HOOD.A

$

$

Not available

151

Jonsered 532445494

No Description Available

$37.99

$

Usually ships in 3-10 days

0

152

Jonsered 532194329

SHIELD.BROWNING/DEBRIS

$23.99

$

Usually ships in 3-10 days

0

159

Jonsered 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

161

Jonsered 532411879

CONSOLE.FUEL.WINDOW.STGT.BLACK

$3.99

$

Usually ships in 3-10 days

0

162

Jonsered 532142432

SCREW.HI-LO.CONSOLE
(Superseded to 596134101)

$3.99

$

In Stock, Qty 14

0

165

Jonsered 532194330

SUPPORT.TANK.REAR.B/TE

$23.99

$

Usually ships in 3-10 days

0

175

Jonsered 532196304

PLATE.CROSSMEMBER.HUSQ
(Superseded to 590607702)

$41.99

$

Usually ships in 3-10 days

0

176

Jonsered 532400776

SCREW.#10-24X5/8.RN.QU

$4.99

$

Usually ships in 3-10 days

0

177

Jonsered 532195228

BUSHING STEERING

$5.99

$

In Stock, Qty 20+

0

180

Jonsered 532445559

CHASSIS.TEX.BOLTED
(Superseded to 582033101)

$359.99

$

Usually ships in 3-10 days

0

181

Jonsered 532439746

BUSHING.MNT.FEND.CRGO.TEX.49
(Superseded to 532403025)

$

$

Not available

182

Jonsered 532406859

DASH.LOWER.COMMON.12V.ADAPTOR

$131.99

$

In Stock, only 1 left!

0

183

Jonsered 874520520

BOLT.5/16-18X1-1/4 FULL THD
(Superseded to 595305701)

$4.99

$

In Stock, only 2 left!

0

189

Jonsered 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 20+

0

191

532425407

$

$

Not available

194

Jonsered 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, Qty 20+

0

195

Jonsered 532404137

PLUG.HOLE.DASH.LOWER.12V.BLK

$3.99

$

Usually ships in 3-10 days

0

196

Jonsered 532411878

No Description Available

$21.99

$

Usually ships in 3-10 days

0

198

Jonsered 532441552

INDICATOR.DECK.LIFT.RED

$14.99

$

Usually ships in 3-10 days

0

199

Jonsered 532196377

PLATE DECK LIFT

$8.49

$

Usually ships in 3-10 days

0

202

Jonsered 587785201

VENT.SIDE.RH.PRED2.GTYT.JONS

Note: RH

$

$

Not available

203

Jonsered 587785101

VENT.SIDE.LH.PRED2.GTYT.JONS

Note: LH

$28.99

$

Usually ships in 3-10 days

0

204

587963201

$

$

Not available

217

Jonsered 532409167

ROD.PIVOT.HOOD

$14.99

$

In Stock, only 2 left!

0

222

Jonsered 532137729

SCREW.1/4-20X5/8

$2.49

$

In Stock, Qty 20+

0

228

Jonsered 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

235

Jonsered 532406129

SPACER FENDER
(Superseded to 596564201)

$5.99

$

Usually ships in 3-10 days

0

236

Jonsered 873930500

NUT.CENTERLOCK.5/16-

$3.49

$

In Stock, only 4 left!

0

237

Jonsered 532403704

PLUG.MOUNT.CARGO.BLK

$4.99

$

Usually ships in 3-10 days

0

297

532425406

$

$

Not available

306

Jonsered 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

314

587783901

Note: LH

$

$

Not available

315

Jonsered 587783801

TRIM.SIDE.GT/PRED2.RH.52

Note: RH

$

$

Not available

316

532421699

$

$

Not available

317

587963501

$

$

Not available

318

587963301

$

$
