GT 52 F (96043020000) - Jonsered Garden Tractor (2014-10) MOWER DECK / CUTTING DECK Parts Diagram

Garden Tractor

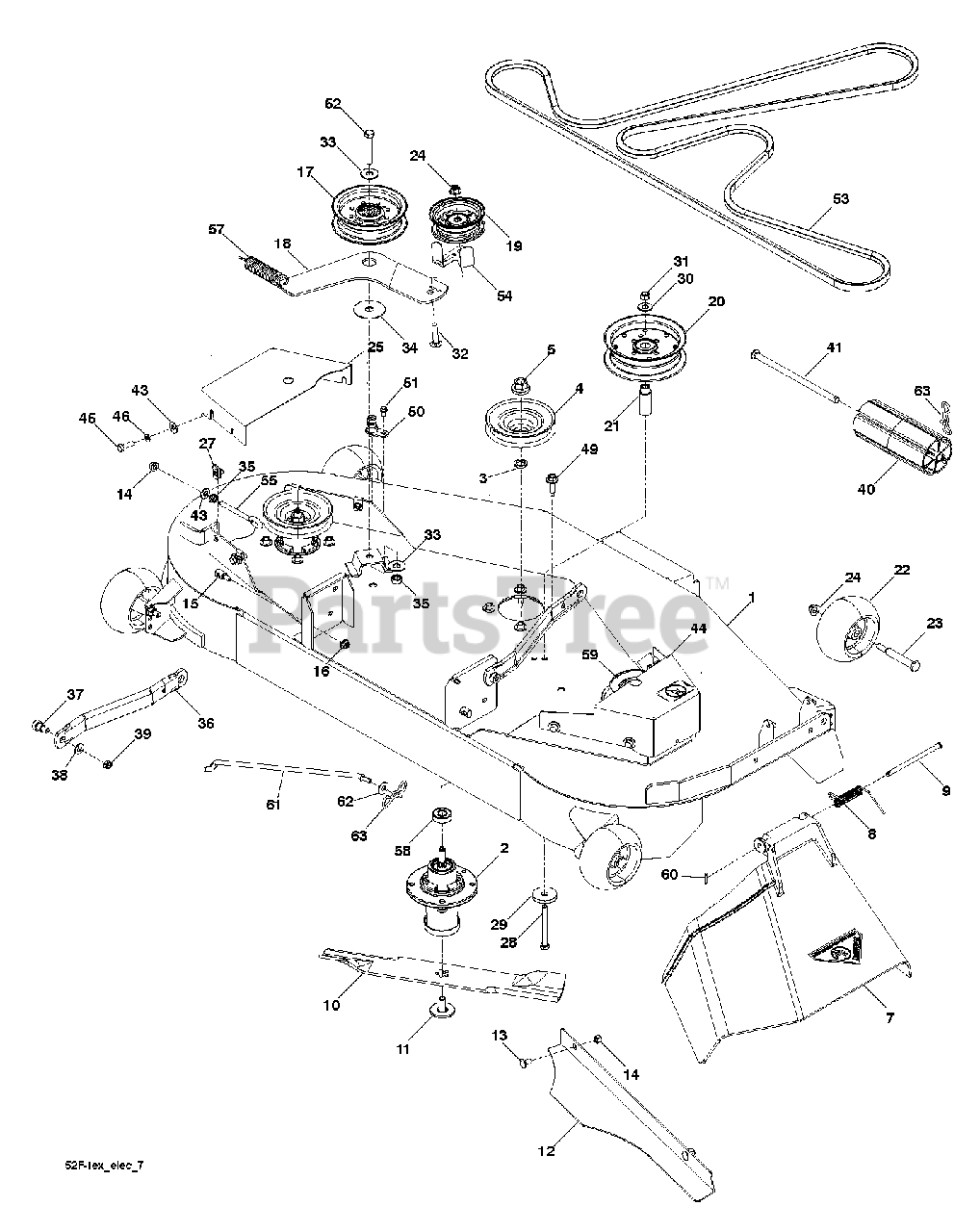

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

574804401

$

$

Not available

2

Jonsered 539112170

HOUSING ASM

Note: LH

$74.99

$

In Stock, Qty 20+

0

3

Jonsered 539187690

WASHER.SPACER USE 532187690
(Superseded to 532187690)

Note: RH

$3.49

$

In Stock, Qty 20+

0

4

Jonsered 532174375

PULLEY.IDLER.DRIVEN

$37.99

$

In Stock, Qty 12

0

5

Jonsered 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0

7

Jonsered 539110733

DISCHARGE CHUTE 52"

$53.99

$

In Stock, Qty 20+

0

8

Jonsered 539110735

SPRING - TORSION
(Superseded to 596646001)

$3.99

$

In Stock, Qty 18

0

9

Jonsered 539110736

PIN-CLEVIS 5/16 DIA X 5.19 ZD
(Superseded to 595935501)

$3.99

$

In Stock, Qty 20+

0

10

Jonsered 574870801

BLADE, 17.75 X 2.5 X .25

$21.99

$

In Stock, Qty 20+

0

11

Jonsered 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

In Stock, Qty 20+

0

12

Jonsered 574875002

PLATE, 52" CONF. BLK

$53.99

$

Usually ships in 3-10 days

0

13

Jonsered 872110505

BOLT
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

14

Jonsered 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

15

Jonsered 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

16

Jonsered 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 20+

0

17

Jonsered 532196104

PULLEY.IDLER.MWR.STATI

$34.99

$

In Stock, Qty 20+

0

18

Jonsered 574841802

ARM, IDLER, 52" BLK

$37.99

$

In Stock, only 1 left!

0

19

Jonsered 532177968

PULLEY, IDLER, FLAT

$24.99

$

In Stock, Qty 20+

0

20

Jonsered 539132728

PULLEY, IDLER
(Superseded to 589766102)

$29.99

$

In Stock, Qty 20+

0

21

Jonsered 575224501

BUSHING, IDLER

$24.99

$

In Stock, only 4 left!

0

22

Jonsered 532133957

WHEEL GAGE DONUT

$13.99

$

In Stock, Qty 20+

0

23

Jonsered 532193406

BOLT.SHOULDER.3/8-16X3-5/8
(Superseded to 596434404)

$3.49

$

In Stock, Qty 20+

0

24

Jonsered 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.99

$

In Stock, Qty 20+

0

25

575224703

$

$

Not available

27

Jonsered 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 16

0

28

Jonsered 539108271

HCS 3/8-16 X 3-1/2 GR5 ZD

$4.99

$

In Stock, Qty 9

0

29

Jonsered 539106504

SPINDLE WASHER
(Superseded to 596770301)

$4.99

$

In Stock, Qty 20+

0

30

Jonsered 819141614

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.99

$

In Stock, Qty 20+

0

31

Jonsered 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

32

Jonsered 539990923

RHSNB 3/8-16X1-3/4

$3.99

$

In Stock, only 3 left!

0

33

Jonsered 539104864

WASHER 7/16 FLAT ZD
(Superseded to 596437601)

$3.99

$

In Stock, Qty 15

0

34

Jonsered 532178515

WASHER

$6.49

$

In Stock, Qty 20+

0

35

Jonsered 873900700

NUT.LOCK.FLANGE.7/16

$7.49

$

In Stock, Qty 20+

0

36

Jonsered 532195185

ARM.SUSPENSION.MOWER

$18.99

$

Usually ships in 3-10 days

0

37

Jonsered 539113621

SB 3/8-16 X 3/8 SKT HD ZD
(Superseded to 596241101)

$3.99

$

In Stock, Qty 8

0

38

Jonsered 819131316

WASHER

$4.99

$

In Stock, Qty 9

0

39

Jonsered 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 20+

0

40

Jonsered 532176066

NOSE ROLLER 48"

$9.99

$

In Stock, Qty 20+

0

41

Jonsered 532179127

ROD.ROLLER.NOSE.NARROW.48"
(Superseded to 594092501)

$4.99

$

In Stock, Qty 20+

0

43

Jonsered 819121414

WASHER
(Superseded to 734117201)

$1.99

$

Usually ships in 3-10 days

0

43

Jonsered 532197256

SRPING.TORSION.RETAINE

$6.49

$

Usually ships in 3-10 days

0

44

Jonsered TBD

No Description Available

Note: (575 96 73-03) SHIELD

$

$

Not available

45

Jonsered 874780516

BOLT RB

$6.49

$

Usually ships in 3-10 days

0

46

Jonsered 810030500

Lock Washer, 5/16
(Superseded to 539990187)

$3.99

$

Usually ships in 3-10 days

0

49

Jonsered 584953901

Hex Washer Head Bolt, .313-18 X 1.19

$3.49

$

In Stock, Qty 20+

0

50

Jonsered 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 20+

0

51

Jonsered 817490408

SCREW
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0

52

Jonsered 874780740

Hex Bolt, 7/16-14
(Superseded to 596435201)

$3.99

$

In Stock, Qty 14

0

53

Jonsered 574845603

BELT, 143.5" EL

$109.99

$

In Stock, Qty 18

0

54

Jonsered 532141043

GUARD, BELT

$

$

Not available

55

Jonsered 539115574

EYE BOLT 5/16 X 3.50
(Superseded to 596240801)

$4.99

$

In Stock, Qty 11

0

57

Jonsered 539106850

SPRING
(Superseded to 596645601)

$6.49

$

In Stock, only 3 left!

0

58

Jonsered 532110485

BEARING

$10.99

$

In Stock, Qty 20+

0

59

Jonsered 575352901

PULLEY, COLLECTION 48

Note: 94

$66.99

$

In Stock, Qty 20+

0

60

Jonsered 532169484

RETAINER CLIP
(Superseded to 596029401)

Note: LH

$3.99

$

In Stock, Qty 14

0

61

Jonsered 532400337

ROD.ANTI.SWAY.48/54"TE
(Superseded to 596274401)

$10.99

$

In Stock, Qty 15

0

62

Jonsered 819131312

WASHER
(Superseded to 596133201)

$3.99

$

Usually ships in 3-10 days

0

63

Jonsered 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

In Stock, Qty 20+

0

Jonsered 532416405

COUPLING.QUICK CONNECT

Note: NOT SHOWN

$8.99

$

In Stock, Qty 20+

0

587904701

Note: NOT SHOWN

$

$

Not available
