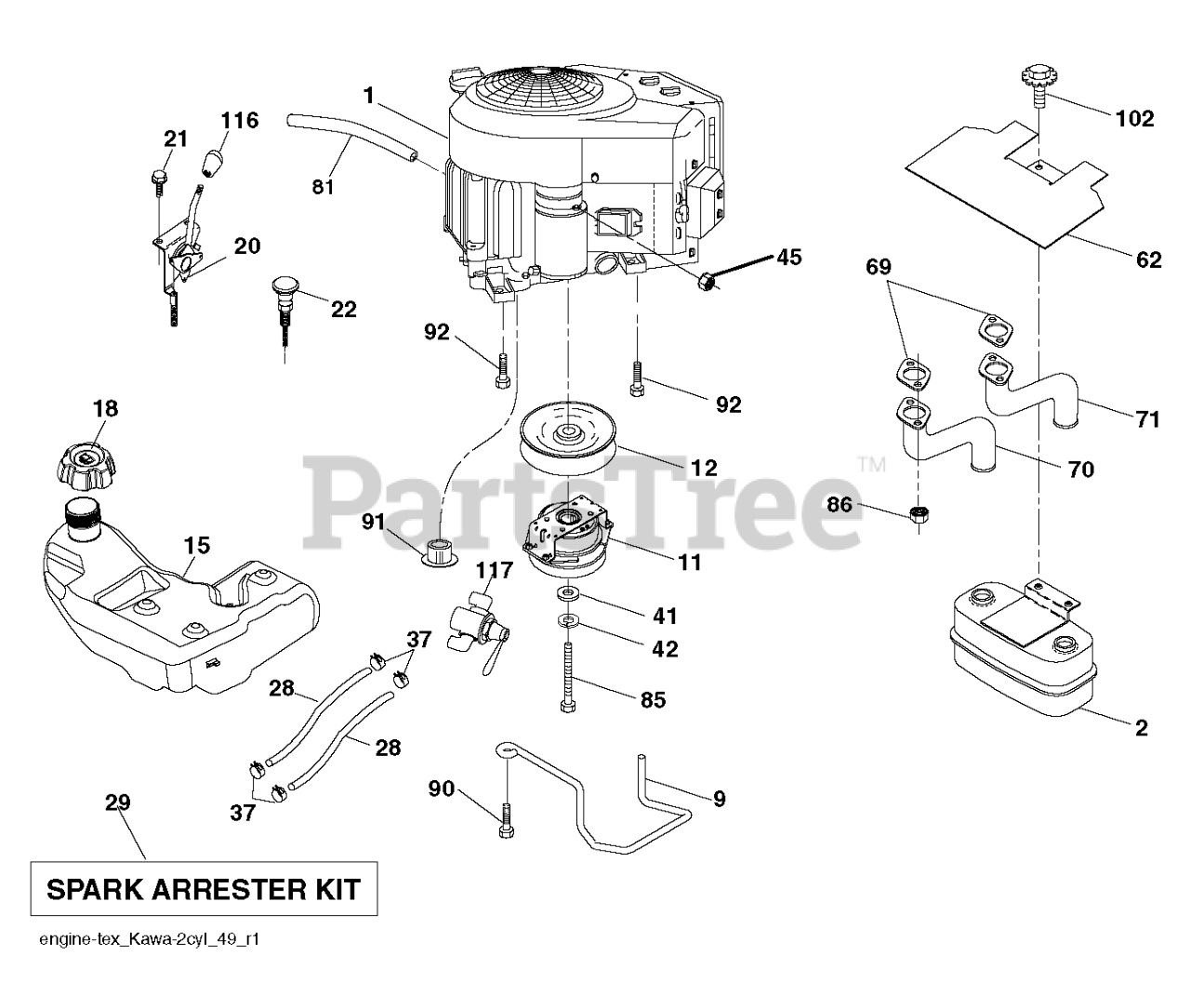

GT 52 XLS (960430159-03) - Husqvarna 52" Garden Tractor (2015-09) ENGINE Parts Diagram

52" Garden Tractor

ENGINE Parts Diagram

  • Title

70

Husqvarna 583955601

TUBE.EXHAUST.LH.FR961/FR730

Note: LH

$37.99

$

Usually ships in 3-10 days

0

116

Husqvarna 532424659

RP KNOB SOFT TOUCH
(Superseded to 539132624)

$7.49

$

In Stock, Qty 12

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

71

Husqvarna 583955701

TUBE.EXHAUST.RH.FR961/FR730

Note: RH

$37.99

$

In Stock, only 1 left!

0

102

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 8

0

18

Husqvarna 529989702

FUEL CAP

Note: Fits 2.00" filler neck

$22.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532194343

PULLEY ENGINE

$74.99

$

In Stock, only 2 left!

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

117

Husqvarna 532420828

VALVE FUEL RESERVE

$47.99

$

In Stock, only 1 left!

0

69

Husqvarna 532178151

GASKET

$2.49

$

In Stock, Qty 20+

0

20

Husqvarna 532424341

CONTROL.THROTTLE.PRO.

$93.99

$

In Stock, Qty 6

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$4.99

$

In Stock, Qty 19

0

45

Husqvarna 873510400

NUT
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

86

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532401135

LINE.FUEL.64"REAR.EMIS
(Superseded to 587044864)

$18.99

$

Usually ships in 3-10 days

0

91

Husqvarna 532187495

BUSHING.1.375OD

$6.49

$

In Stock, only 2 left!

0

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532126197

WASHER

$8.99

$

In Stock, Qty 20+

0

22

Husqvarna 532191596

CONTROL.CHOKE.ERGO.PUSH-IN.BLA

$40.99

$

In Stock, Qty 6

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 20+

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, Qty 16

0

1

000000000

Note: ENGINE KAWA MODEL NO. FR730-DS04 (445363)

$

$

Not available

15

Husqvarna 532438021

TANK.ASM.FUEL.4R.GAL.EPA.17
(Superseded to 532438022)

Note: Fits 2.75" filler neck

$

$

Not available

18

Husqvarna 585124801

CAP ASSY FUEL 3" GRAY

Note: Fits 2.75" filler neck

$18.99

$

Usually ships in 3-10 days

0

85

Husqvarna 581636201

BOLT.HEX.7/16-20X3.0XGR5

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 587241401

CLUTCH.OGURA.5.0PD.GT1.5A-EH01

$278.99

$

In Stock, Qty 5

0

2

Husqvarna 589818701

MUFFLER.ASM.TWIN.MNTG.BRACKET

$44.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532408667

KEEPER BELT ENGINE

$13.99

$

In Stock, only 2 left!

0
