GT 52 XLS (960430207-00) - Husqvarna 52" Garden Tractor (2014-10) ENGINE Parts Diagram

52" Garden Tractor

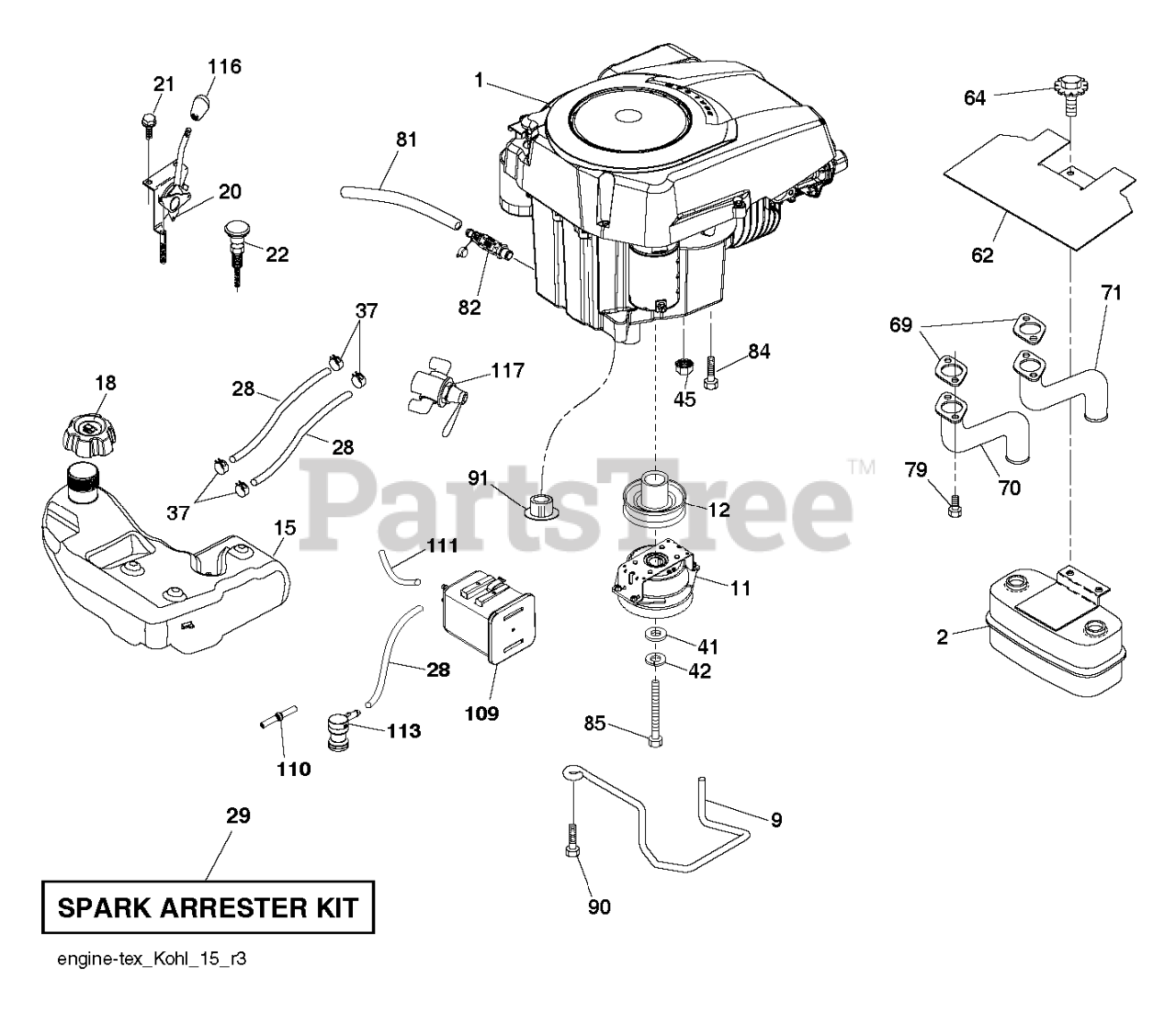

ENGINE Parts Diagram

  • Title

1

000000000

Note: ENGINE KOHL MODEL NO KT745-3021 (585453901)

$

$

Not available

2

Husqvarna 532445962

MUFFLER.ASM.TWN.EXTNDED.DFLCTR
(Superseded to 589818702)

$71.99

$

In Stock, Qty 17

0

9

Husqvarna 532408667

KEEPER BELT ENGINE

$14.99

$

Usually ships in 3-10 days

0

11

Husqvarna 587241401

CLUTCH.OGURA.5.0PD.GT1.5A-EH01

$275.99

$

In Stock, only 2 left!

0

12

Husqvarna 532194343

PULLEY ENGINE

$59.99

$

In Stock, only 1 left!

0

15

Husqvarna 532194343

PULLEY ENGINE

$59.99

$

In Stock, only 1 left!

0

18

Husqvarna 532430217

RP CAP FUEL
(Superseded to 532439645)

$21.99

$

In Stock, only 4 left!

0

20

Husqvarna 532424341

CONTROL.THROTTLE.PRO.

$45.99

$

In Stock, only 2 left!

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS
(Superseded to 596321701)

$3.99

$

In Stock, Qty 13

0

22

Husqvarna 532191596

CONTROL.CHOKE.ERGO.PUSH-IN.BLA

$41.99

$

In Stock, Qty 5

0

28

Husqvarna 532401135

LINE.FUEL.64"REAR.EMIS
(Superseded to 587044864)

$27.99

$

In Stock, only 2 left!

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$203.99

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 8

0

41

Husqvarna 532126197

WASHER

$8.49

$

In Stock, Qty 15

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER
(Superseded to 531154901)

$14.99

$

In Stock, only 2 left!

0

69

Husqvarna 532178151

GASKET

$2.49

$

In Stock, Qty 20+

0

70

Husqvarna 583955601

TUBE.EXHAUST.LH.FR961/FR730

Note: LH

$33.99

$

In Stock, only 4 left!

0

71

Husqvarna 583955701

TUBE.EXHAUST.RH.FR961/FR730

Note: RH

$33.99

$

In Stock, only 2 left!

0

79

Husqvarna 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 20+

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 12

0

82

Husqvarna 532428287

VALUE.OIL.DRAIN

$23.99

$

In Stock, Qty 20+

0

84

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 20+

0

85

Husqvarna 581636201

BOLT.HEX.7/16-20X3.0XGR5

$3.49

$

Usually ships in 3-10 days

0

87

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$5.99

$

In Stock, Qty 10

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

91

Husqvarna 532187495

BUSHING.1.375OD

$5.99

$

In Stock, only 2 left!

0

109

Husqvarna 532414114

CANNISTER, CARBON

$68.99

$

Usually ships in 3-10 days

0

110

Husqvarna 532414118

VALVE.ASM.ANTI-SLOSH

$27.99

$

Usually ships in 3-10 days

0

111

Husqvarna 532414119

RP PURGE LINE
(Superseded to 587044580)

$15.99

$

Usually ships in 3-10 days

0

113

Husqvarna 532414127

VALVE.SLANT.CARTRDG.90 DEG.TEX
(Superseded to 597791601)

$14.99

$

In Stock, only 2 left!

0

116

Husqvarna 532424659

RP KNOB SOFT TOUCH
(Superseded to 539132624)

$7.99

$

In Stock, Qty 10

0

117

Husqvarna 532420828

VALVE FUEL RESERVE

$35.99

$

In Stock, only 1 left!

0
