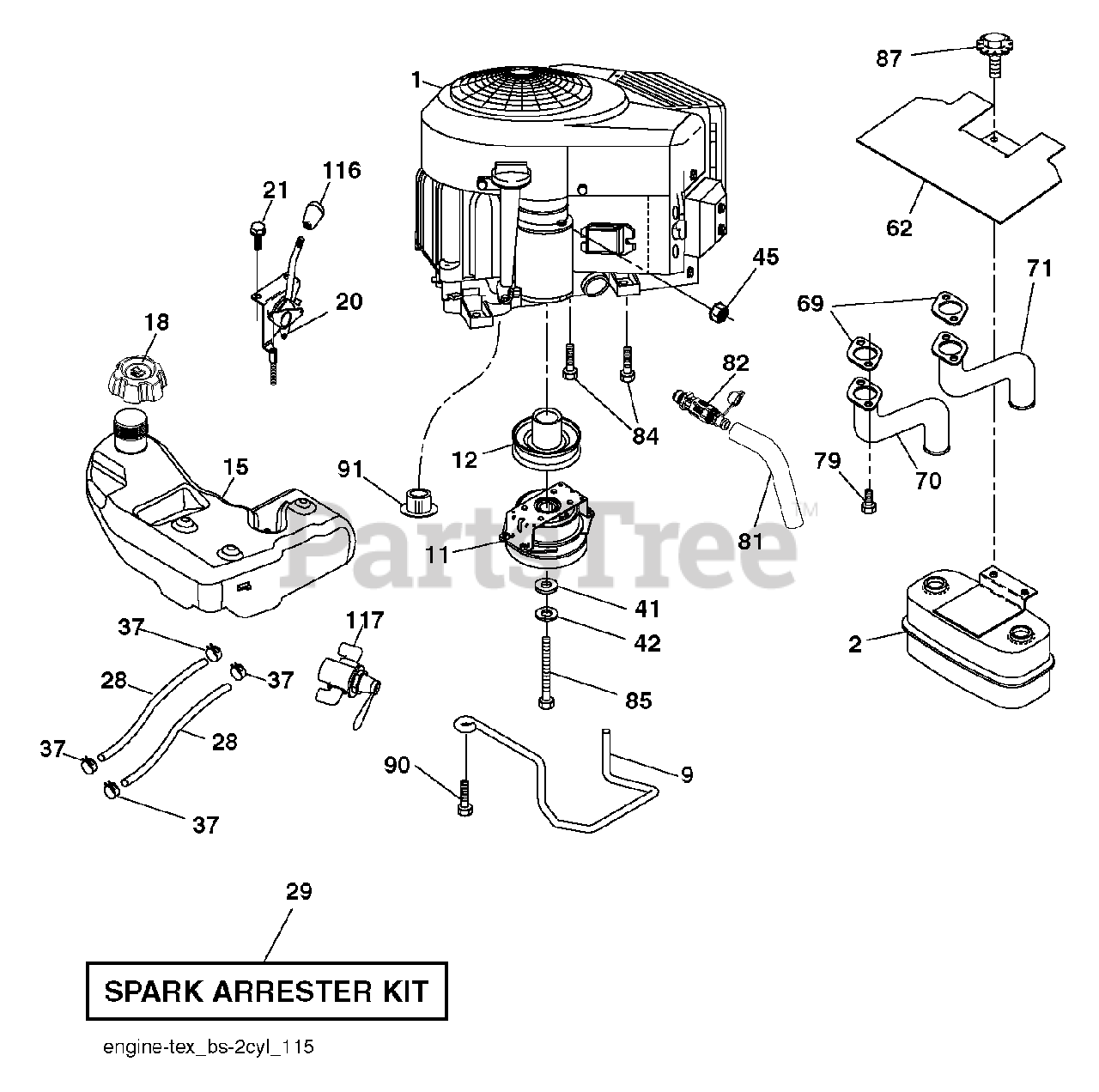

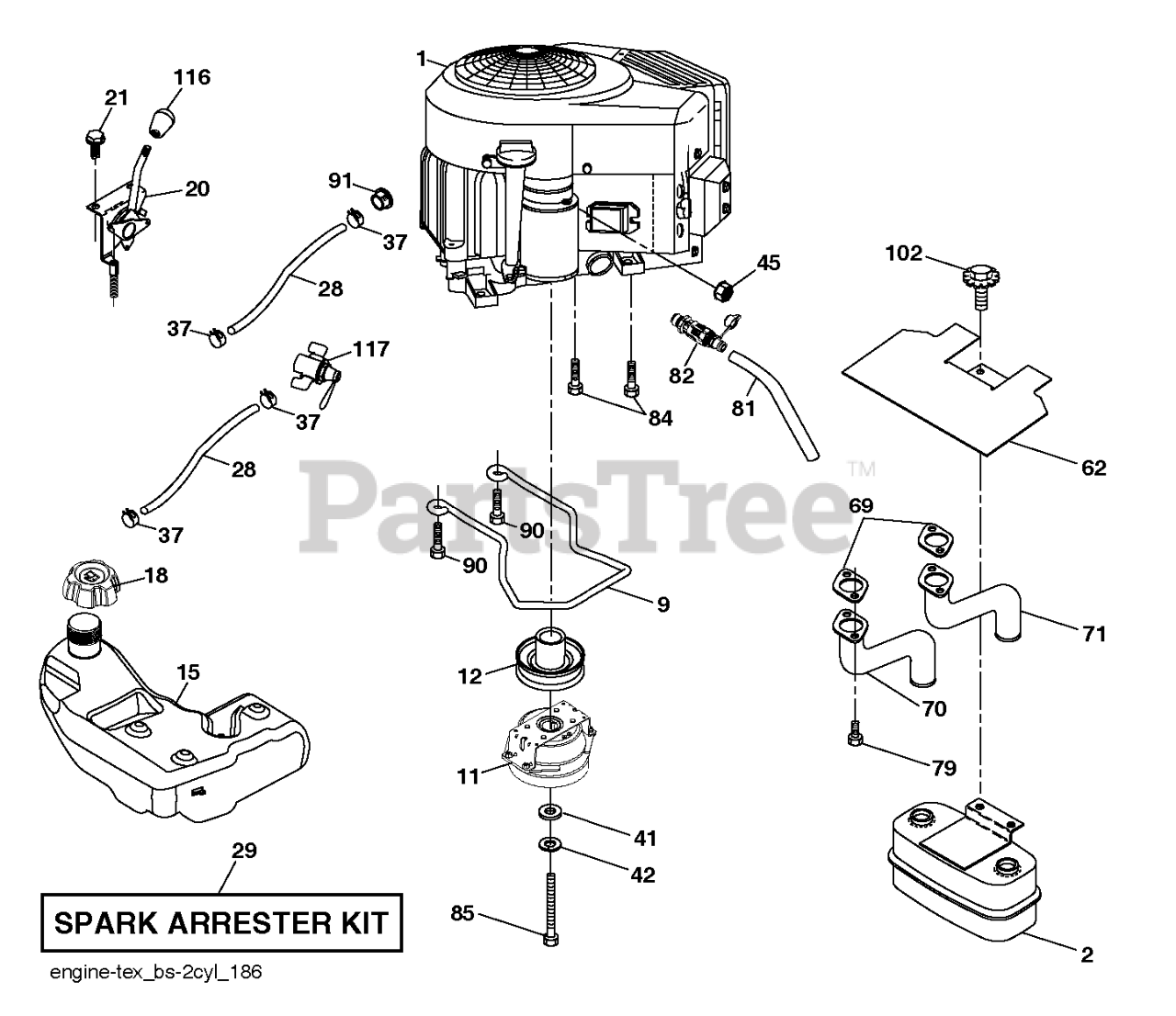

GT 52 XLS (960480086-00) - Husqvarna 52" Garden Tractor (2014-11) ENGINE Parts Diagram

52" Garden Tractor

ENGINE Parts Diagram

  • Title

1

000000000

Note: ENGINE B S MODEL NO 49S877-0003-G1 (586362501)

$

$

Not available

2

Husqvarna 532445962

MUFFLER.ASM.TWN.EXTNDED.DFLCTR
(Superseded to 589818702)

$56.99

$

In Stock, only 1 left!

0

9

Husqvarna 532408667

KEEPER BELT ENGINE

$13.99

$

Usually ships in 3-10 days

0

11

Husqvarna 587241401

CLUTCH.OGURA.5.0PD.GT1.5A-EH01

$284.99

$

In Stock, Qty 5

0

12

Husqvarna 532194343

PULLEY ENGINE

$51.99

$

In Stock, only 2 left!

0

15

Husqvarna 532422804

TANK FUEL

$193.99

$

Usually ships in 3-10 days

0

18

Husqvarna 584248702

CAP.ASSY.FUEL.3".N-EPA.GRY.498

$20.99

$

In Stock, Qty 6

0

20

Husqvarna 586219601

CONTROL.THROTTLE/CHOKE.PRO.45

$68.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

28

Husqvarna 532142158

REPL BY 532 00 85-43
(Superseded to 587044854)

$22.99

$

In Stock, only 2 left!

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$193.99

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, only 4 left!

0

41

Husqvarna 532126197

WASHER

$7.99

$

In Stock, only 3 left!

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

$3.49

$

In Stock, Qty 17

0

45

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER
(Superseded to 531154901)

$13.99

$

In Stock, only 2 left!

0

69

Husqvarna 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 20+

0

70

Husqvarna 581881101

EXHAUST.TUBE.LH.BS/TWIN

Note: LH

$34.99

$

In Stock, Qty 5

0

71

Husqvarna 581881001

EXHAUST.TUBE.RH.B&S.TWIN.INTEK

Note: RH

$28.99

$

In Stock, only 3 left!

0

79

Husqvarna 532183906

SCREW.SOCKET.HEAD.5/16-18
(Superseded to 596134202)

$3.49

$

In Stock, Qty 19

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 4 left!

0

82

Husqvarna 532428287

VALUE.OIL.DRAIN

$20.99

$

In Stock, Qty 8

0

84

Husqvarna 817060620

SCREW.3/8-16

$6.99

$

In Stock, Qty 9

0

85

Husqvarna 581636201

BOLT.HEX.7/16-20X3.0XGR5

$3.49

$

Usually ships in 3-10 days

0

87

Husqvarna 532171877

BOLT, 5/16-18 X 1 3/4

$5.99

$

In Stock, only 2 left!

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$6.99

$

In Stock, Qty 11

0

91

Husqvarna 532187495

BUSHING.1.375OD

$5.99

$

Usually ships in 3-10 days

0

116

Husqvarna 539132624

KNOB - SHIFT

$7.99

$

In Stock, only 4 left!

0

117

Husqvarna 532420828

VALVE FUEL RESERVE

$34.99

$

In Stock, only 2 left!

0
