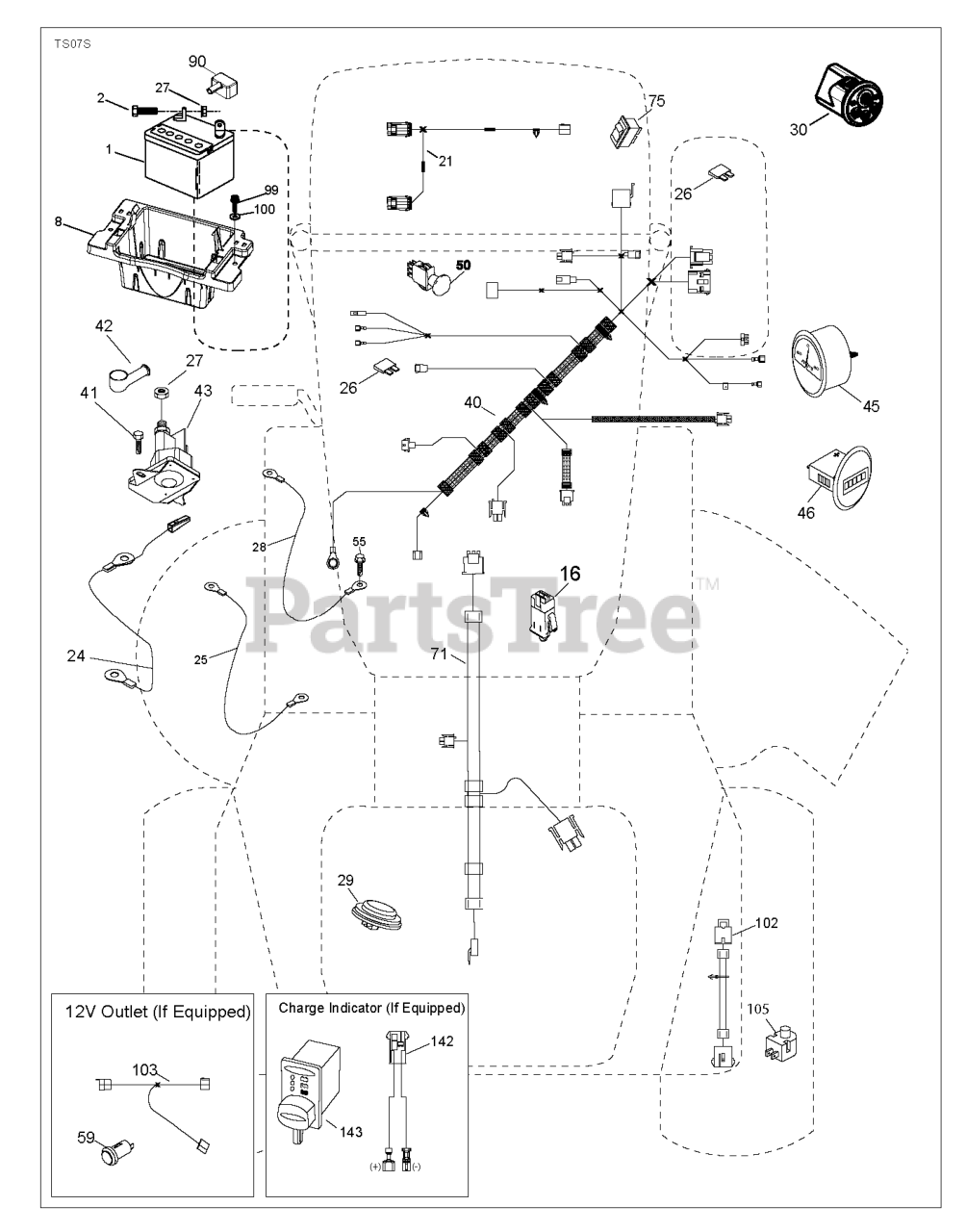

GT 52 XLSI (960430178-01) - Husqvarna 52" Garden Tractor (2015-09) ELECTRICAL Parts Diagram

52" Garden Tractor

ELECTRICAL Parts Diagram

  • Title

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$7.49

$

In Stock, Qty 5

0

26

Husqvarna 532175158

FUSE 20AMP

$7.49

$

In Stock, Qty 12

0

46

Husqvarna 587554003

GAUGE.HOUR.METER.SILVER/WHITE

$

$

Not available

8

Husqvarna 587205101

TRAY.BATTERY BOX.FRONT

$10.99

$

Usually ships in 3-10 days

0

142

Husqvarna 583857801

CHARGE.PORT.PIGTAIL HARNESS
(Superseded to 583593501)

$37.99

$

Usually ships in 3-10 days

0

75

Husqvarna 580366401

SWITCH.ON/OFF.(DIFF.LOCK)

$74.99

$

In Stock, only 2 left!

0

40

Husqvarna 585216102

HARNESS.DASH.EL.SIS.RND.MY15

$121.99

$

Usually ships in 3-10 days

0

50

Husqvarna 582107601

SWITCH.PTO.8TERMINAL.STD.BLK

$13.99

$

In Stock, Qty 20+

0

30

Husqvarna 586836701

SWITCH.ASM.SMARTSWITCH.MY15.TR
(Superseded to 586590708)

$265.99

$

Usually ships in 3-10 days

0

100

Husqvarna 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

55

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 585306901

CABLE.GROUND.STARTER

$9.49

$

Usually ships in 3-10 days

0

143

Husqvarna 532448059

CHARGE.PORT
(Superseded to 583593501)

$37.99

$

Usually ships in 3-10 days

0

41

Husqvarna 817720408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 585734301

CABLE.BTRY.HARN.POS.LEAD

$7.49

$

Usually ships in 3-10 days

0

103

Husqvarna 532421747

HARNESS.PIGTAIL.12V.OUTLET.

$21.99

$

Usually ships in 3-10 days

0

43

Husqvarna 582042801

SOLENOID.STARTER.BRASS.PLUNGER
(Superseded to 582042802)

$13.99

$

In Stock, Qty 20+

0

105

Husqvarna 532407568

REVERSE SWITCH

$18.99

$

In Stock, only 1 left!

0

- -

Husqvarna 532193935

PLUG.SWITCH.LIGHT.428
(Superseded to 532193934)

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532400252

HARNESS.LIGHT W/4152J BULBS

$34.99

$

In Stock, Qty 5

0

27

Husqvarna 873510400

NUT
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

90

Husqvarna 532435395

COVER.TERMINAL.BATTERY

$6.49

$

Usually ships in 3-10 days

0

1

Husqvarna 532163465

Battery 12 Volt 25 Amp
(Superseded to 532123899)

$194.99

$

Usually ships in 3-10 days

0

71

Husqvarna 581709201

HARNESS CHAS.SMART.IGN

$121.99

$

Usually ships in 3-10 days

0

99

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

In Stock, only 2 left!

0

59

Husqvarna 532400303

OUTLET.12-VOLT

$27.99

$

Usually ships in 3-10 days

0

45

Husqvarna 587553903

GAUGE.AMMETER.SILVER/WHITE

$28.99

$

Usually ships in 3-10 days

0

102

Husqvarna 532404454

HARNESS PIGTAIL PCH TEX ROS

$26.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532176138

SWITCH INTERLOOK PUSH-IN

$15.99

$

In Stock, Qty 20+

0

29

Husqvarna 581429302

SWITCH.SEAT.OPC.GRY.BUTTON/CAP

$26.99

$

Usually ships in 3-10 days

0

25

Husqvarna 585555501

CABLE.STARTER.8GA.17.5

$8.99

$

In Stock, Qty 8

0
