GT 5427 (14AK94KK897) - Columbia 54" Garden Tractor (2013) Front and Rear Wheels Parts Diagram

54" Garden Tractor

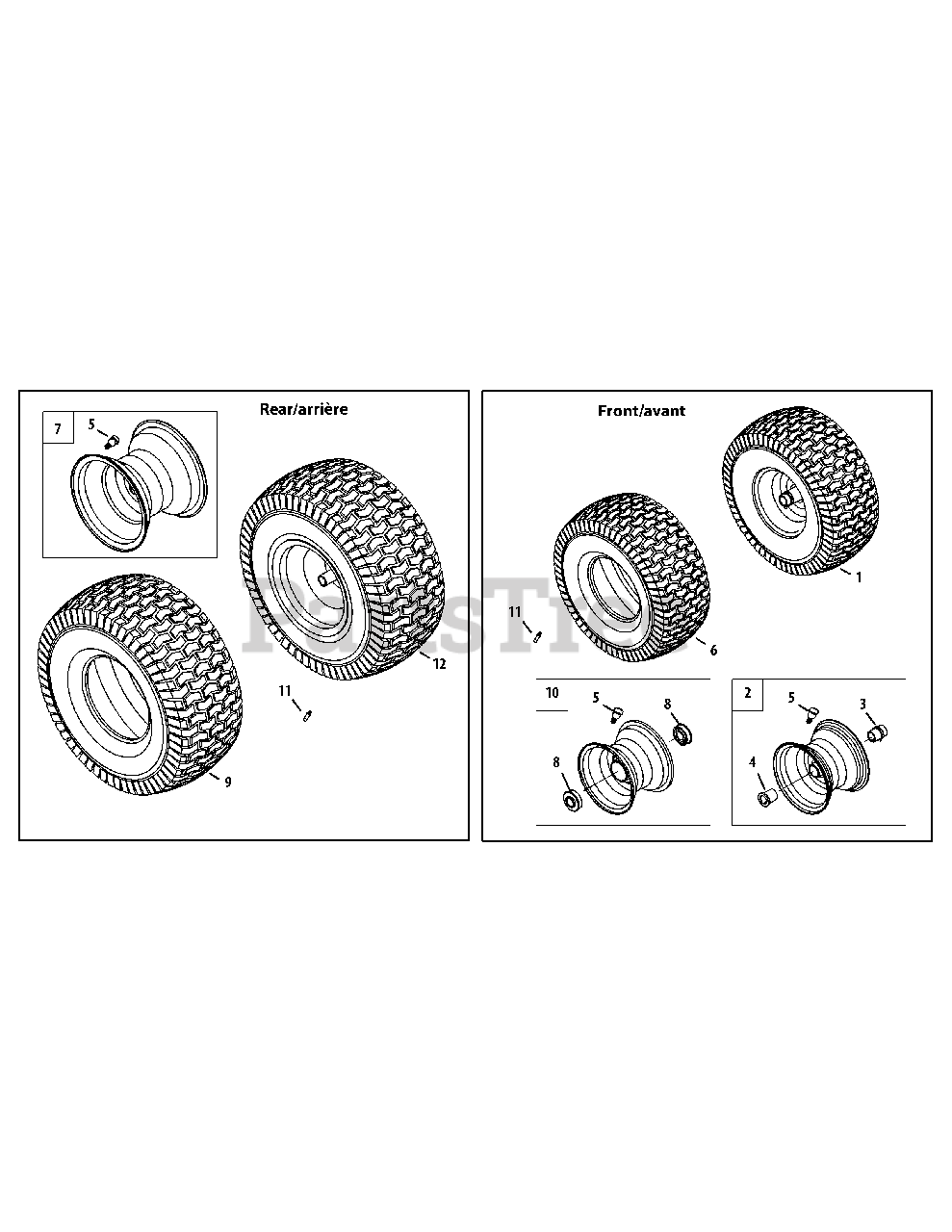

Front and Rear Wheels Parts Diagram

  • Title

1

MTD n/a

Wheel Ass’y, 16 x 6.5 Ball Brg. (Grey)

Note: Not sold as assembly, order components below

$

$

Currently unavailable

2

MTD n/a

Rim Ass’y, Plst. Brg.

Note: Not used on these models

$

$

Currently unavailable

3

MTD n/a

Flg. Bearing .760 ID w/fitting

Note: Not used on these models

$

$

Currently unavailable

4

MTD n/a

Flg. Bearing .760 x 1.0 x 1.20

Note: Not used on these models

$

$

Currently unavailable

5

MTD 934-0255

Air Valve

$4.49

$

In Stock, Qty 20+

0

6

MTD 734-1727

Tire

$60.99

$

Usually ships in 3-6 days

0

7

MTD 634-04238-0662

Rim Ass’y, 12.0 x 7.0 (Grey)
(Superseded to 634Z04238-0662)

$209.99

$

Usually ships in 3-6 days

0

8

MTD 941-04137

Ball Bearing .750 ID x 1.750 OD
(Superseded to 941-04137A)

$32.99

$

In Stock, only 3 left!

0

9

MTD 734-04174

Tire, 22 x 9.5 x 12 Square Shoulder

Note: Used on model GT5025

$120.99

$

Usually ships in 3-6 days

0

9

MTD 734-04147-0901

Tire, 23 x 10.5 x 12 Square Shoulder

Note: Used on model GT5427

$127.99

$

Usually ships in 3-6 days

0

10

MTD 934-04090A-0662

Rim Ass’y, Ball Brg. (Grey)

$201.99

$

Usually ships in 3-6 days

0

11

MTD 737-0224

Grease Fitting

$7.99

$

In Stock, Qty 6

0

12

MTD 634-0202A-0911

Wheel Ass’y, 23 x 10.5 x 12 (Grey)
(Superseded to 634-0202A)

$342.99

$

Usually ships in 3-6 days

0
