GT-954 (14AA815K790) - White Outdoor 54" Garden Tractor (2007) Hood Style Parts Diagram

54" Garden Tractor

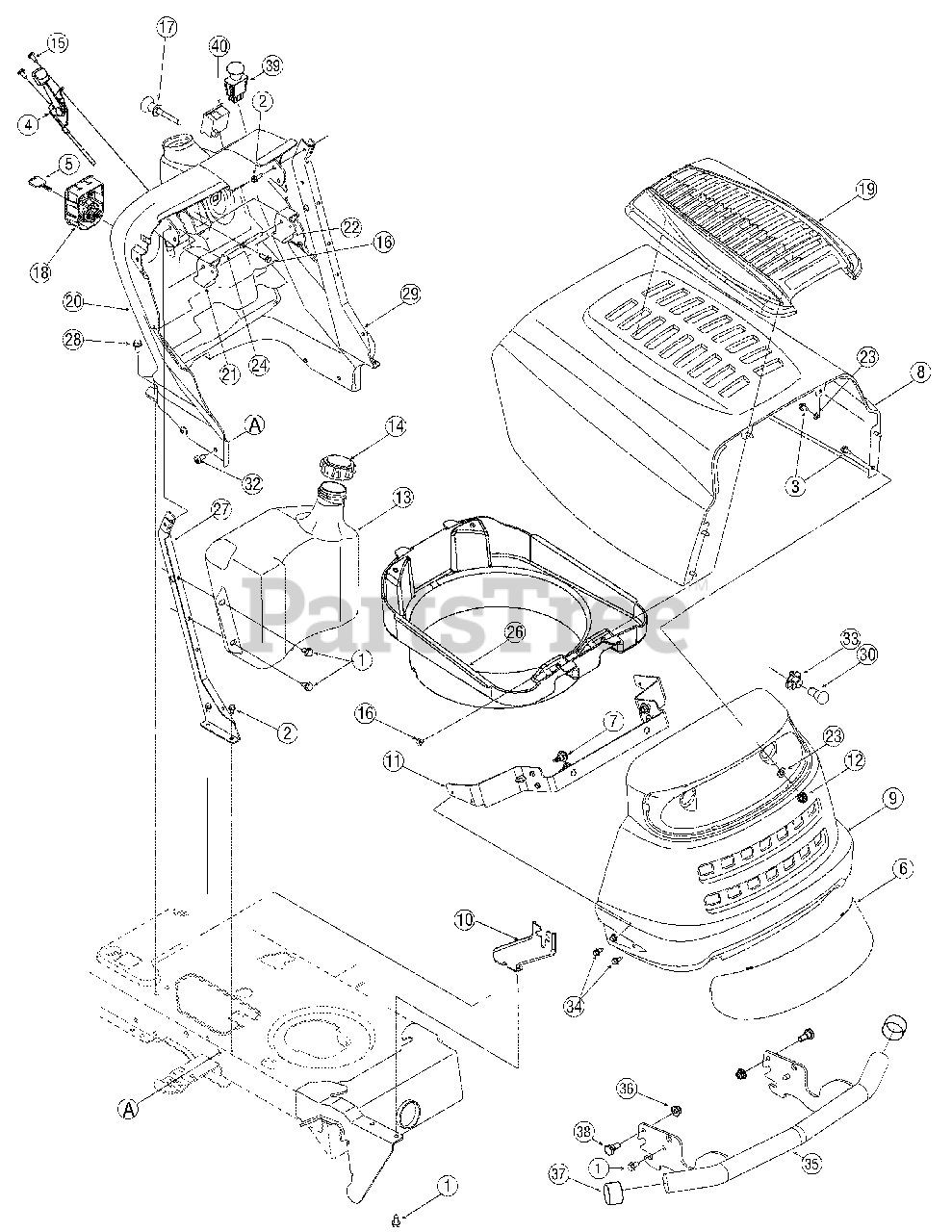

Hood Style Parts Diagram

  • Title

1

White Outdoor 710-0726

Screw, 5/16-12 x .750

$3.99

$

In Stock, Qty 20+

0

2

White Outdoor 710-0599

Self-tapping Screw, 1/4-20 x.5

$3.99

$

In Stock, Qty 20+

0

3

White Outdoor 710-0751

Hex Cap Screw, 1/4-20 x.62

$3.99

$

In Stock, Qty 20+

0

4

White Outdoor 746-04365

Throttle Control/Cable
(Superseded to 746P04365)

$39.99

$

Usually ships in 3-6 days

0

5

White Outdoor 725-1745

Ignition Key w/ plastic cover
(Superseded to 925-1745A)

$15.99

$

In Stock, Qty 20+

0

5

White Outdoor 725-1744

Ignition Key w/o plastic cover
(Superseded to 925-1745A)

$15.99

$

In Stock, Qty 20+

0

6

White Outdoor 731-04949

Headlight Lens
(Superseded to 731-04949A)

$25.99

$

In Stock, Qty 12

0

7

White Outdoor 738-04091

Shoulder Screw,.43 x.29
(Superseded to 738-04091A)

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 783-04551

Hood, 1 Style

Variations

White Outdoor 783-04551-0499

HOOD-1 STYLE - CUB BEIGE (0499)

$

$

Not available

White Outdoor 783-04551-0638

HOOD-1 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-04551-0640

HOOD-1 STYLE - CO-OP GREEN (0640)

$

$

Not available

White Outdoor 783-04551-0662

HOOD-1 STYLE - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 783-04551-0674

HOOD-1 STYLE - YARDMAN YELLOW (0674)

$

$

Not available

White Outdoor 783-04551-0691

HOOD-1 STYLE - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-04551-0709

HOOD-1 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

White Outdoor 783-04551-0729

HOOD-1 STYLE - STORM GRAY (0729)

$

$

Not available

White Outdoor 783-04551-4015

HOOD-1 STYLE - FIRE RED (4015)

$

$

Not available

$

$

9

White Outdoor 783-04552

Grill, 1 Style

Variations

White Outdoor 783-04552-0662

GRILLE 1 STYLE - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 783-04552-0674

GRILLE 1 STYLE - YARDMAN YELLOW (0674)

$

$

Not available

White Outdoor 783-04552-0499

GRILLE 1 STYLE - CUB BEIGE (0499)

$

$

Not available

White Outdoor 783-04552-0638

GRILLE 1 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-04552-0640

GRILLE 1 STYLE - CO-OP GREEN (0640)

$

$

Not available

White Outdoor 783-04552-0691

GRILLE 1 STYLE - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-04552-0709

GRILLE 1 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

White Outdoor 783-04552-0729

GRILLE 1 STYLE - STORM GRAY (0729)

$

$

Not available

$

$

10

White Outdoor 783-04578

Pivot Bracket - RH
(Superseded to 783-04578A-0637)

Variations

White Outdoor 783-04578-0637

Pivot Bracket, RH - POWDER BLACK (0637)

$16.99

$

In Stock, only 1 left!

0

$16.99

$

In Stock, only 1 left!

0

10

White Outdoor 783-04577

Pivot Bracket - LH
(Superseded to 783-04577A-0637)

Note: Not Shown

Variations

White Outdoor 783-04577-0637

Pivot Bracket, LH - POWDER BLACK (0637)

$

$

Not available

$

$

11

White Outdoor 783-04621

Grill Pivot Bracket

Variations

White Outdoor 783-04621-0637

BRACKET-PIVOT GRILL - POWDER BLACK (0637)

$

$

Not available

$

$

12

White Outdoor 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

13

White Outdoor 751-0659D

Fuel Tank, Two Gallon

$79.99

$

In Stock, Qty 6

0

13

White Outdoor 751-0658E

Fuel Tank, Three Gallon

$107.99

$

In Stock, Qty 5

0

14

White Outdoor 751-0603

Fuel Cap
(Superseded to 751-0603B)

$21.99

$

In Stock, Qty 20+

0

15

White Outdoor 710-1017

Screw, 1/4-14 x.625

$7.99

$

In Stock, Qty 20+

0

16

White Outdoor 710-0895

Self-tapping Screw, 1/4-15 x.75

$5.99

$

In Stock, Qty 20+

0

17

White Outdoor 746-1085A

Choke Control Cable
(Superseded to 946-1085A)

$28.99

$

In Stock, Qty 14

0

18

White Outdoor 725-04227B

Ignition Switch
(Superseded to 925-06119C)

$108.99

$

In Stock, Qty 20+

0

19

White Outdoor 731-05522

Hood Cover, 5 Style
(Superseded to 731-05522A)

$46.99

$

Usually ships in 3-6 days

0

20

White Outdoor 731-05005B

Dash Panel
(Superseded to 731-06169)

$

$

Not available

21

White Outdoor 731-04215

Cruise Control Button
(Superseded to 931-04215)

$

$

Not available

22

White Outdoor 731-04217

Parking Brake Button
(Superseded to 931-04217)

$11.99

$

In Stock, only 1 left!

0

23

White Outdoor 736-0176

Flat Washer, .265 x .938 x 1.20

$3.99

$

In Stock, Qty 20+

0

24

White Outdoor 747-1196

Brake/Cruise Pivot Rod

$14.99

$

Usually ships in 3-6 days

0

25

White Outdoor 629-04083A

Headlight Wire Harness
(Superseded to 929-04083B)

Note: Not Shown

$36.99

$

In Stock, only 1 left!

0

26

White Outdoor 731-05165A

Plenum

$43.99

$

Usually ships in 3-6 days

0

27

White Outdoor 783-04285E

RH Dash Support Plate
(Superseded to 783-04285F-0637)

Variations

White Outdoor 783-04285E-0637

SUPPORT-DASH PLATE - POWDER BLACK (0637)

$

$

Not available

$

$

28

White Outdoor 710-0607

Screw, 5/16-18 x .500

$6.49

$

In Stock, Qty 20+

0

29

White Outdoor 783-04323D

LH Dash Support Plate
(Superseded to 783-04323F-0637)

Variations

White Outdoor 783-04323D-0637

SUPPORT:DASH:PLATE - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04323D-4008

SUPPORT:DASH:PLATE - WINE RED (4008)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

30

White Outdoor 725-0963

Lamp
(Superseded to 925-0963)

$6.99

$

In Stock, Qty 20+

0

31

White Outdoor 736-0270

Bell Washer,.265 x.75 x.062

$3.99

$

In Stock, Qty 14

0

32

White Outdoor 710-1611B

Screw, 5/16-18 x.75

$6.49

$

In Stock, only 2 left!

0

33

White Outdoor 725-1649

Headlight Socket
(Superseded to 925-1649A)

$10.99

$

In Stock, Qty 20+

0

34

White Outdoor 710-1652

Hex Index Screw, 1/4-20 x.625

$3.99

$

In Stock, Qty 20+

0

35

White Outdoor 683-04219A

Bumper Assembly
(Superseded to 683-04219B-0637)

Variations

White Outdoor 683-04219A-0637

Bumper Assembly, Universal - POWDER BLACK (0637)

$57.99

$

In Stock, only 4 left!

0

$57.99

$

In Stock, only 4 left!

0

36

White Outdoor 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

37

White Outdoor 731-05674

Cap

$4.99

$

In Stock, Qty 20+

0

38

White Outdoor 738-0143

Shoulder Bolt, 3/8-16

$3.99

$

In Stock, Qty 20+

0

39

White Outdoor 725-1752

Electric PTO Switch
(Superseded to 925-04174A)

$65.99

$

In Stock, Qty 20+

0

40

White Outdoor 725-04036C

Systems Ind. Monitor w/Hr. Mtr.
(Superseded to 925-06170B)

$65.99

$

In Stock, only 1 left!

0

40

White Outdoor 725-04156

Systems Ind. Monitor w/ Amtr.
(Superseded to 925-04156)

$27.99

$

In Stock, Qty 6

0

White Outdoor 725-04403

Wire Harness (w/Hour Meter)
(Superseded to 925-04403)

Note: Not Shown

$

$

Not available

White Outdoor 725-04404

Wire Harness (w/Hour Meter & Electric PTO)
(Superseded to 925-04404A)

Note: Not Shown

$223.99

$

Usually ships in 3-6 days

0

White Outdoor 725-04411

Wire Harness (w/Ammeter)
(Superseded to 725-04411A)

Note: Not Shown

$140.99

$

Usually ships in 3-6 days

0

White Outdoor 777X41984

Headlight Reflective Insert

Note: Not Shown

$6.99

$

Usually ships in 3-6 days

0
