GT-954 H (14AQ816K790) - White Outdoor 54" Garden Tractor (2006) Engine Accessories Parts Diagram

54" Garden Tractor

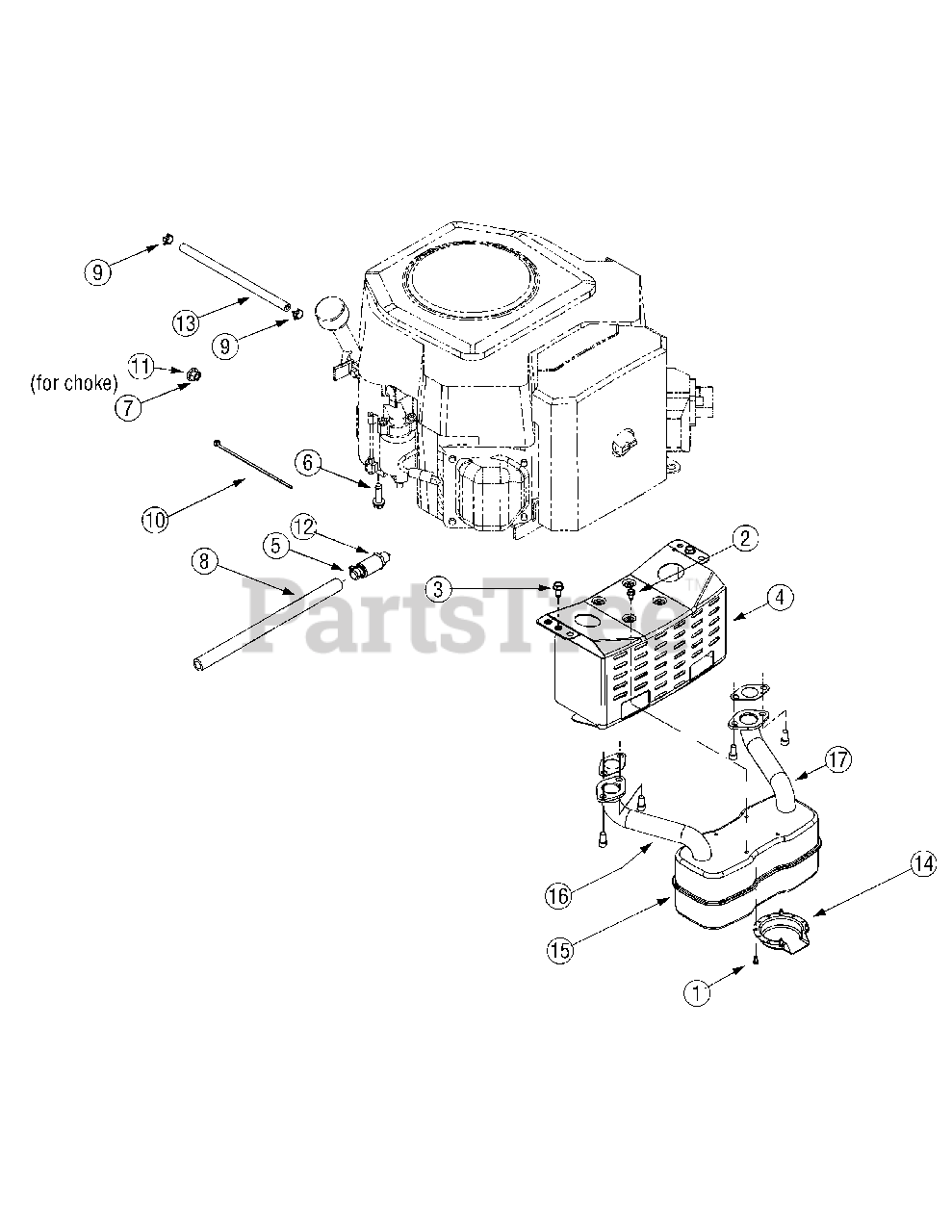

Engine Accessories Parts Diagram

  • Title

1

White Outdoor 710-0227

Screw, #8-18 x.50

$3.99

$

In Stock, Qty 20+

0

2

White Outdoor 710-0599

Screw, 1/4-20 x.50

$3.99

$

In Stock, Qty 20+

0

3

White Outdoor 710-0726

Screw, 5/16-18 x.750

$3.99

$

In Stock, Qty 20+

0

4

White Outdoor 783-0615D

Muffler Bracket
(Superseded to 783-0615E-0637)

Variations

White Outdoor 783-0615D-0637

Muffler Bracket - POWDER BLACK (0637)

$59.99

$

In Stock, only 4 left!

0

$59.99

$

In Stock, only 4 left!

0

5

White Outdoor 751-3142

Oil Drain Cap

$4.49

$

In Stock, Qty 7

0

6

White Outdoor 710-0654A

Self-tapping Screw, 3/8-16 x 1.00

$3.99

$

In Stock, only 4 left!

0

7

White Outdoor 712-3005

Flange Lock Nut, 3/8-16

$6.49

$

Usually ships in 3-6 days

0

8

White Outdoor 751-3141

Oil Drain Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 20+

0

9

White Outdoor 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

11

White Outdoor 736-0300

Lock Washer,.406 x.875 x.059

$3.99

$

In Stock, Qty 20+

0

12

White Outdoor 751-3140

Oil Drain Valve
(Superseded to 951-10517A)

$22.99

$

In Stock, Qty 20+

0

13

MTD 751-10349

Fuel Line Hose

$

$

Not available

14

White Outdoor 751-0564A

Muffler Deflector
(Superseded to 751-0564B)

$12.99

$

In Stock, Qty 20+

0

15

White Outdoor 751-0805A

Muffler, Twin Inlet
(Superseded to 951-0805A)

$114.99

$

In Stock, only 3 left!

0

16

White Outdoor 751-0645A

RH Exhaust Pipe

$87.99

$

Usually ships in 3-6 days

0

17

751-0644

LH Exhaust Pipe

$

$

Not available
