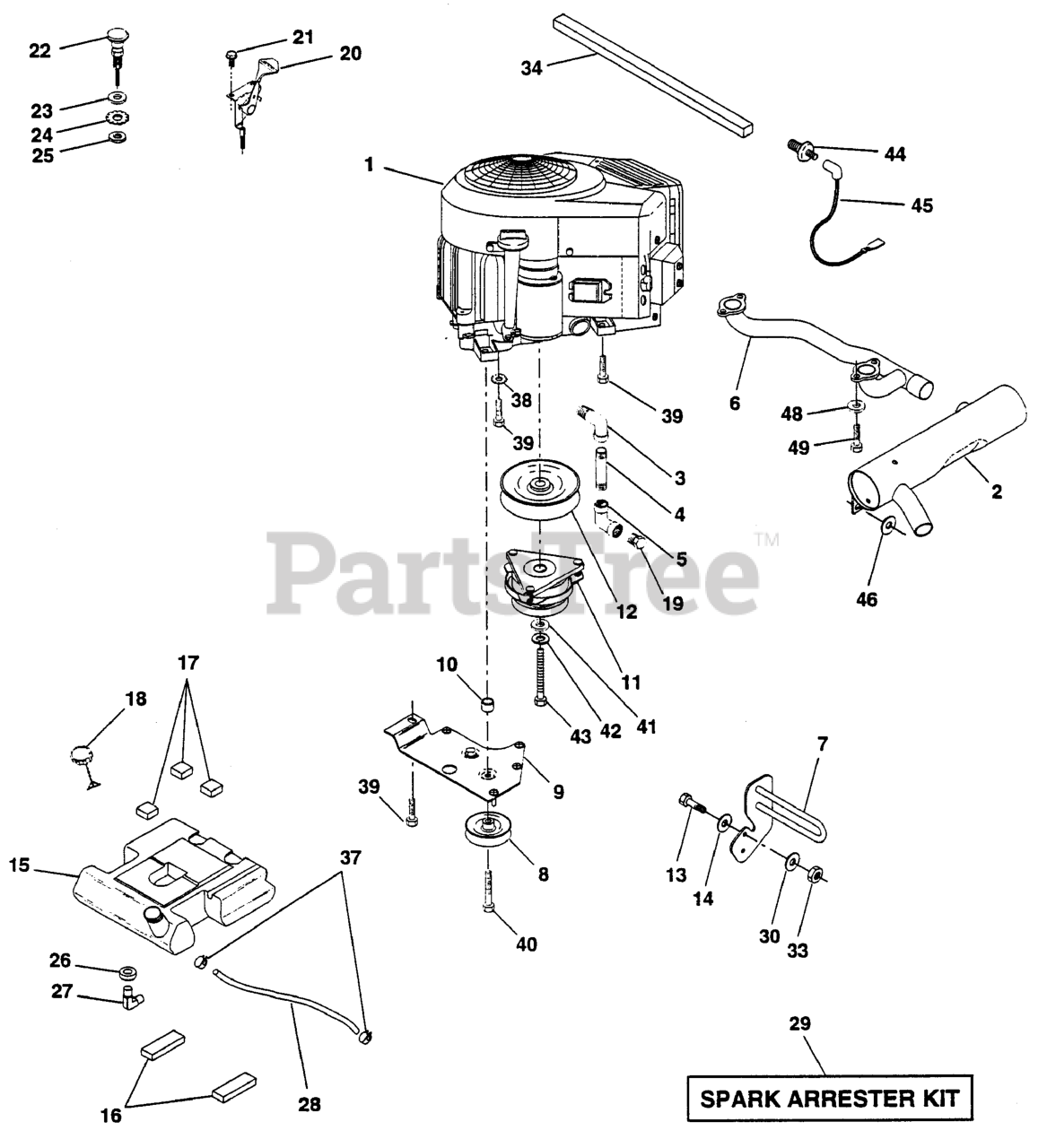

GTH 200 (954000972-A) - Husqvarna Garden Tractor (1994-03) Engine Parts Diagram

Garden Tractor

Engine Parts Diagram

  • Title

1

Husqvarna 532140593

Engine B&S, Model No. 351777

$

$

Currently unavailable

2

Husqvarna 532140786

MUFFLER 20 VAN

Note: (Inc. Key No. 34)

$

$

Not available

3

Husqvarna 813240300

STREET ELBOW LT NLA

$

$

Not available

4

Husqvarna 813280328

Nipple Pipe 3/8NPT X 3 - 1/2

$

$

Not available

5

Husqvarna 813200300

ELBOW
(Superseded to 532181654)

$20.99

$

In Stock, Qty 20+

0

6

Husqvarna 532140805

EXHAUST PIPE

$

$

Not available

7

Husqvarna 532143599

MUFFLER GUARD

$

$

Not available

8

Husqvarna 532121361

RP.IDLER GROOVED
(Superseded to 532139123)

$43.99

$

In Stock, only 4 left!

0

9

Husqvarna 532138559

STOP KEEPER
(Superseded to 532177748)

$

$

Not available

10

Husqvarna 532105432

BUSHING

$

$

Not available

11

Husqvarna 532137140

CLUTCH.ELECT.CVX.105 FT/LB.
(Superseded to 532142600)

$

$

Not available

12

Husqvarna 532136907

PULLEY, ENGINE

$

$

Not available

13

Husqvarna 874780624

BOLT
(Superseded to 874930624)

$9.49

$

In Stock, Qty 6

0

14

Husqvarna 819131414

WASHER

$3.99

$

In Stock, only 3 left!

0

15

Husqvarna 532141070

FUEL TANK
(Superseded to 532151346)

$113.99

$

In Stock, Qty 8

0

16

Husqvarna 532109227

PAD IDLER TI

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 532106082

PAD-SPACER LT

$

$

Not available

18

Husqvarna 532140527

FUEL CAP
(Superseded to 581075501)

$26.99

$

In Stock, Qty 10

0

19

Husqvarna 813290300

PLUG T

Note: (Order From Engine Manufacturer)

$

$

Not available

20

Husqvarna 532132747

THROTTLE CONTROL
(Superseded to 532132748)

$

$

Not available

21

Husqvarna 817720410

SCREW LT
(Superseded to 596582501)

$3.49

$

Usually ships in 3-10 days

0

22

Husqvarna 532132782

CHOKE CONTROL
(Superseded to 532132781)

$

$

Not available

23

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

24

Husqvarna 811050600

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 873610600

NUT
(Superseded to 873800600)

$

$

Not available

26

Husqvarna 532124952

BUSHING OUTLET T
(Superseded to 532003645)

$4.99

$

In Stock, Qty 20+

0

27

Husqvarna 532139277

STEM FUEL TANK

$7.99

$

In Stock, Qty 20+

0

28

Husqvarna 532124703

HOSE
(Superseded to 532008542)

$

$

Not available

29

Husqvarna 532132920

SPARK ARRESTOR

$

$

Not available

30

Husqvarna 819132007

Washer 13/32 x 1-1/4 x 7 Ga.

$

$

Not available

33

Husqvarna 873800600

NUT
(Superseded to 873680600)

$

$

Not available

34

Husqvarna 532105037

FOAM-STRIP LT

$

$

Not available

35

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.49

$

In Stock, Qty 20+

0

36

Husqvarna 532144476

BOLT

$

$

Not available

37

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 12

0

38

Husqvarna 811050600

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

39

Husqvarna 817490624

SCREW LT
(Superseded to 874930624)

$9.49

$

In Stock, Qty 6

0

40

Husqvarna 817490652

Screw Thdrol 3/8 - 16 X 3 - 1/4

$

$

Not available

41

Husqvarna 532126197

WASHER

$7.99

$

In Stock, Qty 20+

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

$3.49

$

In Stock, only 1 left!

0

43

Husqvarna 871170768

BOLT
(Superseded to 532150280)

$3.49

$

In Stock, only 4 left!

0

44

Husqvarna 532142320

SWITCH, OIL PRESSURE

$

$

Not available

45

Husqvarna 532144222

LEAD WIRE

$

$

Not available

46

Husqvarna 819131616

WASHER
(Superseded to 596140201)

$3.49

$

In Stock, only 2 left!

0

48

UNKNOWN

$

$

Not available

49

UNKNOWN

$

$

Not available
