GTH 200 (954001122-A) - Husqvarna Garden Tractor (1994-07) Electrical Parts Diagram

Garden Tractor

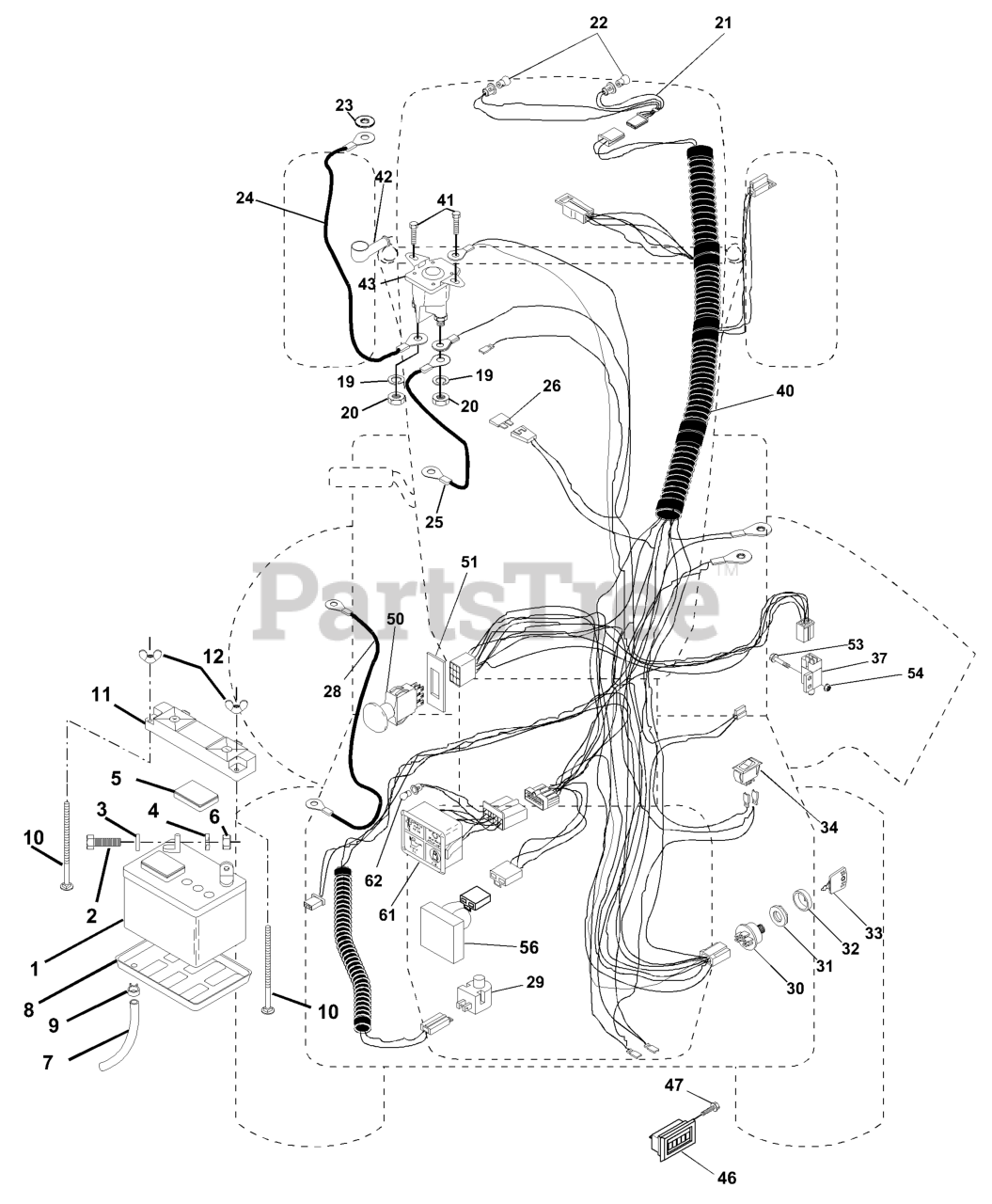

Electrical Parts Diagram

  • Title

1

Husqvarna 532121537

BATTERY
(Superseded to 532123899)

$205.99

$

In Stock, Qty 7

0

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$3.99

$

In Stock, Qty 6

0

3

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna 819091016

WASHER
(Superseded to 596582301)

$3.49

$

In Stock, Qty 13

0

5

Husqvarna 532121264

CAP BATTERY NLA

$

$

Not available

6

Husqvarna 873220400

NUT
(Superseded to 532050675)

$3.49

$

Usually ships in 3-10 days

0

7

Husqvarna 532007697

PLASTIC TUBE

$

$

Not available

8

Husqvarna 532124886

BATTERY TRAY T
(Superseded to 532007603)

$7.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532109596

HOSE CLAMP T

$

$

Not available

10

Husqvarna 872240460

BOLT

$

$

Not available

11

Husqvarna 532102476

TERMINAL GRD YTV
(Superseded to 532150109)

$

$

Not available

12

Husqvarna 532123198

WING NUT
(Superseded to 532146525)

$

$

Not available

19

Husqvarna 810090400

LOCKWASHER
(Superseded to 596029801)

$3.49

$

Usually ships in 3-10 days

0

20

Husqvarna 873350400

NUT
(Superseded to 532050675)

$3.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532127441

HARNESS LIGHT SOC
(Superseded to 532136850)

$

$

Not available

22

Husqvarna 532004152

LIGHTBULB

$4.99

$

In Stock, Qty 20+

0

23

Husqvarna 811150400

Washer, Lock Int. Tooth 1/4

$

$

Not available

24

Husqvarna 532124780

BATTERY CABLE GT
(Superseded to 532004799)

$17.99

$

In Stock, only 2 left!

0

25

Husqvarna 532124770

CABLE-BATTERY YTV
(Superseded to 532004799)

$17.99

$

In Stock, only 2 left!

0

26

Husqvarna 532108824

FUSE HYT

$

$

Not available

28

Husqvarna 532124773

CABLE T
(Superseded to 532004207)

$5.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532121305

RP.SWITCH.PLUNGER.NC.GRAY
(Superseded to 532421062)

$17.99

$

In Stock, Qty 17

0

30

Husqvarna 532144921

IGNITION SWITCH
(Superseded to 532158913)

$51.99

$

In Stock, only 2 left!

0

31

Husqvarna 532140400

NUT, IGNITION
(Superseded to 532145774)

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532141226

COVER SWITCH KEY

$

$

Not available

33

Husqvarna 532140401

KEY MLD GEN DELTA

$6.99

$

In Stock, Qty 20+

0

34

Husqvarna 532110712

SWITCH LT

$9.49

$

In Stock, Qty 12

0

37

Husqvarna 532109553

SWITCH INTERLOCKT
(Superseded to 539101080)

$20.99

$

In Stock, Qty 20+

0

40

Husqvarna 532140430

IGNITION HARNESS

$

$

Not available

41

Husqvarna 817720408

SCREW
(Superseded to 596437001)

$3.49

$

In Stock, only 3 left!

0

42

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$6.99

$

In Stock, only 4 left!

0

43

Husqvarna 532138406

SOLENOID
(Superseded to 532146154)

$22.99

$

In Stock, Qty 20+

0

46

Husqvarna 532110940

HOUR METER T
(Superseded to 532169642)

$

$

Not available

47

Husqvarna 817011008

Screw #10-24 x 1/2

$

$

Not available

50

Husqvarna 532140404

SWITCH-PTO
(Superseded to 532174651)

$31.99

$

In Stock, Qty 20+

0

51

Husqvarna 532140405

FRAME RETAINING RING

$4.99

$

Usually ships in 3-10 days

0

53

Husqvarna 871031008

SCREW **
(Superseded to 874641008)

$

$

Not available

54

Husqvarna 873951000

Nut Keps #10-32

$

$

Not available

56

Husqvarna 532127385

SENSOR LOW VOLTAGE

$

$

Not available

61

Husqvarna 532126519

LIGHT PACKAGE

$

$

Not available

62

Husqvarna 532110143

BULB LIGHT T

$

$

Not available
