GTH 200 (954001122-VA) - Husqvarna Garden Tractor (1995-03) Transaxle Pump Parts Diagram

Garden Tractor

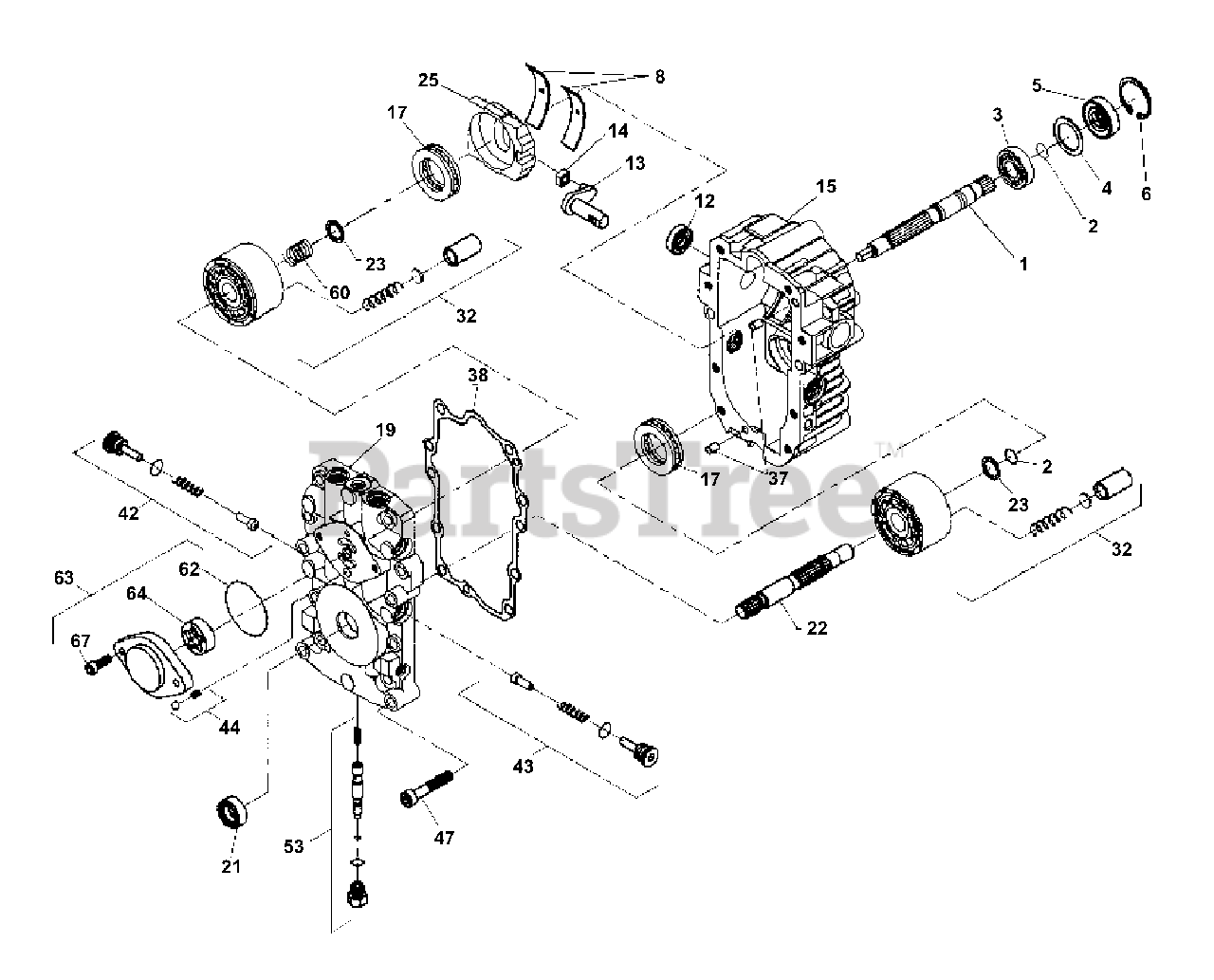

Transaxle Pump Parts Diagram

  • Title

1

Husqvarna 532144569

Shaft, Pump

$188.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532122716

Ring, Retaining
(Superseded to 532142928)

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532122745

Bearing, Ball

$85.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532122715

Spacer

$

$

Not available

5

Husqvarna 532122700

Seal, Lip
(Superseded to 532142932)

$14.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532122699

Ring, Retaining

$

$

Not available

8

Husqvarna 532122767

Bearing, Cradle

$

$

Not available

12

Husqvarna 532122717

Seal, Lip

$

$

Not available

13

Husqvarna 532122748

Arm, Trunnion

$

$

Not available

14

Husqvarna 532122749

Guide, Slot

$

$

Not available

15

Husqvarna 532144571

Housing Kit, Transmission

$

$

Not available

17

Husqvarna 532122770

Bearing, Thrust, Ball
(Superseded to 532150771)

$36.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532144572

Center Section Kit

$1031.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532122722

Seal, Lip

$6.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532144573

Shaft, Motor

$157.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532144574

Washer, Block Thrust

$

$

Not available

25

Husqvarna 532127148

Swashplate, Variable

$

$

Not available

32

Husqvarna 532144577

Block Assembly

$

$

Not available

37

Husqvarna 532122786

Pin, Stainless, Headless

$

$

Not available

38

Husqvarna 532122718

Gasket, Center Section

$9.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532144578

Check Valve Kit

$66.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532144578

Check Valve Kit

$66.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532144579

Charge Relief Kit

$8.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532122752

Screw, Socket Head, Cap

$

$

Not available

53

Husqvarna 532127153

Bypass Valve Kit

$94.99

$

Usually ships in 3-10 days

0

60

Husqvarna 532144580

Block Spring

$

$

Not available

62

Husqvarna 532144581

O-Ring

$6.49

$

Usually ships in 3-10 days

0

63

Husqvarna 532144582

Charge Pump Kit

$

$

Not available

64

Husqvarna 532144583

Gerotor Assembly
(Superseded to 583031201)

$56.99

$

Usually ships in 3-10 days

0

67

Husqvarna 532144584

Screw, Socket Head, Cap

$

$

Not available

Husqvarna 532144576

Pump Assembly, Complete

$1510.99

$

Usually ships in 3-10 days

0
