GTH 200 (954002022-A) - Husqvarna Garden Tractor (1995-05) TRANSMISSION Parts Diagram

Garden Tractor

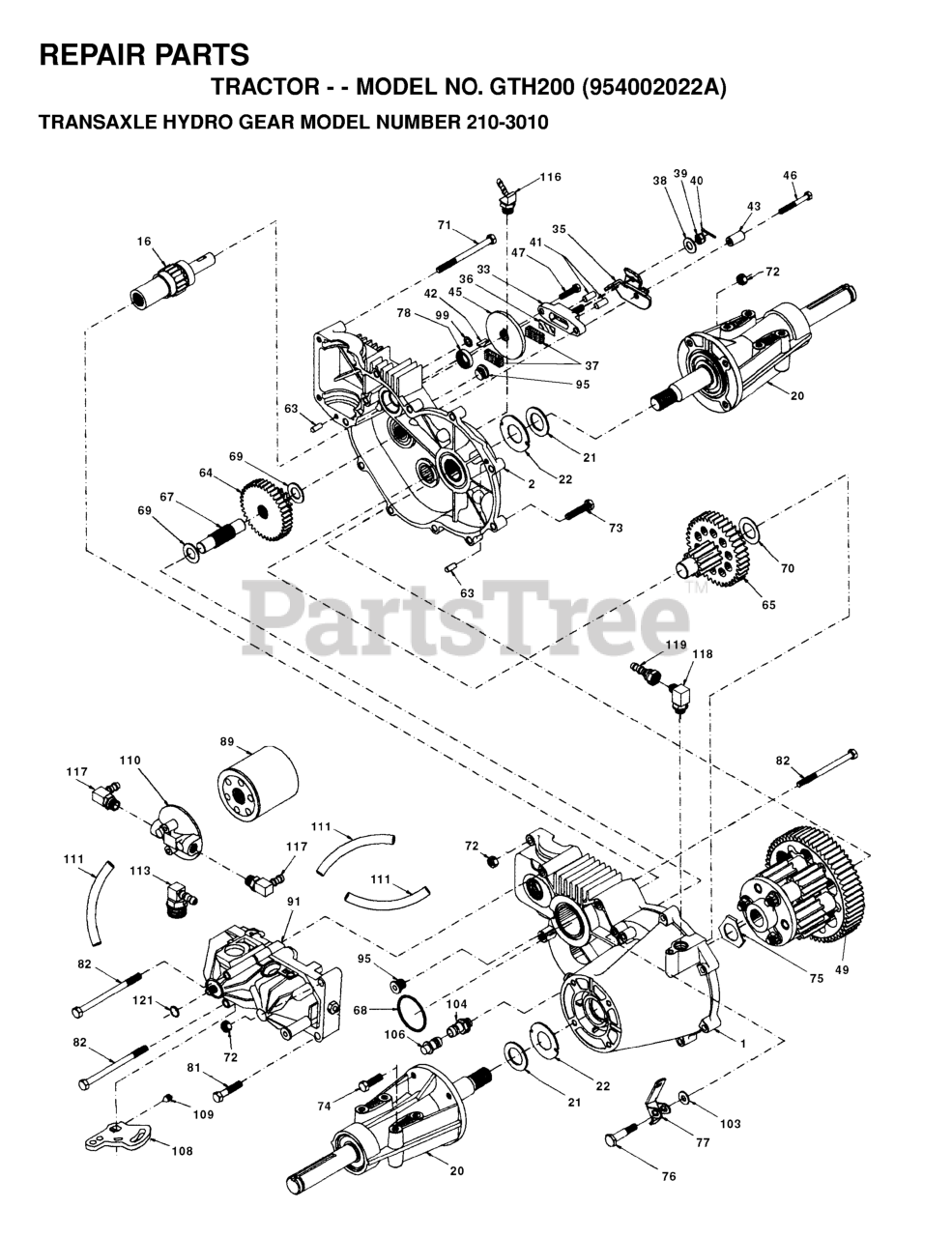

TRANSMISSION Parts Diagram

  • Title

69

Husqvarna 532142900

WASHER.44795.

$

$

Not available

33

Husqvarna 532142929

BRAKE YOKE ASSEMBLY
(Superseded to 584289701)

$26.99

$

Usually ships in 3-10 days

0

82

Husqvarna 532142911

BOLT 5/16 44820

$

$

Not available

111

Husqvarna 532142922

HOSE.50208.HYDRO

$

$

Not available

1

Husqvarna 532142874

HOUSING.TRANSAXLE.70536

$

$

Not available

74

Husqvarna 532142905

HEX CAP SCREW, 5/16-18X1

$

$

Not available

95

Husqvarna 532142914

PLUG.9005110-5600

$

$

Not available

46

Husqvarna 532142891

BOLT 44276

$

$

Not available

45

Husqvarna 532142890

BRAKE.DISC.44090.

$45.99

$

Usually ships in 3-10 days

0

119

Husqvarna 532142927

FITTING 90 DEG #6 FEMALE SAE

$

$

Not available

72

Husqvarna 532142903

HEX LOCK NUT, 5/16-18

$

$

Not available

109

Husqvarna 532142920

SCREW.SET.50018

$20.99

$

Usually ships in 3-10 days

0

81

Husqvarna 532142910

BOLT

$

$

Not available

47

Husqvarna 532142892

BOLT W/NYLOCK 44433
(Superseded to 584281501)

$

$

Not available

49

Husqvarna 532142893

DIFFERENTIAL ASSEMBLY

$

$

Not available

73

Husqvarna 532142904

BOLT, HEX5/16-18X1-1/2
(Superseded to 532161159)

$11.99

$

Usually ships in 3-10 days

0

77

Husqvarna 532142908

FREE WHEEL ACTUATING ARM 44786

$

$

Not available

63

Husqvarna 532142894

DOWEL.PIN.44757.HYDRO

$

$

Not available

22

Husqvarna 532142879

WASHER

$

$

Not available

40

Husqvarna 532142886

PIN.COTTER.44101.

$

$

Not available

64

Husqvarna 532142896

GEAR 17T 44775
(Superseded to 532142876)

$

$

Not available

108

Husqvarna 532142919

ARM CONTROL 45007

$

$

Not available

89

Husqvarna 532142912

FILTER
(Superseded to 532182642)

$51.99

$

Usually ships in 3-10 days

0

117

Husqvarna 532142925

FITTING 50249 HYDRO

$

$

Not available

75

Husqvarna 532142906

WASHER.DIFFERENTIAL.44880.HYD

$

$

Not available

35

Husqvarna 532142880

BRACE ARM 50214

$

$

Not available

99

Husqvarna 532142915

WASHER

$

$

Not available

104

Husqvarna 532142917

CAP, VENT ASSY
(Superseded to 532142578)

$

$

Not available

37

Husqvarna 532142883

BRAKE PUCK (44132)

$5.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532142901

WASHER.44794.HYDRO

$

$

Not available

71

Husqvarna 532142902

BOLT HXHD 44827

$

$

Not available

91

Husqvarna 532142913

PUMP BD-10C-118
(Superseded to 532144576)

$

$

Not available

121

Husqvarna 532142928

RING RETAINING 2003016

$

$

Not available

106

Husqvarna 532142918

O-RING KIT 70110

$

$

Not available

110

Husqvarna 532142921

FILTER HEAD 50207 HYDRO

$

$

Not available

41

Husqvarna 532142887

BRAKE PIN 44127
(Superseded to 584287501)

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532142875

ASSEMBLY, RH HOUSING

$

$

Not available

78

Husqvarna 532142909

SEAL OIL 70719

$17.99

$

In Stock, only 1 left!

0

103

Husqvarna 532142916

WASHER 50169

$

$

Not available

42

Husqvarna 532142888

KEY.HIPRO.44143

$6.99

$

In Stock, only 1 left!

0

38

Husqvarna 532142884

WASHER .34X.88X.06.44130

$

$

Not available

68

Husqvarna 532142899

O-RING #44781

$

$

Not available

116

Husqvarna 532142924

FITTING.9/16 SAE.50213.

$

$

Not available

21

Husqvarna 532142878

WASHER 44805

$

$

Not available

20

Husqvarna 532142877

AXLE.MOUNTING.HORN.70087

$

$

Not available

39

Husqvarna 532142885

CASTLE NUT

$

$

Not available

36

Husqvarna 532142882

PUCK PLATE 44134
(Superseded to 584289601)

$4.99

$

Usually ships in 3-10 days

0

118

Husqvarna 532142926

FITTING 90 DEG #6 FLARE MALE

$

$

Not available

67

Husqvarna 532142898

JACKSHAFT.44779.HYDRO

$

$

Not available

65

Husqvarna 532142897

PINION DR FINAL 70051

$

$

Not available

113

Husqvarna 532142923

FITTING.9/16 SAE.50210.

$

$

Not available

16

Husqvarna 532142876

BRAKE SHAFT KIT #62877

$

$

Not available

76

Husqvarna 532142907

BOLT.SHOULDER.44785.

$

$

Not available

43

Husqvarna 532142889

SPACER 50259

$

$

Not available
