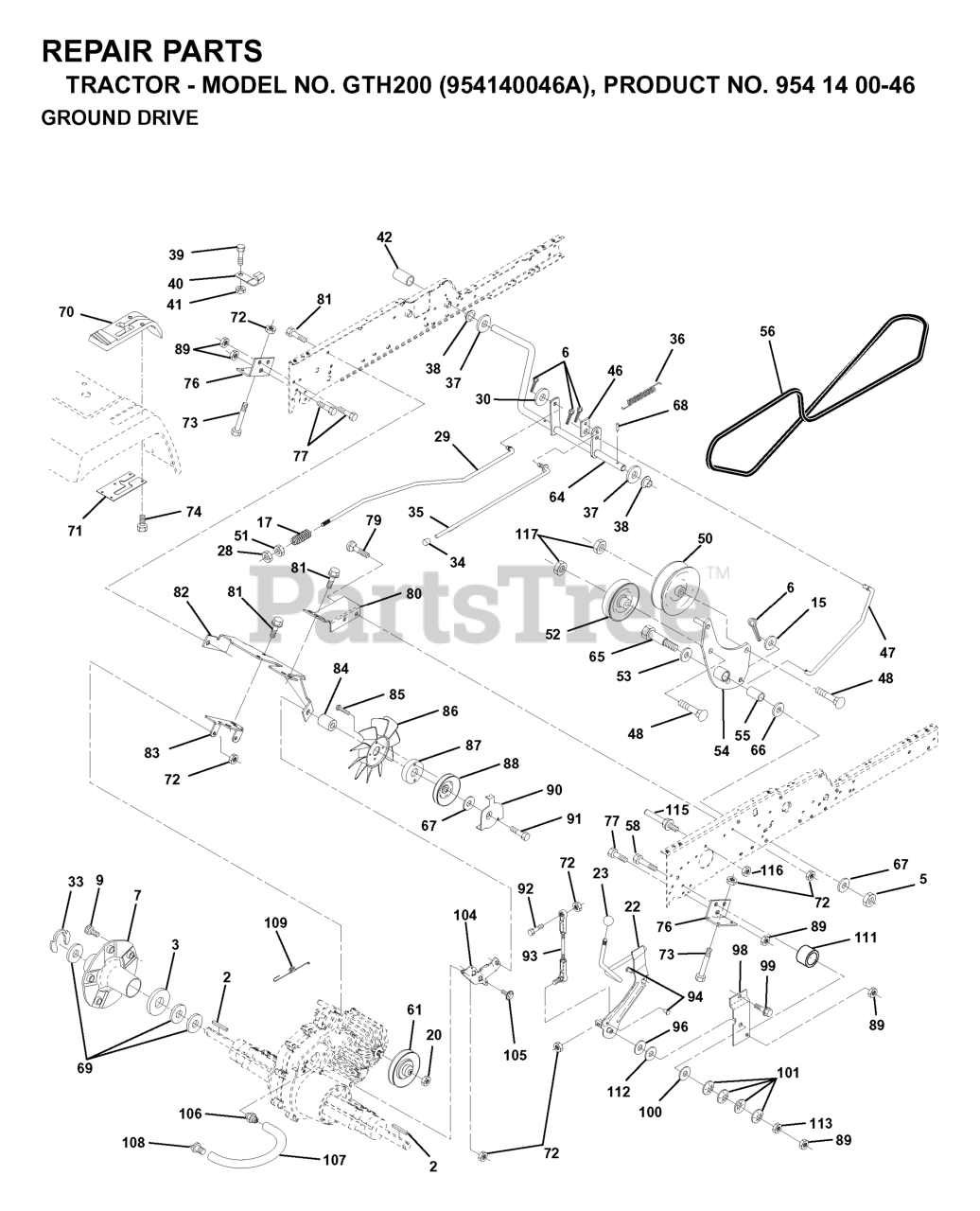

GTH 200 (954140046-A) - Husqvarna Garden Tractor (1998-09) DRIVE Parts Diagram

Garden Tractor

DRIVE Parts Diagram

  • Title

38

Husqvarna 532150035

NYLINER

$4.99

$

Usually ships in 3-10 days

0

81

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

28

Husqvarna 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 3 left!

0

80

Husqvarna 532140484

TORQUE BRACKET RH

$

$

Not available

76

Husqvarna 532140481

BRACKET TRANSAXLE

$

$

Not available

53

Husqvarna 532000207

WASHER T

$6.49

$

Usually ships in 3-10 days

0

64

Husqvarna 532154752

SHAFT CLUTCH/BRAKE PEDAL

$

$

Not available

58

Husqvarna 874760724

BOLT.HEX.7/16-14.FINISHED

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532007070

KEY 1/4 X 2.5

$

$

Not available

68

Husqvarna 532005142

ROLL PIN STD

$

$

Not available

79

Husqvarna 872110505

BOLT.CARR.5/16-18X5/8.SHORT
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

99

Husqvarna 817490624

SCREW LT
(Superseded to 874930624)

$

$

Not available

51

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

109

Husqvarna 532140929

RETURN SPRING

$

$

Not available

46

Husqvarna 532145170

RETAINER SPRING

$

$

Not available

67

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

113

Husqvarna 873220700

NUT

$2.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532156103

SHAFT ARM ASM

$

$

Not available

112

Husqvarna 532156104

WASHER NYLON HIGH TEMP
(Superseded to 532178558)

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532123800

WASHER

$7.49

$

In Stock, only 1 left!

0

82

Husqvarna 532150586

BRACKET MOUNT TORQUE/FAN
(Superseded to 532154561)

$

$

Not available

15

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

77

Husqvarna 874760716

BOLT
(Superseded to 874780716)

$4.99

$

Usually ships in 3-10 days

0

66

Husqvarna 532140296

WASHER.BLADE

$6.49

$

In Stock, Qty 6

0

55

Husqvarna 532105706

BEARING LT (2 2)

$7.49

$

In Stock, only 1 left!

0

- -

Husqvarna 532150073

TRANSAXLE HYDRO
(Superseded to 532163198)

$

$

Not available

47

Husqvarna 532138228

CLUTCH ROD

$

$

Not available

116

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

104

Husqvarna 532140480

BRACKET IDLER

$

$

Not available

83

Husqvarna 532140479

STRAP TORQUE MID

$

$

Not available

3

Husqvarna 532007563

WASHER T

$8.99

$

In Stock, only 1 left!

0

74

Husqvarna 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

96

Husqvarna 532141103

WASHER

$3.99

$

Usually ships in 3-10 days

0

90

Husqvarna 532140489

KEEPER.BELT

$8.99

$

Usually ships in 3-10 days

0

20

Husqvarna 873940800

NUT.HEX.1/2-20

$7.49

$

In Stock, Qty 11

0

71

Husqvarna 532151179

PLATE CONSOLE SHIFT

$

$

Not available

85

Husqvarna 817541020

Screw #10-24 x 1-1/4

$3.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 20+

0

36

Husqvarna 532149412

SPRING DRIVE GROUND

$

$

Not available

52

Husqvarna 532139123

PULLEY.IDLER.V.

$37.99

$

In Stock, only 1 left!

0

115

Husqvarna 532123405

KEEPER,DRIVE BELT
(Superseded to 532156109)

$8.99

$

Usually ships in 3-10 days

0

108

Husqvarna 532142917

CAP, VENT ASSY
(Superseded to 532142578)

$46.99

$

Usually ships in 3-10 days

0

88

Husqvarna 532140492

IDLER PULLEY
(Superseded to 532161592)

$

$

Not available

117

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 532140921

SPRING.ROD.BRAKE

$3.99

$

Usually ships in 3-10 days

0

107

Husqvarna 532154739

LINE.VENT.HYDRO-GEAR

$6.49

$

Usually ships in 3-10 days

0

72

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532121749

WASHER

$3.49

$

In Stock, Qty 20+

0

73

Husqvarna 874490548

BOLT HEX FLGHD 5/16-18X3 GR. 5

$6.49

$

In Stock, only 2 left!

0

29

Husqvarna 532140494

BRAKE ROD

$11.99

$

Usually ships in 3-10 days

0

94

Husqvarna 532133835

FASTENER.XMAS.TREE

$7.49

$

Usually ships in 3-10 days

0

93

Husqvarna 532140502

LINK ASM SHIFT

$

$

Not available

105

Husqvarna 817580408

SCREW CRT
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

92

Husqvarna 874760520

BOLT
(Superseded to 874780520)

$4.99

$

Usually ships in 3-10 days

0

39

Husqvarna 874321016

Screw, Fin. #10-24 x 1

$

$

Not available

61

Husqvarna 532140488

PULLEY

$37.99

$

Usually ships in 3-10 days

0

6

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

33

Husqvarna 812000053

E RING HYT

$7.49

$

In Stock, only 2 left!

0

89

Husqvarna 873680700

Nut, Crownlock Hex 7/16-14 unc

$2.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532123533

COVER, PEDAL (1 2)

$6.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532137648

PARKING BRAKE ROD

$9.99

$

In Stock, only 1 left!

0

56

Husqvarna 532140218

V-BELT.

$60.99

$

In Stock, Qty 7

0

23

Husqvarna 532121274

KNOB.DUCKHEAD.1/2

$8.99

$

Usually ships in 3-10 days

0

30

Husqvarna 819131616

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

101

Husqvarna 532156106

WASHER BELLVILLE

$

$

Not available

9

Husqvarna 532140080

HUB BOLT

$3.99

$

Usually ships in 3-10 days

0

84

Husqvarna 532140490

SPACER

$

$

Not available

7

Husqvarna 532140507

HUB ASMBLY

$182.99

$

Usually ships in 3-10 days

0

48

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

91

Husqvarna 817490644

SCREW.HXWSH.3/8

$

$

Not available

87

Husqvarna 532140491

ADAPTOR.FAN.TRANSAXLE.VGTH

$

$

Not available

86

Husqvarna 532140462

FAN 7" HYDRO

$12.99

$

In Stock, only 3 left!

0

100

Husqvarna 532126881

WASHER

$3.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532151146

CONSOLE, SHIFT HYD
(Superseded to 532153762)

$

$

Not available

34

Husqvarna 532071673

PLUNGER CAP

$4.99

$

In Stock, only 1 left!

0

98

Husqvarna 532141004

SHIFT BRACKET

$

$

Not available

65

Husqvarna 532067609

AXLE BOLT

$9.49

$

Usually ships in 3-10 days

0

111

Husqvarna 532156240

SPACER SHIFT LEVER VGTH

$2.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532005304

ACT-SWITCH T
(Superseded to 532178575)

$

$

Not available

106

Husqvarna 532142918

O-RING KIT 70110

$

$

Not available
