GTH 220 (954002022-A) - Husqvarna Garden Tractor (1995-05) Transaxle Hydro Gear Parts Diagram

Garden Tractor

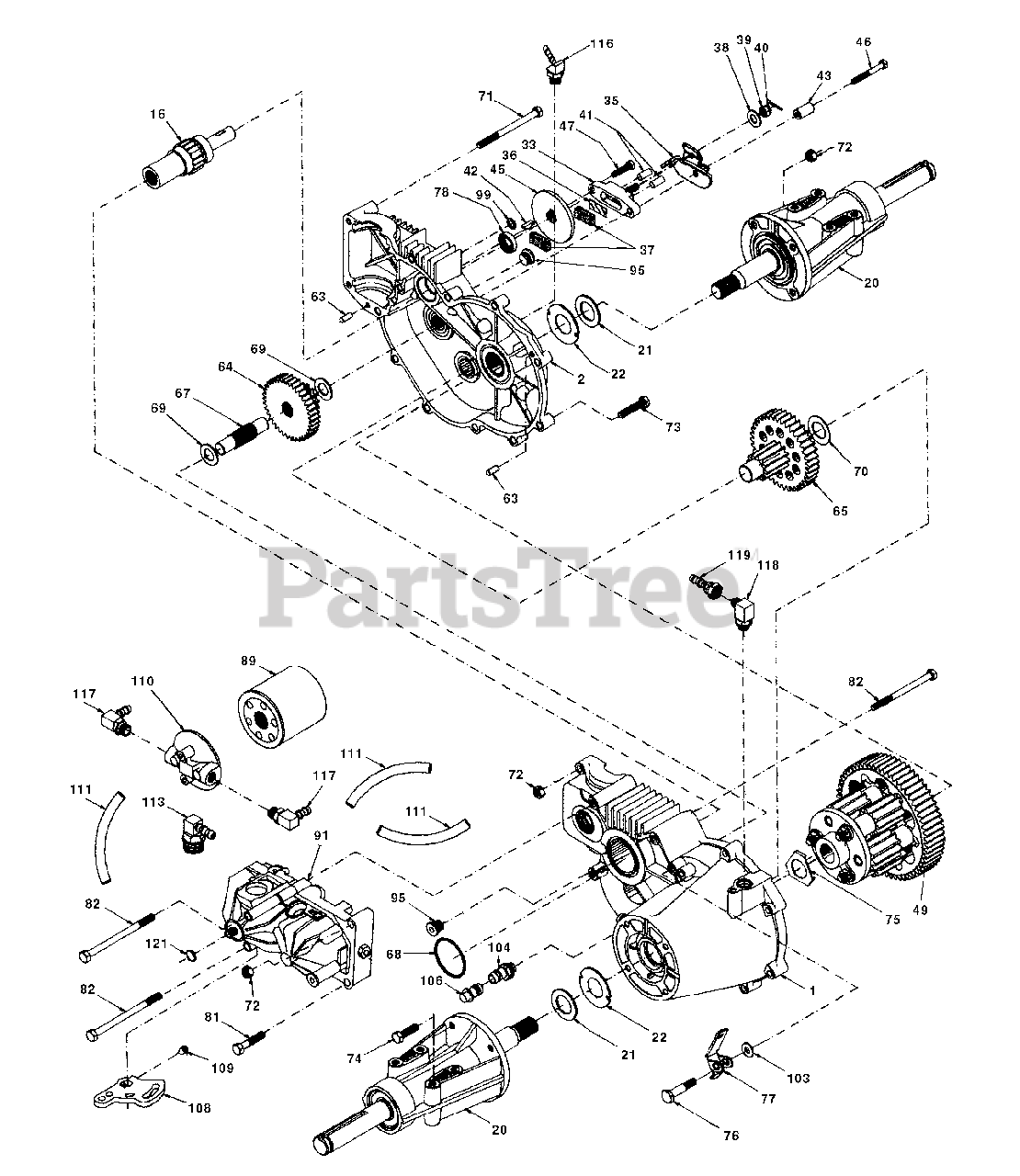

Transaxle Hydro Gear Parts Diagram

  • Title

1

Husqvarna 532142874

Assembly, Lh Housing

$

$

Not available

2

Husqvarna 532142875

Assembly, Rh Housing

$

$

Not available

16

Husqvarna 532142876

Brake Shaft Assembly

$

$

Not available

20

Husqvarna 532142877

Axle Mounting Horn Ass'y

$

$

Not available

21

Husqvarna 532142878

Washer,1.0x1.63x.08

$

$

Not available

22

Husqvarna 532142879

Washer,1.0x2.06x.09

$

$

Not available

33

Husqvarna 532142929

Brake Yoke Assembly
(Superseded to 584289701)

$26.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532142880

Brake Arm

$

$

Not available

36

Husqvarna 532142882

Puck Plate
(Superseded to 584289601)

$4.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532142883

Brake Puck

$5.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532142884

Washer,7/8odx7/16x.060

$

$

Not available

39

Husqvarna 532142885

Castle Nut, 5/16-24

$

$

Not available

40

Husqvarna 532142886

Cotter Pin

$

$

Not available

41

Husqvarna 532142887

Brake Actuating Pin
(Superseded to 584287501)

$4.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532142888

Hi Pro Key

$6.99

$

In Stock, only 1 left!

0

43

Husqvarna 532142889

Spacer

$

$

Not available

45

Husqvarna 532142890

Brake Disc

$45.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532142891

Bolt, 1/4-20 X 1-1/2

$

$

Not available

47

Husqvarna 532142892

Bolt, 1/4-20 X 1
(Superseded to 584281501)

$

$

Not available

49

Husqvarna 532142893

Differential Assembly

$

$

Not available

63

Husqvarna 532142894

Dowel Pin

$

$

Not available

64

Husqvarna 532142896

14t-38t Reduction Gear
(Superseded to 532142876)

$

$

Not available

65

Husqvarna 532142897

Final Drive Pinion Ass'y

$

$

Not available

67

Husqvarna 532142898

Jack Shaft

$

$

Not available

68

Husqvarna 532142899

O Ring

$

$

Not available

69

Husqvarna 532142900

Washer,5/8 X 1-5/32

$

$

Not available

70

Husqvarna 532142901

Washer,7/8 X 1-1/2

$

$

Not available

71

Husqvarna 532142902

Bolt, Hex 5/16-18 X 3.5

$

$

Not available

72

Husqvarna 532142903

Hex Lock Nut, 5/16-18

$

$

Not available

73

Husqvarna 532142904

Bolt, Hex 5/16-18 X 1-1/2
(Superseded to 532161159)

$11.99

$

Usually ships in 3-10 days

0

74

Husqvarna 532142905

Hex Cap Screw, 5/16-18 X 1

$

$

Not available

75

Husqvarna 532142906

Washer, Differential

$

$

Not available

76

Husqvarna 532142907

Shoulder Bolt

$

$

Not available

77

Husqvarna 532142908

Freewheel Actuating Arm

$

$

Not available

78

Husqvarna 532142909

Oil Seal, .625 X 1.0 X .25

$17.99

$

In Stock, only 1 left!

0

81

Husqvarna 532142910

Bolt, Hex 5/16-18 X 1-3/4

$

$

Not available

82

Husqvarna 532142911

Bolt, 5/16-18 X 4-1/2

$

$

Not available

89

Husqvarna 532142912

Spin On Filter
(Superseded to 532182642)

$51.99

$

Usually ships in 3-10 days

0

91

Husqvarna 532142913

Bdu-10l-118
(Superseded to 532144576)

$

$

Not available

95

Husqvarna 532142914

Straight Thread Plug

$

$

Not available

99

Husqvarna 532142915

Washer, 11/32 X 9/16

$

$

Not available

103

Husqvarna 532142916

Washer

$

$

Not available

104

Husqvarna 532142917

Cap-Vent Assembly
(Superseded to 532142578)

$

$

Not available

106

Husqvarna 532142918

Fitting-O Ring Assembly

$

$

Not available

108

Husqvarna 532142919

Control Arm

$

$

Not available

109

Husqvarna 532142920

Set Screw

$20.99

$

Usually ships in 3-10 days

0

110

Husqvarna 532142921

Filter Head

$

$

Not available

111

Husqvarna 532142922

Hose, 5/16 X 12" Long

$

$

Not available

113

Husqvarna 532142923

90° 7/8 Sae Fitting

$

$

Not available

116

Husqvarna 532142924

45° 9/16 Sae Fitting

$

$

Not available

117

Husqvarna 532142925

90° 9/16 Sae Fitting

$

$

Not available

118

Husqvarna 532142926

90° Sae #6 Flare Male Fitting

$

$

Not available

119

Husqvarna 532142927

90° Sae #6 Flare Female Fitting

$

$

Not available

121

Husqvarna 532142928

Wire Retaining Ring

$

$

Not available
