GTH 220 (954140012-A) - Husqvarna Garden Tractor (1997-12) Chassis And Enclosures Parts Diagram

Garden Tractor

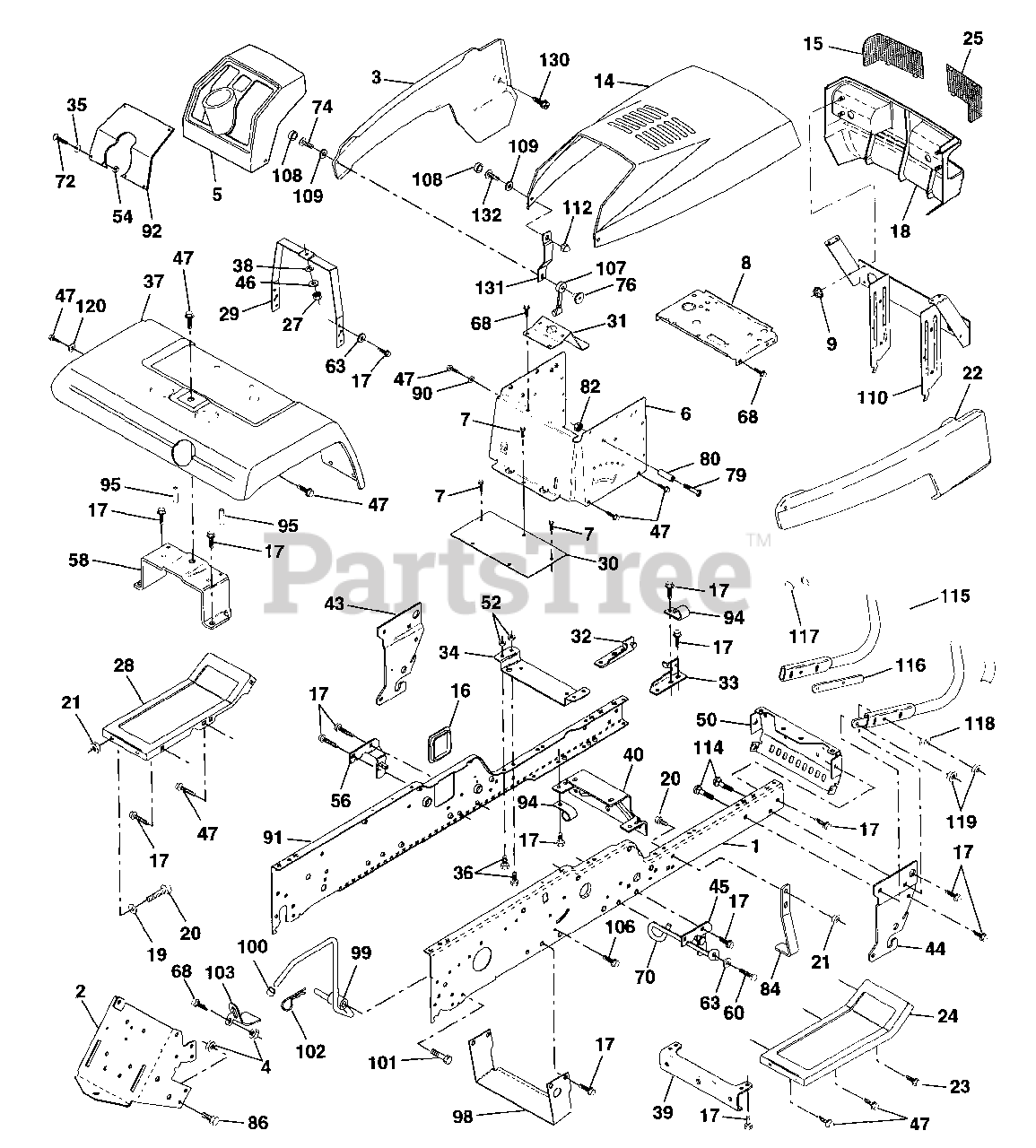

Chassis And Enclosures Parts Diagram

  • Title

1

Husqvarna 532150253

Rail, Frame RH
(Superseded to 532180375)

$56.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532140506

Drawbar, Gt
(Superseded to 532175282)

$

$

Not available

3

Husqvarna 532150478

Panel Asm., Side LH
(Superseded to 532150189)

$

$

Not available

4

Husqvarna 873800700

Nut, Lock Hex 7/16 Unc

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532140452

Dash, Plastic Black

$

$

Not available

6

Husqvarna 532150273

Dash 1-PCS, Lower

$38.99

$

Usually ships in 3-10 days

0

7

Husqvarna 817720408

Screw, Thd Cut 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532145166

Support, Battery

$

$

Not available

9

Husqvarna 532108067

Nut Pal

$

$

Not available

14

Husqvarna 532150477

Hood Asm., Pnt
(Superseded to 532125454)

$

$

Not available

15

Husqvarna 532157068

Lens, Headlight LH

$

$

Not available

16

Husqvarna 532121794

Cover, Access

$

$

Not available

17

Husqvarna 817490612

Screw, Thdrol 3/8-16 x 3/4
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

18

Husqvarna 532157236

Grille

$

$

Not available

19

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

20

Husqvarna 874760616

Bolt, Fin Hex 3/8-16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 873680600

Nut, Crownlock 3/8-16 Unc

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532150479

Panel Asm., Side RH
(Superseded to 532150190)

$

$

Not available

23

Husqvarna 817490616

Screw Thdrol. 3/8-16 x 1 Ty-TT
(Superseded to 817000616)

$7.49

$

In Stock, Qty 8

0

24

Husqvarna 532147202

Footrest, RH
(Superseded to 532145243)

$

$

Not available

25

Husqvarna 532157069

Lens Headlight RH

$

$

Not available

27

Husqvarna 873220400

Nut Fin Hex 1/4-20
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

28

Husqvarna 532147203

Footrest, LH

$

$

Not available

29

Husqvarna 532145205

Bracket, Support Dash

$

$

Not available

30

Husqvarna 532145052

Saddle

$

$

Not available

31

Husqvarna 532145183

Brace, Support Steering

$

$

Not available

32

Husqvarna 532141315

Bracket Asm., Frame Pivot Lh

$7.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532141314

Bracket Asm., Frame Pivot Rh

$

$

Not available

34

Husqvarna 532142131

Bracket, Engine Support Rear

$6.49

$

Usually ships in 3-10 days

0

35

Husqvarna 819111116

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

36

Husqvarna 874780512

Bolt, Fin Hex 5/16-18 x 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

37

Husqvarna 532141449

Fender, Pnt.
(Superseded to 532167270)

$

$

Not available

38

Husqvarna 810040400

Washer, Lock 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

39

Husqvarna 532136961

Bracket, Axle Front

$

$

Not available

40

Husqvarna 532142132

Bracket, Support Axle/Engine
(Superseded to 532156111)

$9.49

$

Usually ships in 3-10 days

0

43

Husqvarna 532136939

Bracket, Spnsn Front Lh

$

$

Not available

44

Husqvarna 532136940

Bracket, Spnsn Front Rh

$

$

Not available

45

Husqvarna 532154913

Bracket Asm., Susp Chassis Rh

$

$

Not available

46

Husqvarna 819091216

Washer 9/32 x 3/4 x 16 Ga.

$

$

Not available

47

Husqvarna 817490608

Screw Thdrol 3/8-16 x 1/2

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 532152728

Bracket, Chassis Front

$

$

Not available

52

Husqvarna 873800500

Locknut, Hex W/Ins 5/16-18 Unc

$3.99

$

Usually ships in 3-10 days

0

54

Husqvarna 873510500

Nut 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532154914

Bracket Asm., Susp Chassis Lh

$

$

Not available

58

Husqvarna 532137113

Bracket Asm., Fender
(Superseded to 532183569)

$14.99

$

Usually ships in 3-10 days

0

60

Husqvarna 817490620

Screw Thdrol 3/8-16 x 1-1/4
(Superseded to 874760620)

$7.49

$

In Stock, only 3 left!

0

63

Husqvarna 819131614

Washer 13/32 x 1 x 14 Ga.
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

68

Husqvarna 817490508

Screw, Thdrol 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532137159

Guide, Belt Mid Span
(Superseded to 532177679)

$9.99

$

Usually ships in 3-10 days

0

72

Husqvarna 874180512

Screw, Mach Trhd 5/16-18 x 3/4

$4.99

$

Usually ships in 3-10 days

0

74

Husqvarna 874191008

Screw, Machine #10-24
(Superseded to 871191008)

$6.49

$

Usually ships in 3-10 days

0

76

Husqvarna 532125004

Nut, Weld #10-24
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

79

Husqvarna 874981020

Screw, Machine #10-24 x 1/4
(Superseded to 874981024)

$9.99

$

In Stock, Qty 16

0

80

Husqvarna 532007206

Spacer, Split

$7.49

$

In Stock, Qty 15

0

82

Husqvarna 873731000

Nut #10-24
(Superseded to 873271000)

$2.99

$

Usually ships in 3-10 days

0

84

Husqvarna 532142992

Stop, Over Center 44" 20/23" T. 94

$6.49

$

Usually ships in 3-10 days

0

86

Husqvarna 874760716

Bolt, Fin Hex 7/16-14 Unc x 1
(Superseded to 874780716)

$4.99

$

Usually ships in 3-10 days

0

90

Husqvarna 811050600

Washer, Lock External Tooth 3/8
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

91

Husqvarna 532150851

Rail, Frame Lh

$103.99

$

Usually ships in 3-10 days

0

92

Husqvarna 532157221

Plate, Silkscreen Dash
(Superseded to 532156283)

$7.49

$

Usually ships in 3-10 days

0

94

Husqvarna 532100207

Clip, Fuel Line

$4.99

$

Usually ships in 3-10 days

0

95

Husqvarna 532105531

Push Nut, Nylon

$2.99

$

Usually ships in 3-10 days

0

98

Husqvarna 532140503

Bracket Chassis Skid
(Superseded to 532175847)

$

$

Not available

99

Husqvarna 532140871

Rod Asm. Bypass

$

$

Not available

100

Husqvarna 532124236

Cap Brake Parking Red
(Superseded to 532071673)

$4.99

$

In Stock, only 1 left!

0

101

Husqvarna 817490628

Screw Thdrol. 3/8-16 x 1-3/4
(Superseded to 596564003)

$3.49

$

Usually ships in 3-10 days

0

102

Husqvarna 532124788

Retainer Spring 1"
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

103

Husqvarna 532142273

Bracket Lock Bypass

$

$

Not available

106

Husqvarna 532138776

Screw Thdrol. Hex Hd Zinc Mur
(Superseded to 584953901)

$3.49

$

In Stock, Qty 20+

0

107

Husqvarna 532109808

Latch, Chute Blk

$4.99

$

In Stock, Qty 20+

0

108

Husqvarna 532110356

Cap, Snap Black

$3.99

$

Usually ships in 3-10 days

0

109

Husqvarna 532110357

Cap, Washer Snap

$

$

Not available

110

Husqvarna 532150200

Pivot Asm. Grille/Hood Husq. VGT

$

$

Not available

112

Husqvarna 532060867

Nut, Acorn, Hex #10-24
(Superseded to 539108086)

$4.99

$

In Stock, Qty 20+

0

114

Husqvarna 872140610

Bolt, Carriage 3/8-16 x 1-1/4
(Superseded to 583611601)

$

$

Not available

115

Husqvarna 532150300

Bumper Asm.
(Superseded to 532170311)

$

$

Not available

116

Husqvarna 532141461

Bracket Extension Bumper
(Superseded to 532170310)

$

$

Not available

117

Husqvarna 532143679

Plug Plastic

$2.99

$

Usually ships in 3-10 days

0

118

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

119

Husqvarna 873680600

Nut Crownlock 3/8-16 UNC

$3.99

$

Usually ships in 3-10 days

0

120

Husqvarna 819131616

Washer 13/32 x 1 x 16 Ga.
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

130

Husqvarna 817521312

Screw, SLTD Hex Hd. W/PI Washer

$

$

Not available

131

Husqvarna 532150195

Bracket Support Hood/Panel YP

$

$

Not available

132

Husqvarna 874291006

Screw Truss Hd. #10-24 x 3/8

$2.99

$

Usually ships in 3-10 days

0

Husqvarna 532125085

Plug, Hole

$

$

Not available
