GTH 220 (954140012-C) - Husqvarna Garden Tractor (1998-02) Transaxle Hydro Gear Parts Diagram

Garden Tractor

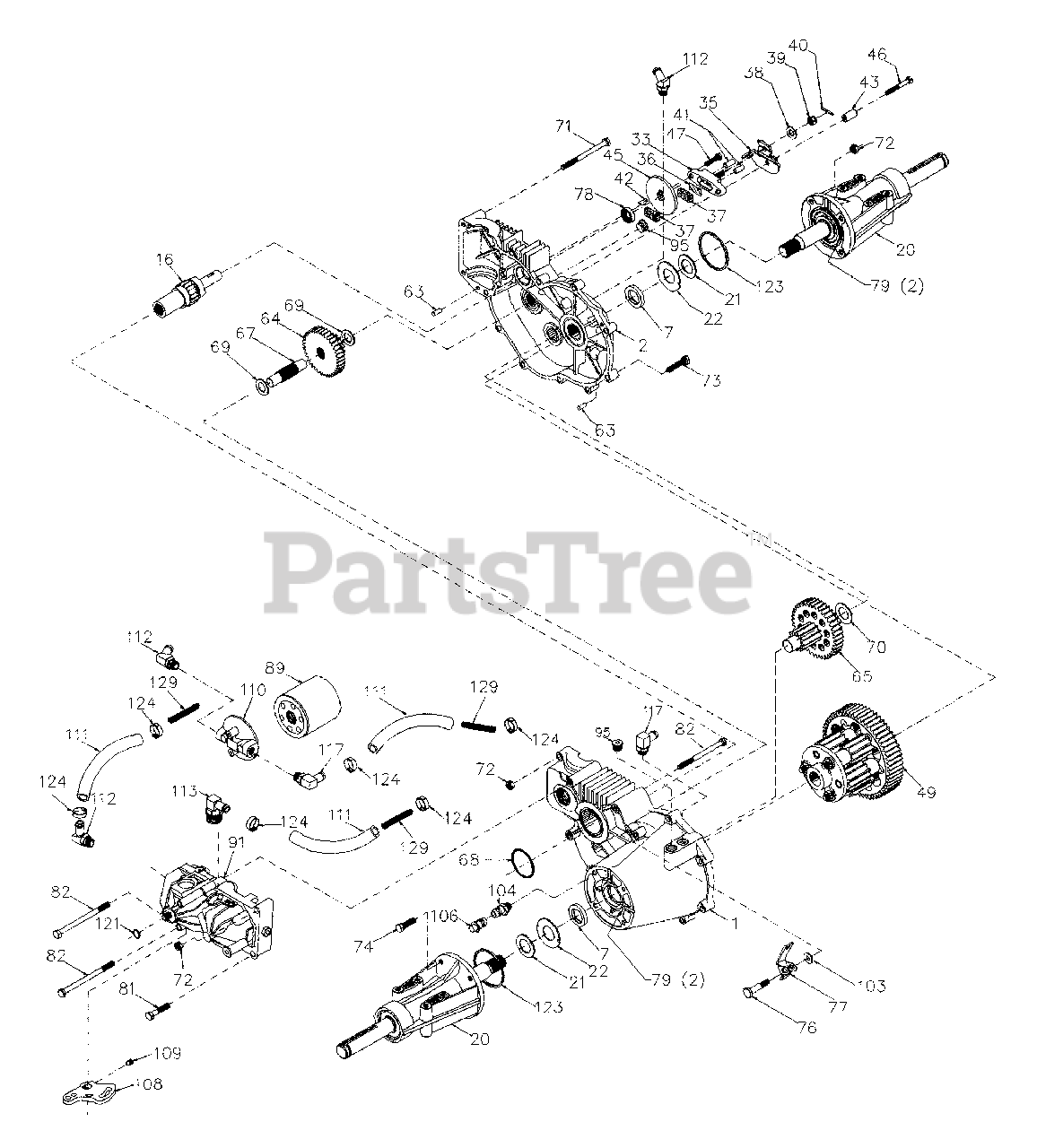

Transaxle Hydro Gear Parts Diagram

  • Title

1

Husqvarna 532142874

Assembly, Housing, LH

$

$

Not available

2

Husqvarna 532142875

Assembly, Housing, RH

$

$

Not available

7

Husqvarna 532153765

Oil Seal .984 x 1.5 x .25

$

$

Not available

16

Husqvarna 532142876

Brake Shaft Assembly

$

$

Not available

20

Husqvarna 532142877

Axle Mounting Horn Assembly

$

$

Not available

21

Husqvarna 532142878

Washer 1.0 x 1.63 x .08

$

$

Not available

22

Husqvarna 532142879

Washer 1.0 x 2.06 x .09

$

$

Not available

33

Husqvarna 532142929

Brake Yoke Assembly
(Superseded to 584289701)

$26.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532142880

Brake Arm

$

$

Not available

36

Husqvarna 532142882

Puck Plate
(Superseded to 584289601)

$4.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532142883

Brake Puck

$5.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532142884

Washer 7/8 O.D. x 7/16 x .060

$

$

Not available

39

Husqvarna 532142885

Nut, Castle 5/16-24

$

$

Not available

40

Husqvarna 532142886

Cotter Pin

$

$

Not available

41

Husqvarna 532142887

Brake Actuating Pin
(Superseded to 584287501)

$4.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532142888

Hi Pro Key

$6.99

$

In Stock, only 1 left!

0

43

Husqvarna 532142889

Spacer

$

$

Not available

45

Husqvarna 532142890

Brake Disc

$45.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532142891

Bolt 1/4-20 x 1-1/2

$

$

Not available

47

Husqvarna 532142892

Bolt 1/4-20 x 1
(Superseded to 584281501)

$

$

Not available

49

Husqvarna 532153766

Differential Assembly

$

$

Not available

63

Husqvarna 532142894

Dowel Pin

$

$

Not available

64

Husqvarna 532150818

Reduction Gear, 14 Teeth to 38 Teeth

$

$

Not available

65

Husqvarna 532142897

Final Drive Pinion Assembly

$

$

Not available

67

Husqvarna 532142898

Jackshaft

$

$

Not available

68

Husqvarna 532142899

O-Ring

$

$

Not available

69

Husqvarna 532142900

Washer 5/8 X 1-5/32

$

$

Not available

70

Husqvarna 532142901

Washer 7/8 X 1-1/2

$

$

Not available

71

Husqvarna 532142902

Bolt, Hex 5/16-18 x 3.5

$

$

Not available

72

Husqvarna 532153767

Locknut, Hex 5/16-18

$

$

Not available

73

Husqvarna 532142904

Bolt, Hex 5/16-18 x 1-1/2
(Superseded to 532161159)

$11.99

$

Usually ships in 3-10 days

0

74

Husqvarna 532142905

Hex Cap Screw 5/16-18 x 1

$

$

Not available

76

Husqvarna 532142907

Shoulder Bolt

$

$

Not available

77

Husqvarna 532142908

Freewheel Actuating Arm

$

$

Not available

78

Husqvarna 532142909

Oil Seal .625 x 1.0 x .25

$17.99

$

In Stock, only 1 left!

0

79

Husqvarna 532153768

Grease (10 oz. Tube)
(Superseded to 532126976)

$

$

Not available

81

Husqvarna 532142910

Bolt, Hex 5/16-18 x 1-3/4

$

$

Not available

82

Husqvarna 532142911

Bolt 5/16-18 x 4-1/2

$

$

Not available

89

Husqvarna 532142912

Filter, Spin On
(Superseded to 532182642)

$51.99

$

Usually ships in 3-10 days

0

91

Husqvarna 532153769

Pump, BDU-10L-122

$

$

Not available

95

Husqvarna 532142914

Plug, Straight Thread

$

$

Not available

103

Husqvarna 532142916

Washer

$

$

Not available

104

Husqvarna 532142917

Vent Cap Assembly
(Superseded to 532142578)

$

$

Not available

106

Husqvarna 532142918

Fitting O-Ring Assembly

$

$

Not available

108

Husqvarna 532142919

Control Arm

$

$

Not available

109

Husqvarna 532142920

Set Screw

$20.99

$

Usually ships in 3-10 days

0

110

Husqvarna 532142921

Filter Head

$

$

Not available

111

Husqvarna 532150820

Hose 1/2"

$

$

Not available

112

Husqvarna 532150823

Fitting, 1/2" Beaded 90° 7/8 SAE

$

$

Not available

113

Husqvarna 532150821

Fitting, 1/2" Beaded 60° 9/16

$

$

Not available

117

Husqvarna 532150822

Fitting, 1/2" Beaded 90° 9/16

$

$

Not available

121

UNKNOWN

$

$

Not available

123

Husqvarna 532150824

O Ring

$

$

Not available

124

Husqvarna 532150825

Pinch Clamp

$

$

Not available

129

Husqvarna 532153771

Spring, Long

$

$

Not available
