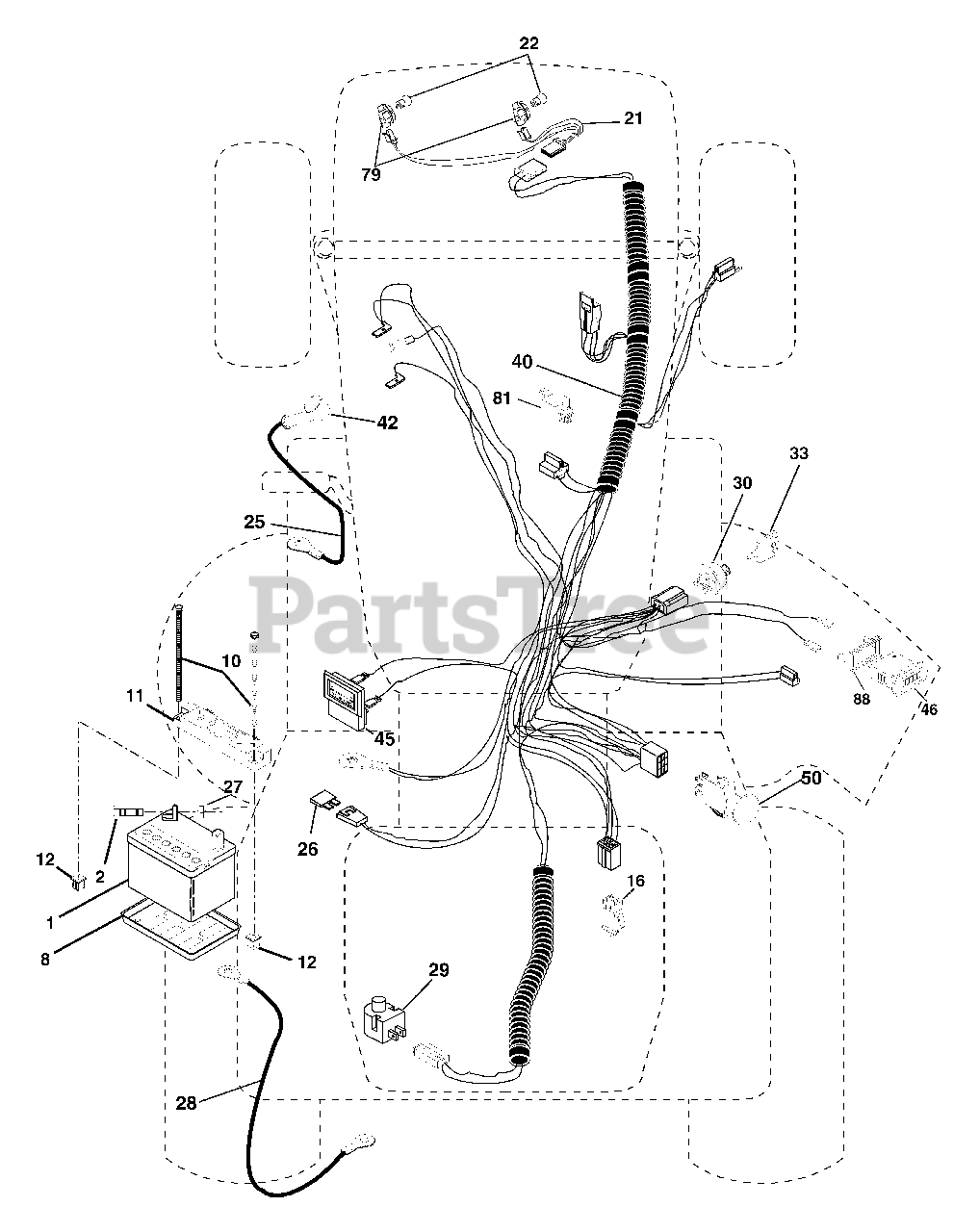

GTH 2248 XP (954567888-A) - Husqvarna 48" Garden Tractor (2002-01) Electrical Parts Diagram

48" Garden Tractor

Electrical Parts Diagram

  • Title

1

Husqvarna 532144927

Battery
(Superseded to 532123899)

$205.99

$

In Stock, only 2 left!

0

2

Husqvarna 874760412

Bolt Hex Head 1/4-20 x 3/4

$3.99

$

In Stock, Qty 5

0

8

Husqvarna 532124886

Tray, Battery
(Superseded to 532007603)

$7.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532145211

Bolt, Battery Front 1/4-20 x 7.5 Zinc
(Superseded to 532150177)

$

$

Not available

11

Husqvarna 532150109

Holddown Battery Front Mount

$

$

Not available

12

Husqvarna 532145769

Nut, Push Nylon 1.4" Battery Front
(Superseded to 532150177)

$

$

Not available

16

Husqvarna 532176138

Switch Interlock Push-In

$22.99

$

In Stock, Qty 11

0

21

Husqvarna 532175688

Harness Socket Light w/4152J

$37.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532004152

Bulb, Light

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532177662

Cable, Battery
(Superseded to 532185461)

$

$

Not available

26

Husqvarna 532108824

Fuse

$

$

Not available

27

Husqvarna 873510400

Nut Keps Hex 1/4-20
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 532170697

Cable, Ground

$

$

Not available

29

Husqvarna 532160784

Switch, Plunger Normal Op Olive

$20.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532175566

Switch, Ign

$28.99

$

In Stock, Qty 20+

0

33

Husqvarna 532140401

Key

$6.99

$

In Stock, Qty 20+

0

40

Husqvarna 532170238

Harness Ign.

$148.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532154336

Cover, Terminal Red

$6.99

$

In Stock, Qty 10

0

45

Husqvarna 532122822

Ammeter

$28.99

$

In Stock, only 2 left!

0

46

Husqvarna 532169635

Hourmeter Snap-In
(Superseded to 532169642)

$

$

Not available

50

Husqvarna 532174651

Switch, PTO
(Superseded to 582107601)

$31.99

$

In Stock, Qty 20+

0

79

Husqvarna 532175448

Bulbholder Asm

$

$

Currently unavailable

81

Husqvarna 532109748

Relay Asm.

$22.99

$

Usually ships in 3-10 days

0

89

Husqvarna 532169639

Bracket Snap-In Hourmeter

$

$

Not available
