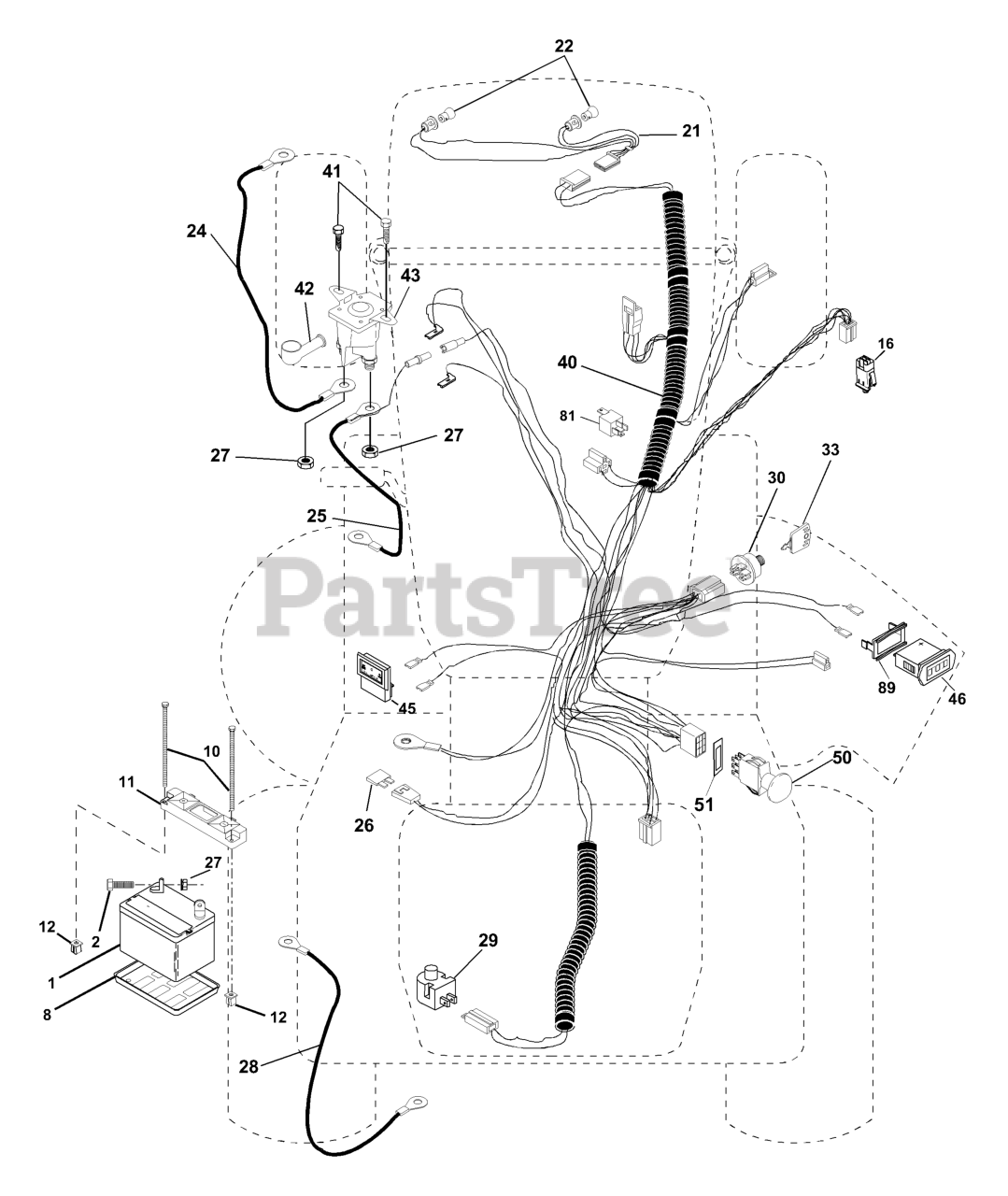

GTH 225 (954140103-A) - Husqvarna Garden Tractor (1999-10) Electrical Parts Diagram

Garden Tractor

Electrical Parts Diagram

  • Title

1

Husqvarna 532144927

BATTERY 12V .35 AMP
(Superseded to 532123899)

$205.99

$

In Stock, Qty 7

0

2

Husqvarna 532171017

BOLT
(Superseded to 874760412)

$3.99

$

In Stock, Qty 6

0

8

Husqvarna 532124886

BATTERY TRAY T
(Superseded to 532007603)

$7.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532171327

BOLT, BTR FRT 1/4-20X4-1/2ZINC
(Superseded to 874760412)

$3.99

$

In Stock, Qty 6

0

11

Husqvarna 532150109

BATTERY HOLDDOWN FRONT MOUNT

$

$

Not available

12

Husqvarna 532145769

NUT, PUSH NYLON 1/4" BATTERY
(Superseded to 532150177)

$

$

Not available

16

Husqvarna 532153664

SWITCH INTERLOCK
(Superseded to 532176138)

$22.99

$

In Stock, Qty 20+

0

21

Husqvarna 532166182

HARNESS ASM, LIGHT W/4152J

$

$

Not available

22

Husqvarna 532004152

LIGHTBULB

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 532004014

CABLE, STARTER

$

$

Not available

25

Husqvarna 532146686

CABLE, BATTERY

$

$

Not available

26

Husqvarna 532108824

FUSE HYT

$

$

Not available

27

Husqvarna 532171018

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 532170697

CABLE, GROUND

$

$

Not available

29

Husqvarna 532160784

PLUNGER SWITCH (COLOR:OLIVE)

$20.99

$

In Stock, only 2 left!

0

30

Husqvarna 532163968

SWITCH IGN
(Superseded to 532175566)

$28.99

$

In Stock, Qty 20+

0

33

Husqvarna 532140401

KEY MLD GEN DELTA

$6.99

$

In Stock, Qty 20+

0

40

Husqvarna 532166176

Harness Ign.

$

$

Currently unavailable

41

Husqvarna 532171323

SCREW, THD CUT 1/4-20 X 1/2
(Superseded to 539990071)

$1.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$6.99

$

In Stock, only 4 left!

0

43

Husqvarna 532145673

SOLINOID
(Superseded to 532146154)

$22.99

$

In Stock, Qty 20+

0

45

Husqvarna 532122822

AMMETER

$28.99

$

In Stock, only 4 left!

0

46

Husqvarna 532169635

HOUR METER
(Superseded to 532169642)

$

$

Not available

50

Husqvarna 532169417

PTO SWITCH
(Superseded to 532174651)

$31.99

$

In Stock, Qty 20+

0

51

Husqvarna 532140405

FRAME RETAINING RING

$4.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532110143

BULB LIGHT T

$

$

Not available

81

Husqvarna 532109748

RELAY.ASSY.T

$22.99

$

In Stock, only 3 left!

0

89

Husqvarna 532169639

BRACKET SNAP-IN HOURMETER

$

$

Not available
