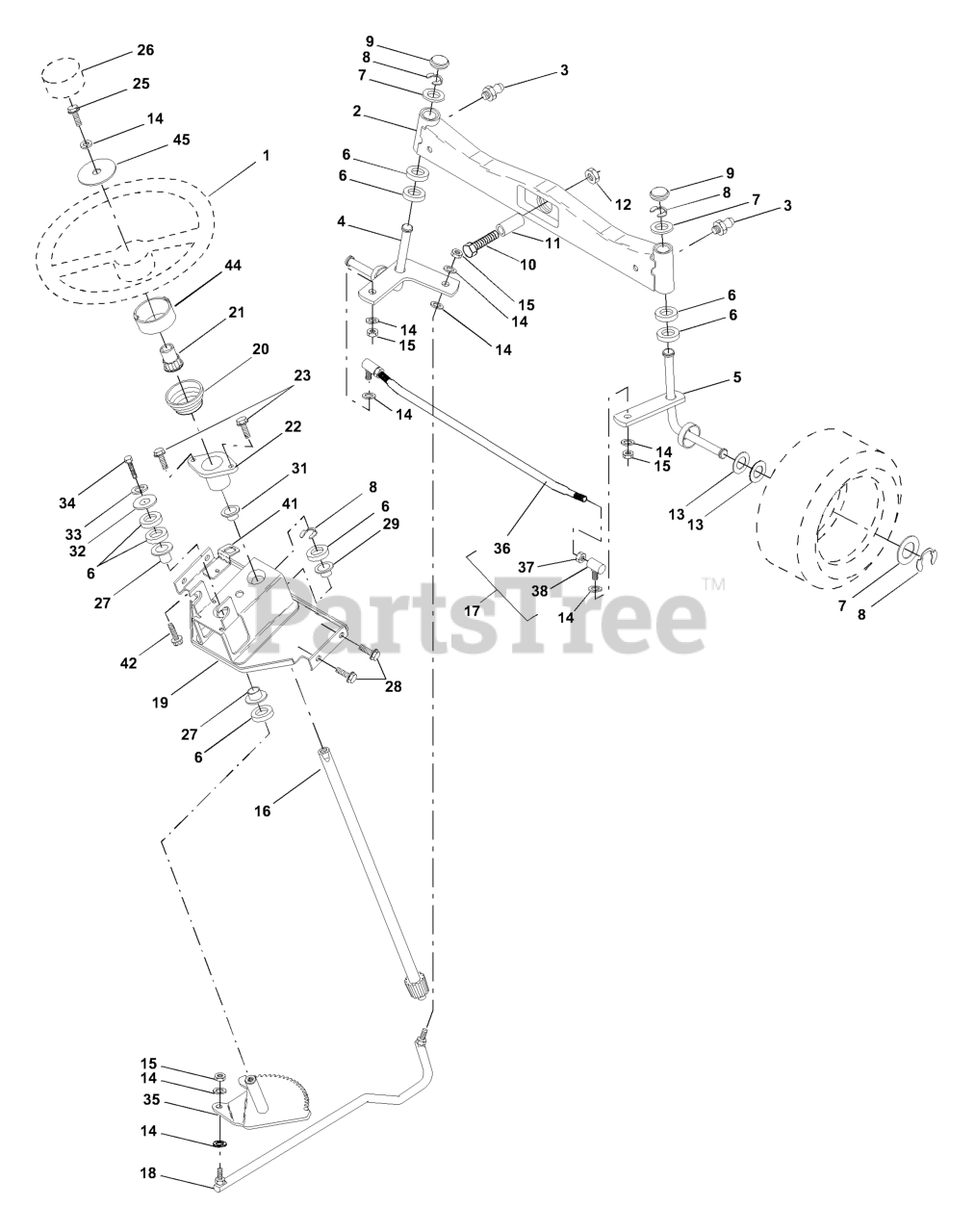

GTH 2250 (954567093-A) - Husqvarna 50" Garden Tractor (2000-11) Steering Parts Diagram

50" Garden Tractor

Steering Parts Diagram

  • Title

1

Husqvarna 532166627

STEERING WHEEL
(Superseded to 532159944)

$

$

Not available

2

Husqvarna 532137094

FRONT AXLE ASSY
(Superseded to 532178557)

$

$

Not available

3

Husqvarna 532124836

ZERK M
(Superseded to 532183226)

$5.99

$

In Stock, Qty 10

0

4

Husqvarna 532161849

SPINDLE ASSY LH

$

$

Not available

5

Husqvarna 532161848

SPINDLE ASM RH

$

$

Not available

6

Husqvarna 532124931

THRUST WASHER
(Superseded to 532006266)

$4.99

$

In Stock, Qty 20+

0

7

Husqvarna 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 812000029

RING CLIP

$1.49

$

In Stock, Qty 20+

0

9

Husqvarna 532121232

CAP.SPINDLE.BLACK

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 874781044

Bolt, Fin Hex 5/8-11 x 2-3/4

$

$

Not available

11

Husqvarna 532136518

TUBE, PIVOT AXLE

$11.99

$

In Stock, Qty 16

0

12

Husqvarna 873901000

NUT-LOC,FLANGE LT
(Superseded to 873681000)

$

$

Not available

13

Husqvarna 532121749

WASHER

$2.49

$

In Stock, Qty 20+

0

14

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 532124701

GRIPCO NUT
(Superseded to 873610600)

$

$

Not available

16

Husqvarna 532145103

SHAFT ASM, STEERING

$136.99

$

In Stock, only 1 left!

0

17

Husqvarna 532176584

ROD ASM TIE BALL
(Superseded to 532186799)

Note: (Inc. Key No. 36-40)

$

$

Not available

18

Husqvarna 532137155

DRAGLINK-BALL JOINT SOLID
(Superseded to 532175572)

$85.99

$

In Stock, only 4 left!

0

19

Husqvarna 532156011

SUPPORT ASM., STEERING VGT

$

$

Not available

20

Husqvarna 532177592

BOOT, STEERING
(Superseded to 532163887)

$

$

Not available

21

Husqvarna 532159945

STEERING WHEEL ADAPTOR

$

$

Not available

22

Husqvarna 532155105

BUSHING, STRG. BLK
(Superseded to 532155108)

$7.99

$

In Stock, Qty 11

0

23

Husqvarna 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 874780616

BOLT
(Superseded to 596564401)

$4.99

$

In Stock, Qty 15

0

26

Husqvarna 532166627

STEERING WHEEL
(Superseded to 532159944)

$

$

Not available

27

Husqvarna 532124937

BRNG T
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+

0

28

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

29

Husqvarna 532104239

BEARING-FLANGE GT

$13.99

$

In Stock, Qty 7

0

31

Husqvarna 532138136

BUSHING.NYLINER.

$11.99

$

In Stock, Qty 13

0

32

Husqvarna 819111610

WASHER

$

$

Not available

33

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.49

$

In Stock, Qty 20+

0

34

Husqvarna 874780512

BOLT.FIN.HEX.5/16-18X3/4
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

35

Husqvarna 532138059

GEAR.ASM.SECTOR.
(Superseded to 531165701)

$

$

Not available

36

Husqvarna 532176585

TIE ROD
(Superseded to 532186799)

$

$

Not available

37

Husqvarna 873360600

NUT

$9.49

$

Usually ships in 3-10 days

0

38

Husqvarna 532109850

JOINT
(Superseded to 532121160)

$26.99

$

In Stock, only 1 left!

0

41

Husqvarna 532155246

BRACKET INTERLOCK

$

$

Not available

42

Husqvarna 817490508

Screw 5/16-18 x 1/2
(Superseded to 539990858)

$

$

Not available

44

Husqvarna 532177593

EXTENSION STEERING PREMIUM
(Superseded to 532160135)

$

$

Not available

45

Husqvarna 819132411

Washer 13/32 x 1-1/20 x 11 Ga.

$

$

Not available
