GTH 24 V52 LS (960430136-00) - Husqvarna Garden Tractor (2011-08) ENGINE Parts Diagram

Garden Tractor

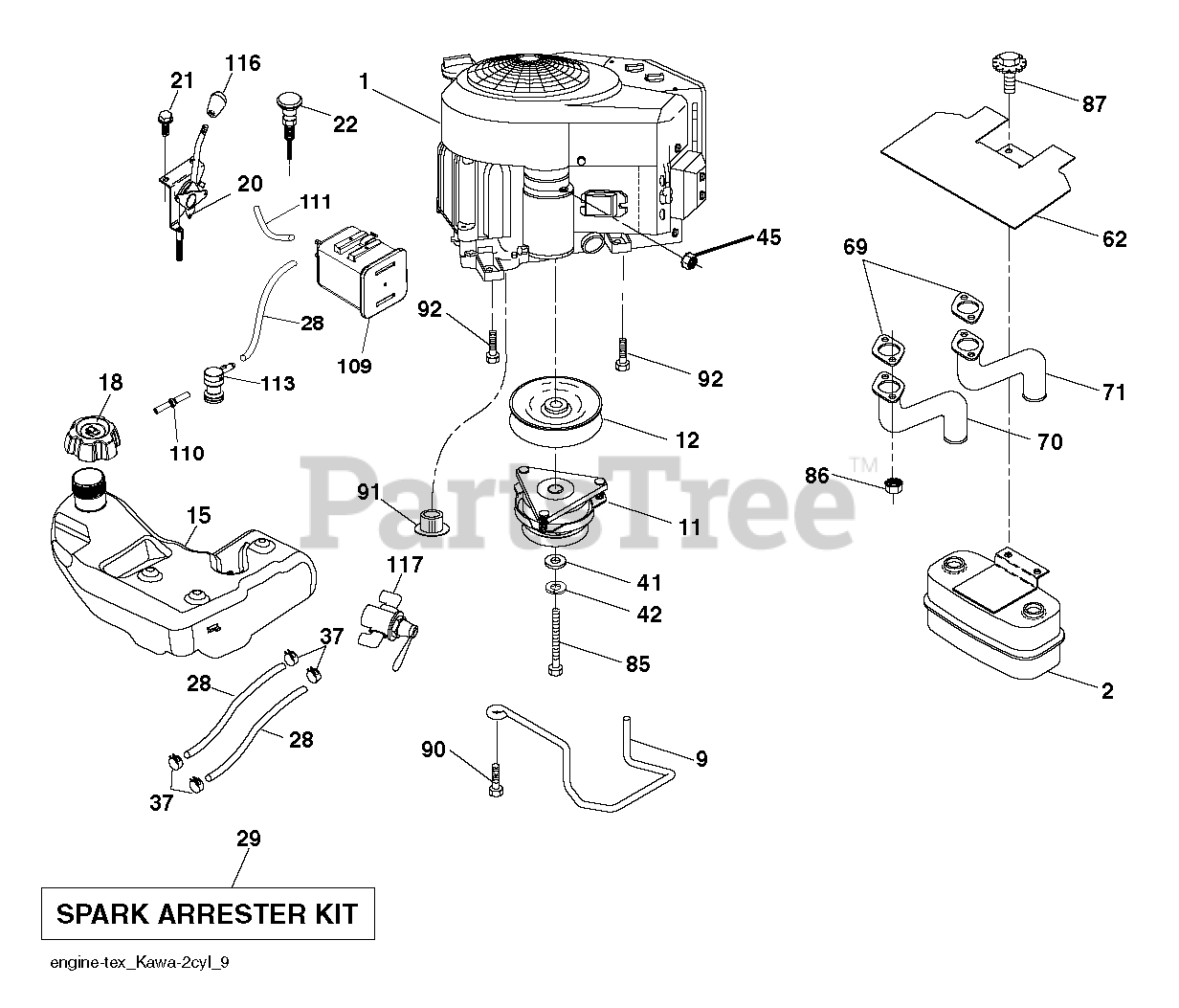

ENGINE Parts Diagram

  • Title

1

000000000

Note: ENGINE KAWA MODEL NO FR730V-DS04 (445363)

$

$

Not available

2

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$51.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532408667

KEEPER BELT ENGINE

$13.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532179335

CLUTCH MZ ZTR GT.48/54"1.125"

$376.99

$

In Stock, Qty 5

0

12

Husqvarna 532194343

PULLEY ENGINE

$51.99

$

In Stock, only 2 left!

0

15

Husqvarna 532422948

TANK.ASM.4.GAL.CARB.2.PORT.REA
(Superseded to 598703402)

$284.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532439208

CAP.ASM.FL.RITCH.3"E10.SYM.498

$45.99

$

In Stock, only 1 left!

0

20

Husqvarna 532424341

CONTROL.THROTTLE.PRO.

$43.99

$

In Stock, only 1 left!

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

22

Husqvarna 532191596

CONTROL.CHOKE.ERGO.PUSH-IN.BLA

$39.99

$

In Stock, Qty 6

0

28

Husqvarna 532401135

LINE.FUEL.64"REAR.EMIS
(Superseded to 587044864)

$26.99

$

In Stock, only 1 left!

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$193.99

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, only 4 left!

0

41

Husqvarna 532126197

WASHER

$7.99

$

In Stock, only 4 left!

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

$3.49

$

In Stock, Qty 19

0

45

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER
(Superseded to 531154901)

$13.99

$

In Stock, only 2 left!

0

69

Husqvarna 532178151

GASKET

$2.49

$

In Stock, Qty 20+

0

70

Husqvarna 532424765

TUBE.EXHAUST.LH.FR961/FR730
(Superseded to 583955601)

Note: LH

$31.99

$

In Stock, only 1 left!

0

71

Husqvarna 532424766

TUBE.EXHAUST.RH.FR961/FR730
(Superseded to 583955701)

Note: RH

$31.99

$

In Stock, only 2 left!

0

85

Husqvarna 532179953

BOLT HEX 7/16-20 X 3.75 GR. 5
(Superseded to 501606601)

$3.99

$

In Stock, only 4 left!

0

86

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$3.49

$

In Stock, only 3 left!

0

87

Husqvarna 532198239

BOLT.5/16-18UNCX1.W/SEMS.BLK

$3.99

$

In Stock, only 4 left!

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$6.99

$

In Stock, Qty 11

0

91

Husqvarna 532187495

BUSHING.1.375OD

$5.99

$

Usually ships in 3-10 days

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 15

0

109

Husqvarna 532414114

CANNISTER, CARBON

$68.99

$

Usually ships in 3-10 days

0

110

Husqvarna 532414118

VALVE.ASM.ANTI-SLOSH

$26.99

$

Usually ships in 3-10 days

0

111

Husqvarna 532414119

RP PURGE LINE
(Superseded to 587044580)

$14.99

$

In Stock, only 1 left!

0

113

Husqvarna 532414127

VALVE.SLANT.CARTRDG.90 DEG.TEX
(Superseded to 597791601)

$13.99

$

In Stock, only 2 left!

0

116

Husqvarna 539132624

KNOB - SHIFT

$7.99

$

In Stock, Qty 5

0

117

Husqvarna 532420828
