GTH 250 (954140104-B) - Husqvarna Garden Tractor (2000-03) Engine Parts Diagram

Garden Tractor

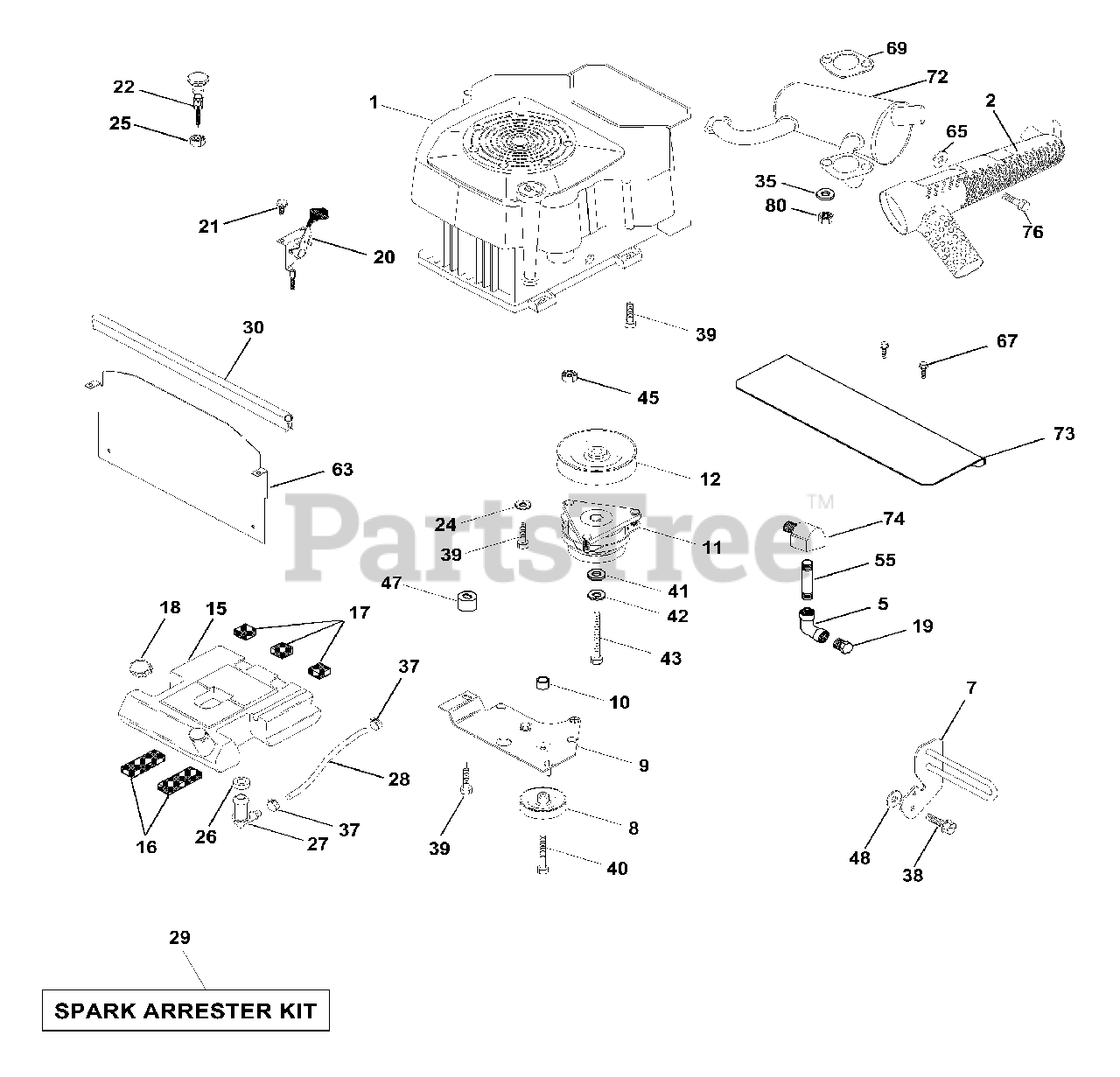

Engine Parts Diagram

  • Title

1

Engine Kohler, Model No. CV25S

Note: Order parts from engine manufacturer

$

$

Not available

2

Husqvarna 532150249

Muffler Side

$

$

Not available

5

Husqvarna 532171215

Elbow STD 90 Degree 3/8-18 NPT
(Superseded to 532428287)

$18.99

$

In Stock, Qty 16

0

7

Husqvarna 532151396

Muffler Assembly Guard

$

$

Not available

8

Husqvarna 532121361

Pulley V-Idler
(Superseded to 532139123)

$37.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532150828

Keeper Asm Belt Engine VGT 96
(Superseded to 532177748)

$15.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532105432

Bushing

$

$

Not available

11

Husqvarna 532140923

Clutch Electric
(Superseded to 532174509)

$546.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532143996

Pulley Engine VGT Elect Clutch

$53.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532151346

Tank Fuel Rear

$93.99

$

In Stock, only 1 left!

0

16

Husqvarna 532109227

Pad Spacer

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 532106082

Pad Spacer

$

$

Not available

18

Husqvarna 532140527

Cap Asm Fuel W/Sym Vented
(Superseded to 581075501)

$26.99

$

In Stock, Qty 7

0

19

Plug Oil Drain

Note: (Order From Engine Manufacturer)

$

$

Not available

20

Husqvarna 532142168

Control Throttle
(Superseded to 532162150)

$

$

Not available

21

Husqvarna 532171192

Screw Hex Thd Cut 1/4-20 X 5/8
(Superseded to 539990072)

$3.99

$

In Stock, only 3 left!

0

22

Husqvarna 532145996

Control Choke

$

$

Not available

24

Husqvarna 532171216

Washer Ext Tooth 3/8
(Superseded to 817060620)

$7.49

$

In Stock, Qty 20+

0

25

Husqvarna 532171350

Nut Keps 3/8 - 24 UNF
(Superseded to 873920600)

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532124952

Bushing
(Superseded to 532003645)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 532139277

Stem Tank Fuel

$8.99

$

In Stock, Qty 20+

0

28

Husqvarna 532124703

Fuel Line
(Superseded to 532008542)

$

$

Not available

29

Husqvarna 532132920

Spark Arrester Kit

$

$

Not available

30

Husqvarna 532161547

Extrusion Hood

$2.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532171467

Washer Split
(Superseded to 810010500)

$6.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532123487

Clamp Hose

$7.49

$

In Stock, Qty 16

0

38

Husqvarna 532171466

Screw 3/8-16 x 1-1/4
(Superseded to 817060620)

$7.49

$

In Stock, Qty 20+

0

39

Husqvarna 532171476

Screw TT 3/8-16 x 2-1/4 UNC
(Superseded to 817490636)

$1.49

$

In Stock, Qty 20+

0

40

Husqvarna 532171479

Screw TT 3/8-16 x 4 UNC
(Superseded to 817490664)

$

$

Not available

41

Husqvarna 532171480

Washer 1-1/2 OD X 15/32 ID X .250
(Superseded to 532126197)

$8.99

$

In Stock, Qty 20+

0

42

Husqvarna 532171220

Washer Lock 7/16
(Superseded to 810040700)

$

$

Not available

43

Husqvarna 532171219

Bolt Hex 7/16-20 X 4-1/4 Ga 5
(Superseded to 501606501)

$4.99

$

In Stock, Qty 11

0

45

Husqvarna 532171468

Nut Flange M8 1.25
(Superseded to 873350800)

$

$

Not available

47

Husqvarna 532142040

Spacer Engine

$

$

Not available

48

Husqvarna 532171556

Washer 13/32 x 1-1/4 x 7 Ga.
(Superseded to 819132007)

$3.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532171470

Nipple, Pipe 4-1/2"
(Superseded to 813280336)

$

$

Not available

63

Husqvarna 532145549

Shield, Heat VGT YP/Husq.

$

$

Not available

65

Husqvarna 532171236

Washer 13/32 x 1 x 14 Ga.
(Superseded to 819131614)

$6.49

$

Usually ships in 3-10 days

0

67

Husqvarna 532171344

Screw 5/16-18 x 3/4
(Superseded to 532171877)

$7.49

$

In Stock, Qty 5

0

69

Husqvarna 532163307

Gasket
(Superseded to 532186054)

$

$

Not available

72

Husqvarna 532150520

Muffler Pre CV25

$

$

Not available

73

Husqvarna 532153992

Shield Heat Muffler

$

$

Not available

74

Husqvarna 532162295

Elbow Street Brass

$27.99

$

Usually ships in 3-10 days

0

76

Husqvarna 532171154

Screw 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

80

Husqvarna 532171468

Nut Flange M8 1.25
(Superseded to 873350800)

$

$

Not available
