GTH 250 (954140104-B) - Husqvarna Garden Tractor (2000-03) Seat Assembly Parts Diagram

Garden Tractor

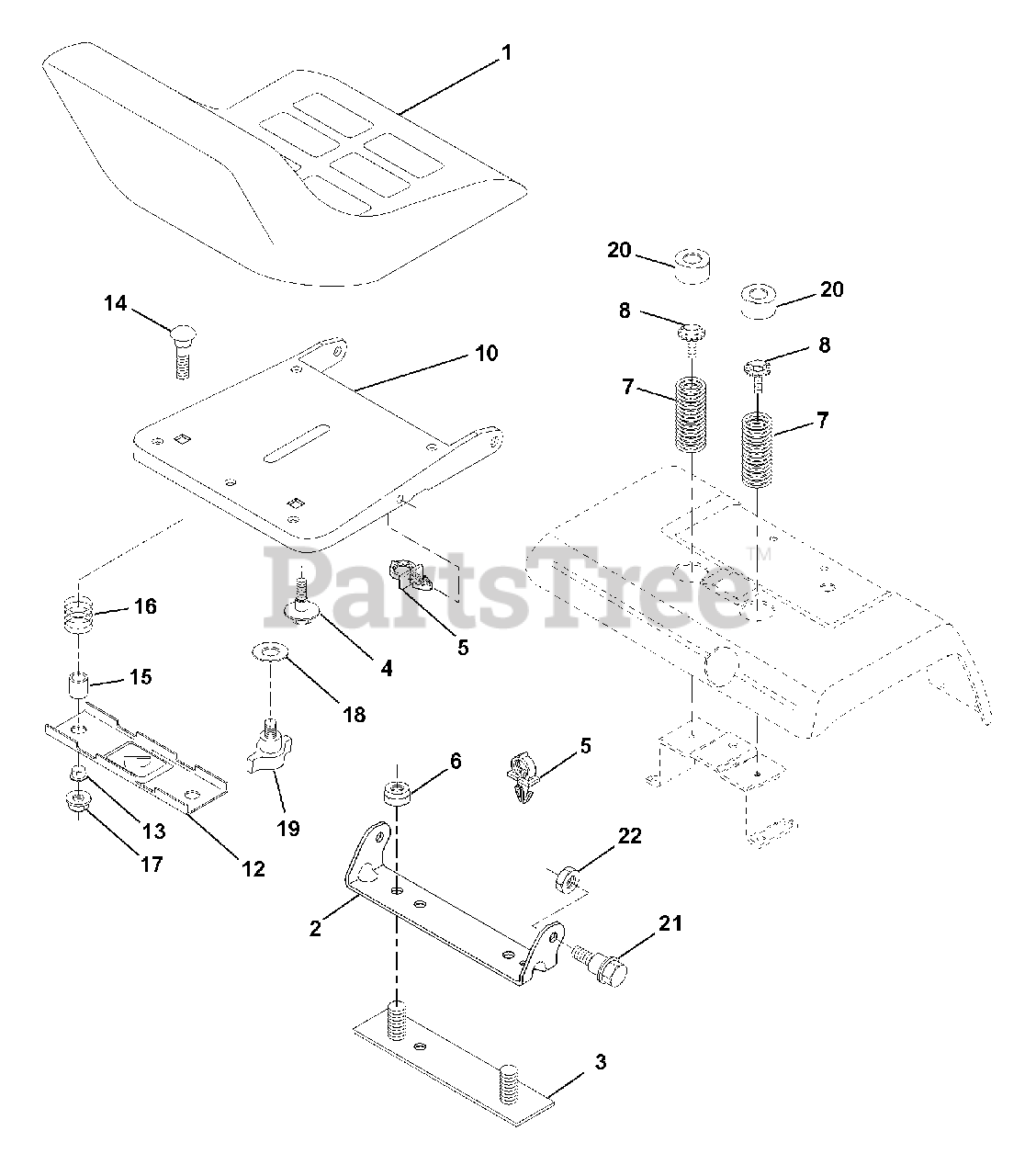

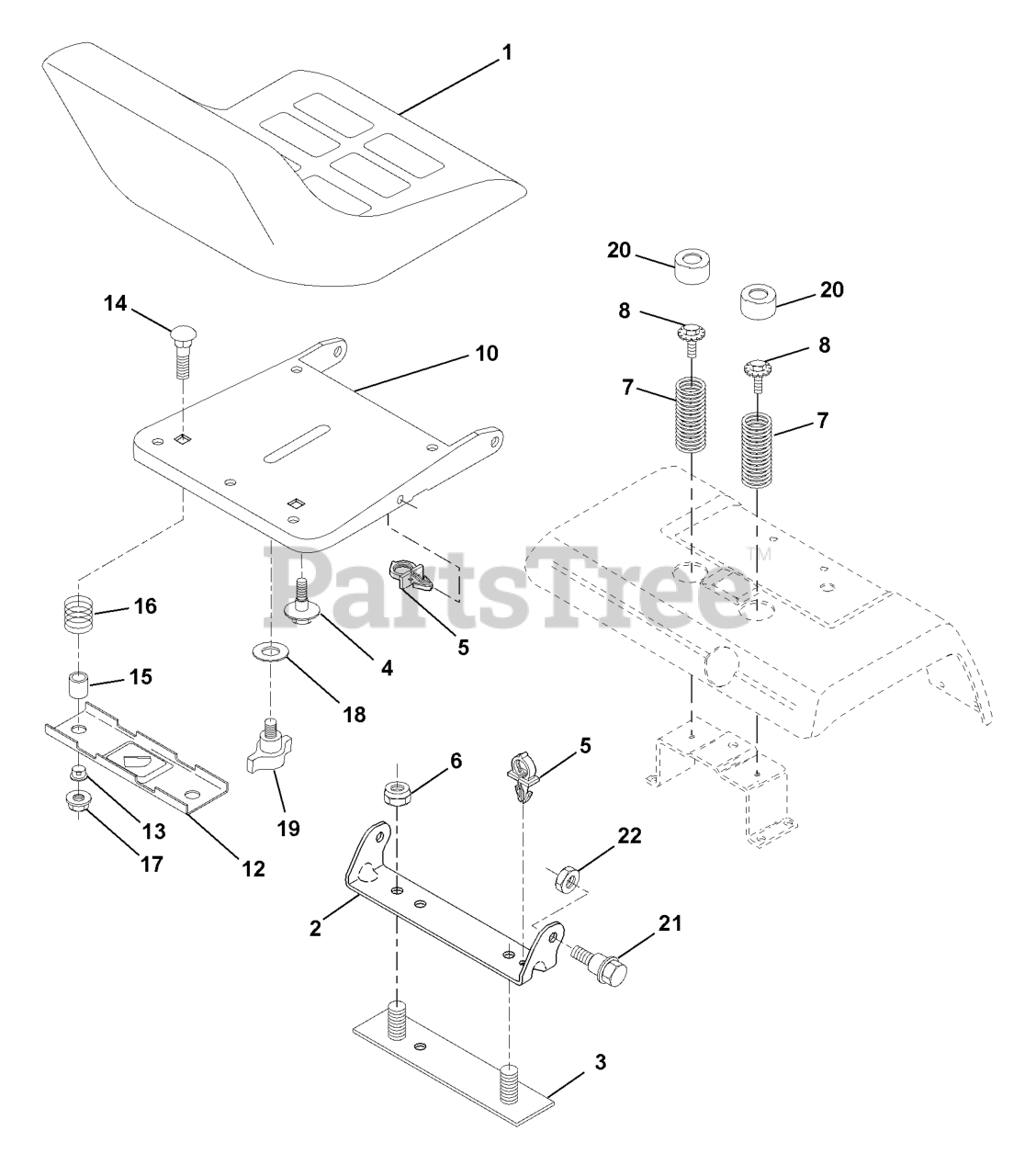

Seat Assembly Parts Diagram

  • Title

1

Husqvarna 532141525

Seat
(Superseded to 532401043)

$

$

Not available

2

Husqvarna 532140551

Bracket, Pivot Seat

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532140675

Strap, Fender

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 532171260

Bolt, Shoulder 5/16-18 X .62
(Superseded to 532127018)

$7.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532145006

Clip, Push In Hinged

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 532171141

Nut, Lock Hex W/Ins. 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532124181

Spring, Seat Cprsn
(Superseded to 587613301)

$6.49

$

In Stock, Qty 20+

0

8

Husqvarna 532171376

Bolt 5/16-18unc x 3/4 W/Sems
(Superseded to 532401043)

$

$

Not available

10

Husqvarna 532155925

Pan, Seat
(Superseded to 532195530)

$21.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532121246

Bracket, Mounting Switch
(Superseded to 532174648)

$8.99

$

In Stock, only 1 left!

0

13

Husqvarna 532121248

Bushing, Snap

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532171040

Bolt, Carriage 1/4-20 X 1-1/2
(Superseded to 872050412)

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532121249

Spacer, Split

$6.49

$

In Stock, Qty 5

0

16

Husqvarna 532123740

Spring, Cprsn

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532171041

Nut, Lock 1/4 Lge Flg Gr. 5
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 532171261

Washer 17/32 X 1-3/16 X 12 Ga.
(Superseded to 819171912)

$7.49

$

In Stock, only 2 left!

0

19

Husqvarna 532166369

Knob, Seat

$10.99

$

In Stock, only 3 left!

0

20

Husqvarna 532124238

Cap, Spring Seat

$

$

Not available

21

Husqvarna 532171130

Bolt, Shoulder 5/16-18 Unc-2A
(Superseded to 587907801)

$4.99

$

In Stock, Qty 14

0

22

Husqvarna 532171026

Nut, Crownlock 5/16-18 Unc
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0
