GTH 2548 (917279100) - Husqvarna 48" Garden Tractor (2004-12) CHASSIS & ENCLOSURES Parts Diagram

48" Garden Tractor

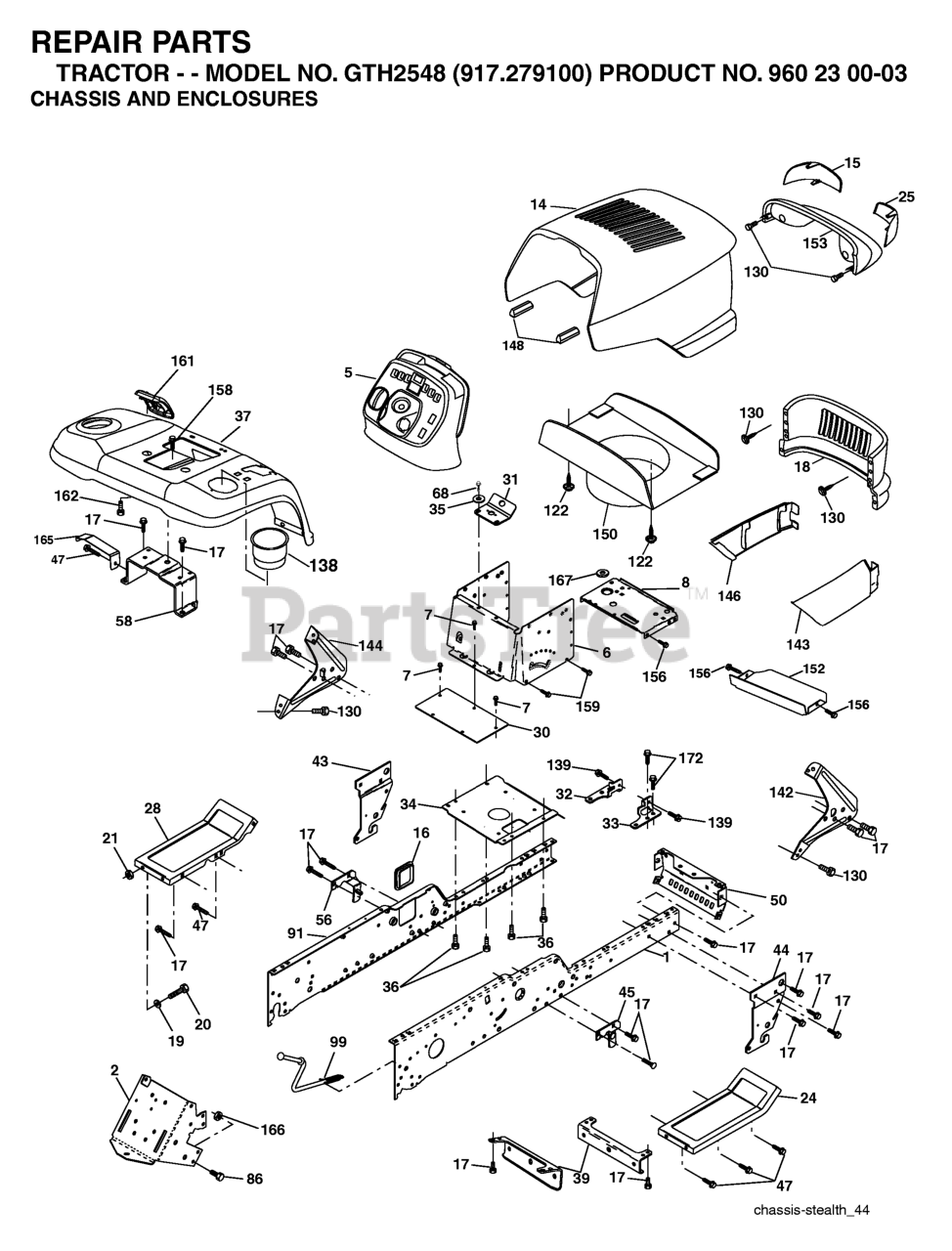

CHASSIS & ENCLOSURES Parts Diagram

  • Title

153

Husqvarna 532188212

LIGHTBOX.ASM.STV.DL.INC.HUSQ

$

$

Not available

50

Husqvarna 532175476

BRACKET, CHASSIS FRONT

$

$

Not available

30

Husqvarna 532145052

SADDLE.HYDRO.95

$

$

Not available

16

Husqvarna 532121794

COVER ACCESS

$

$

Not available

39

Husqvarna 532175278

BRACKET AXLE, FRONT

$

$

Not available

20

Husqvarna 874780616

BOLT
(Superseded to 596564401)

$4.99

$

In Stock, Qty 13

0

6

Husqvarna 532157882

DASH VGT, LOWER

$

$

Not available

159

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

45

Husqvarna 532176018

BRACKET, ASM., SUSP CHASSIS RH

$

$

Not available

8

Husqvarna 532184668

SUPPORT, BATTERY
(Superseded to 532185518)

$

$

Not available

5

Husqvarna 532195111

DASH.PANEL.GREY

$

$

Not available

21

Husqvarna 873800600

NUT
(Superseded to 873680600)

$

$

Not available

47

Husqvarna 817490608

SCREW LT
(Superseded to 596564001)

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532182873

GRILLE.STEALTH P/L.YTGT.GREY

$119.99

$

Usually ships in 3-10 days

0

19

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.99

$

In Stock, Qty 20+

0

33

Husqvarna 532161326

BRACKET.

$9.49

$

Usually ships in 3-10 days

0

148

Husqvarna 532164655

EXTRUSION BUMPER (3 2) (2 2)

$

$

Not available

162

Husqvarna 532142432

SCREW.HI-LO.CONSOLE
(Superseded to 596134101)

$3.99

$

In Stock, Qty 14

0

161

Husqvarna 532181787

CONSOL.FUEL.WINDOW.BLACK

$47.99

$

Usually ships in 3-10 days

0

144

Husqvarna 532161900

BRACKET DASH STEALTH LH

$

$

Not available

138

Husqvarna 532194869

CUPHOLDER.YTGT
(Superseded to 583710501)

$

$

Not available

130

Husqvarna 532191611

SCREW
(Superseded to 532416358)

$

$

Not available

1

Husqvarna 532180375

KIT.RAIL.CHASS.RH.GT

$

$

Not available

156

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 20+

0

28

Husqvarna 532181057

FOOTREST PNT LH
(Superseded to 532182507)

$

$

Not available

17

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

58

Husqvarna 532183569

BRACKET ASM., FENDER

$28.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532181058

FOOTREST PNT RH
(Superseded to 532182508)

$

$

Not available

146

Husqvarna 532177587

SKIRT GRILLE LH

$

$

Not available

14

Husqvarna 532190055

HOOD
(Superseded to 532188208)

$

$

Not available

34

Husqvarna 532177018

PLATE ASM ENG CHASSIS

$59.99

$

Usually ships in 3-10 days

0

165

Husqvarna 532183554

BRACKET SUPPORT TANK

$159.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532161327

BRACKET

$7.49

$

In Stock, only 3 left!

0

15

Husqvarna 532161841

LENS LH
(Superseded to 583125201)

$

$

Not available

35

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

142

Husqvarna 532161897

BRACKET DASH STEALTH(R)

$

$

Not available

172

Husqvarna 817120614

SCREW 3/8-16X.875
(Superseded to 817490614)

$

$

Not available

37

Husqvarna 532194879

KIT.FENDER.YTGT.W/S
(Superseded to 532196023)

$

$

Not available

31

Husqvarna 532161419

BRACKET SUPT 1-PC VGT STEERING

$

$

Not available

43

Husqvarna 532136939

FRONT SUSPENSION BRKT LH

$

$

Not available

158

Husqvarna 817670608

SCREW 3/8-16X1/2

$4.99

$

Usually ships in 3-10 days

0

167

Husqvarna 532184672

BUSHING SNAP

$

$

Not available

68

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$

$

Not available

122

Husqvarna 532192512

SCREW.WSHD.HEX10-32X5/8

$8.49

$

Usually ships in 3-10 days

0

2

Husqvarna 532175282

DRAWBAR, GT

$

$

Not available

56

Husqvarna 532176016

BRACKET ASM., SUSP CHASSIS LH

$

$

Not available

25

Husqvarna 532161842

LENS RH
(Superseded to 583125201)

$

$

Not available

86

Husqvarna 874780716

BOLT FIN HEX 7/16-14 X 1
(Superseded to 596238601)

$3.99

$

Usually ships in 3-10 days

0

166

Husqvarna 873680700

Nut, Crownlock Hex 7/16-14 unc

$

$

Not available

91

Husqvarna 532180374

KIT.RAIL.CHASS.LH.GT

$

$

Not available

143

Husqvarna 532177586

SKIRT GRILLE RH

$62.99

$

Usually ships in 3-10 days

0

139

Husqvarna 532171873

BOLT, SHOULDER 5/16-18

$5.99

$

Usually ships in 3-10 days

0

7

Husqvarna 817720408

SCREW
(Superseded to 596437001)

$3.99

$

In Stock, only 2 left!

0

152

Husqvarna 532177956

BROWNING SHIELD

$

$

Not available

99

Husqvarna 532177143

ROD ASM, BYPASS

$

$

Not available

150

Husqvarna 532190309

DUCT.HEAT.HOOD.STEALTH.GT

$

$

Not available

36

Husqvarna 817060512

SCREW 5/16"
(Superseded to 532171877)

$5.99

$

In Stock, Qty 10

0

44

Husqvarna 532136940

FRONT SUSPENSION BRKT RH

$

$

Not available
