GTH 2548 (954572134-A) - Husqvarna 48" Garden Tractor (2004-01) MOWER LIFT LEVER Parts Diagram

48" Garden Tractor

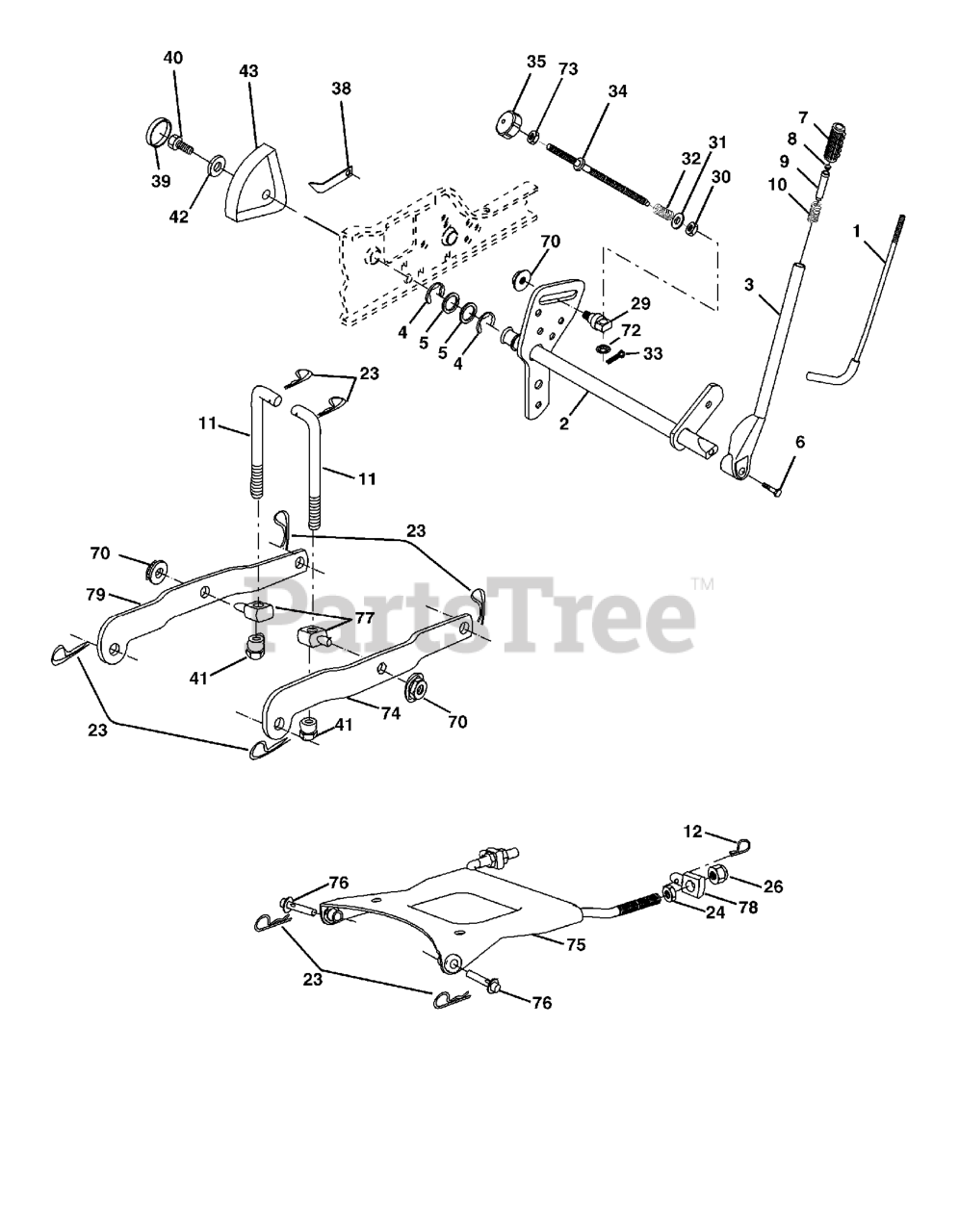

MOWER LIFT LEVER Parts Diagram

  • Title

2

Husqvarna 532180045

SHAFT ASM., LIFT VGT

Note: 532180045

$

$

Not available

40

Husqvarna 817060516

SCREW 5/16-18X1

Note: 817060516

$6.49

$

Usually ships in 3-10 days

0

73

Husqvarna 873350600

NUT
(Superseded to 873220600)

Note: 873350600

$6.49

$

In Stock, only 3 left!

0

34

Husqvarna 532137167

ROD.LIFT.ADJUSTABLE

Note: 532137167

$7.49

$

In Stock, only 2 left!

0

11

Husqvarna 532175375

LIFT LINK
(Superseded to 532181576)

Note: 532175375

$12.99

$

Usually ships in 3-10 days

0

78

Husqvarna 532175689

TRUNNION

Note: 532175689

$

$

Not available

1

Husqvarna 532121006

LEVER ROD LT

Note: 532121006

$34.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532124670

RETAINER-SPRNG RB

Note: 532124670

$

$

Not available

72

Husqvarna 532110452

NUT PUSH M

Note: 532110452

$3.99

$

In Stock, Qty 20+

0

79

Husqvarna 532175378

ARM SUSP. REAR LH

Note: 532175378

$54.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532123935

PLUG,HOLE

Note: 532123935

$

$

Not available

24

Husqvarna 873350800

NUT.HEX.JAM.1/2-13

Note: 873350800

$

$

Not available

38

Husqvarna 532155097

POINTER, HEIGHT INDICATOR(2 2)

Note: 532155097

$

$

Not available

42

Husqvarna 819112410

WASHER

Note: 819112410

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 871110624

Bolt, Fin Hex 3/8-16 x 1-1/12

Note: 871110624

$

$

Not available

70

Husqvarna 532145212

NUT
(Superseded to 532409149)

Note: 532145212

$4.99

$

In Stock, Qty 20+

0

29

Husqvarna 532150233

TRUNNION

Note: 532150233

$12.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532183894

SPRING 0.620D X 2.125

Note: 532183894

$

$

Not available

5

Husqvarna 819292016

Washer 29/32 x 1 - 1/4 x 16 Ga.

Note: 819292016

$6.49

$

Usually ships in 3-10 days

0

35

Husqvarna 532138057

KNOB INF 3/8-16

Note: 532138057

$8.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532124526

PLUNGER BUT KIT
(Superseded to 532125925)

Note: 532124526

$

$

Not available

4

Husqvarna 812000022

E-RING

Note: 812000022

$6.99

$

Usually ships in 3-10 days

0

26

Husqvarna 873800800

NUT.LK.W/WSH.1/2.
(Superseded to 596135601)

Note: 873800800

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 532159189

LEVER ASSY-LIFT RH

Note: 532159189

$

$

Not available

43

Husqvarna 532123934

HEIGHT INDICATOR

Note: 532123934

$

$

Not available

75

Husqvarna 532175805

PLATE ASM SUSP FRONT

Note: 532175805

$

$

Not available

30

Husqvarna 532110807

NUT T

Note: 532110807

$

$

Not available

74

Husqvarna 532175802

ARM SUSP REAR RH

Note: 532175802

$103.99

$

Usually ships in 3-10 days

0

31

Husqvarna 819131016

WASHER

Note: 819131016

$6.49

$

In Stock, only 1 left!

0

41

Husqvarna 532175994

NUT, LIFT LINK 7/16-20
(Superseded to 589464902)

Note: 532175994

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 532125631

GRIP HANDLE

Note: 532125631

$6.99

$

In Stock, only 1 left!

0

33

Husqvarna 876020308

COTTER PIN
(Superseded to 532003145)

Note: 876020308

$

$

Not available

77

Husqvarna 532176205

TRUNNION

Note: 532176205

$7.49

$

In Stock, only 2 left!

0

76

Husqvarna 532175560

PIN.FLANGE

Note: 532175560

$11.99

$

In Stock, only 1 left!

0

32

Husqvarna 532137150

SPRING.COMP.INF.H

Note: 532137150

$6.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532122364

PLUNGER BUT KIT
(Superseded to 532125925)

Note: 532122364

$

$

Not available

12

Husqvarna 532163552

SPRING RETAINER
(Superseded to 532003146)

Note: 532163552

$3.99

$

In Stock, Qty 20+

0
