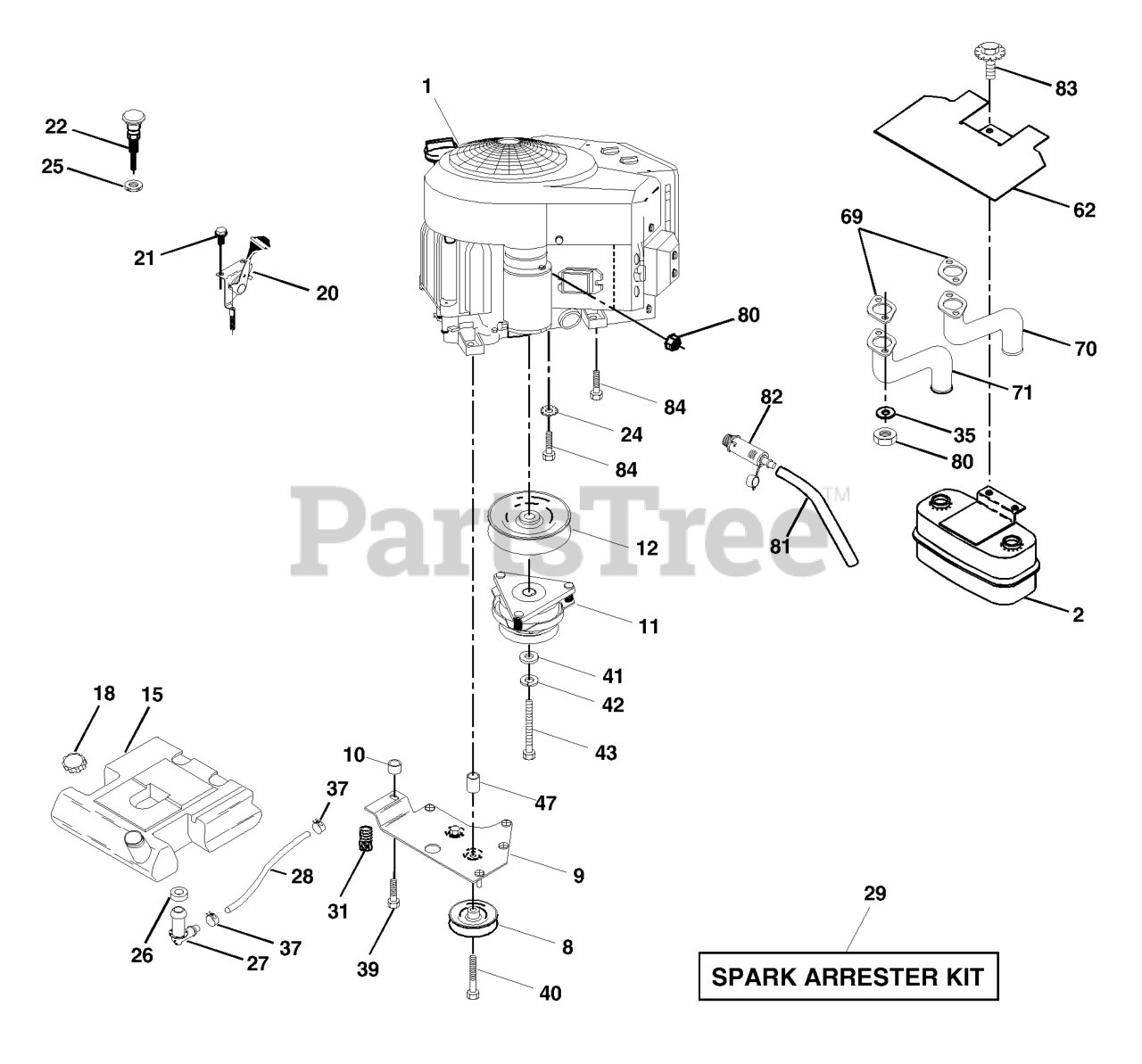

GTH 2548 XP (954567895-B) - Husqvarna 48" Garden Tractor (2002-10) Engine Parts Diagram

48" Garden Tractor

Engine Parts Diagram

  • Title

1

Engine Kawasaki, Model No. FH721V

Note: (Order parts from engine manufacturer)

$

$

Not available

2

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$53.99

$

In Stock, only 1 left!

0

8

Husqvarna 532121361

RP.IDLER GROOVED
(Superseded to 532139123)

$53.99

$

In Stock, only 3 left!

0

9

Husqvarna 532177748

KEEPER ASM BELT ENGINE

$

$

Not available

10

Husqvarna 532175287

BUSHING

$

$

Not available

11

Husqvarna 532179335

CLUTCH MZ ZTR GT.48/54"1.125"

$395.99

$

In Stock, only 2 left!

0

12

Husqvarna 532143996

PULLEY ENG VGT ELECT CLUTCH

$43.99

$

In Stock, only 1 left!

0

15

Husqvarna 532179115

TANK.FUEL.5.0 LEFT.FILL.YTGT

$

$

Not available

18

Husqvarna 532181803

TANK CAP
(Superseded to 532179124)

$37.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532178147

CONTROL.THROTTLE.COBRA.42"BLK.

$37.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532171875

SCREW
(Superseded to 532189747)

$21.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532178148

CHOKE CONTROL
(Superseded to 532175441)

$

$

Not available

24

Husqvarna 811050600

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 873920600

Nut Keps 3/8-24 Unf

$

$

Not available

26

Husqvarna 532124952

BUSHING OUTLET T
(Superseded to 532003645)

$4.99

$

In Stock, Qty 20+

0

27

Husqvarna 532139277

STEM FUEL TANK

$7.49

$

In Stock, Qty 20+

0

28

Husqvarna 532124703

HOSE
(Superseded to 532008542)

$

$

Not available

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$203.99

$

In Stock, only 1 left!

0

31

Husqvarna 532145006

PUSH CLIP

$3.99

$

In Stock, only 1 left!

0

35

Husqvarna 810010500

WASHER

$

$

Not available

37

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 11

0

39

Husqvarna 817490636

SCREW TT 3/8-16X2-1/4 UNC
(Superseded to 596564004)

$2.49

$

In Stock, Qty 20+

0

40

Husqvarna 817490664

Screw TT 3/8-16 x 4 Unc

$

$

Not available

41

Husqvarna 532126197

WASHER

$8.49

$

In Stock, Qty 17

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

$3.99

$

In Stock, only 2 left!

0

43

Husqvarna 532179953

BOLT HEX 7/16-20 X 3.75 GR. 5
(Superseded to 501606601)

$3.99

$

In Stock, Qty 11

0

47

Husqvarna 532175288

BUSHING

$

$

Not available

62

Husqvarna 532176252

HEAT SHIELD

$

$

Not available

69

Gasket

Note: (Order from engine mfg.)

$

$

Not available

70

Husqvarna 532175766

TUBE EXHAUST LH

$

$

Not available

71

Husqvarna 532175767

TUBE.EXHAUST.KAWASAKI.RH

$

$

Not available

80

Husqvarna 532163305

FLANGE NUT
(Superseded to 596433401)

$3.99

$

In Stock, only 2 left!

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 13

0

82

Valve Oil Drain

Note: (Order from engine mfg.)

$

$

Not available

83

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$5.99

$

In Stock, Qty 10

0

84

Husqvarna 817060624

SCREW 3/8-16 X 1-1/2

$5.99

$

Usually ships in 3-10 days

0
