GTH 2648 (960430030-00) - Husqvarna 48" Garden Tractor (2006-12) Chassis Parts Diagram

48" Garden Tractor

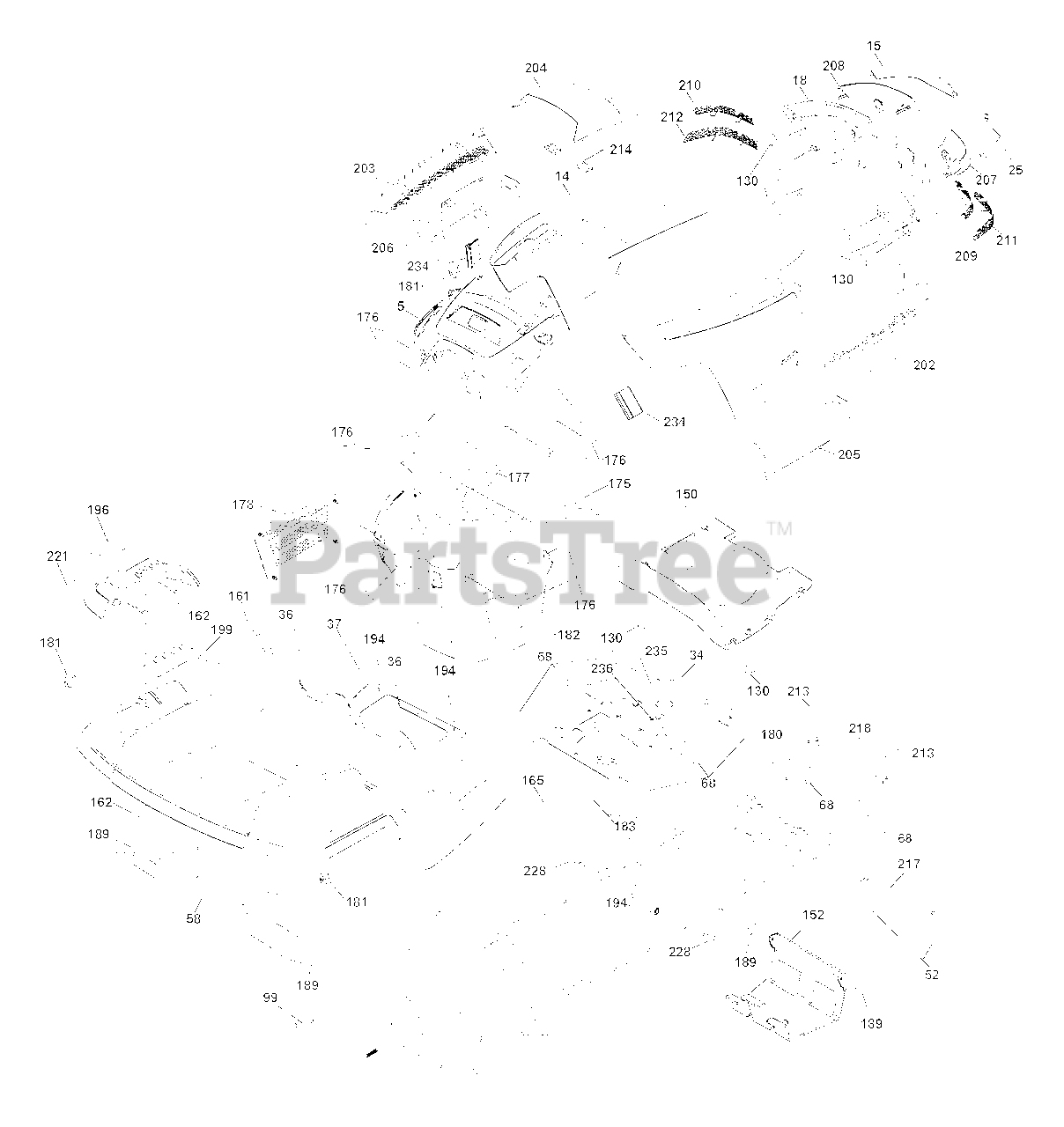

Chassis Parts Diagram

  • Title

5

Husqvarna 532408701

Dash

$

$

Not available

14

Husqvarna 532411046

Hood
(Superseded to 532442396)

$

$

Not available

15

Husqvarna 532198907

Lens LH

$44.99

$

In Stock, Qty 5

0

18

Husqvarna 532404821

Grille
(Superseded to 532408607)

$

$

Not available

25

Husqvarna 532198906

Lens RH

$44.99

$

In Stock, only 1 left!

0

34

Husqvarna 532196125

Plate Engine
(Superseded to 580910801)

$49.99

$

Usually ships in 3-10 days

0

36

Husqvarna 817060512

Screw 5/16-18 x 3/4
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532401825

Fender
(Superseded to 532441208)

$206.99

$

Usually ships in 3-10 days

0

52

Husqvarna 873680500

Nut Crown Lock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532194314

Bracket Fender

$27.99

$

Usually ships in 3-10 days

0

68

Husqvarna 817490508

Screw 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

99

Husqvarna 532197273

Rod Bypass Asm.

$18.99

$

Usually ships in 3-10 days

0

130

Husqvarna 532191611

Screw 10 x 3/4 Single Lead Hex
(Superseded to 532416358)

$

$

Not available

150

Husqvarna 532198512

Duct Heat Hood

$40.99

$

Usually ships in 3-10 days

0

152

Husqvarna 532199535

Shield Browning/Debris

$

$

Not available

161

Husqvarna 532401826

Console Fuel Window

$9.49

$

In Stock, Qty 13

0

162

Husqvarna 532142432

Screw Hex Wsh Hi-Lo 1/4 x 1/2

$6.49

$

Usually ships in 3-10 days

0

165

Husqvarna 532196826

Bracket Support Tank

$24.99

$

Usually ships in 3-10 days

0

175

Husqvarna 532196304

Crossmember
(Superseded to 590607702)

$24.99

$

Usually ships in 3-10 days

0

176

Husqvarna 532400776

Screw 10-24 x 5/8 Wshd Qdrx

$11.99

$

In Stock, Qty 5

0

177

Husqvarna 532195227

Bushing Steering

$6.49

$

In Stock, Qty 20+

0

178

Husqvarna 532199782

Cargo Asm. Net

$30.99

$

Usually ships in 3-10 days

0

180

Husqvarna 532195477

Chassis
(Superseded to 582033001)

$265.99

$

Usually ships in 3-10 days

0

181

Husqvarna 532403025

Bushing Mtg. Fender Crgo.

$

$

Not available

182

Husqvarna 532194787

Dash Lower
(Superseded to 532406859)

$87.99

$

In Stock, Qty 5

0

183

Husqvarna 874780520

Bolt Fin Hex 5/16-18 UNC x 1-1/4
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

189

Husqvarna 817000512

Screw 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

194

Husqvarna 873900500

Nut Lock Hex Flange 5/16-18
(Superseded to 583612701)

$6.49

$

Usually ships in 3-10 days

0

196

Husqvarna 532400299

Console Asm. Deck Lift
(Superseded to 532439716)

$121.99

$

Usually ships in 3-10 days

0

199

Husqvarna 532198259

Plate Deck Lift

$26.99

$

Usually ships in 3-10 days

0

202

Husqvarna 532403048

Vent Side Hood RH

$

$

Not available

203

Husqvarna 532403076

Vent Side Hood LH

$

$

Not available

204

Husqvarna 532198904

Vent Asm Hood Top
(Superseded to 532416615)

$17.99

$

Usually ships in 3-10 days

0

205

Husqvarna 532401709

Skirt Hood Side RH

$

$

Not available

206

Husqvarna 532401711

Skirt Hood Side LH

$

$

Not available

207

Husqvarna 532197198

Bezel RH

$26.99

$

Usually ships in 3-10 days

0

208

Husqvarna 532197199

Bezel LH

$

$

Not available

209

Husqvarna 532199130

Insert Hex Top RH

$

$

Not available

210

Husqvarna 532199131

Insert Hex Top LH

$

$

Not available

211

Husqvarna 532199132

Insert Hex Bottom RH

$2.99

$

Usually ships in 3-10 days

0

212

Husqvarna 532199133

Insert Hex Bottom LH

$

$

Not available

213

Husqvarna 874760512

Bolt Hex Hd 5/16-18 unc x 3/4
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

214

Husqvarna 532199145

Clip Retainer

$6.49

$

Usually ships in 3-10 days

0

217

Husqvarna 532156524

Rod Pivot
(Superseded to 532409167)

$13.99

$

Usually ships in 3-10 days

0

218

Husqvarna 532196395

Hood Stop

$4.99

$

Usually ships in 3-10 days

0

221

Husqvarna 532198909

Reflector LH

$17.99

$

Usually ships in 3-10 days

0

228

Husqvarna 532195161

Stud Fastener

$

$

Not available

234

Husqvarna 532404742

Bumper Hood

$6.49

$

In Stock, only 2 left!

0

235

Husqvarna 532406129

Spacer Fender

$4.99

$

Usually ships in 3-10 days

0

236

Husqvarna 873930500

Nut Center Lock 5/16-18 UNC

$7.49

$

In Stock, only 1 left!

0
