GTH 2648 (960430030-02) - Husqvarna 48" Garden Tractor (2008-02) Drive Parts Diagram

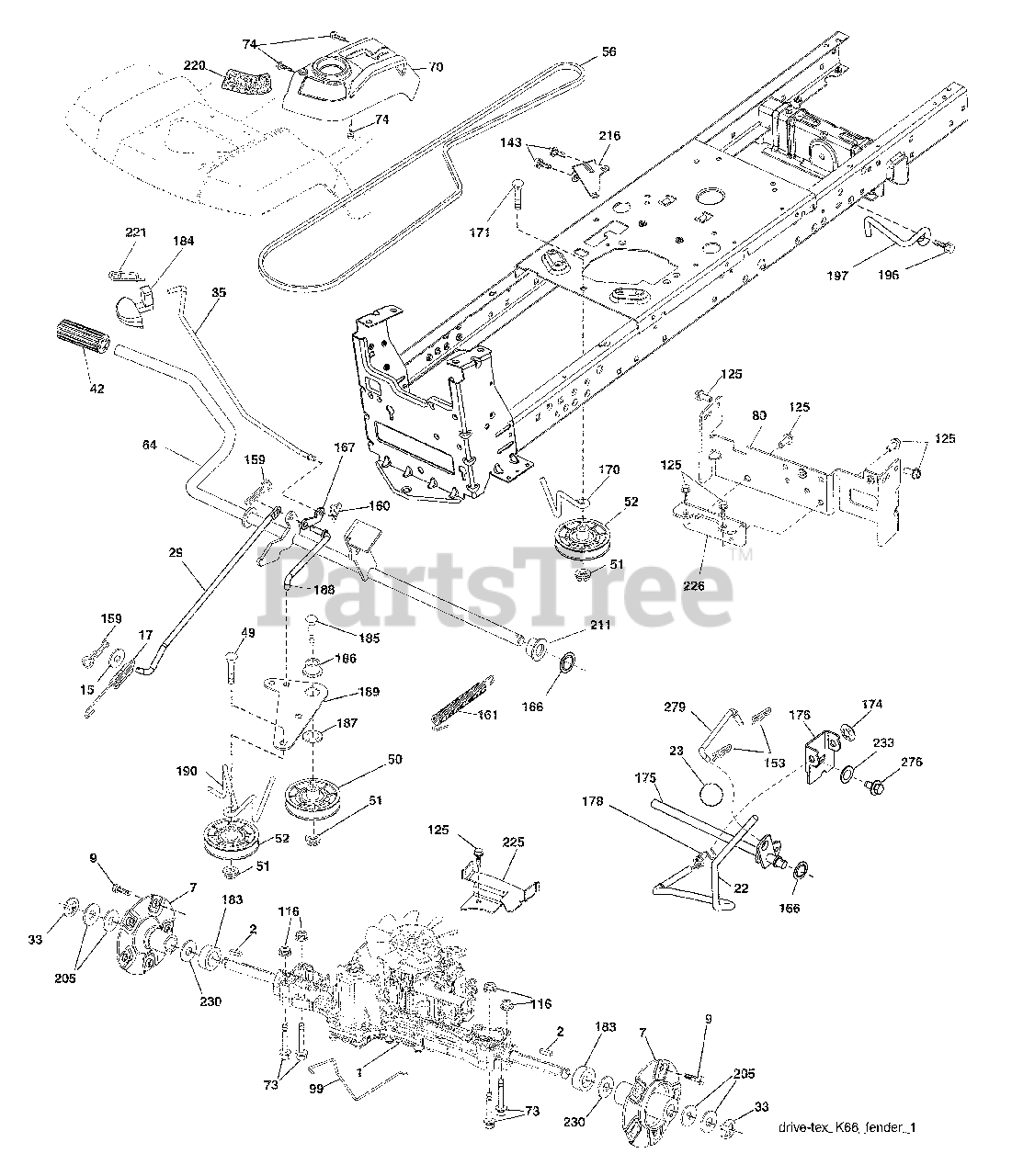

48" Garden Tractor

Drive Parts Diagram

  • Title

1

Husqvarna 532414145

Transaxle, TuffTorq K66

$970.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532007070

Key

$

$

Not available

7

Husqvarna 532199837

Hub Asm. Wheel

$78.99

$

In Stock, Qty 8

0

9

Husqvarna 532140080

Bolt Hub Wheel

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 532401072

Spring, Brake

$8.99

$

In Stock, Qty 11

0

22

Husqvarna 532197329

Rod Shift

$72.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532140845

Knob Deluxe 1/2-13 unc

$12.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532407245

Rod, Brake

$30.99

$

In Stock, only 1 left!

0

33

Husqvarna 812000053

Ring E

$7.49

$

In Stock, only 3 left!

0

35

Husqvarna 532199591

Rod, Brake, Park
(Superseded to 532435486)

$7.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532124872

Cover, Foot Pedal
(Superseded to 532008883)

$6.49

$

In Stock, Qty 17

0

49

Husqvarna 872110614

Bolt

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 532194327

Pulley Idler Flat

$13.99

$

In Stock, Qty 20+

0

51

Husqvarna 873900600

Lock Nut 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Husqvarna 532194326

Idler V-Groove 910" Offset

$12.99

$

In Stock, Qty 20+

0

56

Husqvarna 532125907

V-Belt, Drive

$36.99

$

In Stock, Qty 20+

0

64

Husqvarna 532196200

Shaft Asm. Pedal Brake Control

$34.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532400298

Console Asm.
(Superseded to 532439660)

$113.99

$

Usually ships in 3-10 days

0

73

Husqvarna 874490544

Bolt Hex Flghd 5/16-18 Gr. 5

$4.99

$

Usually ships in 3-10 days

0

74

Husqvarna 532142432

Screw Hx Wsh Hi-Lo 1/4 x 1/2 unc

$6.49

$

Usually ships in 3-10 days

0

80

Husqvarna 532407182

Strap Torque
(Superseded to 589333402)

$10.99

$

Usually ships in 3-10 days

0

99

Husqvarna 532415744

Rod Bypass

$9.99

$

Usually ships in 3-10 days

0

116

Husqvarna 873900500

Nut Lock Hex Flange 5/16-18
(Superseded to 583612701)

$6.49

$

Usually ships in 3-10 days

0

125

Husqvarna 817000512

Screw 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

143

Husqvarna 817490508

Screw 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

153

Husqvarna 532124788

Retainer Spring
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

159

Husqvarna 876020412

Pin Cotter 1/8 x 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

160

Husqvarna 532169484

Retainer Clip

$

$

Not available

161

Husqvarna 532105709

Spring, Return, Clutch

$10.99

$

In Stock, Qty 20+

0

166

Husqvarna 532197290

Nut Push .625
(Superseded to 532429164)

$6.49

$

In Stock, Qty 6

0

167

Husqvarna 532405257

Latch Brake Parking

$4.99

$

Usually ships in 3-10 days

0

170

Husqvarna 532194322

Keeper Belt Centerspan

$7.49

$

In Stock, Qty 11

0

171

Husqvarna 872110616

Bolt

$6.49

$

Usually ships in 3-10 days

0

174

Husqvarna 532197289

Nut Push

$6.49

$

In Stock, only 2 left!

0

175

Husqvarna 532408539

Shaft Asm. Shift

$24.99

$

In Stock, only 1 left!

0

176

Husqvarna 532196214

Arm Clevis Rod Shift

$7.49

$

Usually ships in 3-10 days

0

178

Husqvarna 532197456

Spring Shift

$6.49

$

In Stock, only 2 left!

0

183

Husqvarna 532197357

Spacer Axle

$7.49

$

In Stock, only 1 left!

0

184

Husqvarna 532403118

Handle Parking Brake
(Superseded to 532196439)

$12.99

$

In Stock, Qty 20+

0

185

Husqvarna 872110620

Bolt

$4.99

$

Usually ships in 3-10 days

0

186

Husqvarna 532194321

Spacer Retainer

$7.49

$

Usually ships in 3-10 days

0

187

Husqvarna 819133210

Washer
(Superseded to 532413524)

$

$

Not available

188

Husqvarna 532194323

Link Clutch Ground Drive
(Superseded to 582217001)

$4.99

$

In Stock, Qty 13

0

189

Husqvarna 532194317

Bellcrank Ground Drive

$

$

Not available

190

Husqvarna 532194318

Keeper Bellcrank Ground Drive

$8.99

$

In Stock, Qty 19

0

196

Husqvarna 817000616

Screw 3/8-16 x 1

$7.49

$

In Stock, Qty 7

0

197

Husqvarna 532199769

Bracket Clutch Anti-Rotation

$8.99

$

In Stock, Qty 11

0

205

Husqvarna 532123800

Washer 1 1/32 x 1 5/8 x 16 Ga.

$7.49

$

In Stock, only 1 left!

0

211

Husqvarna 532196212

Bearing Nylon

$6.49

$

Usually ships in 3-10 days

0

216

Husqvarna 532196131

Bracket Pulley Idler

$7.49

$

In Stock, only 2 left!

0

220

Husqvarna 532198908

Reflector RH

$17.99

$

In Stock, only 1 left!

0

221

Husqvarna 532403187

Retainer Spring Clip Handle

$6.49

$

In Stock, Qty 10

0

225

Husqvarna 532407311

Keeper Belt Trans.

$6.49

$

Usually ships in 3-10 days

0

226

Husqvarna 532407109

Bracket Mount Torque

$8.99

$

Usually ships in 3-10 days

0

230

Husqvarna 532007563

Hardened Washer

$8.99

$

In Stock, only 3 left!

0

233

Husqvarna 532405296

Washer Serrated

$6.49

$

Usually ships in 3-10 days

0

276

Husqvarna 874780716

Bolt Fin Hex 7/16-14 x 1 Gr. 5

$4.99

$

Usually ships in 3-10 days

0

279

Husqvarna 532413778

Link Asm. Shift

$4.99

$

Usually ships in 3-10 days

0
