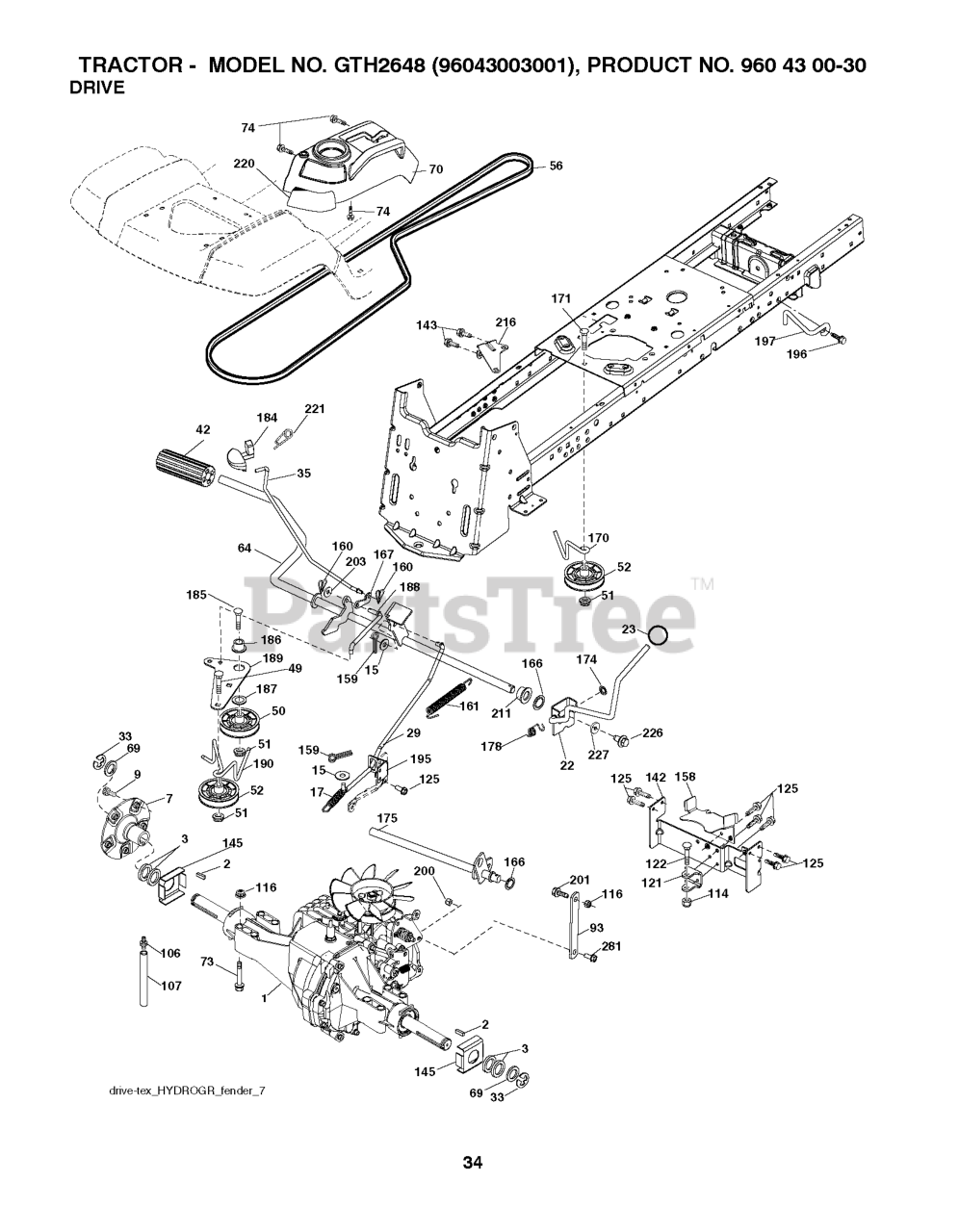

GTH 2648 - Husqvarna 48" Garden Tractor (2008-01) DRIVE Parts Diagram

48" Garden Tractor

DRIVE Parts Diagram

  • Title

175

Husqvarna 532196204

SHAFT ASM SHIFT

$

$

Not available

52

Husqvarna 532194326

IDLER.V-GROOVE.910.OFFSET

$22.99

$

In Stock, Qty 20+

0

64

Husqvarna 532196200

SHAFT.ASM.PEDAL.BRAKE.

$62.99

$

Usually ships in 3-10 days

0

211

Husqvarna 532196212

BUSHING.SHAFT.BRAKE.HAND

$6.99

$

Usually ships in 3-10 days

0

220

Husqvarna 532198908

REFLECTOR.RH.TEX GT

Note: RH

$20.99

$

Usually ships in 3-10 days

0

106

Husqvarna 532142917

CAP, VENT ASSY
(Superseded to 532142578)

$

$

Not available

7

Husqvarna 532199837

HUB.ASM.WHEEL.REAR.23"TEX
(Superseded to 531149201)

$45.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532140845

KNOB.DELUXE.(PISTOL.GRIP).BLAC

$13.99

$

Usually ships in 3-10 days

0

158

Husqvarna 532194351

KEEPER BELT

$

$

Not available

125

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 11

0

35

Husqvarna 532199591

ROD.BRAKE.PARKING.GT.H
(Superseded to 583864502)

$13.99

$

In Stock, only 1 left!

0

200

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$3.49

$

In Stock, Qty 5

0

221

Husqvarna 532403187

RETAINER.SPRING.CLIP.H

$4.99

$

In Stock, only 2 left!

0

74

Husqvarna 532142432

SCREW.HI-LO.CONSOLE
(Superseded to 596134101)

$3.49

$

In Stock, Qty 19

0

216

Husqvarna 532196131

BRACKET.PULLEY.IDLER.W/TEX

$7.99

$

In Stock, only 2 left!

0

93

Husqvarna 532196213

LINK.TRANSAXLE.HG3000/3500

$

$

Not available

187

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$5.99

$

In Stock, Qty 16

0

2

Husqvarna 532007070

KEY 1/4 X 2.5

$7.99

$

In Stock, Qty 9

0

190

Husqvarna 532194318

KEEPER.BELLCRANK.DRIVE

$6.99

$

In Stock, only 3 left!

0

116

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

188

Husqvarna 532194323

RP.LINK.CLUTCH.GROUND.DRIVE
(Superseded to 582217001)

$5.99

$

In Stock, only 4 left!

0

184

Husqvarna 532403118

HANDLE.PARKG.BRK.HUSQ X667
(Superseded to 532196439)

$13.99

$

In Stock, Qty 18

0

29

Husqvarna 532197269

ROD.BRAKE.HG3000/3500

$

$

Not available

196

Husqvarna 817000616

SCREW 3/8-16X1

$6.99

$

In Stock, Qty 9

0

161

Husqvarna 532105709

SPRING, RETURN LT

$13.99

$

In Stock, Qty 13

0

167

Husqvarna 532405257

LATCH.BRAKE.SPRING
(Superseded to 531152901)

$3.49

$

In Stock, Qty 8

0

186

Husqvarna 532194321

SPACER.RETAINER

$9.49

$

In Stock, Qty 18

0

170

Husqvarna 532194322

KEEPER.V-IDLER.CENTER.

$6.99

$

In Stock, Qty 6

0

107

Husqvarna 532410481

TUBE VENT

$

$

Not available

171

Husqvarna 872110616

BOLT
(Superseded to 596136301)

$3.49

$

In Stock, Qty 7

0

201

Husqvarna 532169612

BOLT SHOULDER 5/16-18 UNC
(Superseded to 596231101)

$4.99

$

In Stock, only 2 left!

0

197

Husqvarna 532199769

BRKT.ANIT-ROTATION.CLUTCH

$7.99

$

In Stock, only 2 left!

0

69

Husqvarna 532123800

WASHER

$3.99

$

Usually ships in 3-10 days

0

174

Husqvarna 532197289

NUT.PUSH.500.2006

$3.49

$

In Stock, only 1 left!

0

159

Husqvarna 876020412

COTTER PIN
(Superseded to 596029501)

$3.49

$

In Stock, Qty 5

0

122

Husqvarna 872010520

BOLT.5/16-18X2.5

$5.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532194327

IDLER.FLAT.910.OFFSET

$20.99

$

In Stock, Qty 20+

0

195

Husqvarna 532405113

RETAINER.ROD.BRAKE.HG3000.TEX

$

$

Not available

226

Husqvarna 874780716

BOLT FIN HEX 7/16-14 X 1
(Superseded to 596238601)

$3.49

$

In Stock, only 2 left!

0

281

Husqvarna 532411554

Shoulder Bolt

$

$

Currently unavailable

189

Husqvarna 532194317

BELLCRANK.GROUND.DRIVE.TEX.
(Superseded to 531169001)

$7.99

$

In Stock, only 3 left!

0

142

Husqvarna 532404483

STRAP.TORQUE.HG3000/K46

$

$

Not available

49

Husqvarna 872110614

BOLT

$

$

Not available

1

NEEDS DESCRIPTION

Note: "Transaxle, Hydro 344-3000 (Order Parts from Transaxle Manufacturer)"

$

$

Not available

178

Husqvarna 532197456

SPRING.SHIFT.GT2006

$5.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532197296

SPRING.BRAKE.HG3000/3500

$6.99

$

In Stock, Qty 8

0

145

Husqvarna 532163168

WASHER.AXLE.FLANGE.HG-3000

$3.99

$

In Stock, only 3 left!

0

114

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$

$

Not available

56

Husqvarna 532165813

BELT.V.GROUND.DRIVE

$56.99

$

In Stock, only 2 left!

0

121

Husqvarna 532175611

BRACKET STRAP TORQUE

$7.99

$

Usually ships in 3-10 days

0

185

Husqvarna 872110620

BOLT
(Superseded to 596435101)

$3.49

$

In Stock, only 2 left!

0

9

Husqvarna 532140080

HUB BOLT
(Superseded to 596218701)

$3.49

$

Usually ships in 3-10 days

0

22

Husqvarna 532400504

SHIFTER.ASM.GT.TEX.2006

$62.99

$

Usually ships in 3-10 days

0

166

Husqvarna 532197290

NUT.PUSH.625.2006
(Superseded to 532429164)

$4.99

$

In Stock, Qty 5

0

42

Husqvarna 532124872

PEDAL COVER T
(Superseded to 510089501)

$6.99

$

In Stock, only 2 left!

0

203

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.49

$

In Stock, Qty 19

0

33

Husqvarna 812000053

E RING HYT

$3.99

$

In Stock, only 1 left!

0

70

Husqvarna 532400298

RP CONSOLE.ASM.HYDO.HUSQ.
(Superseded to 532439660)

$102.99

$

Usually ships in 3-10 days

0

160

Husqvarna 532169484

RETAINER CLIP
(Superseded to 596029401)

$4.99

$

In Stock, Qty 7

0

3

Husqvarna 532007563

WASHER T

$7.49

$

In Stock, only 3 left!

0

143

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$

$

Not available

227

Husqvarna 532405296

WASHER SERRATED
(Superseded to 596135201)

$3.49

$

Usually ships in 3-10 days

0

51

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$1.49

$

In Stock, Qty 17

0

Husqvarna 532403571

PLUG.N/CRUISE.COMMON.YT/GT.BLK

$

$

Not available

73

Husqvarna 874490548

BOLT HEX FLGHD 5/16-18X3 GR. 5

$5.99

$

In Stock, only 2 left!

0

15

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0
