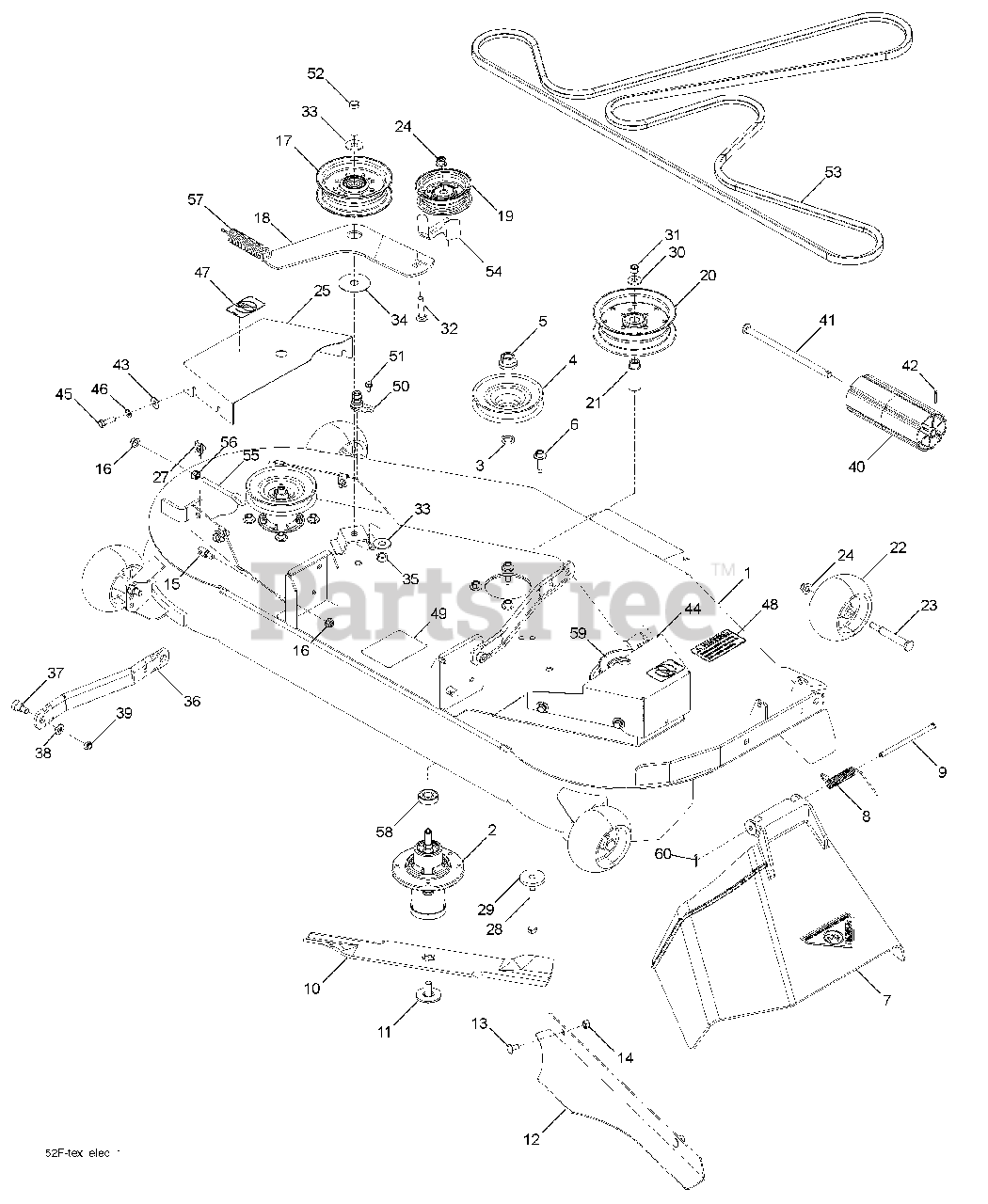

GTH 27 V52 LS (960430099-00) - Husqvarna Garden Tractor (2009-12) Mower Deck Parts Diagram

Garden Tractor

Mower Deck Parts Diagram

  • Title

1

Husqvarna 575438003

Deck w/ Decals 52"

$

$

Not available

2

Husqvarna 539112170

Housing Assembly

$74.99

$

In Stock, Qty 20+

0

3

Husqvarna 539107520

Washer-Spacer
(Superseded to 532187690)

$3.49

$

In Stock, Qty 20+

0

4

Husqvarna 532107521

Pulley, Mandrel
(Superseded to 532174375)

$37.99

$

In Stock, Qty 12

0

5

Husqvarna 539107590

Nut, 9/16 Top Center Lock
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0

6

Husqvarna 539107630

Screw, Washer Head
(Superseded to 584953901)

$3.49

$

In Stock, Qty 20+

0

7

Husqvarna 532110733

Discharge Chute, 52"
(Superseded to 539110733)

$53.99

$

In Stock, Qty 20+

0

8

Husqvarna 532110735

Spring - Torsion
(Superseded to 539110735)

$

$

Not available

9

Husqvarna 532110736

Pin, Clevis 5/16 x 5.19

$7.49

$

Usually ships in 3-10 days

0

10

Husqvarna 574870801

Blade, 16-1/4"

$21.99

$

In Stock, Qty 20+

0

11

Husqvarna 539107522

Bolt, 7/16, Assy Blade
(Superseded to 532193003)

$8.99

$

In Stock, Qty 20+

0

12

Husqvarna 574875002

Confinement Plate

$53.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539990799

Rhsnb 5/16-18 x 5/8 Gr 5
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 539990717

Nut 5/16-18 Hex Nyloc
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 532195161

Stud, Fasten w/ Anti- Rotate

$

$

Not available

16

Husqvarna 539112899

Nut 5/16-18 Hex Flange Nyloc
(Superseded to 594944401)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 532196104

Pulley, Idler Spec. Hub

$34.99

$

In Stock, Qty 20+

0

18

Husqvarna 574841802

Arm, Idler, Blk

$37.99

$

In Stock, only 1 left!

0

19

Husqvarna 532177968

Pulley, Idler

$24.99

$

In Stock, Qty 20+

0

20

Husqvarna 539132728

Pulley, Idler
(Superseded to 589766102)

$29.99

$

In Stock, Qty 20+

0

21

Husqvarna 575224501

Idler Bushing

$24.99

$

In Stock, only 4 left!

0

22

Husqvarna 539107610

Wheel, Gauge
(Superseded to 532133957)

$13.99

$

In Stock, Qty 20+

0

23

Husqvarna 539107608

Bolt, Shoulder
(Superseded to 596434404)

$3.49

$

In Stock, Qty 20+

0

24

Husqvarna 521996501

Nut 3/8-16 Hex Flg Nyloc

$

$

Not available

25

Husqvarna 575224702

Shield, Belt LH

$48.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539104763

Retainer 5/16c U Type

$6.49

$

In Stock, Qty 15

0

28

Husqvarna 539108271

Hcs 3/8-16 x 3-1/2 Gr 5

$4.99

$

In Stock, Qty 9

0

29

Husqvarna 539106504

Heavy Washer

$

$

Not available

30

Husqvarna 539990517

Washer, 3/8 Flat Std

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539976979

Nut 3/8-16 Hex Nyloc
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 539990923

Rhsnb 3/8-16 x 1-3/4 Gr 5

$3.99

$

In Stock, only 3 left!

0

33

Husqvarna 539104864

Washer, 7/16 Flat
(Superseded to 596437601)

$3.99

$

In Stock, Qty 15

0

34

Husqvarna 532178515

Washer, Flat Hardened

$6.49

$

In Stock, Qty 20+

0

35

Husqvarna 539119124

Nut, 7/16-14 Hex Nyloc

$

$

Not available

36

Husqvarna 532195185

Arm, Susp., Rear

$18.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539113621

Sb 3/8-16 x 3/8 Skt Hd
(Superseded to 596241101)

$3.99

$

In Stock, Qty 8

0

38

Husqvarna 539990122

Washer, 3/8 Sae Flt
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

39

Husqvarna 539200282

Nut, 3/8-16 Hex Jam Nyloc

$

$

Not available

40

Husqvarna 532176066

Roller, Nose

$9.99

$

In Stock, Qty 20+

0

41

Husqvarna 532179127

Rod, Roller, Nose, Narrow
(Superseded to 594092501)

$4.99

$

In Stock, Qty 20+

0

42

Husqvarna 532194208

Pin Cotter 5/16 Bow Tie Lock

$3.99

$

In Stock, Qty 20+

0

43

Husqvarna 539990692

Washer, 5/16 Std Flt
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

44

Husqvarna 575320002

Shield, Belt RH
(Superseded to 575967302)

$48.99

$

In Stock, Qty 5

0

45

Husqvarna 539990209

Hcs 5/16-18 x 1 Gr 5

$3.49

$

Usually ships in 3-10 days

0

46

Husqvarna 539990187

Wash 5/16 Slw
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

47

Husqvarna 539105743

Decal, No Step
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

48

Husqvarna 539113224

Decal, Warning

$9.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532198785

Decal, Deck Sch
(Superseded to 581580002)

$3.99

$

In Stock, Qty 8

0

50

Husqvarna 532415598

Washout Port

$8.99

$

In Stock, Qty 20+

0

51

Husqvarna 539108461

Bolt, 1/4-20 x 1/2

$4.99

$

In Stock, Qty 14

0

52

Husqvarna 539104870

Hcs 7/16-14 x 2-1/2 Gr 5
(Superseded to 874780740)

$3.99

$

In Stock, Qty 14

0

53

Husqvarna 574845603

Belt, Deck

$109.99

$

In Stock, Qty 18

0

54

Husqvarna 575224301

Guard, Belt
(Superseded to 532141043)

$4.99

$

In Stock, Qty 18

0

55

Husqvarna 539115574

Eyebolt 5/16 x 3-1/2

$

$

Not available

56

Husqvarna 539990585

Nut 5/16-18 Hex Whizlk

$3.99

$

Usually ships in 3-10 days

0

57

Husqvarna 539106850

Spring

$

$

Not available

58

Husqvarna 539112050

Ball Bearing

$7.49

$

In Stock, Qty 20+

0

59

Husqvarna 575352901

Pulley
(Superseded to 588586401)

$66.99

$

In Stock, Qty 20+

0

60

Husqvarna 532169484

Clip Retainer

$

$

Not available

Husqvarna 575015803

Mower Deck Complete

$

$

Not available
