GTH 2752 TF (960410175-00) - Husqvarna 52" Garden Tractor (2010-02) ENGINE Parts Diagram

52" Garden Tractor

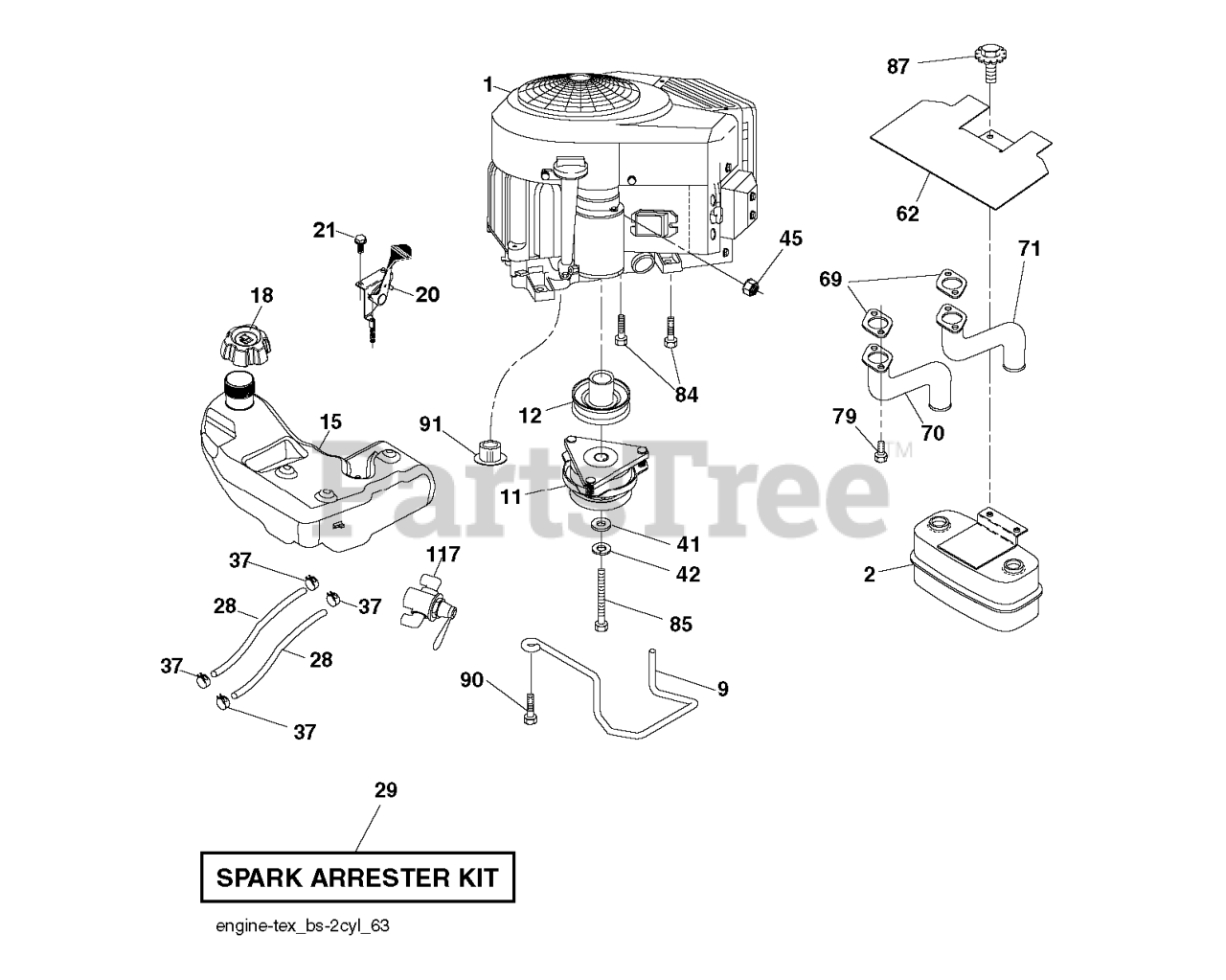

ENGINE Parts Diagram

  • Title

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS
(Superseded to 596321701)

$3.99

$

In Stock, Qty 13

0

45

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 532408667

KEEPER BELT ENGINE

$14.99

$

Usually ships in 3-10 days

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

28

Husqvarna 532142158

REPL BY 532 00 85-43
(Superseded to 587044854)

$23.99

$

In Stock, only 4 left!

0

71

Husqvarna 532160589

EXHAUST.TUBE.RH.BS/TWIN
(Superseded to 581881001)

$29.99

$

In Stock, only 3 left!

0

41

Husqvarna 532126197

WASHER

$8.49

$

In Stock, Qty 17

0

11

Husqvarna 532179335

CLUTCH MZ ZTR GT.48/54"1.125"

$395.99

$

In Stock, only 2 left!

0

1

000000000

Note: Engine B&S Model No. 44Q777-1272-B1

$

$

Not available

70

Husqvarna 532159955

RP.EXHAUST.TUBE.LH.BS/TWIN
(Superseded to 581881101)

$35.99

$

In Stock, only 1 left!

0

69

Husqvarna 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 532422804

TANK FUEL

$193.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532178385

THROTTLE CABLE
(Superseded to 532175437)

$33.99

$

In Stock, only 2 left!

0

85

Husqvarna 532179953

BOLT HEX 7/16-20 X 3.75 GR. 5
(Superseded to 501606601)

$3.99

$

In Stock, Qty 11

0

91

Husqvarna 532187495

BUSHING.1.375OD

$5.99

$

In Stock, only 2 left!

0

18

Husqvarna 532430217

RP CAP FUEL
(Superseded to 532439645)

$21.99

$

In Stock, only 4 left!

0

2

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$53.99

$

In Stock, only 1 left!

0

87

Husqvarna 532198239

BOLT.5/16-18UNCX1.W/SEMS.BLK

$3.99

$

In Stock, only 3 left!

0

37

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 11

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$203.99

$

In Stock, only 1 left!

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

$3.99

$

In Stock, only 2 left!

0

79

Husqvarna 532183906

SCREW.SOCKET.HEAD.5/16-18
(Superseded to 596134202)

$3.99

$

In Stock, Qty 9

0

84

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 20+

0

62

Husqvarna 532146629

RP SHIELD HEAT MUFFLER
(Superseded to 531154901)

$14.99

$

In Stock, only 1 left!

0

117

Husqvarna 532420828

VALVE FUEL RESERVE

$35.99

$

In Stock, only 1 left!

0

12

Husqvarna 532194343

PULLEY ENGINE

$59.99

$

In Stock, only 2 left!

0
