GTH 2752 TF (960410175-00) - Husqvarna 52" Garden Tractor (2010-05) Engine Parts Diagram

52" Garden Tractor

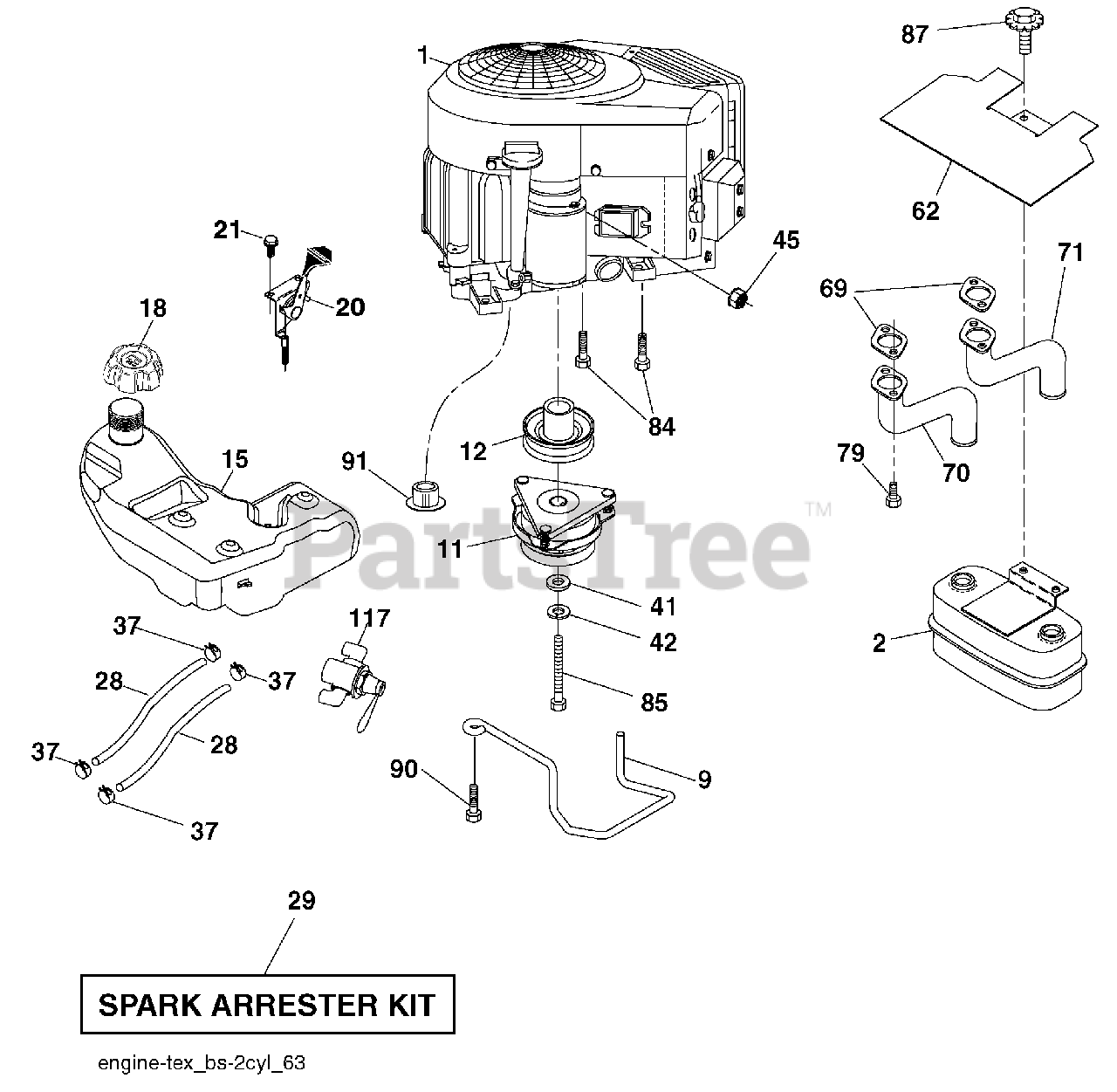

Engine Parts Diagram

  • Title

1

Engine B&S Model No. 44Q777-1272-B1

$

$

Not available

2

Husqvarna 532149723

Muffler

$51.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532408667

Keeper Asm. Belt Engine

$13.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532179335

Clutch Electric

$376.99

$

In Stock, Qty 5

0

12

Husqvarna 532194343

Pulley Engine

$51.99

$

In Stock, only 2 left!

0

15

Husqvarna 532422804

Tank Fuel

$193.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532430217

Cap Asm
(Superseded to 532439645)

$20.99

$

In Stock, Qty 7

0

20

Husqvarna 532178385

Control Throttle
(Superseded to 532175437)

$31.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532416358

Screw #10 x 0.750 BOS Thread

$

$

Not available

28

Husqvarna 532142158

Fuel Line
(Superseded to 587044854)

$22.99

$

In Stock, only 2 left!

0

29

Husqvarna 532137180

Spark Arrester Kit

$193.99

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

Clamp Hose

$3.99

$

In Stock, only 4 left!

0

41

Husqvarna 532126197

Washer 1-1/2 OD x 15/32 ID x .250

$7.99

$

In Stock, only 4 left!

0

42

Husqvarna 810040700

Washer Lock 7/16
(Superseded to 596238901)

$3.49

$

In Stock, Qty 18

0

45

Husqvarna 873510400

Nut Keps Hex 1/4-20 unc
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

62

Husqvarna 532146629

Shield Heat Muffler
(Superseded to 531154901)

$13.99

$

In Stock, only 2 left!

0

69

Husqvarna 532165391

Gasket

$4.99

$

In Stock, Qty 18

0

70

Husqvarna 532159955

Tube Exhaust LH
(Superseded to 581881101)

$34.99

$

In Stock, Qty 5

0

71

Husqvarna 532160589

Tube Exhaust RH
(Superseded to 581881001)

$28.99

$

In Stock, only 3 left!

0

79

Husqvarna 532183906

Screw Socket HD 5/16-18 x 1
(Superseded to 596134202)

$3.49

$

In Stock, Qty 20+

0

84

Husqvarna 817060620

Screw 3/8-16 x 1-1/4

$6.99

$

In Stock, Qty 11

0

85

Husqvarna 532179953

Bolt 7/16-20 x 3.75 Gr. 5
(Superseded to 501606601)

$3.99

$

In Stock, only 4 left!

0

87

Husqvarna 532198239

Bolt 5/16-18 unc x 1 w/Sems

$3.99

$

In Stock, only 4 left!

0

90

Husqvarna 817000616

Screw 3/8-16 x 1

$6.99

$

In Stock, Qty 11

0

91

Husqvarna 532187495

Bushing

$5.99

$

Usually ships in 3-10 days

0

117

Husqvarna 532420828

Valve Fuel Reserve

$34.99

$

In Stock, only 2 left!

0
