GTH 2754 (960230004-00) - Husqvarna 54" Garden Tractor (2005-06) Electrical Parts Diagram

54" Garden Tractor

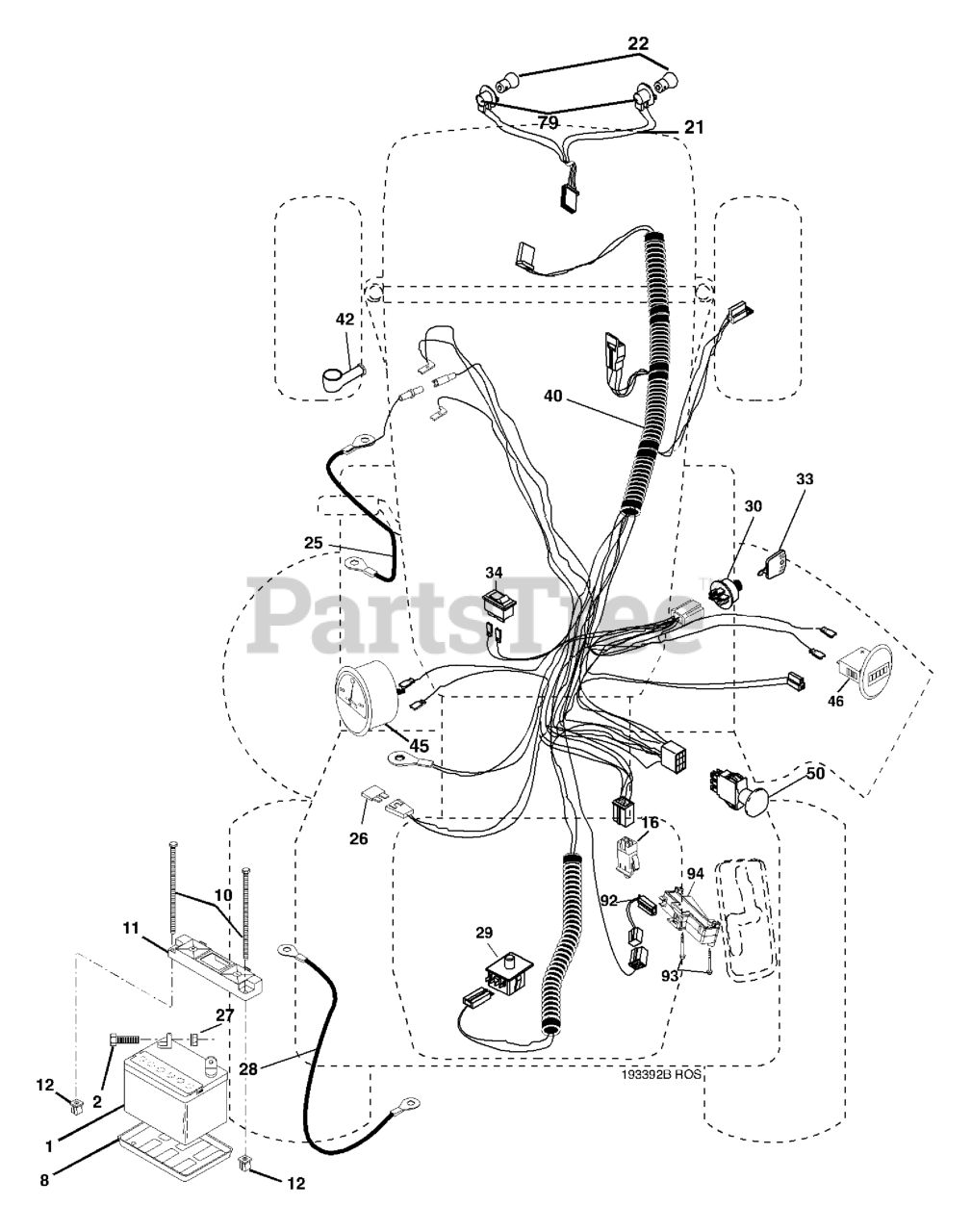

Electrical Parts Diagram

  • Title

1

Husqvarna 532144927

BATTERY 12V .35 AMP
(Superseded to 532123899)

$205.99

$

In Stock, Qty 7

0

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$3.99

$

In Stock, Qty 6

0

8

Husqvarna 532124886

BATTERY TRAY T
(Superseded to 532007603)

$7.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532145211

BOLT 1/4-20 X 7.5
(Superseded to 532150177)

$

$

Not available

11

Husqvarna 532150109

BATTERY HOLDDOWN FRONT MOUNT

$

$

Not available

12

Husqvarna 532145769

NUT, PUSH NYLON 1/4" BATTERY
(Superseded to 532150177)

$

$

Not available

16

Husqvarna 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 20+

0

21

Husqvarna 532175688

HARNESS.W/LIGHT SOCKET

$37.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532004152

LIGHTBULB

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532185456

CABLE.4GA.RED.W/16GA.RED.WIRE

$

$

Not available

26

Husqvarna 532108824

FUSE HYT

$

$

Not available

27

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 532170697

CABLE, GROUND

$

$

Not available

29

Husqvarna 532192749

SWITCH.SEAT.DP W/RAMPS

$20.99

$

In Stock, Qty 20+

0

30

Husqvarna 532193350

SWITCH.IGN.DELTA.W.LGH.ROS

$26.99

$

In Stock, Qty 20+

0

33

Husqvarna 532140401

KEY MLD GEN DELTA

$6.99

$

In Stock, Qty 20+

0

34

Husqvarna 532110712

SWITCH LT

$9.49

$

In Stock, Qty 12

0

40

Husqvarna 532193392

HARNESS. IGN.VGT.RHD

$

$

Not available

42

Husqvarna 532154336

COVER.TERMINAL.RED

$6.99

$

In Stock, only 4 left!

0

45

Husqvarna 532177500

RP AMMETER.ROUND.SILVER.DELTA

$

$

Not available

46

Husqvarna 532177501

RP HOURMETER SNAP-IN

$

$

Not available

50

Husqvarna 532174651

RP.PTO.SWITCH.8 TERMINAL.BLACK
(Superseded to 582107601)

$31.99

$

In Stock, Qty 20+

0

79

Husqvarna 532175242

BULB HOLDER ASM.

$11.99

$

In Stock, Qty 9

0

92

Husqvarna 532193465

HARNESS.PIGTAIL.REVERSE.SWITCH

$4.99

$

Usually ships in 3-10 days

0

93

Husqvarna 532192540

SCREW.PLASTITE
(Superseded to 596039601)

$2.49

$

Usually ships in 3-10 days

0

94

Husqvarna 532191834

MODULE.REVERSE.ROS

$26.99

$

In Stock, only 2 left!

0
