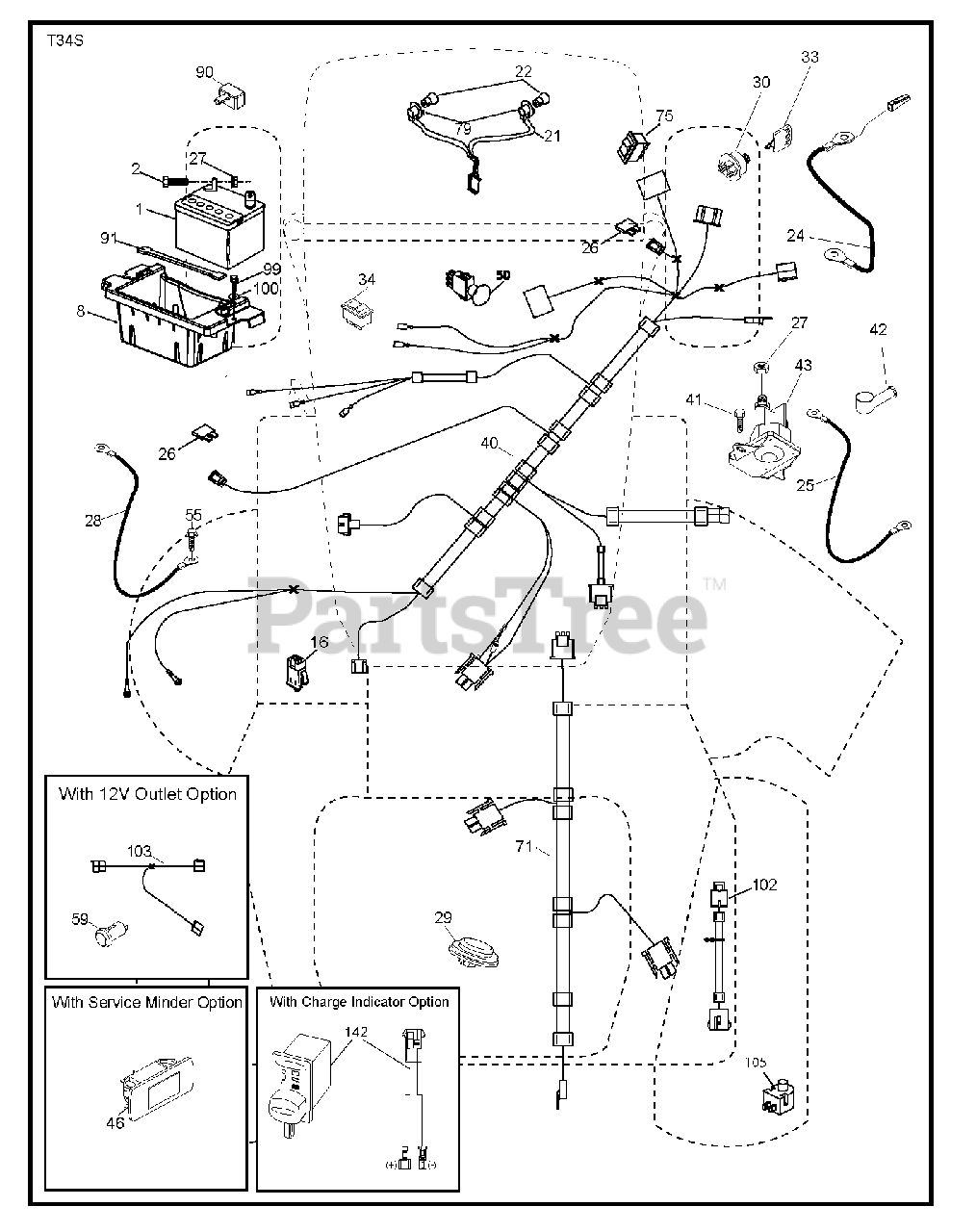

GTH 3052 TDF (960410285-00) - Husqvarna 52" Garden Tractor (2012-04) ELECTRICAL Parts Diagram

52" Garden Tractor

ELECTRICAL Parts Diagram

  • Title

1

Husqvarna 532163465

Battery, Dry 30 Amp
(Superseded to 532123899)

$194.99

$

Usually ships in 3-10 days

0

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$7.49

$

In Stock, Qty 5

0

8

Husqvarna 532186491

BOX.BATTERY.MOUNT.FRONT.LT

$

$

Not available

16

Husqvarna 532176138

SWITCH INTERLOOK PUSH-IN

$15.99

$

In Stock, Qty 5

0

21

Husqvarna 532400252

HARNESS.LIGHT W/4152J BULBS

$34.99

$

In Stock, Qty 5

0

22

Husqvarna 532004152

LIGHTBULB

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 532400253

CABLE.BATT.POS.WIRE.TG.DA SOL
(Superseded to 585555601)

$8.99

$

In Stock, Qty 14

0

25

Husqvarna 532412895

CABLE.STARTER.6G.BL/RED.17.5
(Superseded to 585555501)

$8.99

$

In Stock, Qty 9

0

26

Husqvarna 532175158

FUSE 20AMP

$7.49

$

In Stock, Qty 13

0

27

Husqvarna 873510400

NUT
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 532145491

CABLE GROUND 6 GA 21" 90T BLK

$10.99

$

In Stock, only 1 left!

0

29

Husqvarna 532401545

SWITCH.SEAT.DELTA.OPC.

$39.99

$

In Stock, Qty 19

0

30

Husqvarna 532193350

SWITCH.IGN.DELTA.W.LGH.ROS

$13.99

$

In Stock, Qty 20+

0

33

Husqvarna 532411933

KEY.CHAIN.BLISTER.PACK.GEN.USA

$9.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532110712

SWITCH LT

$8.99

$

In Stock, Qty 11

0

40

Husqvarna 580723501

HARNESS.IGN.DASH.HUSQ/PRED.
(Superseded to 583628001)

$133.99

$

Usually ships in 3-10 days

0

41

Husqvarna 817720408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532192507

SOLENOID.W/BRASS.PLUNGER
(Superseded to 582042802)

$13.99

$

In Stock, Qty 20+

0

46

Husqvarna 532401763

RP GUAGE.SRVCMNDR.HRMTR.
(Superseded to 594919101)

$24.99

$

In Stock, Qty 20+

0

50

Husqvarna 532174651

RB PTO.SWITCH.8 TERMINAL.BLACK
(Superseded to 582107601)

$13.99

$

In Stock, Qty 20+

0

55

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

71

Husqvarna 580513001

HARNESS.IGN.CHASSIS.TEX.DCKLOC

$37.99

$

Usually ships in 3-10 days

0

75

Husqvarna 580366401

SWITCH.ON/OFF.(DIFF.LOCK)

$74.99

$

In Stock, only 2 left!

0

79

Husqvarna 532175242

BULB HOLDER ASM.

$18.99

$

In Stock, only 2 left!

0

90

Husqvarna 532435395

COVER.TERMINAL.BATTERY

$6.49

$

Usually ships in 3-10 days

0

91

Husqvarna 532190270

STRAP.BATTERY.MOUNT.FRONT(2 2)

$9.99

$

In Stock, Qty 18

0

99

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

In Stock, only 2 left!

0

100

Husqvarna 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

102

Husqvarna 532404454

HARNESS PIGTAIL PCH TEX ROS

$26.99

$

Usually ships in 3-10 days

0

105

Husqvarna 532407568

REVERSE SWITCH

$18.99

$

In Stock, only 1 left!

0

142

Husqvarna 532448057

RP HARNESS.JUMPER.CTEK
(Superseded to 583593501)

$37.99

$

Usually ships in 3-10 days

0
