GTI 15 T - Weed Eater String Trimmer DRIVE SHAFT & CUTTING HEAD Parts Diagram

String Trimmer

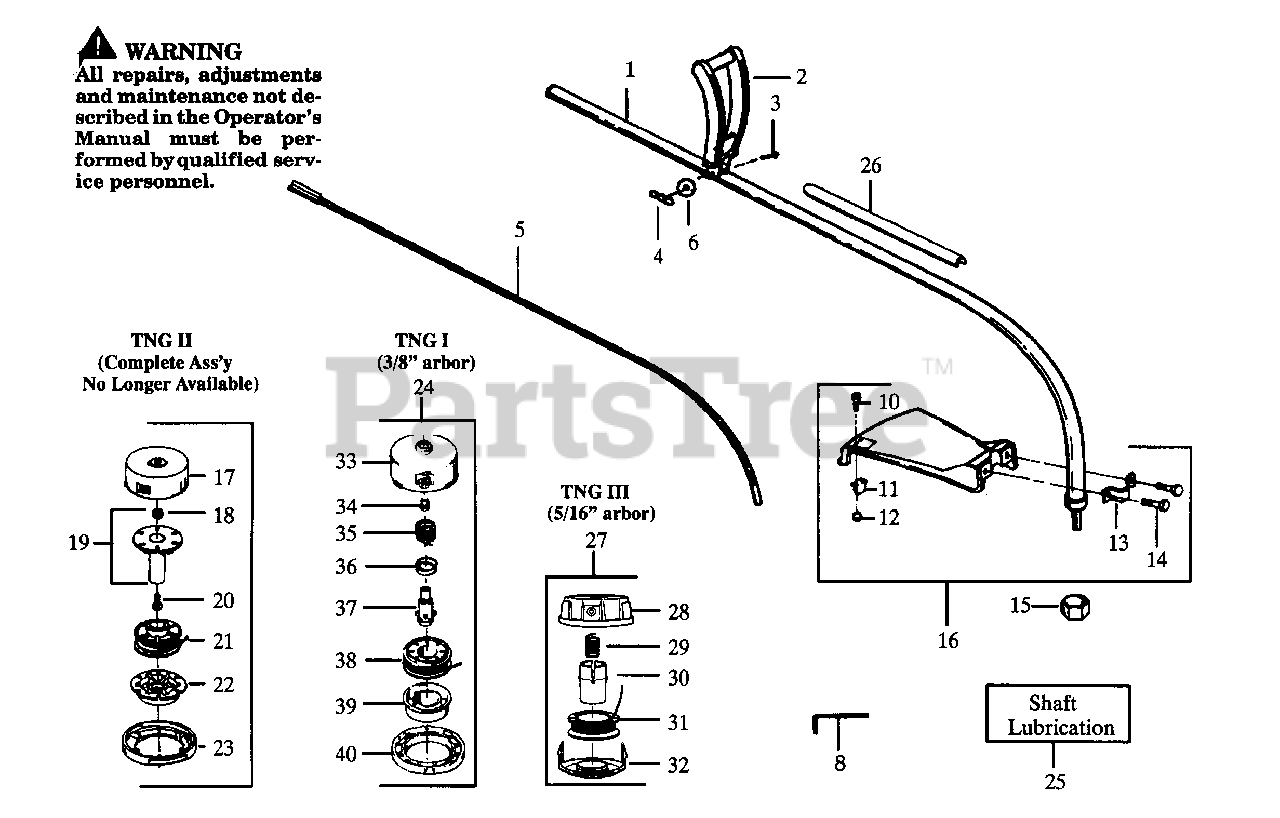

DRIVE SHAFT & CUTTING HEAD Parts Diagram

  • Title

1

Poulan 530094680

Drive Shaft Housing Model GTI 15

$

$

Not available

1

Poulan 530094876

Drive Shaft Housing Model GTI 15T

$

$

Not available

2

Poulan 530010957

Handle

$

$

Not available

3

Poulan 530340228

Screw

$1.99

$

Usually ships in 3-10 days

0

4

Poulan 530091373

Wing Nut

$4.99

$

Usually ships in 3-10 days

0

5

Poulan 530094676

Drive Shaft Model GTI 15

$18.99

$

Usually ships in 3-10 days

0

5

Poulan 530094834

Drive Shaft Model GTI 15T

$

$

Not available

6

Poulan 530092062

Washer

$3.99

$

Usually ships in 3-10 days

0

8

Poulan 530031111

Hex Wrench (5/32)
(Superseded to 530031159)

$4.99

$

In Stock, only 1 left!

0

10

Poulan 530015337

Screw

$3.99

$

Usually ships in 3-10 days

0

11

Poulan 530094570

Line Limiter

$3.99

$

In Stock, only 2 left!

0

12

Poulan 534235901

Nut
(Superseded to 530403094)

$3.99

$

Usually ships in 3-10 days

0

13

Poulan 530093653

Bracket

$3.99

$

In Stock, only 1 left!

0

13

Poulan 530029373

Bracket

$0.99

$

Usually ships in 3-10 days

0

14

Poulan 530016107

Screw

$3.99

$

In Stock, Qty 11

0

15

Poulan 530094543

Dust Cup

$

$

Not available

16

Poulan 530069249

Shield Kit Ass'y. (Inc 10,11,12,14) Model GTI 15

$

$

Not available

16

Poulan 530069299

Shield Kit Ass'y. (Inc 10,11,12,14) Model GTI 15T

$

$

Not available

17

Poulan 530094562

Hub Ass'y.

$

$

Not available

18

Poulan 530094956

Spring

$0.99

$

Usually ships in 3-10 days

0

19

Poulan 530069312

Locking Plate Kit

$

$

Not available

20

Poulan 530015542

Screw

$

$

Not available

21

Poulan 952701606

Spool w/Line
(Superseded to 952708510)

$

$

Not available

22

Poulan 530094522

Release Button

$

$

Not available

23

Poulan 530094521

Cover

$10.99

$

Usually ships in 3-10 days

0

24

Poulan 952701574

Cutting Head Ass'y.
(Superseded to 952711547)

Note: (Incl. 33-40) Model GTI 15

$

$

Not available

25

Poulan 952030139

Shaft Lubrication
(Superseded to 952701570)

$3.99

$

Usually ships in 3-10 days

0

26

Poulan 530029159

Shaft Warning Decal

$

$

Not available

27

Poulan 952701618

Cutting Head Ass'y. (5/16" arbor) Incl. 28-32 Model GTI 15T
(Superseded to 952715542)

$

$

Not available

28

Poulan 530094875

Hub Ass'y.

$

$

Not available

29

Poulan 530094830

Spring

$3.99

$

In Stock, Qty 20+

0

30

Poulan 530094827

Release Button

$

$

Not available

31

Poulan 952701619

Spool w/Line

$

$

Not available

32

Poulan 530094828

Cover

$

$

Not available

33

Poulan 530093896

Hub
(Superseded to 530071295)

$21.99

$

In Stock, only 1 left!

0

34

Poulan 530093898

Line Saver

$4.99

$

Usually ships in 3-10 days

0

35

Poulan 530340007

Spring

$3.99

$

Usually ships in 3-10 days

0

36

Poulan 530092068

Spring Cap
(Superseded to 530328929)

$

$

Not available

37

Poulan 530093897

Diver Gear

$9.99

$

Usually ships in 3-10 days

0

38

Poulan 952701523

Spool w/Line

$

$

Not available

39

Poulan 530401183

Release Button

$

$

Not available

40

Poulan 530092133

Cover

$

$

Not available

Poulan 530067316

Operator's Manual Model GTI 15

$6.49

$

Usually ships in 3-10 days

0

Poulan 530081859

Operator's Manual Model GTI 15T

$3.99

$

Usually ships in 3-10 days

0

Poulan 530014051

Ass'y. Parts Bag Model GTI 15

$

$

Not available

Poulan 530014216

Ass'y. Parts Bag Model GTI 15T

$

$

Not available
