GTI 17 LE - Weed Eater String Trimmer Engine Assy Parts Diagram

String Trimmer

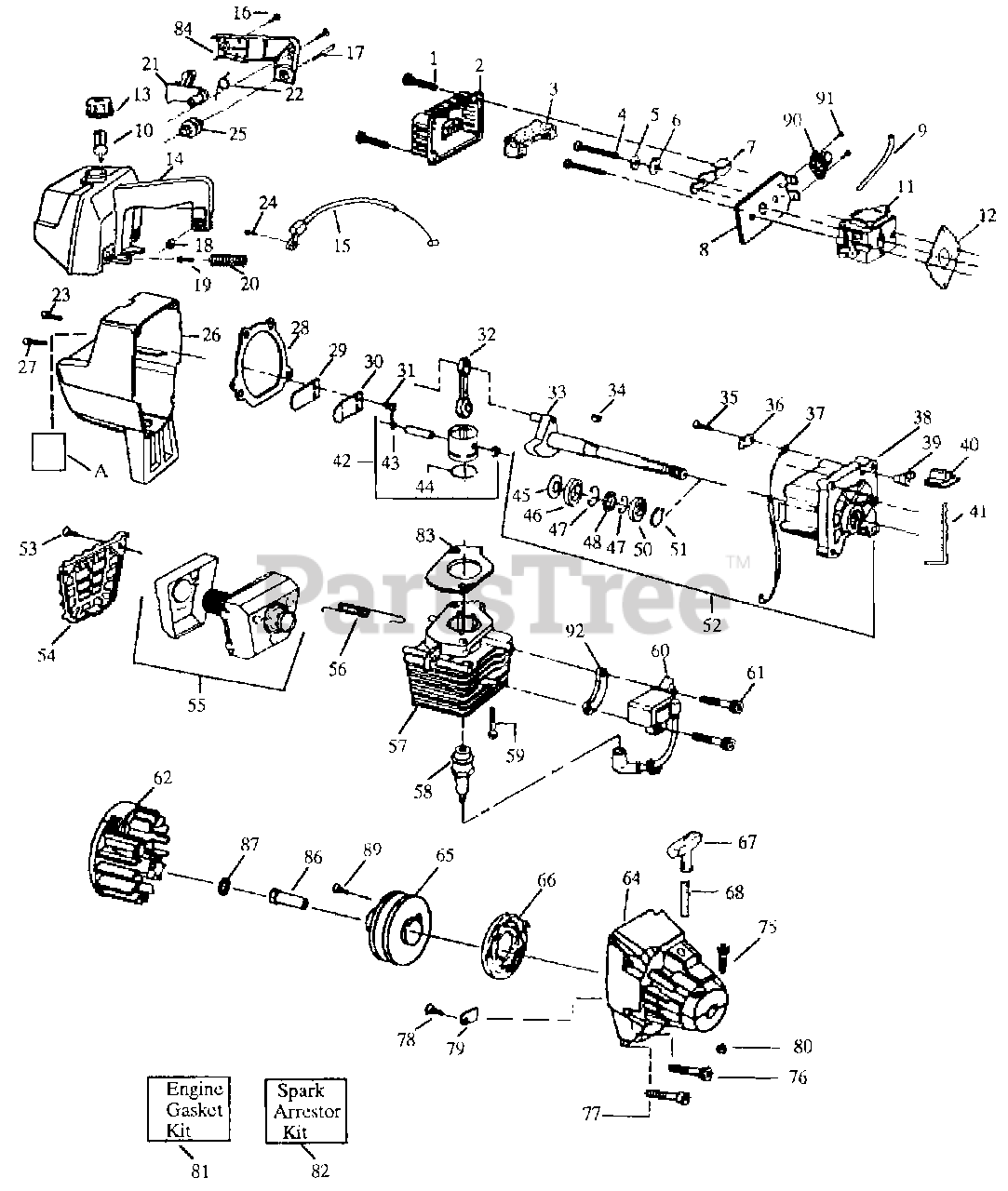

Engine Assy Parts Diagram

  • Title

1

Poulan 530015773

Screw

$3.99

$

In Stock, Qty 6

0

2

Poulan 530027529

Air Filter Cover

$

$

Not available

3

Poulan 530027530

Air Filter

$6.49

$

In Stock, Qty 15

0

4

Poulan 530015849

Screw

$6.49

$

In Stock, only 1 left!

0

5

Poulan 530015852

Spacer

$2.49

$

In Stock, only 1 left!

0

6

Poulan 530015254

Wave Washer

$3.99

$

In Stock, only 2 left!

0

7

Poulan 530038103

Choke Shutter

$

$

Not available

8

Poulan 530027527

Air Filter Plate Type I

$2.99

$

Usually ships in 3-10 days

0

8

Poulan 530037930

Air Filter Plate Type II

$

$

Not available

9

Poulan 530069247

Fuel Line Kit Fuel line

$6.49

$

In Stock, Qty 20+

0

9

Poulan 530069238

Fuel Line Kit Return line

$

$

Not available

10

Poulan 530014362

Fuel Pick-up Ass'y.
(Superseded to 530095646)

$4.99

$

In Stock, Qty 20+

0

11

Poulan 530035262

Carburetor Type I - (WA207/207A)

$

$

Not available

11

Poulan 530069568

Carburetor Type II - (WA219)

$

$

Not available

12

Poulan 530019156

Carburetor Gasket

$8.99

$

In Stock, only 3 left!

0

13

Poulan 530014347

Fuel Cap Ass'y.

$8.99

$

In Stock, Qty 5

0

14

Poulan 530029552

Handle & Tank Ass'y. Type I

$

$

Not available

14

Poulan 530047102

Handle & Tank Ass'y. Type II

$

$

Not available

15

Poulan 530027964

Throtte Cable Ass'y. Type I
(Superseded to 530037499)

$

$

Not available

15

Poulan 530037499

Throtte Cable Ass'y. Type II

$

$

Not available

16

Poulan 530015805

Screw
(Superseded to 530015886)

$6.49

$

In Stock, Qty 17

0

17

Poulan 530015809

Shoulder Bolt

$

$

Not available

18

Poulan 530015807

Nut

$

$

Not available

19

Poulan 530015713

Screw

$

$

Not available

20

Poulan 530027926

Rear Isolator Spring

$2.49

$

Usually ships in 3-10 days

0

21

Poulan 530027924

Throttle Trigger

$

$

Not available

22

Poulan 530027925

Throttle Spring

$

$

Not available

23

Poulan 530015810

Screw
(Superseded to 530016386)

$10.99

$

In Stock, Qty 9

0

24

Poulan 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

25

Poulan 530024256

Isolator

$

$

Not available

26

Poulan 530027923

Shroud

$

$

Not available

27

Poulan 530015771

Screw

$6.49

$

In Stock, Qty 6

0

28

Poulan 530019154

Gasket

$3.99

$

In Stock, only 1 left!

0

29

Poulan 530027593

Reed

$6.49

$

In Stock, only 4 left!

0

30

Poulan 530027594

Reed Stop

$4.99

$

Usually ships in 3-10 days

0

31

Poulan 530016064

Screw

$4.99

$

In Stock, Qty 7

0

32

Poulan 530010960

Connecting Rod Ass'y.

$18.99

$

Usually ships in 3-10 days

0

33

Poulan 530010945

Crankshaft Ass'y.

$43.99

$

Usually ships in 3-10 days

0

34

Poulan 530015126

Flywheel Key

$3.99

$

Usually ships in 3-10 days

0

35

Poulan 530015780

Screw

$6.49

$

In Stock, only 3 left!

0

36

Poulan 530027546

Switch Insulator

$4.99

$

Usually ships in 3-10 days

0

37

Poulan 530027547

Lead Wire

$

$

Not available

38

Poulan 530014016

Crankcase Ass'y.

Note: Incl. #46,47,48 & 50

$

$

Not available

39

Poulan 530027545

Switch Ramp

$3.99

$

Usually ships in 3-10 days

0

40

Poulan 530027958

Switch Button
(Superseded to 530038309)

$4.99

$

In Stock, Qty 8

0

41

Poulan 530027959

Switch Spring

$

$

Not available

42

Poulan 530069240

Piston Kit

Note: Incl. #43,44 & pin

$

$

Not available

43

Poulan 530015162

Piston Pin Retainer

$6.49

$

Usually ships in 3-10 days

0

44

Poulan 530027369

Piston Ring

$

$

Not available

45

Poulan 530015788

Spacer

$0.99

$

Usually ships in 3-10 days

0

46

Poulan 530032103

Inner Bearing

$

$

Not available

47

Poulan 530015787

Retaining Ring

$3.99

$

Usually ships in 3-10 days

0

48

Poulan 530019158

Crankshaft Seal

$6.49

$

Usually ships in 3-10 days

0

50

Poulan 530032102

Outer Bearing

$

$

Not available

51

Poulan 530015789

Retaining Ring

$4.99

$

Usually ships in 3-10 days

0

52

Poulan 530014004

Crankcase & Crankshaft Ass'y,

Note: Incl. #33,38,45 & 51

$

$

Not available

53

Poulan 530015717

Screw

$3.99

$

Usually ships in 3-10 days

0

54

Poulan 530027781

Muffler Guard

$3.99

$

Usually ships in 3-10 days

0

55

Poulan 530069257

Muffler Kit
(Superseded to 530069310)

$

$

Not available

56

Poulan 530036409

Muffler Spring

$

$

Not available

57

Poulan 530012247

Cylinder

$

$

Not available

58

Poulan 530030077

Spark Plug

$

$

Not available

59

Poulan 530015239

Screw

$2.49

$

Usually ships in 3-10 days

0

60

Poulan 530039134

Ignition Module Kit

$

$

Not available

61

Poulan 530015776

Screw

$0.99

$

Usually ships in 3-10 days

0

62

Poulan 530039111

Flywheel Ass'y.
(Superseded to 530047198)

$

$

Not available

64

Poulan 530014044

Fan Housing

$21.99

$

Usually ships in 3-10 days

0

65

Poulan 530069291

Starter Pulley
(Superseded to 530071387)

$

$

Not available

66

Poulan 530029395

Starter Spring
(Superseded to 545008010)

$7.49

$

In Stock, Qty 20+

0

67

Poulan 530027569

Starter Handle

$6.49

$

In Stock, only 2 left!

0

68

Poulan 530069232

Rope Kit

$7.49

$

In Stock, Qty 20+

0

75

Poulan 530015767

Screw

$3.99

$

In Stock, only 2 left!

0

76

Poulan 530015770

Screw

$

$

Not available

77

Poulan 530015769

Screw

$3.99

$

Usually ships in 3-10 days

0

78

Poulan 530015496

Screw

$3.99

$

Usually ships in 3-10 days

0

79

Poulan 530027523

Pulley Retainer

$7.49

$

In Stock, only 2 left!

0

80

Poulan 530015768

Locknut

$6.49

$

In Stock, only 2 left!

0

81

Poulan 530069276

Engine Gasket Kit

Note: Indicates Contents

$

$

Not available

82

Poulan 952701612

Spark Arrestor Kit

$6.49

$

Usually ships in 3-10 days

0

83

Poulan 530019178

Cylinder Gasket
(Superseded to 530019267)

$4.99

$

In Stock, Qty 6

0

84

Poulan 530027917

Handle Cover

$27.99

$

Usually ships in 3-10 days

0

86

Poulan 530027953

Drive Coupling

$

$

Not available

87

Poulan 530015828

Washer

$4.99

$

In Stock, only 1 left!

0

89

Poulan 530016080

Screw

Note: Incl. in Starter Pulley

$6.49

$

In Stock, Qty 11

0

90

Poulan 530037972

Bulb Ass'y. - Type I
(Superseded to 530038874)

$8.99

$

Usually ships in 3-10 days

0

91

Poulan 530016085

Screw - Type II

$

$

Not available

92

Poulan 530027525

Spacer

$0.99

$

In Stock, only 1 left!

0

A

Poulan 530027970

Instruction Decal Type I

$2.49

$

Usually ships in 3-10 days

0

A

Poulan 530037742

Instruction Decal Type II

$

$

Not available
