GTI 17 LE - Weed Eater String Trimmer Shaft and Handle Assy Parts Diagram

String Trimmer

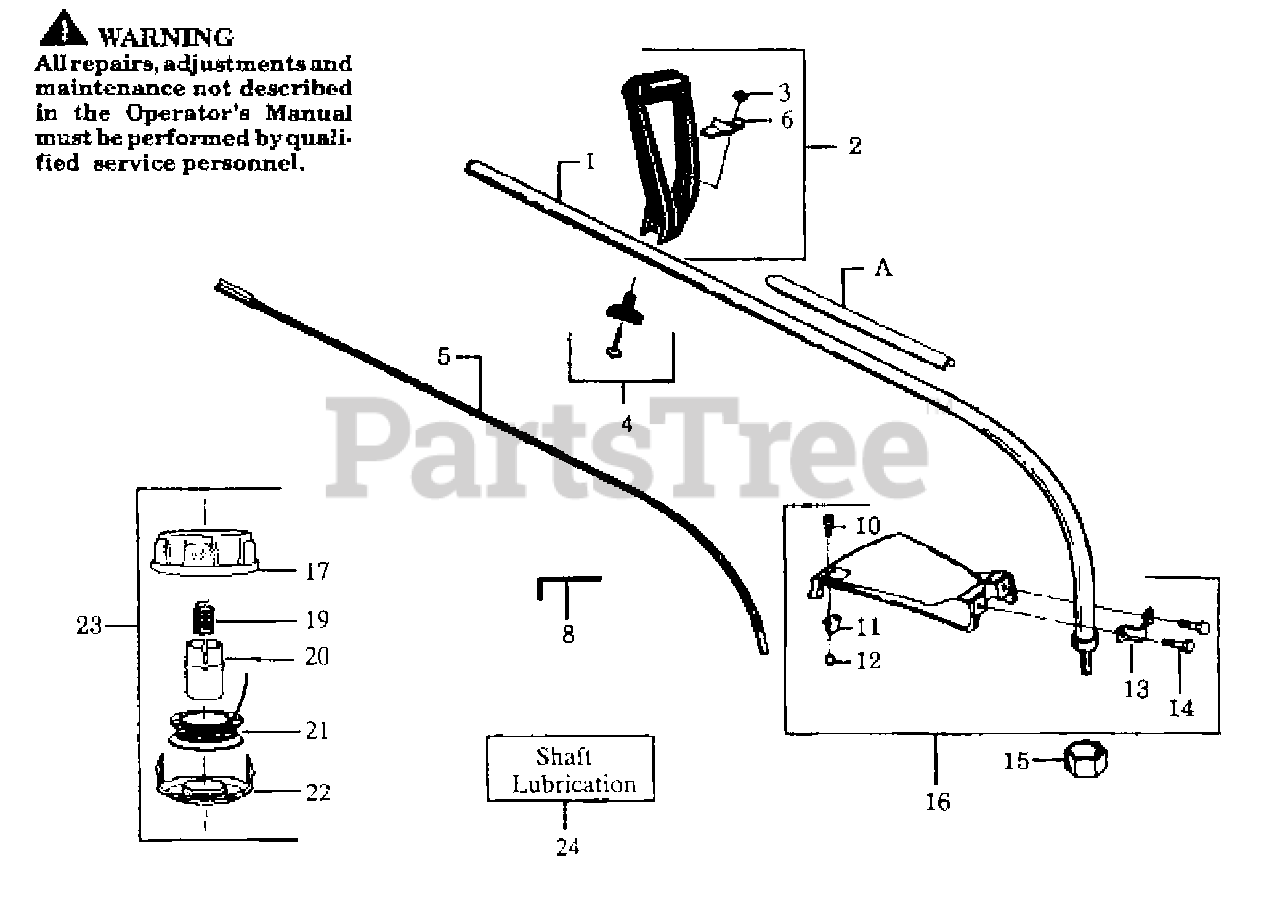

Shaft and Handle Assy Parts Diagram

  • Title

1

Poulan 530095133

Drive Shaft Housing

$

$

Not available

2

Poulan 530069496

Assist Handle Kit

$

$

Not available

3

Poulan 530015610

Nut

$0.99

$

Usually ships in 3-10 days

0

4

Poulan 530069252

"T" Handle Ass'y.
(Superseded to 530069347)

$5.99

$

In Stock, only 1 left!

0

5

Poulan 530094679

Drive Shaft

$

$

Not available

6

Poulan 530094742

Clamp

$4.99

$

Usually ships in 3-10 days

0

8

Poulan 530031111

Hex Wrench (5/32)
(Superseded to 530031159)

$4.99

$

In Stock, only 1 left!

0

10

Poulan 530015337

Screw

$3.99

$

Usually ships in 3-10 days

0

11

Poulan 530094570

Line Limiter

$3.99

$

In Stock, only 2 left!

0

12

Poulan 534235901

Nut
(Superseded to 530403094)

$3.99

$

Usually ships in 3-10 days

0

13

Poulan 530029373

Shield Bracket

$0.99

$

Usually ships in 3-10 days

0

14

Poulan 530092243

Screw
(Superseded to 530016107)

$3.99

$

In Stock, Qty 11

0

15

Poulan 530094543

Dust Cup

$

$

Not available

16

Poulan 530069299

Shield Kit Ass'y.

Note: Incl. #10-12 & 14

$

$

Not available

17

Poulan 530094875

Hub Ass'y.

$

$

Not available

19

Poulan 530094830

Spring

$3.99

$

In Stock, Qty 20+

0

20

Poulan 530094827

Release Button

$

$

Not available

21

Poulan 952701619

Spool w/Line

$

$

Not available

22

Poulan 530094828

Cover

$

$

Not available

23

Poulan 952701618

Cutting Head Ass'y.
(Superseded to 952715542)

$

$

Not available

24

Poulan 952030139

Shaft Lubrication
(Superseded to 952701570)

$3.99

$

Usually ships in 3-10 days

0

A

Poulan 530029159

Shaft Warning Decal

$

$

Not available

Poulan 530082119

Operator's Manual

Note: Not Shown

$

$

Not available

Poulan 530014215

Carton Contents Bag

Note: Not Shown

$

$

Not available

Poulan 530061681

Carton

Note: Not Shown

$

$

Not available
