GTL-140 - Echo String Trimmer (SN: 0001001 - 0010204) Driveshaft, Throttle, Handles, Stop Switch, Stand, Tools Parts Diagram

String Trimmer

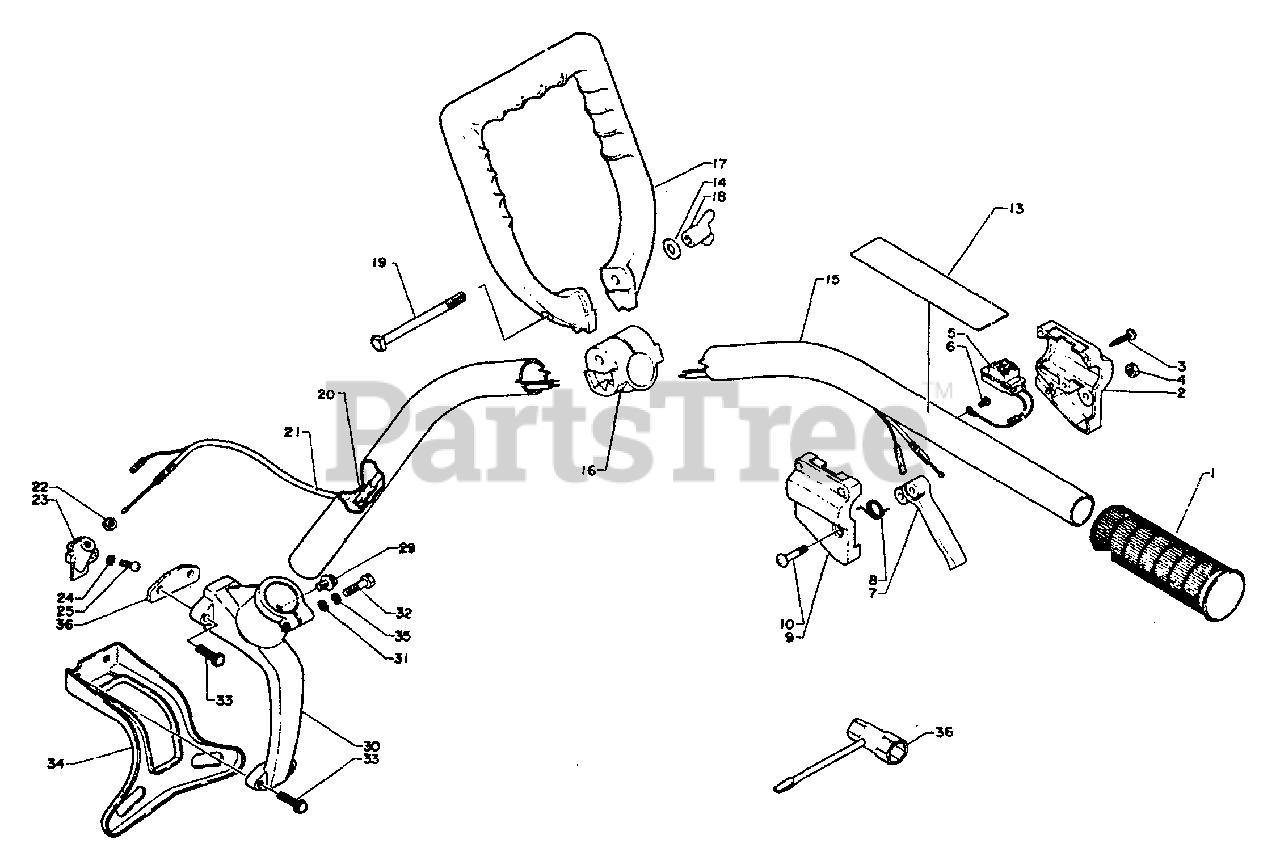

Driveshaft, Throttle, Handles, Stop Switch, Stand, Tools Parts Diagram

  • Title

1

Echo 35101207930

GRIP
(Superseded to Discontinued)

$

$

Not available

2

Echo 17805207930

BRACKET, TRIGGER
(Superseded to Discontinued)

$

$

Not available

3

Echo 90024504025

SCREW - 4X25

$0.99

$

In Stock, only 1 left!

0

4

Echo 43302000830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 20+

0

5

Echo 16340007930

IGNITION SWITCH ASSY

$7.99

$

Usually ships in 2-4 days

0

6

Echo 90024704008

SCREW - 4X8
(Superseded to Discontinued)

$

$

Not available

7

Echo 17801007930

TRIGGER, THROTTLE

$7.99

$

Usually ships in 2-4 days

0

8

Echo 17804307930

SPRING, TRIGGER

$0.99

$

Usually ships in 2-4 days

0

9

Echo 17802407930

BRACKET - LEFT
(Superseded to Discontinued)

$

$

Not available

10

Echo 17811005330

SCREW - 5X30

$0.99

$

In Stock, Qty 18

0

13

Echo 89016007931

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

14

Echo 90060200006

WASHER - 6

$0.99

$

In Stock, Qty 18

0

15

Echo 61021007930

PIPE, MAIN
(Superseded to Discontinued)

$

$

Not available

16

Echo 35122507930

BRACKET, HANDLE
(Superseded to Discontinued)

$

$

Not available

17

Echo 35121407930

HANDLE
(Superseded to Discontinued)

$

$

Not available

18

Echo 90052000006

NUT - 6 -- BUTTERFLY
(Superseded to 90052500006)

$1.49

$

In Stock, Qty 20+

0

19

Echo 35121807930

BOLT
(Superseded to Discontinued)

$

$

Not available

20

Echo 17801607930

COVER, THROTTLE CABLE
(Superseded to Discontinued)

$

$

Not available

21

Echo 17800107930

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

22

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 3 left!

0

23

Echo 17813207930

BRACKET, THROTTLE CABLE
(Superseded to Discontinued)

$

$

Not available

24

Echo 80060200004

WASHER - 4

$

$

Currently unavailable

25

Echo 90022004012

SCREW - 4X12

$0.99

$

Usually ships in 2-4 days

0

26

Echo 90060200006

WASHER - 6

$0.99

$

In Stock, Qty 18

0

29

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

30

Echo 61022307930

BRACKET
(Superseded to Discontinued)

$

$

Not available

31

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

32

Echo 90015005025

BOLT - 5X25
(Superseded to Discontinued)

$

$

Not available

33

Echo 90024205020

SCREW - 5X20
(Superseded to 90024205022)

$0.99

$

In Stock, Qty 17

0

34

Echo 30511007930

STAND
(Superseded to Discontinued)

$

$

Not available

35

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 6

0

36

Echo 89041007930

T-WRENCH
(Superseded to 89541007930)

$12.99

$

Usually ships in 2-4 days

0
