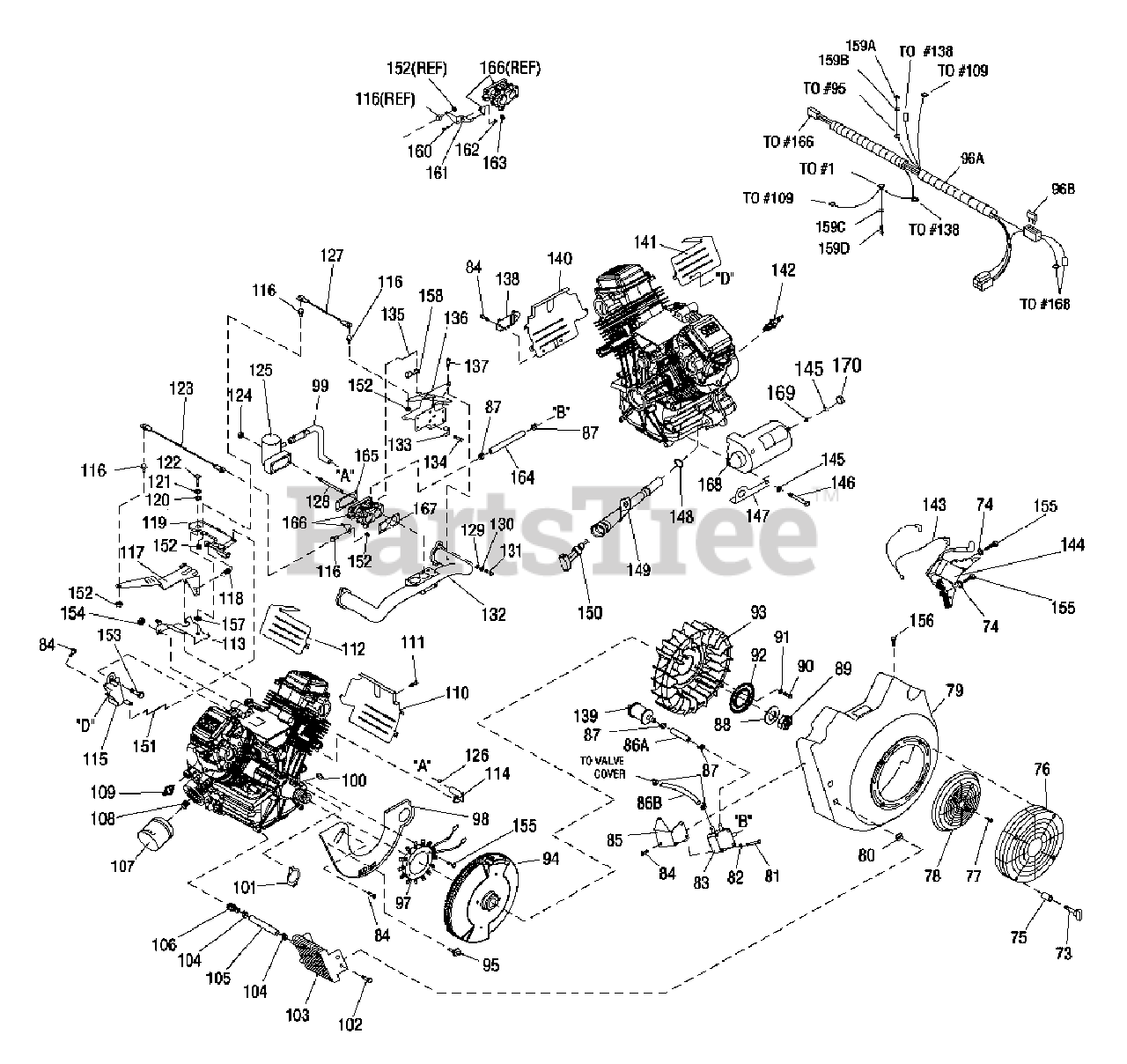

GTV-990 - Generac 992cc Guardian Engine for Cub Cadet General Assembly Parts Diagram

992cc Guardian Engine for Cub Cadet

General Assembly Parts Diagram

  • Title

73

Cub Cadet GG-0C5136

KNOB AIR CLEANER

$

$

Not available

74

Cub Cadet GG-022097

WASHER, LOCK M6-1/4"

$

$

Not available

75

Cub Cadet GG-0E3146

SPACER, ROTATING SCREEN GUARD

$

$

Not available

76

Cub Cadet GG-0D7815A

GUARD, ROTATING SCREEN

$

$

Not available

77

Cub Cadet GG-0D7115

SCREW, #10 SHEET METAL

$

$

Not available

78

Cub Cadet GG-0D9684A

SCREEN, ROTATING

$

$

Not available

79

Cub Cadet GG-0E4046E

HOUSING, BLOWER VERTICAL

$

$

Not available

80

Cub Cadet GG-0C9763

NUT, GROMMET 1/4 PLUG

$

$

Not available

81

Cub Cadet GG-0D6142

SCREW PPHM M4-0.7 x 40

$

$

Not available

82

Cub Cadet GG-022264

WASHER, LOCK M4

$

$

Not available

83

Cub Cadet GG-0C4147

PUMP, IMPULSE
(Superseded to GG-0C4147ASRV)

$

$

Not available

84

Cub Cadet GG-045756

SCREW TAPTITE M6-1.0 x 10 YELLOW CHROME

$

$

Not available

85

Cub Cadet GG-0D6027

BRACKET, FUEL PUMP

$

$

Not available

86A

Cub Cadet GG-030340G

HOSE 1/4" ID x 2" LONG

$

$

Not available

86B

Cub Cadet GG-030340P

HOSE 1/4" ID x 7" LONG

$

$

Not available

87

Cub Cadet GG-048031C

CLAMP HOSE BAND 1/4

$

$

Not available

88

Cub Cadet GG-0C3033

WASHER, M24

$

$

Not available

89

Cub Cadet GG-0C3034

NUT, HEX M24

$

$

Not available

90

Cub Cadet GG-048571

SCREW HHC M8-1.25 x 10 G8.8

$

$

Not available

91

Cub Cadet GG-0A5992

WASHER SHAKEPROOF INT M8 SS

$

$

Not available

92

Cub Cadet GG-0C3032

PLATE, FAN

$

$

Not available

93

Cub Cadet GG-0C3031

FAN, NYLON

$

$

Not available

94

Cub Cadet GG-0C9182

FLYWHEEL ASSEMBLY
(Superseded to GG-0C91820SRV)

$

$

Not available

95

Cub Cadet GG-085011

INSULATOR ASSEMBLY IGNITION

$

$

Not available

96A

Cub Cadet GG-0E7238

VS WIRE HARNESS W/ FUSE

$

$

Not available

96B

Cub Cadet GG-0E7237

30 AMP FUSE

$

$

Not available

97

Cub Cadet GG-0A1336E

ASSEMBLY, STRATOR W/LUGS
(Superseded to GG-0A1336CESV)

$

$

Not available

98

Cub Cadet GG-0C3016A

PLATE, BACKING WITH OIL COOL

$

$

Not available

99

Cub Cadet GG-0E4845

ASSY. BREATHER TUBE
(Superseded to GG-0E48450SRV)

$65.99

$

Usually ships in 3-6 days

0

100

Cub Cadet GG-082774

KEY, WOODRUFF 4 x 19D

$

$

Not available

101

Cub Cadet GG-0C3043

GASKET, MANIFOLD / PORT

$

$

Not available

102

Cub Cadet GG-0C9764

PLASTITE, 1/4 - 15 x 3/4

$

$

Not available

103

Cub Cadet GG-0C3026

COOLER, OIL
(Superseded to GG-0E9506)

$

$

Not available

104

Cub Cadet GG-0C7649

CLAMP HOSE .38 - .87

$

$

Not available

105

Cub Cadet GG-0C9806

HOSE, 3/8" I.D x 6" LONG
(Superseded to GG-0G40210SRV)

$

$

Not available

106

Cub Cadet GG-035461A

BARBED STR 1/4NPT x 3/8 WITH VIBRA SEAL

$

$

Not available

107

Cub Cadet GG-070185

FILTER OIL D 69 x 64 LONG
(Superseded to GG-070185DS)

$17.99

$

In Stock, only 4 left!

0

108

Cub Cadet GG-0C7292

NIPPLE, 34"-16 UNF

$

$

Not available

109

Cub Cadet GG-0C3025

SWITCH, OIL PRESS
(Superseded to GG-0C3025WSRV)

$

$

Not available

110

Cub Cadet GG-0C3019

WRAPPER, LOWER CYLINDER 1

$

$

Not available

111

Cub Cadet GG-0E5153

SCREW THTT #10-24 x 3/8"
(Superseded to GG-0E6043)

$

$

Not available

112

Cub Cadet GG-0C3018

WRAPPER, UPPER CYLINDER 1

$

$

Not available

113

Cub Cadet GG-0D3868

BRACKET, SUPPORT-GOVERNOR ADJUST
(Superseded to GG-0G5420)

$

$

Not available

114

Cub Cadet GG-0E4804

HOSE, BLOWER HSG TO BREATHER

$

$

Not available

115

Cub Cadet GG-0E0553

ASSY, IDLE SPEED SUPPORT BRACKET
(Superseded to GG-0E05530SRV)

$

$

Not available

116

Cub Cadet GG-0D6342

STUD, BALL M3-0.5

$

$

Not available

117

Cub Cadet GG-0E0552

ASSY, GOVERNOR LEVER

$

$

Not available

118

Cub Cadet GG-0E1150

SPRING, GOVERNOR

$

$

Not available

119

Cub Cadet GG-0D9884

ASSY, IDLE SPEED ADJUST W/ GROMMET
(Superseded to GG-0G6456)

$34.99

$

Usually ships in 3-6 days

0

120

Cub Cadet GG-0D3876

WASHER, FLAT M5

$

$

Not available

121

Cub Cadet GG-049226

WASHER LOCK M5

$

$

Not available

122

Cub Cadet GG-045770

SCREW, HHC M5-0.8 x 10

$

$

Not available

123

Cub Cadet GG-0D6257

ROD, GOVERNOR

$

$

Not available

124

Cub Cadet GG-052857

NUT LOCK FLANGE M6-1.0

$

$

Not available

125

Cub Cadet GG-0D3959A

ADAPTOR, CARB-AIRBOX, M6 BOSSES

$

$

Not available

126

Cub Cadet GG-048031N

HOSE CLAMP, BAND 12 MM I.D.
(Superseded to 726-0205)

$3.99

$

In Stock, Qty 20+

0

127

Cub Cadet GG-0D9999

ASSEMBLY, IDLE SPEED ADJUSTMENT ROD

$

$

Not available

128

Cub Cadet GG-0D6021

STUD, METRIC

$

$

Not available

129

Cub Cadet GG-070008

WASHER, FLAT M8

$

$

Not available

130

Cub Cadet GG-070006

WASHER, LOCK M8

$

$

Not available

131

Cub Cadet GG-049821

SCREW, SHC M8-1.25 x 30

$

$

Not available

132

Cub Cadet GG-0E3052

MANIFOLD.INTAKE 2BBL CARB
(Superseded to GG-0J8892)

$110.99

$

Usually ships in 3-6 days

0

133

Cub Cadet GG-0E4190

CLAMP, 3/16" COATED CABLE

$

$

Not available

134

Cub Cadet GG-091526

SCREW, PPHM M5-0.8 x 12

$

$

Not available

135

Cub Cadet GG-0D8559

ROD, CHOKE

$

$

Not available

136

Cub Cadet GG-0D7237

ASSY, BELDEN BRACKET W/BELLCRANK
(Superseded to GG-0G5648)

$45.99

$

Usually ships in 3-6 days

0

137

Cub Cadet GG-0E5139

SCREW HHFC M6-1.0 x 8MM

$

$

Not available

138

Cub Cadet GG-0A2702

REGULATOR, 20 AMP

$

$

Not available

139

Cub Cadet GG-0E9006

FILTER, FUEL
(Superseded to GG-0D6313)

$14.99

$

Usually ships in 3-6 days

0

140

Cub Cadet GG-0D1142B

WRAPPER, LOWER CYLINDER 2

$

$

Not available

141

GG-0D4443

WRAPPER, UPPER CYLINDER 2

$

$

Not available

142

Cub Cadet GG-0E6037

SPARK PLUG BKR4E

$20.99

$

Usually ships in 3-6 days

0

143

Cub Cadet GG-0C3053

ASSEMBLY, GROUND WIRE
(Superseded to GG-0E49970ESV)

$

$

Not available

144

Cub Cadet GG-0C3052

ASSEMBLY, IGNITION COIL
(Superseded to GG-0K63030SRV)

$

$

Not available

145

Cub Cadet GG-022129

WASHER, LOCK M8-5/16

$

$

Not available

146

Cub Cadet GG-061906

SCREW, HHC M8-1.25 x 85 G8.8

$

$

Not available

147

Cub Cadet GG-0D6026

LIFT HOOK, STARTER

$

$

Not available

148

Cub Cadet GG-090072

O-RING, OIL CLR

$

$

Not available

149

Cub Cadet GG-0D6655

TUBE, DIPSTICK

$

$

Not available

150

Cub Cadet GG-0C8434C

ASSEMBLY, DIPSTICK W/ HANDLE

$

$

Not available

151

Cub Cadet GG-0D9863

ROD, IDLE ADJUSTMENT

$

$

Not available

152

Cub Cadet GG-0D9784

NUT, LOCK HEX M3-0.5

$3.99

$

Usually ships in 3-6 days

0

153

Cub Cadet GG-0E0486

SCREW, SHC M10-1.5 x 75 G10.9

$

$

Not available

154

Cub Cadet GG-0E5343

NUT, LOCK FL-SERRATED M10-1.5

$

$

Not available

155

Cub Cadet GG-092079

SCREW, TAPTITE M6-1.0 x 25

$

$

Not available

156

Cub Cadet GG-0C8566

SCREW, FHHC M6-1.0 x 12 W/M5 HEX

$

$

Not available

157

Cub Cadet GG-0E5113

WASHER NYLON 0.357" I.D.

$

$

Not available

158

Cub Cadet GG-0D1366

BUSHING, GOVERNOR ROD

$

$

Not available

159A

Cub Cadet GG-022471

NUT HEX #8-32

$

$

Not available

159B

Cub Cadet GG-022264

WASHER LOCK #8-M4

$

$

Not available

159C

Cub Cadet GG-043182

WASHER LOCK M3

$

$

Not available

159D

Cub Cadet GG-0C1085

SCREW PPHM M3-0.5 x 8

$

$

Not available

160

Cub Cadet GG-036933

SCREW, PPHM #10-32 X3/8

$

$

Not available

161

Cub Cadet GG-0D6311

BRACKET, THROTTLE

$

$

Not available

162

Cub Cadet GG-022152

WASHER, LOCK #10

$

$

Not available

163

Cub Cadet GG-022158

NUT, HEX #10-32

$

$

Not available

164

Cub Cadet GG-030340L

HOSE 1/4"ID x 11" LONG

$

$

Not available

165

Cub Cadet GG-0D4026

GASKET, CARB TO SPACER

$

$

Not available

166

Cub Cadet GG-0E8951

CARBURETOR DENI GVT990
(Superseded to GG-0G4611)

$196.99

$

Usually ships in 3-6 days

0

167

Cub Cadet GG-0D4023

GASKET, MANIFOLD TO CARB

$

$

Not available

168

Cub Cadet GG-0E42710SRV

STARTER, V-TWIN ENGINE

$

$

Not available

169

Cub Cadet GG-022145

WASHER, FLAT M8

$

$

Not available

170

Cub Cadet GG-045771

NUT, HEX M8-1.25 G8

$

$

Not available
