GTVH 200 (954140016-B) - Husqvarna Garden Tractor (1999-03) Mower Lift Parts Diagram

Garden Tractor

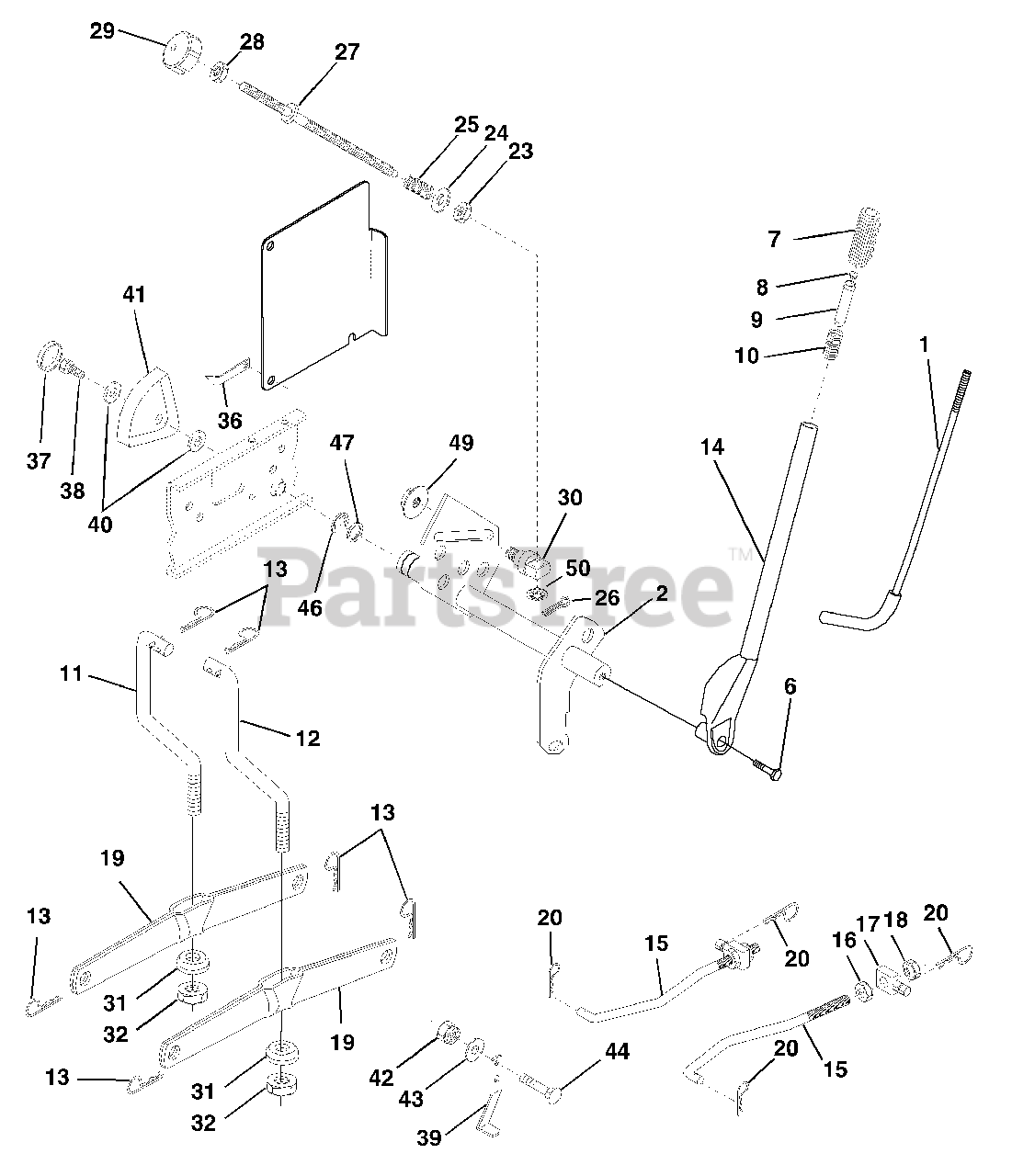

Mower Lift Parts Diagram

  • Title

1

Husqvarna 532121006

Rod Assembly, Lever

$34.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532159188

Shaft Assembly, Lift

$52.99

$

Usually ships in 3-10 days

0

6

Husqvarna 874780624

Bolt, Hex Head, Fin. 3/8-16 x 1-1/2
(Superseded to 874930624)

$

$

Not available

7

Husqvarna 532125631

Grip Handle

$6.99

$

In Stock, only 1 left!

0

8

Husqvarna 532124526

Button Plunger Black
(Superseded to 532125925)

$

$

Not available

9

Husqvarna 532122364

Plunger Lever Lift
(Superseded to 532125925)

$

$

Not available

10

Husqvarna 532124874

Spring
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532145537

Link, Lift, LH

$26.99

$

In Stock, Qty 7

0

12

Husqvarna 532145536

Link, Lift, RH

$12.99

$

In Stock, Qty 9

0

13

Husqvarna 532124670

Retainer Spring

$

$

Not available

14

Husqvarna 532159189

Lever Assembly, Lift, RH

$

$

Not available

15

Husqvarna 532127218

Link, Front

$17.99

$

In Stock, Qty 5

0

16

Husqvarna 873350800

Nut, Hex, Jam 1/2-13 UNC

$

$

Not available

17

Husqvarna 532130171

Trunnion
(Superseded to 532175689)

$

$

Not available

18

Husqvarna 873680800

Nut Crownlock 1/2-13 Unc
(Superseded to 873350800)

$

$

Not available

19

Husqvarna 532139868

Arm, Suspension, Rear

$15.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532163552

Retainer Spring
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 532110807

Nut, Special

$

$

Not available

24

Husqvarna 819131016

Washer 13/32 x 5/8 x 16 Gauge

$6.49

$

In Stock, only 1 left!

0

25

Husqvarna 532124874

Spring
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

26

Husqvarna 876020308

Pin, Cotter 3/32 x 1/2
(Superseded to 532003145)

$

$

Not available

27

Husqvarna 532126971

Adjustment Rod, Lift

$

$

Not available

28

Husqvarna 873350600

Nut, Hex, Jam 3/8-16 UNC
(Superseded to 873220600)

$6.49

$

In Stock, only 3 left!

0

29

Husqvarna 532138057

Knob, Infinite Height Adjustment

$8.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532150233

Trunnion, Inf. Height

$12.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532140302

Bearing
(Superseded to 532169865)

$

$

Not available

32

Husqvarna 873540600

Nut, Crownlock 3/8-24

$3.99

$

In Stock, Qty 20+

0

36

Husqvarna 532155097

Pointer Height Indicator

$

$

Not available

37

Husqvarna 532123935

Plug Hole Blk 1.485/1.515 Dia.

$

$

Not available

38

Husqvarna 817490512

Screw Thdrol 5/16-18 x 3/4
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

39

Husqvarna 532142992

Stop Over Center

$6.49

$

Usually ships in 3-10 days

0

40

Husqvarna 819112410

Washer 11/32 x 1-1/2 10 Ga.

$6.49

$

Usually ships in 3-10 days

0

41

Husqvarna 532123934

Scale Ind. Height Blk.

$

$

Not available

42

Husqvarna 873680600

Nut, Crownlock 3/8-16 UNC

$3.99

$

Usually ships in 3-10 days

0

43

Husqvarna 819131612

Washer 13/32 x 1 x 12 Ga.

$6.49

$

Usually ships in 3-10 days

0

44

Husqvarna 872240608

Bolt, Carriage 3/8-16 x 1.00

$4.99

$

Usually ships in 3-10 days

0

46

Husqvarna 812000022

E-Ring

$6.99

$

Usually ships in 3-10 days

0

47

Husqvarna 819292016

Washer

$6.49

$

Usually ships in 3-10 days

0

49

Husqvarna 532145212

Nut Hex Flange Lock
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

50

Husqvarna 532110452

Nut Push Phos & Oil

$3.99

$

In Stock, Qty 20+

0
