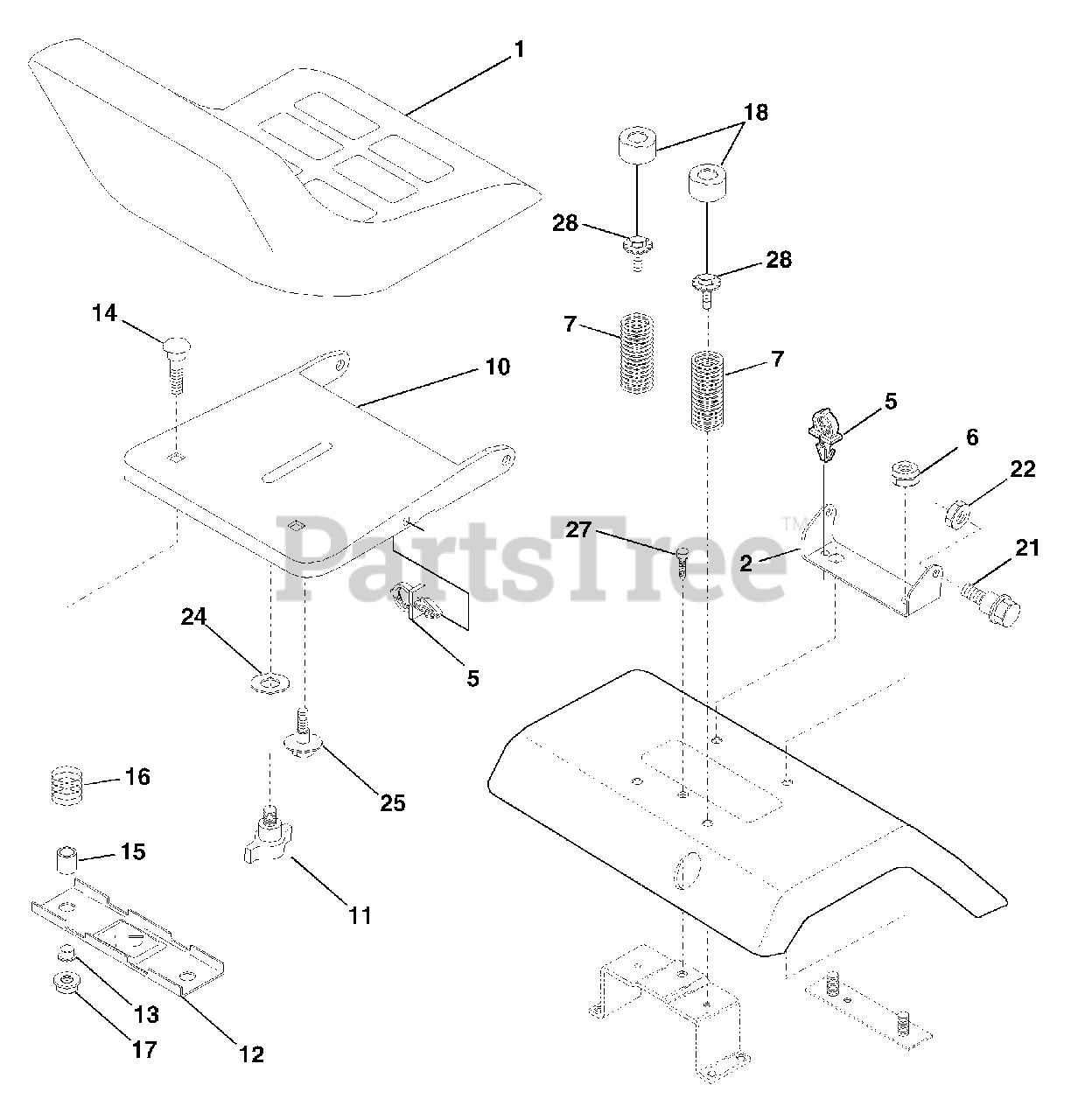

GTVH 200 (954140016-B) - Husqvarna Garden Tractor (1999-03) Seat Assembly Parts Diagram

Garden Tractor

Seat Assembly Parts Diagram

  • Title

1

Husqvarna 532140840

Seat
(Superseded to 532401043)

$

$

Not available

2

Husqvarna 532140551

Pivot Bracket, Seat

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532145006

Clip, Push-in Hinged

$6.49

$

In Stock, only 1 left!

0

6

Husqvarna 873800600

Nut, Lock Hex w/Ins 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532124181

Spring, Seat
(Superseded to 587613301)

$6.49

$

In Stock, Qty 19

0

10

Husqvarna 532155925

Pan, Seat
(Superseded to 532195530)

$21.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532166369

Knob, Seat

$10.99

$

In Stock, only 3 left!

0

12

Husqvarna 532121246

Bracket, Switch Mounting
(Superseded to 532174648)

$8.99

$

In Stock, only 1 left!

0

13

Husqvarna 532121248

Bushing, Snap, Black, Nylon

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 872050412

Bolt, Carriage 1/4-20 x 1-1/2

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532121249

Spacer, Split .28 x .96

$6.49

$

In Stock, Qty 5

0

16

Husqvarna 532123740

Spring

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532123976

Locknut, Flange 1/4 Grade 5
(Superseded to 873900400)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 532124238

Cap Spring Seat Blk 1.75 x 1.0

$

$

Not available

21

Husqvarna 532153236

Bolt, Shoulder 5/16-18 Unc -2A
(Superseded to 587907801)

$4.99

$

In Stock, Qty 14

0

22

Husqvarna 873680500

Nut, Crownlock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 819171912

Washer 17/32 x 1-3/16 x 12 Gauge

$7.49

$

In Stock, only 2 left!

0

25

Husqvarna 532127018

Bolt, Shoulder 5/16-18 x .62

$7.49

$

Usually ships in 3-10 days

0

27

Husqvarna 817490608

Screw Thdrol 3/8-16 x 3/4

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532150176

Bolt 5/16-18 UNC x 3/4 w/Sems
(Superseded to 532171877)

$7.49

$

In Stock, Qty 5
