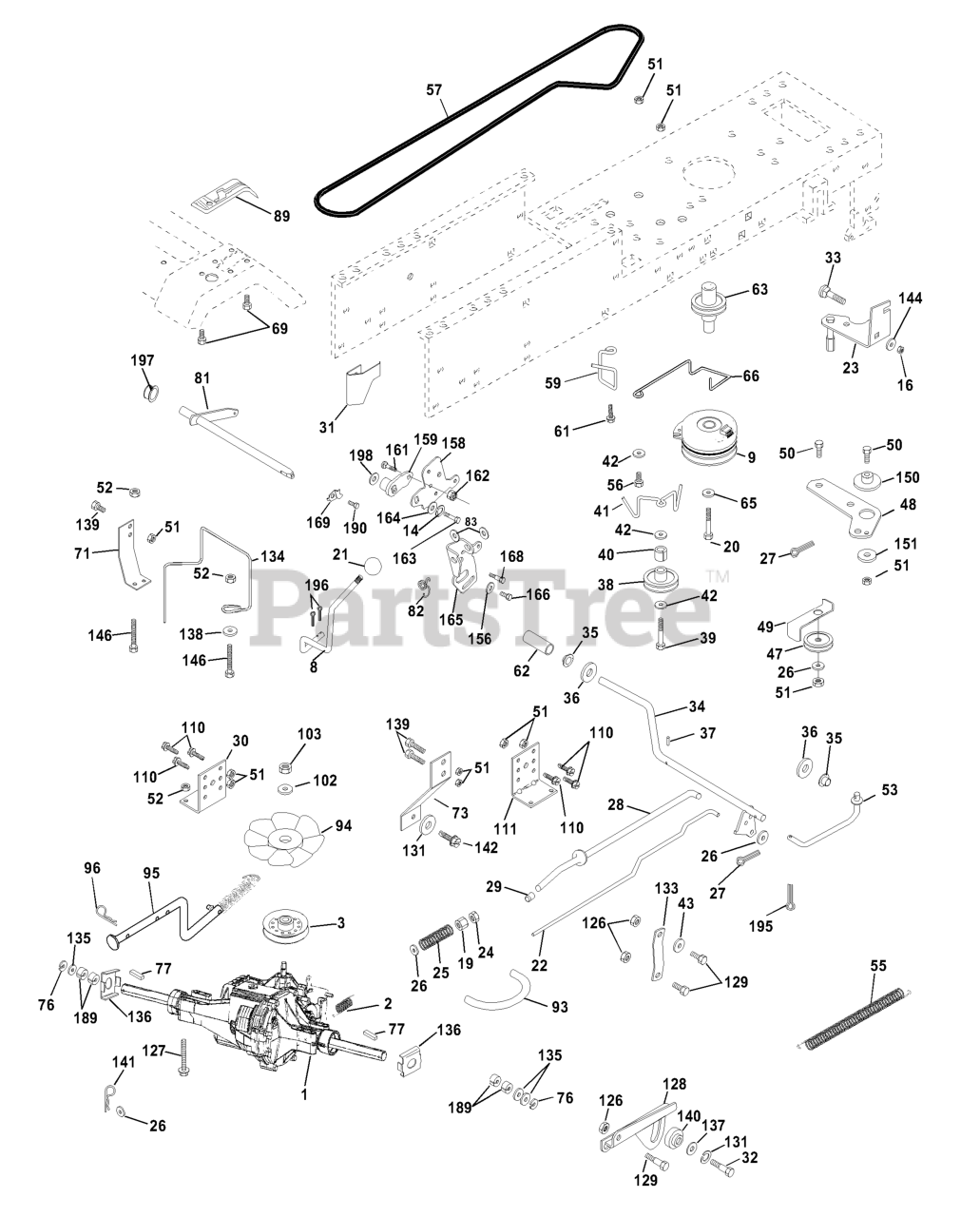

GTVH 205 (954140102-A) - Husqvarna Garden Tractor (1999-10) Drive Parts Diagram

Garden Tractor

Drive Parts Diagram

  • Title

1

Transaxle Hydro Gear 325-3000

Note: (Order parts from transaxle manufacturer)

$

$

Not available

2

Husqvarna 532142431

SPRING BRAKE

$7.99

$

In Stock, only 1 left!

0

3

Husqvarna 532143995

PULLEY, TRANSAXLE

$

$

Not available

8

Husqvarna 532166020

ROD SHIFT FENDER

$

$

Not available

9

Husqvarna 532160889

ELECTRIC CLUTCH

$

$

Not available

14

Husqvarna 532171185

WASHER LOCK
(Superseded to 810040400)

$3.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532171410

NUT LOCK HEX W/INS. 5/16-18UNC
(Superseded to 873800500)

$

$

Not available

19

Husqvarna 532171408

NUT LOCK HEX 3/8-16
(Superseded to 873680600)

$

$

Not available

20

Husqvarna 532171219

BOLT HEX 7/16-20 X 4-1/4 GA 5
(Superseded to 501606501)

$3.49

$

In Stock, only 4 left!

0

21

Husqvarna 532140845

KNOB.DELUXE.(PISTOL.GRIP).BLAC

$13.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532171545

Rod, Brake

$

$

Currently unavailable

23

Husqvarna 532171258

BRACKET

$11.99

$

In Stock, only 2 left!

0

24

Husqvarna 532171163

NUT
(Superseded to 873350600)

$5.99

$

In Stock, only 2 left!

0

25

Husqvarna 532171164

SPRING
(Superseded to 532151332)

$5.99

$

In Stock, Qty 20+

0

26

Husqvarna 532171140

WASHER
(Superseded to 819131316)

$3.49

$

In Stock, Qty 20+

0

27

Husqvarna 532171165

PIN
(Superseded to 876020412)

$5.99

$

In Stock, Qty 7

0

28

Husqvarna 532171166

ROD
(Superseded to 532145204)

$

$

Not available

29

Husqvarna 532071673

PLUNGER CAP

$5.99

$

In Stock, only 2 left!

0

30

Husqvarna 532123780

BRKT TRANS LH

$

$

Not available

31

Husqvarna 532123791

KEEPER BELT LH

$

$

Not available

32

Husqvarna 532171142

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

33

Husqvarna 532171221

BOLT
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

34

Husqvarna 532155071

SHAFT, FOOT PEDAL

$

$

Not available

35

Husqvarna 532120183

BEARING.NYLON

$6.99

$

In Stock, only 4 left!

0

36

Husqvarna 532171368

WASHER
(Superseded to 819211616)

$

$

Not available

37

Husqvarna 532124963

DRIVE PIN
(Superseded to 532001572)

$4.99

$

In Stock, only 2 left!

0

38

Husqvarna 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$28.99

$

In Stock, Qty 20+

0

39

Husqvarna 532171247

BOLT
(Superseded to 872110622)

$4.99

$

In Stock, Qty 20+

0

40

Husqvarna 532124965

SPACER T

$4.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532165838

KEEPER.BELT.IDLER.FLAT

$

$

Not available

42

Husqvarna 532171151

BOLT
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

43

Husqvarna 532171539

Washer 11/32 x 5/8 x 12 Ga.

$

$

Currently unavailable

47

Husqvarna 532127783

IDLER PULLEY
(Superseded to 532139245)

$39.99

$

In Stock, Qty 20+

0

48

Husqvarna 532154407

BELLCRANK, CLUTCH

$6.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532123205

RETAIN BELT
(Superseded to 531151801)

$4.99

$

In Stock, only 2 left!

0

50

Husqvarna 532171180

BOLT
(Superseded to 872110612)

$

$

Not available

51

Husqvarna 532171168

NUT
(Superseded to 873680600)

$

$

Not available

52

Husqvarna 532171026

NUT
(Superseded to 873690500)

$

$

Not available

53

Husqvarna 532105710

LINK, CLUTCH LT
(Superseded to 532199652)

$11.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532105709

SPRING, RETURN LT

$13.99

$

In Stock, Qty 20+

0

56

Husqvarna 532171187

BOLT
(Superseded to 874760620)

$5.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532161741

BELT

$

$

Not available

59

Husqvarna 532140312

KEEPER CENTER SPAN
(Superseded to 532169691)

$22.99

$

Usually ships in 3-10 days

0

61

Husqvarna 532171167

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

62

Husqvarna 532124872

PEDAL COVER T
(Superseded to 510089501)

$6.99

$

In Stock, only 2 left!

0

63

Husqvarna 532161400

ENGINE PULLEY

$

$

Not available

65

Husqvarna 532171220

WASHER
(Superseded to 596238901)

$3.49

$

In Stock, only 1 left!

0

66

Husqvarna 532161488

BELT KEEPER

$

$

Not available

69

Husqvarna 532142432

SCREW.HI-LO.CONSOLE
(Superseded to 596134101)

$3.49

$

In Stock, Qty 19

0

71

Husqvarna 532158283

STRAP.TORQUE.LH.HYDRO

$

$

Not available

73

Husqvarna 532158282

STRAP.TORQUE.RH.HYDRO

$

$

Not available

76

Husqvarna 812000053

E RING HYT

$3.99

$

In Stock, only 4 left!

0

77

Husqvarna 532124762

SQ KEY STD
(Superseded to 532009396)

$

$

Not available

81

Husqvarna 532165598

SHIFT.ASM.CROSS.TAPER

$

$

Not available

82

Husqvarna 532123782

SPRING,TORSION

$

$

Not available

83

Husqvarna 532171230

WASHER
(Superseded to 734117771)

$4.99

$

Usually ships in 3-10 days

0

89

Husqvarna 532166624

FENDER CONSOLE
(Superseded to 532164892)

$

$

Not available

93

Husqvarna 532142564

LINE FUEL HYD 4"

$9.49

$

Usually ships in 3-10 days

0

94

Husqvarna 532140462

FAN 7" HYDRO

$13.99

$

In Stock, only 2 left!

0

95

Husqvarna 532158508

CONTROL.ASM.BYPASS.HYDRO-3000

$

$

Not available

96

Husqvarna 532171160

RETAINER SPRING
(Superseded to 532004497)

$4.99

$

In Stock, Qty 20+

0

102

Husqvarna 532141322

WASHER

$7.99

$

Usually ships in 3-10 days

0

103

Husqvarna 532171128

NUT
(Superseded to 873940800)

$4.99

$

In Stock, only 1 left!

0

110

Husqvarna 532171554

Bolt, Hex 3/8-16 UNC x 3/4

$

$

Currently unavailable

111

Husqvarna 532123776

BRKT TRANS RH

$

$

Not available

126

Husqvarna 532171538

Locknut

$

$

Currently unavailable

127

Husqvarna 532171400

BOLT HEX FLGHD 5/16-18X 3 GR 5
(Superseded to 874490548)

$5.99

$

In Stock, only 2 left!

0

128

Husqvarna 532158284

Bracket

$

$

Currently unavailable

129

Husqvarna 532171537

Bolt 5/16-18 UNC

$

$

Currently unavailable

131

Husqvarna 532171540

Washer Lock 5/16 NDM PLTD

$

$

Currently unavailable

133

Husqvarna 532165926

LINK, TRANSAXLE

$

$

Not available

134

Husqvarna 532158278

BELT GUIDE

$

$

Not available

135

Husqvarna 532123800

WASHER

$3.99

$

In Stock, Qty 6

0

136

Husqvarna 532163168

WASHER.AXLE.FLANGE.HG-3000

$3.99

$

In Stock, only 3 left!

0

137

Husqvarna 532171541

Washer 11/32 x 3/4 x 12 Ga.

$

$

Currently unavailable

138

Husqvarna 532171551

Washer 11/32 x 1.25 x 16 Ga.

$

$

Currently unavailable

139

Husqvarna 532171559

Bolt, Hex 3/8-16 UNC x 3/4

$

$

Currently unavailable

140

Husqvarna 532004475

Bushing

$

$

Currently unavailable

141

Husqvarna 532159197

Pin

$

$

Currently unavailable

142

Husqvarna 532171546

Bolt 5/16 x 24 x 1

$

$

Currently unavailable

144

Husqvarna 532171222

WASHER
(Superseded to 819111016)

$

$

Not available

146

Husqvarna 532171157

BOLT
(Superseded to 874490536)

$

$

Not available

150

Husqvarna 532165850

BUSHING.BELLCRANK.GRD.DR

$

$

Not available

151

Husqvarna 532171179

WASHER
(Superseded to 532413524)

$

$

Not available

156

Husqvarna 532171233

WASHER
(Superseded to 532166002)

$

$

Not available

158

Husqvarna 532165589

BRACKET
(Superseded to 532437458)

$6.99

$

Usually ships in 3-10 days

0

159

Husqvarna 532165494

HUB
(Superseded to 532444304)

$6.99

$

Usually ships in 3-10 days

0

161

Husqvarna 532171183

BOLT
(Superseded to 872110407)

$

$

Not available

162

Husqvarna 532171184

NUT
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

163

Husqvarna 532171186

BOLT
(Superseded to 874780416)

$

$

Not available

164

Husqvarna 532171172

WASHER
(Superseded to 819091010)

$

$

Not available

165

Husqvarna 532165623

RP BRACKET
(Superseded to 531149501)

$5.99

$

Usually ships in 3-10 days

0

166

Husqvarna 532166880

SCREW

$

$

Not available

168

Husqvarna 532171232

BOLT
(Superseded to 532165492)

$9.49

$

In Stock, only 2 left!

0

169

Husqvarna 532165581

PLATE FASTENING LT

$5.99

$

Usually ships in 3-10 days

0

189

Husqvarna 532171566

Washer Spacer Axle

$

$

Currently unavailable

190

Husqvarna 532171181

SCREW
(Superseded to 817490608)

$

$

Not available

195

Husqvarna 532171547

Pin Cotter 1/8 x 3/4 Cad Blk D

$

$

Currently unavailable

196

Husqvarna 532171565

Pin, Cotter 1/8 x 1

$

$

Currently unavailable

197

Husqvarna 532169613

NYLINER SNAP 5/8" ID

$5.99

$

In Stock, only 3 left!

0

198

Husqvarna 532169593

WASHER.NYL.7/8IDX.105"HYD CR

$3.99

$

Usually ships in 3-10 days

0
