GTVH 205 (954140102-B) - Husqvarna Garden Tractor (2000-03) Chassis And Enclosures Parts Diagram

Garden Tractor

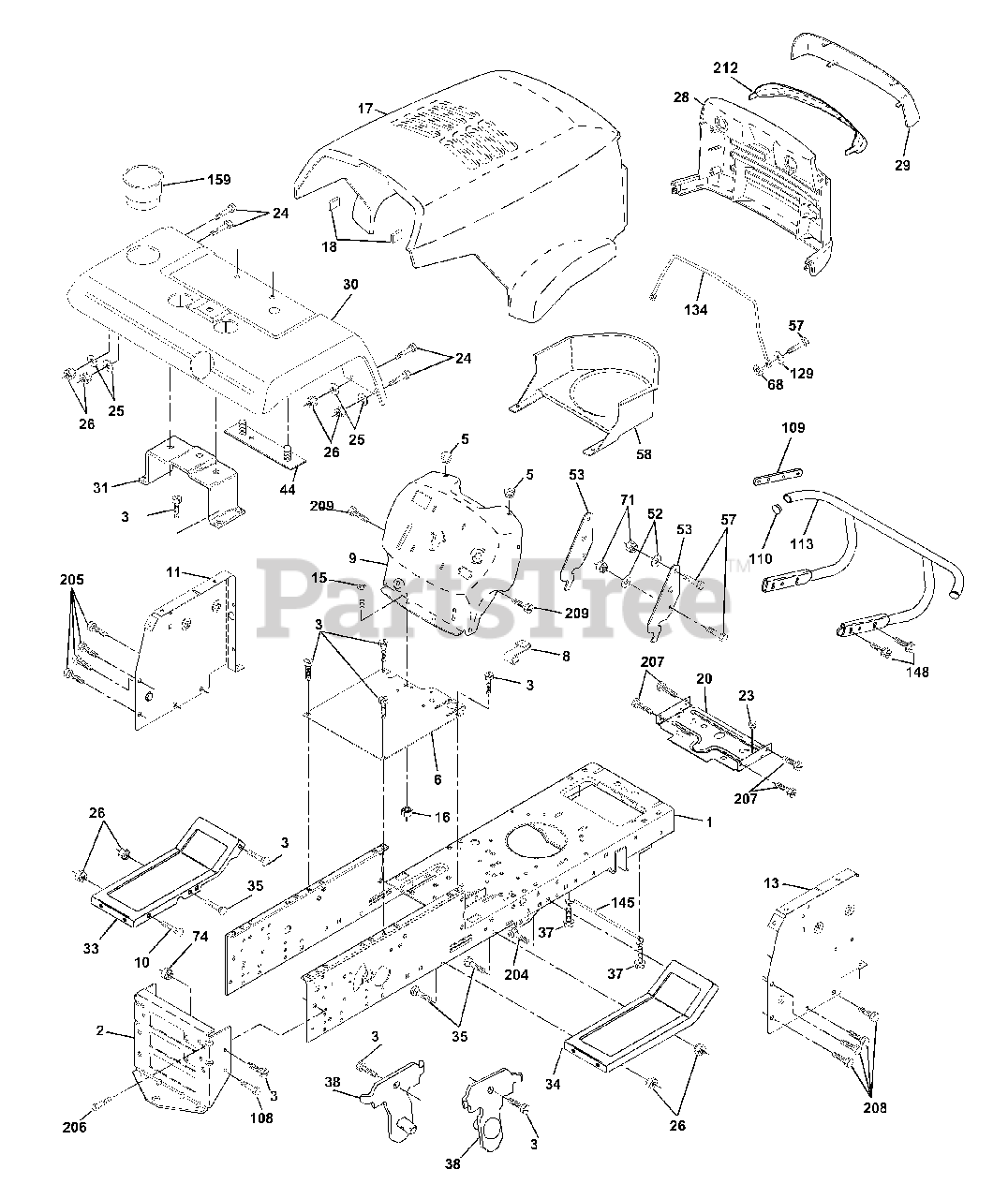

Chassis And Enclosures Parts Diagram

  • Title

1

Husqvarna 532169831

Chassis Stamping

$

$

Not available

2

Husqvarna 532169061

Drawbar
(Superseded to 532176554)

$40.99

$

Usually ships in 3-10 days

0

3

Husqvarna 817060612

Screw 3/8-16x3/4
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 532155272

Bumper

$7.49

$

In Stock, Qty 5

0

6

Husqvarna 532155923

Saddle

$14.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532126471

Clip Insulator

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532171560

Dashboard

$

$

Not available

10

Husqvarna 532171150

Bolt Rdhd Sqnk 3/8-16 Unc x 1
(Superseded to 596728201)

$3.99

$

In Stock, Qty 10

0

11

Husqvarna 532156682

Panel Asm.

$

$

Not available

13

Husqvarna 532172112

Panel Asm.

$

$

Currently unavailable

15

Husqvarna 874180512

Screw Mach Trhd 5/16-18 Unc x 3/4

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 873510500

Nut Keps 5/16-18 Unc
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532165378

Hood
(Superseded to 532156051)

$519.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532126938

Bumper

$

$

Not available

20

Husqvarna 532156437

Plate Mtg Battery/Fuel Tank
(Superseded to 532180679)

$10.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532124028

Bushing

$6.99

$

In Stock, only 3 left!

0

24

Husqvarna 874780616

Bolt 3/8-16 Unc x 1 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

26

Husqvarna 873800600

Nut Lock w/Insert 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532165379

Grille
(Superseded to 532156880)

$

$

Not available

29

Husqvarna 532165380

Grille Lens
(Superseded to 532149777)

$

$

Not available

30

Husqvarna 532169426

Fender
(Superseded to 532167287)

$

$

Not available

31

Husqvarna 532137113

Bracket
(Superseded to 532183569)

$14.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532147203

Foot Rest, L.H.

$

$

Not available

34

Husqvarna 532147202

Foot Rest, R.H.
(Superseded to 532145243)

$

$

Not available

35

Husqvarna 872110606

Bolt Rdhd Sht Sqnk 3/8-16 x 3/4

$4.99

$

Usually ships in 3-10 days

0

37

Husqvarna 817490508

Screw Thdrol 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532169834

Bracket Asm Pivot Mower Rear
(Superseded to 532175710)

$9.99

$

In Stock, only 2 left!

0

44

Husqvarna 532140675

Strap Asm. Fender

$6.49

$

Usually ships in 3-10 days

0

52

Husqvarna 819091416

Washer 9/32 x 7/8 x 16 Ga.

$6.49

$

Usually ships in 3-10 days

0

53

Husqvarna 532150067

Bracket LT/PL Husq.

$

$

Not available

57

Husqvarna 874780412

Bolt Fin Hex 1/4-20 Unc x 3/4
(Superseded to 874780414)

$6.49

$

Usually ships in 3-10 days

0

58

Husqvarna 532151171

Duct Air

$47.99

$

Usually ships in 3-10 days

0

68

Husqvarna 873510400

Nut Keps 1/4-20 UNC
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

71

Husqvarna 873680400

Nut Crownlock 1/4-20 UNC
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

74

Husqvarna 873680600

Nut, Crownlock 3/8-16 UNC

$3.99

$

Usually ships in 3-10 days

0

108

Husqvarna 874760612

Hex Bolt 3/8-16 UNC x 3/4

$4.99

$

In Stock, Qty 16

0

109

Husqvarna 532170310

Bracket Extension Bumper

$

$

Not available

110

Husqvarna 532143679

Plug Plastic

$2.99

$

Usually ships in 3-10 days

0

113

Husqvarna 532170311

Bumper Asm.

$

$

Not available

129

Husqvarna 819091016

Washer 9/32 x 5/8 x 16 Ga.

$4.99

$

Usually ships in 3-10 days

0

134

Husqvarna 532160219

Rod Support Hood

$7.99

$

Usually ships in 3-10 days

0

145

Husqvarna 532156524

Rod Pivot Chassis Hood
(Superseded to 532409167)

$13.99

$

Usually ships in 3-10 days

0

148

Husqvarna 817060620

Screw 3/8-16 x 1-1/4

$7.49

$

In Stock, Qty 20+

0

159

Husqvarna 532166625

Cupholder YTGT Grey
(Superseded to 583710501)

$12.99

$

Usually ships in 3-10 days

0

204

UNKNOWN

$

$

Not available

205

UNKNOWN

$

$

Not available

206

Husqvarna 532170165

Bolt Shoulder 5/16-18 TT

$4.99

$

In Stock, Qty 20+

0

207

Husqvarna 817670508

Screw Thdrol 5/16-18 x 1/2 TYTT

$6.49

$

In Stock, only 2 left!

0

208

Husqvarna 817670608

Screw Thdrol 3/8-16 x 1/2 Ty-TT

$6.49

$

In Stock, only 2 left!

0

209

Husqvarna 817000612

Screw Hex Wsh Thdr 3/8-16 x 3/4

$4.99

$

In Stock, Qty 20+

0

212

Husqvarna 532156195

Insert Lens Reflect

$

$

Not available
