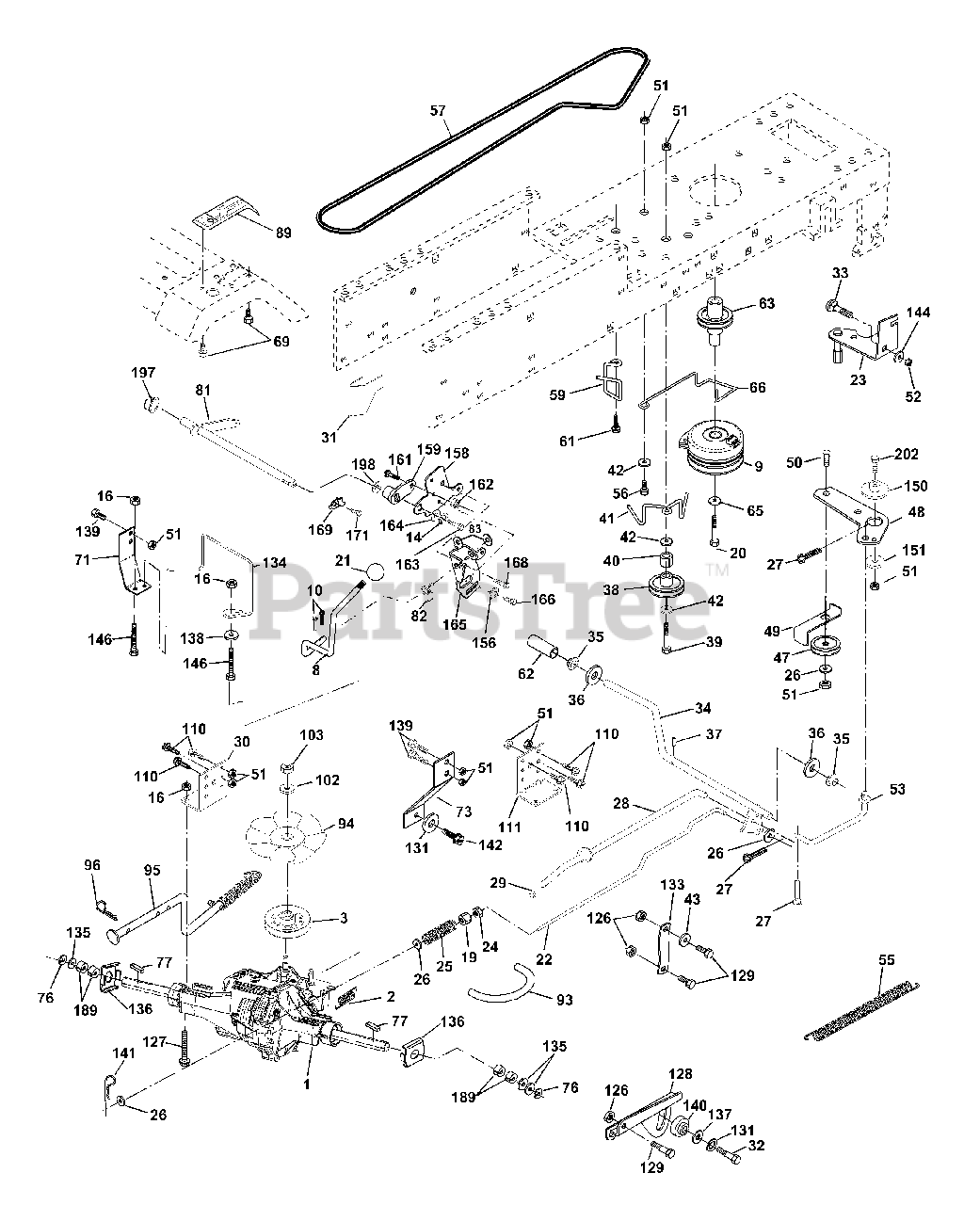

GTVH 205 (954140102-B) - Husqvarna Garden Tractor (2000-03) Drive Parts Diagram

Garden Tractor

Drive Parts Diagram

  • Title

1

Transaxle Hydro Gear 325-3000

Note: (Order parts from transaxle manufacturer)

$

$

Not available

2

Husqvarna 532142431

Spring, Brake Return

$8.99

$

In Stock, only 1 left!

0

3

Husqvarna 532143995

Pulley, Transaxle

$34.99

$

In Stock, only 2 left!

0

8

Husqvarna 532166020

Rod Shift Fender Adjust

$

$

Not available

9

Husqvarna 532160889

Clutch Elect EVX 80 lb.

$362.99

$

Usually ships in 3-10 days

0

10

Husqvarna 876020416

Pin, Cotter 1/8 x 1

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 810040400

Washer Lock Hvy Helical
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

16

Husqvarna 873800500

Nut, Lock Hex w/Ins. 5/16-18 UNC

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 873800600

Nut, Lock Hex w/Ins. 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532150280

Bolt Hex 7/16-20 x 4-1/4 Ga. 5
(Superseded to 532173937)

$4.99

$

In Stock, Qty 10

0

21

Husqvarna 532140845

Knob Delux 1/2-13 Unc

$12.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532158274

Rod, Brake

$17.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532171258

Bracket Asm Anti Rot Evx 2000

$12.99

$

In Stock, only 1 left!

0

24

Husqvarna 873500600

Nut, Hex Jam 3/8-16

$

$

Currently unavailable

25

Husqvarna 532106888

Spring, Rod, Brake
(Superseded to 532151332)

$6.49

$

In Stock, Qty 6

0

26

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 876020412

Pin Cotter 1/8 x 3/4 Cad SD
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

28

Husqvarna 532145204

Rod, Brake, Park

$

$

Not available

29

Husqvarna 532071673

Cap, Brake Parking Black

$4.99

$

In Stock, only 1 left!

0

30

Husqvarna 532123780

Bracket, Transaxle

$4.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532123791

Keeper, Belt, Transaxle

$8.99

$

Usually ships in 3-10 days

0

32

Husqvarna 874760512

Hex Bolt 5/16-18 UNC x 3/4
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

33

Husqvarna 872140506

Bolt Rdhd Sqnk 5/16-18 Unc x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 532155071

Shaft, Foot Pedal

$

$

Not available

35

Husqvarna 532120183

Bearing Nylon

$6.49

$

In Stock, only 3 left!

0

36

Husqvarna 819211616

Washer

$6.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532124963

Pin, Roll
(Superseded to 532002882)

$6.99

$

In Stock, only 3 left!

0

38

Husqvarna 532131494

Idler, Flat
(Superseded to 597025001)

$26.99

$

In Stock, Qty 20+

0

39

Husqvarna 874760644

Bolt

$6.49

$

Usually ships in 3-10 days

0

40

Husqvarna 532124965

Spacer, Split

$6.49

$

Usually ships in 3-10 days

0

41

Husqvarna 532165838

Keeper, Idler

$

$

Not available

42

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

43

Husqvarna 819111012

Washer 11/32 x 5/8 x 12 Ga.

$6.49

$

Usually ships in 3-10 days

0

47

Husqvarna 532127783

Pulley, Idler
(Superseded to 532139245)

$34.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532154407

Bellcrank Clutch Grnd Drv Stl

$8.99

$

In Stock, only 1 left!

0

49

Husqvarna 532123205

Retainer, Belt

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 874760624

Bolt Hex Hd 3/8-16 Unc x 1-1/2
(Superseded to 874930624)

$

$

Not available

51

Husqvarna 873680600

Nut, Crownlock 3/8-16

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 873680500

Nut Crown Lock 5/16-18 Blk D
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532105710

Link, Clutch
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532105709

Spring, Return, Clutch

$10.99

$

In Stock, Qty 20+

0

56

Husqvarna 874760620

Bolt, Hex 3/8-16 UNC x 1-1/4

$7.49

$

In Stock, only 3 left!

0

57

Husqvarna 532161741

V-Belt Drive

$66.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532169691

Keeper Belt Centerspan

$26.99

$

Usually ships in 3-10 days

0

61

Husqvarna 817060612

Screw 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

62

Husqvarna 532124872

Cover, Foot Pedal
(Superseded to 532008883)

$6.49

$

In Stock, Qty 14

0

63

Husqvarna 532161400

Engine Pulley

$66.99

$

Usually ships in 3-10 days

0

65

Husqvarna 810040700

Washer
(Superseded to 539990247)

$

$

Not available

66

Husqvarna 532161488

Keeper, Belt Engine

$4.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532142432

Screw

$6.49

$

Usually ships in 3-10 days

0

71

Husqvarna 532158283

Torque Fastener L.H.

$14.99

$

Usually ships in 3-10 days

0

73

Husqvarna 532158282

Torque Fastener R.H.

$

$

Not available

76

Husqvarna 812000053

E-Ring

$7.49

$

In Stock, only 2 left!

0

77

Husqvarna 532124762

Key, Square
(Superseded to 532009396)

$3.99

$

Usually ships in 3-10 days

0

81

Husqvarna 532165598

Shaft Asm Cross Tapered

$21.99

$

Usually ships in 3-10 days

0

82

Husqvarna 532123782

Spring, Torsion

$

$

Not available

83

Husqvarna 819171216

Washer 17/32 x 3/4 x 16 Ga.
(Superseded to 734117771)

$6.49

$

In Stock, only 2 left!

0

89

Husqvarna 532166624

Console, Shift
(Superseded to 532164892)

$

$

Not available

93

Husqvarna 532142564

Fuel Line

$6.49

$

Usually ships in 3-10 days

0

94

Husqvarna 532140462

Fan 7"

$12.99

$

In Stock, only 3 left!

0

95

Husqvarna 532158508

Control Assembly Bypass Hydro

$17.99

$

Usually ships in 3-10 days

0

96

Husqvarna 532124788

Retainer, Spring 1"
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

102

Husqvarna 532141322

Washer .501 x 1.50D

$4.99

$

Usually ships in 3-10 days

0

103

Husqvarna 873940800

Nut Hex Jam Toplock 1/2-20 UNF

$7.49

$

In Stock, Qty 11

0

110

Husqvarna 874760612

Bolt, Hex 3/8-16 UNC x 3/4

$4.99

$

In Stock, Qty 17

0

111

Husqvarna 532123776

Bracket

$

$

Not available

126

Husqvarna 532124949

Locknut

$3.99

$

Usually ships in 3-10 days

0

127

Husqvarna 874490548

Bolt, Hex 5/16-18 UNC x 3

$6.49

$

In Stock, only 2 left!

0

128

Husqvarna 532158284

Bracket

$

$

Currently unavailable

129

Husqvarna 532105529

Bolt 5/16-18 UNC
(Superseded to 532139888)

$6.49

$

In Stock, Qty 9

0

131

Husqvarna 810140500

Washer Lock 5/16 NDM PLTD
(Superseded to 810040500)

$3.99

$

In Stock, Qty 18

0

133

Husqvarna 532165926

Link Transaxle Hydro 3000

$

$

Not available

134

Husqvarna 532158278

Belt, Guide

$

$

Not available

135

Husqvarna 532123800

Washer 1-1/32 x 1-5/8 x 16 Ga.

$7.49

$

In Stock, only 3 left!

0

136

Husqvarna 532163168

Washer

$15.99

$

In Stock, only 3 left!

0

137

Husqvarna 819111212

Washer 11/32 x 3/4 x 12 Ga.

$8.99

$

Usually ships in 3-10 days

0

138

Husqvarna 819112016

Washer 11/32 x 1.25 x 16 Ga.

$3.99

$

Usually ships in 3-10 days

0

139

Husqvarna 874780612

Bolt, Hex 3/8-16 UNC x 3/4

$7.49

$

In Stock, only 2 left!

0

140

Husqvarna 532004475

Bushing

$

$

Currently unavailable

141

Husqvarna 532159197

Pin

$

$

Currently unavailable

142

Husqvarna 874330516

Bolt 5/16 x 24 x 1

$

$

Not available

144

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga SD

$0.99

$

Usually ships in 3-10 days

0

146

Husqvarna 874490536

Bolt Hex Flghd 5/16-18 x 2-1/4

$

$

Not available

150

Husqvarna 532165850

Bushing Bellcrank Grd Drive

$

$

Not available

151

Husqvarna 819133210

Washer 13/32 x 2 x 10 Ga.
(Superseded to 532413524)

$

$

Not available

156

Husqvarna 532166002

Washer Srrted 5/16ID x 1.125

$6.49

$

Usually ships in 3-10 days

0

158

Husqvarna 532165589

Bracket Shift Mount
(Superseded to 532437458)

$7.49

$

Usually ships in 3-10 days

0

159

Husqvarna 532165494

Hub Tapered Flange Shift Lt
(Superseded to 532444304)

$8.99

$

Usually ships in 3-10 days

0

161

Husqvarna 872140406

Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr 5
(Superseded to 872110407)

$4.99

$

Usually ships in 3-10 days

0

162

Husqvarna 873680400

Nut Crownlock 1/4-20 Unc
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

163

Husqvarna 874870416

Bolt Hex Fin 1/4-20 Unc x 1 Gr 5

$

$

Currently unavailable

164

Husqvarna 819091010

Washer 5/8 x .281 x 10 Ga

$

$

Not available

165

Husqvarna 532165623

Bracket Pivot Lever
(Superseded to 532438250)

$7.49

$

Usually ships in 3-10 days

0

166

Husqvarna 532166880

Screw 5/16-18 x 5/8

$6.49

$

Usually ships in 3-10 days

0

168

Husqvarna 532165492

Bolt Shoulder 5/16-18 x .561

$6.49

$

In Stock, only 3 left!

0

169

Husqvarna 532165581

Plate Fastening Lt

$4.99

$

Usually ships in 3-10 days

0

171

Husqvarna 817490608

Screw Thdrol 3/8-16 x 1/2

$6.49

$

Usually ships in 3-10 days

0

189

Husqvarna 532160849

Washer Spacer Axle

$

$

Not available

197

Husqvarna 532169613

Nyliner Snap-in 5/8" ID

$7.49

$

In Stock, Qty 6

0

198

Husqvarna 532169593

Washer Nyl 7/8ID x 105" Hyd CRD

$7.49

$

Usually ships in 3-10 days

0

202

Husqvarna 872110612

Bolt Carr Sh 3/8-16 X 1-1/2 Gr 5

$6.49

$

Usually ships in 3-10 days

0
