GTVH 205 (954140102-B) - Husqvarna Garden Tractor (2000-03) Mower Deck Parts Diagram

Garden Tractor

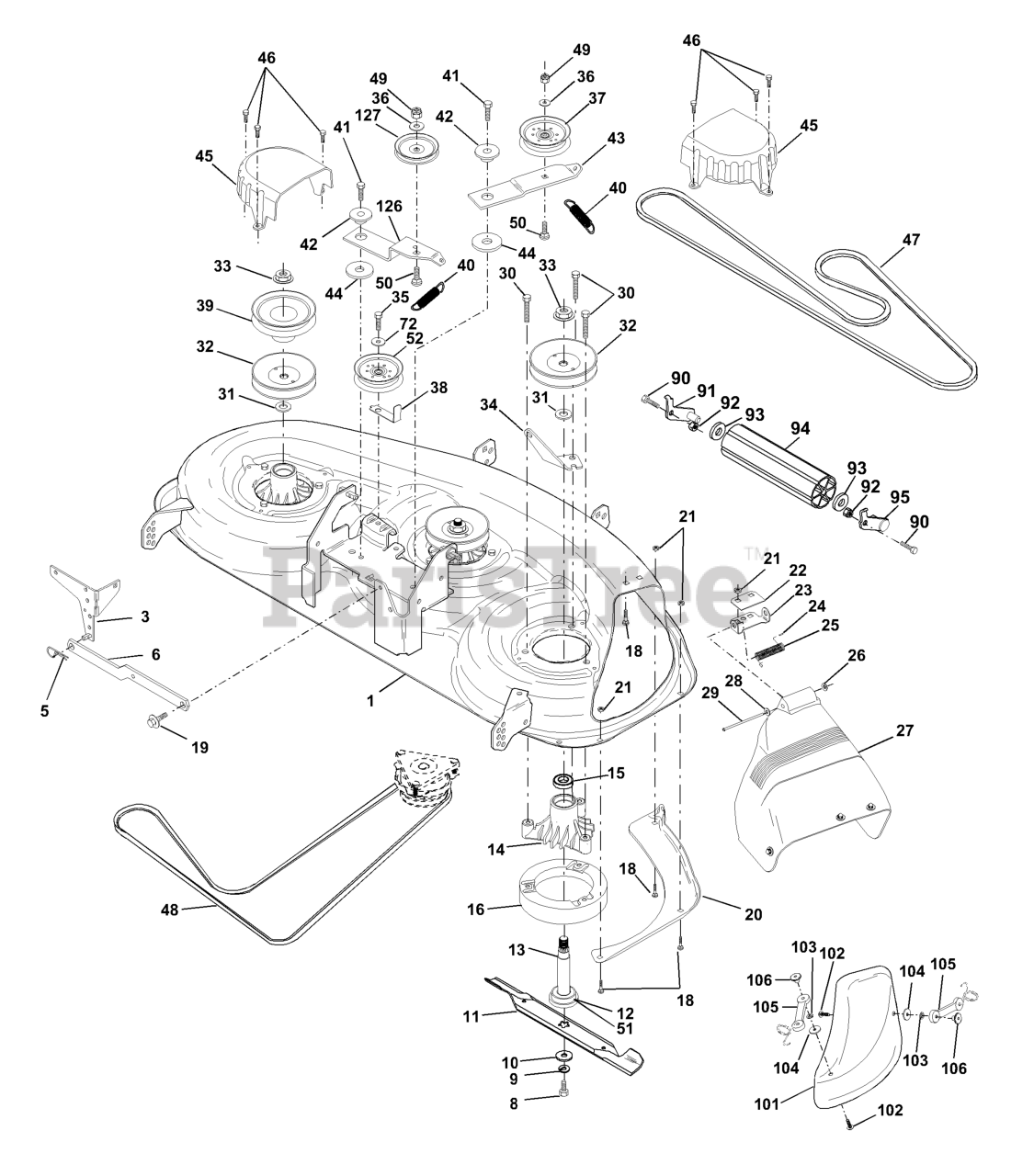

Mower Deck Parts Diagram

  • Title

1

Husqvarna 532164212

DECK
(Superseded to 532176034)

$

$

Not available

3

Husqvarna 532138457

BRACKET SWAY BAR

$

$

Not available

5

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

6

Husqvarna 532130832

REAR SUSP ARM
(Superseded to 531149301)

$13.99

$

In Stock, only 2 left!

0

8

Husqvarna 532850857

BLADE BOLT

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 810030600

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 532140296

WASHER.BLADE

$6.99

$

In Stock, Qty 20+

0

11

Husqvarna 532170698

46" HIGH PERFORMANCE BLADE
(Superseded to 532176084)

$26.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532152443

MULCH BLADE 46"

$22.99

$

In Stock, Qty 20+

0

12

Husqvarna 532129895

BEARING.BALL.#6204.(MANDREL)

$13.99

$

In Stock, Qty 20+

0

13

Husqvarna 532137553

SHAFT.ASM.W/BEARING

Note: (Includes Key No. 12)

$43.99

$

In Stock, Qty 8

0

14

Husqvarna 532137152

HOUSING.MANDREL.44/46" VENT

$39.99

$

In Stock, only 4 left!

0

15

Husqvarna 532110485

BEARING

$14.99

$

In Stock, Qty 20+

0

16

Husqvarna 532140329

STRIPPER
(Superseded to 531167701)

$10.99

$

In Stock, Qty 20+

0

18

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.49

$

In Stock, Qty 20+

0

19

Husqvarna 532132827

BOLT SHD 5/16-18

$

$

Not available

20

Husqvarna 532145055

BAFFLE, VORTEX MOWER 46"
(Superseded to 531154201)

$

$

Not available

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$

$

Not available

22

Husqvarna 532134753

STIFFENER BRACKET
(Superseded to 532177563)

$

$

Not available

23

Husqvarna 532131267

DEFLECTOR BRACKET
(Superseded to 529845901)

$5.99

$

In Stock, Qty 14

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$3.49

$

In Stock, Qty 20+

0

25

Husqvarna 532149287

TORSION SPRING
(Superseded to 532123713)

$7.99

$

In Stock, Qty 16

0

26

Husqvarna 532110452

NUT PUSH M

$3.49

$

In Stock, Qty 20+

0

27

Husqvarna 532171384

SHIELD DEFLECTOR
(Superseded to 532166883)

$

$

Not available

28

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga.

$

$

Not available

29

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$6.99

$

In Stock, Qty 20+

0

30

Husqvarna 532157722

SCREW THDROL ROLLING WASHER HD
(Superseded to 532173984)

$1.49

$

In Stock, Qty 20+

0

31

Husqvarna 532129965

CASE BATTERY
(Superseded to 532404349)

$

$

Not available

32

Husqvarna 532153531

PULLEY, MANDREL
(Superseded to 532173434)

$17.99

$

In Stock, Qty 20+

0

33

Husqvarna 532137266

NUT
(Superseded to 532139729)

$9.49

$

In Stock, only 2 left!

0

34

Husqvarna 532144945

ANCHOR, SPRING DECK 46"

$

$

Not available

35

Husqvarna 817490628

SCREW LT
(Superseded to 599972501)

$3.49

$

In Stock, Qty 20+

0

36

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

37

Husqvarna 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$28.99

$

In Stock, Qty 20+

0

38

Husqvarna 532156086

KEEPER.BELT.IDLER

$6.99

$

In Stock, Qty 12

0

39

Husqvarna 532144917

PULLEY.DRIVEN.DECK.46"

$34.99

$

In Stock, only 3 left!

0

40

Husqvarna 532137273

SPRING.SEC.44"VEN

$9.49

$

In Stock, Qty 11

0

41

Husqvarna 817060620

SCREW.3/8-16

$6.99

$

In Stock, Qty 20+

0

42

Husqvarna 532165723

SPACER.RETAINER.MOWER

$6.99

$

In Stock, Qty 20+

0

43

Husqvarna 532144949

ARM IDLER DECK 46"

$

$

Not available

44

Husqvarna 532133943

HARDENED WASHER
(Superseded to 532178515)

$6.99

$

In Stock, Qty 20+

0

45

Husqvarna 532145059

COVER MANDREL 46

$

$

Not available

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$2.49

$

In Stock, Qty 20+

0

47

Husqvarna 532144959

BELT V SECONDARY

$43.99

$

In Stock, Qty 20+

0

48

Husqvarna 532148763

V-BELT PRIMARY 50"

$68.99

$

In Stock, only 1 left!

0

49

Husqvarna 873680600

LOCKNUT

$

$

Not available

50

Husqvarna 872110612

BOLT.3/8-16X1.50
(Superseded to 596136101)

$3.49

$

In Stock, Qty 16

0

51

Husqvarna 532153390

WASHER FELT

$4.99

$

Usually ships in 3-10 days

0

52

Husqvarna 532156493

PULLEY IDLER FLAT 46 PRI DRIVE
(Superseded to 532173901)

$

$

Not available

56

Husqvarna 532155986

BAR.ADJUST.WHEEL.ANTI.SCALP.BL

$26.99

$

In Stock, Qty 6

0

57

Husqvarna 532156941

RIVET.PIN.HEAD.YELLOW.

$5.99

$

In Stock, only 1 left!

0

72

Husqvarna 819131616

WASHER
(Superseded to 596140201)

$3.49

$

In Stock, only 2 left!

0

90

Husqvarna 874760616

BOLT
(Superseded to 596564401)

$4.99

$

In Stock, Qty 15

0

91

Husqvarna 532132274

BRACKET LH (A)
(Superseded to 532175746)

$9.49

$

In Stock, only 2 left!

0

92

Husqvarna 873800600

NUT
(Superseded to 873680600)

$

$

Not available

93

Husqvarna 819171416

Washer 17/32 x 7/8 x 16 Ga.

$4.99

$

In Stock, only 2 left!

0

94

Husqvarna 532132264

NOSE ROLLER

$37.99

$

In Stock, Qty 20+

0

95

Husqvarna 532132273

BRACKET RH (B)
(Superseded to 531154101)

$14.99

$

In Stock, only 4 left!

0

101

Husqvarna 532145579

COVER.MULCH.46"3-BLADE.(2 2)

$

$

Not available

102

Husqvarna 871161010

SCREW
(Superseded to 596039001)

$3.49

$

In Stock, Qty 20+

0

103

Husqvarna 810071000

LOCKWASHER #10

$4.99

$

In Stock, only 2 left!

0

104

Husqvarna 532125004

WELDNUT
(Superseded to 596987401)

$3.49

$

In Stock, Qty 20+

0

105

Husqvarna 819061216

WASHER

$3.49

$

In Stock, Qty 20+

0

106

532160793

LATCH ASSY

$

$

Not available

116

Husqvarna 532137644

BOLT, SHOULDER
(Superseded to 596434404)

$2.49

$

In Stock, Qty 20+

0

117

Husqvarna 532133957

WHEEL GAGE DONUT

$14.99

$

In Stock, Qty 20+

0

118

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$

$

Not available

119

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

126

Husqvarna 532144948

ARM IDLER PRIM 46

$

$

Not available

127

Husqvarna 532146763

PULLEY.IDLER.4.25
(Superseded to 593787801)

$31.99

$

Usually ships in 3-10 days

0

Husqvarna 532143651

KIT.MANDREL.ASM.44"/46/50"SRVC

$102.99

$

In Stock, only 1 left!

0

Husqvarna 532171561

MOWER SERV 46"
(Superseded to 532166211)

Note: (Std. Deck-Order separately nose roller and gauge wheel components Key Nos. 90-95 and 116-118)

$

$

Not available
