GTX 2000 (14W-3FM-210) - Cub Cadet Garden Tractor (2012) Kohler CH640-3052 Fuel System Parts Diagram

Garden Tractor

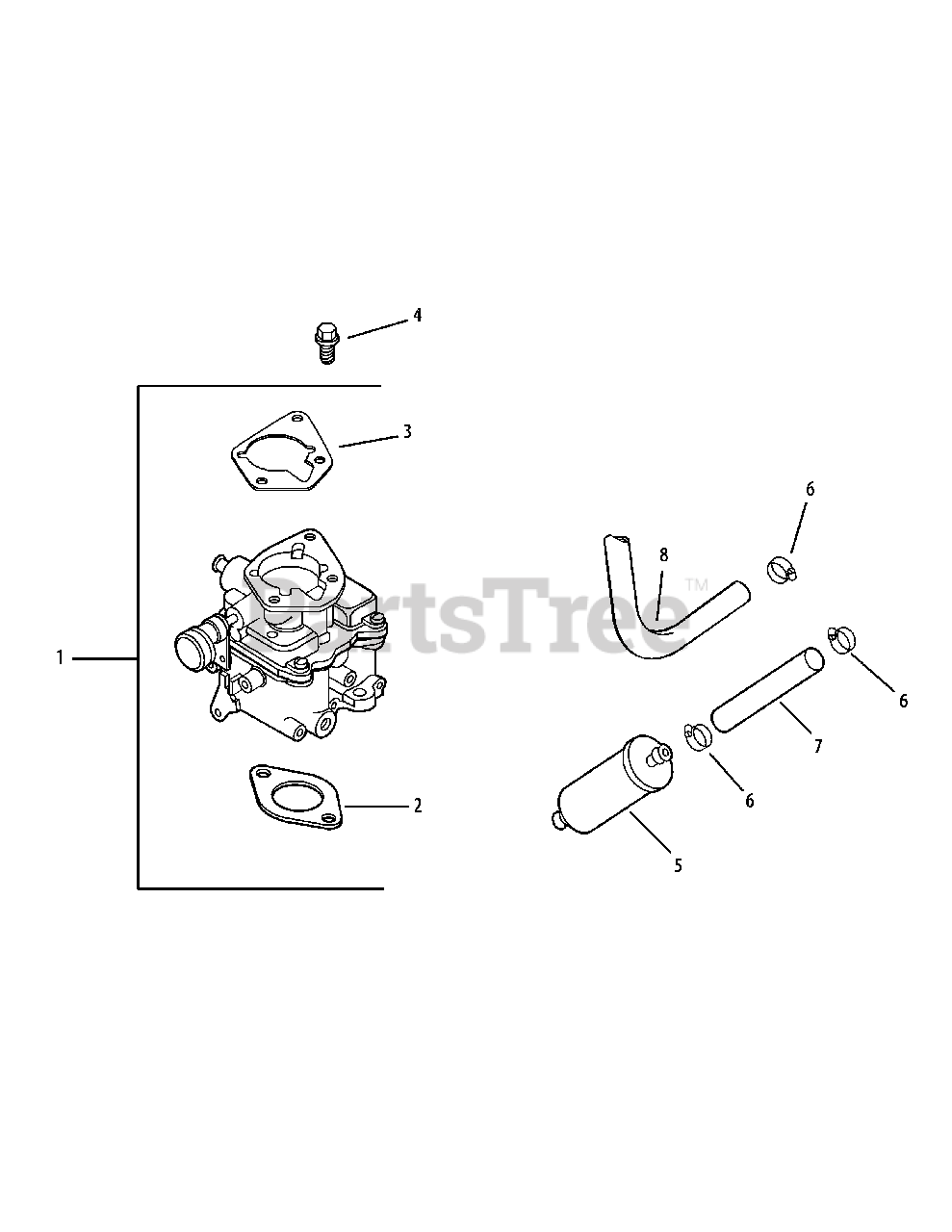

Kohler CH640-3052 Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-24-853-32

Carburetor W/Gaskets KSF
(Superseded to KH-24-853-309-S)

$360.99

$

Usually ships in 3-6 days

0

2

Cub Cadet KH-24-041-06

Gasket, Air Cleaner Base

$2.99

$

In Stock, Qty 20+

0

3

Cub Cadet KH-24-041-53-S

Gasket, Carburetor

$3.49

$

In Stock, Qty 8

0

4

Cub Cadet KH-M-651025-S

Screw, hex Flg M6x1.0x25
(Superseded to KH-25-086-124-S)

$3.49

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-24-050-13-S

Filter, Fuel
(Superseded to 2405013S1C)

$12.99

$

In Stock, Qty 20+

0

6

Cub Cadet KH-25-237-31-S

Clamp, Hose 1/2"

$5.99

$

In Stock, Qty 12

0

7

Cub Cadet 751-10349-16

Line, Fuel 10"

$33.99

$

In Stock, Qty 10

0

8

Cub Cadet KH-24-353-12

Line, Flex 11" Pump-Pulse (Air Only)

$

$

Not available

Cub Cadet KH-24-518-24-S

Lead, Ground

Note: (Not Shown (solenoid to carb mounting screw)

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-01

Kit, Repair Solenoid

Note: (Not Shown)

$

$

Not available

Cub Cadet KH-24-757-02-S

Kit, Repair Float

Note: (Not Shown)

$166.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-03-S

Kit, Repair Carburetor

Note: (Not Shown)

$139.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-07

Kit, Repair Choke

Note: (Not Shown)

$

$

Not available

Cub Cadet KH-24-755-125-S

Kit, High Altitude (4,000 - 8,000 FT)

Note: (Not Shown)

$67.99

$

In Stock, only 1 left!

0
