GTX 2100 (14W-3GE-010) - Cub Cadet Garden Tractor (2012) Front Axle Assembly Parts Diagram

Garden Tractor

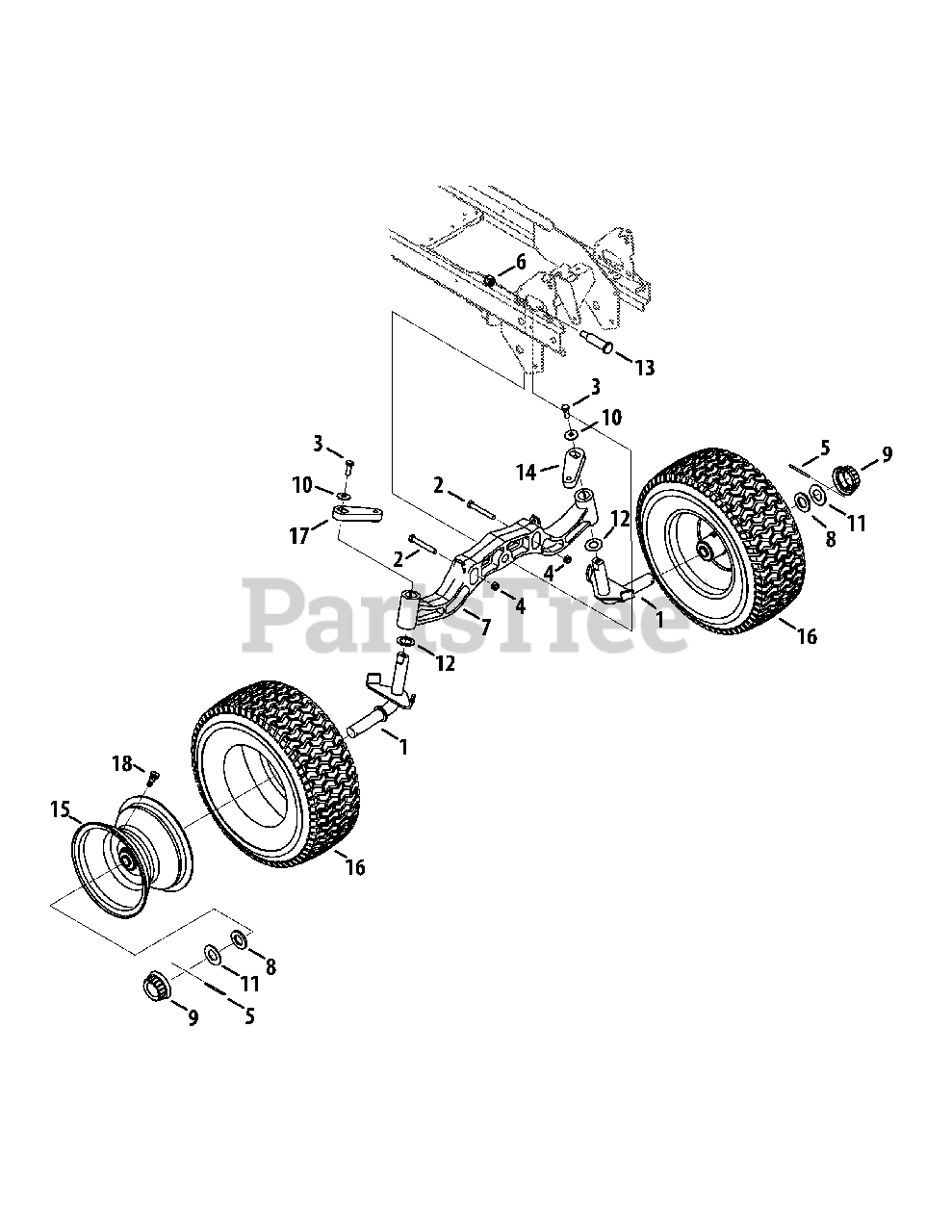

Front Axle Assembly Parts Diagram

  • Title

1

Cub Cadet 903-04913

Axle Assembly, 1"

$112.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-3066

Hex Screw, 3/8-16 x 2.75

$5.99

$

In Stock, Qty 7

0

3

Cub Cadet 710-0591

Hex Cap Screw, 3/8-24 x 1.00

$4.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 712-0375

Hex Lock Nut, 3/8-16

$4.99

$

In Stock, only 1 left!

0

5

Cub Cadet 714-0211

Cotter Pin, 3/16 x 2.0

$4.49

$

In Stock, Qty 14

0

6

Cub Cadet 712-3083

Hex Lock Nut, 1/2-13

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet 719-04721

Pivot Bar
(Superseded to 719-04721B)

$337.99

$

In Stock, only 1 left!

0

8

Cub Cadet 936-0274

Flat Washer, 1.010 x 1.75 x .172
(Superseded to 736-0274)

$9.49

$

In Stock, Qty 9

0

9

Cub Cadet 931-3020

Hubcap

$9.49

$

In Stock, Qty 20+

0

10

Cub Cadet 736-0331

Bevel Washer, .390 x 1.130 x .062

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 736-04617

Flat Washer, 1.05 x 1.92 x .06

$3.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 736-0745

Thrust Washer, 1.010 x 1.56 x .060

$13.99

$

In Stock, Qty 15

0

13

Cub Cadet 938-3110

Shoulder Screw, .750 x 2.23

$35.99

$

In Stock, only 4 left!

0

14

Cub Cadet 748-04286

Steering Arm, LH

$44.99

$

In Stock, only 1 left!

0

15

Cub Cadet 634-04722-0499

Rim Assembly, 16.0 x 6.5 x 8
(Superseded to 934-04722-0499)

$197.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 941-3002

Ball Bearing

Note: Not shown

$38.99

$

In Stock, Qty 12

0

16

Cub Cadet 734-1727

Tire, 16.0 x 6.50-8.00

$60.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 748-04290

Steering Arm, RH

$44.99

$

In Stock, only 1 left!

0

18

Cub Cadet 934-0255

Tubeless Air Valve

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 634-04723-0931

Wheel Assembly Complete
(Superseded to 634-04723A-0931)

Note: Beige, Not shown

$324.99

$

Usually ships in 3-6 days
