GTX 2100 (14W-3GE-010) - Cub Cadet Garden Tractor (2012) Kohler CH680-3034 Air Intake & Filtration Parts Diagram

Garden Tractor

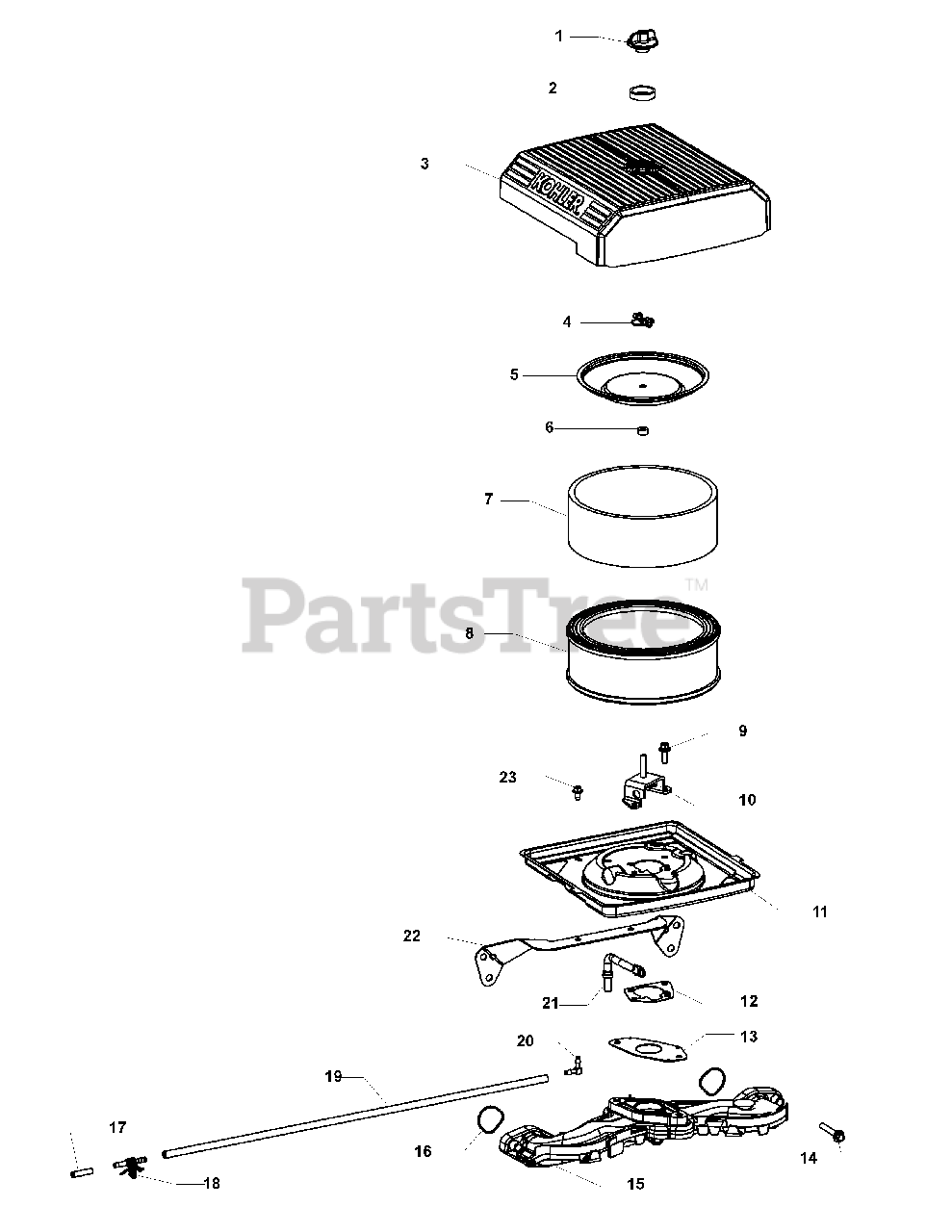

Kohler CH680-3034 Air Intake & Filtration Parts Diagram

  • Title

1

Cub Cadet KH-25-341-04-S

Knob, Cover

$7.99

$

In Stock, only 4 left!

0

2

Cub Cadet KH-24-153-20-S

O-Ring

$2.99

$

In Stock, Qty 20+

0

3

Cub Cadet KH-24-096-133-S

Cover, Air Cleaner

$35.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-12-100-01

Nut, Wing

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet KH-24-096-01

Cover, Inner Air Cleaner

$

$

Not available

6

Cub Cadet KH-24-032-03

Seal, Inner Air Cleaner

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet N/A

Element, Precleaner

$

$

Currently unavailable

8

Cub Cadet KH-47-883-03-S1

Elements, Air Cleaner Filter & Precleaner
(Superseded to 4788303S1C)

$27.99

$

Usually ships in 3-6 days

0

9

Cub Cadet KH-24-086-53-S

Screw, Flg Thd Frm M6x1.0x16

$2.99

$

In Stock, only 3 left!

0

10

Cub Cadet KH-24-126-206-S

Bracket, Air Cleaner

$12.99

$

In Stock, only 3 left!

0

11

Cub Cadet KH-24-094-84-S

Kit, Air Cleaner Base

$20.99

$

In Stock, only 3 left!

0

12

Cub Cadet KH-24-041-06

Gasket, Air Cleaner Base

$2.99

$

In Stock, Qty 20+

0

13

Cub Cadet KH-24-041-53-S

Gasket, Carburetor

$3.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-M-651040-S

Screw, Flg M6x1.0x40

$2.49

$

In Stock, only 3 left!

0

15

Cub Cadet KH-24-164-93-S

Kit, Intake Manifold
(Superseded to KH-24-164-276-S)

$232.99

$

Usually ships in 3-6 days

0

16

Cub Cadet KH-24-153-27-S

O-Ring, Intake Port

$3.99

$

In Stock, only 2 left!

0

17

Cub Cadet KH-25-173-33-S

Cap, Masking

$2.49

$

In Stock, Qty 10

0

18

Cub Cadet KH-25-155-51-S

Connector, Evaporative

$13.99

$

In Stock, Qty 8

0

19

Cub Cadet KH-25-326-08-S

Hose, Evaporative, 20"
(Superseded to KH-24-326-143-S)

$5.49

$

In Stock, Qty 13

0

20

Cub Cadet KH-24-294-27-S

Connector, Evaporative Hose

$3.49

$

Usually ships in 2-5 days

0

21

Cub Cadet KH-24-326-116-S

Hose, Evaporative
(Superseded to KH-24-326-131-S)

$7.49

$

In Stock, Qty 8

0

22

Cub Cadet KH-24-126-130-S

Bracket, Air Cleaner Base

$10.99

$

In Stock, only 2 left!

0

23

Cub Cadet KH-M-0545010

Screw, Flg Thd Frm M5x0.8x10

$4.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-54-755-01-S

Kit, Knob w/Seal

Note: Not Shown (Inc. 1, 2, KH-24-041-27-S)

$9.49

$

In Stock, Qty 20+

0
